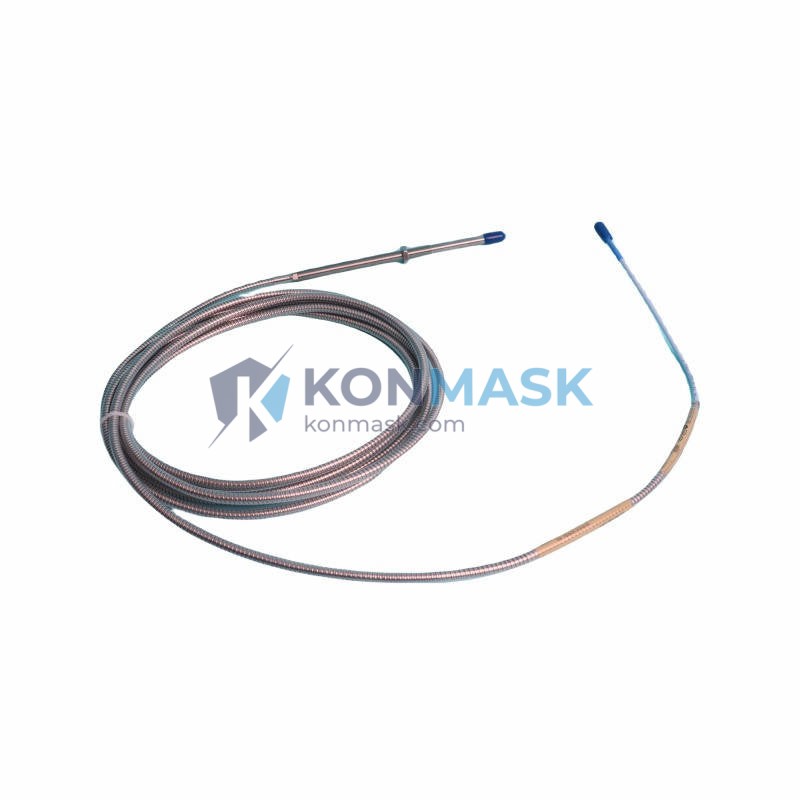

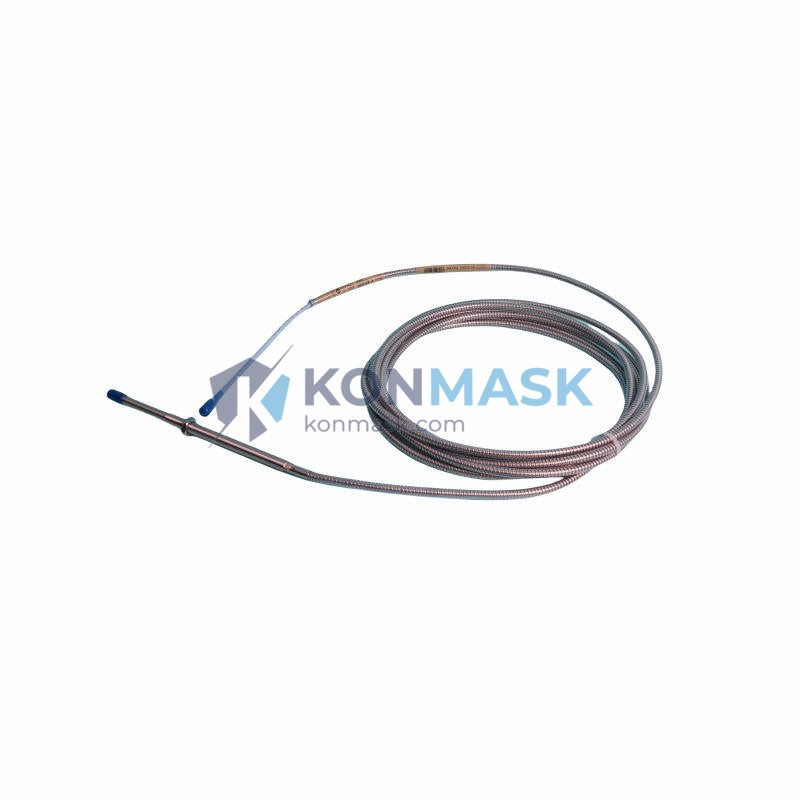

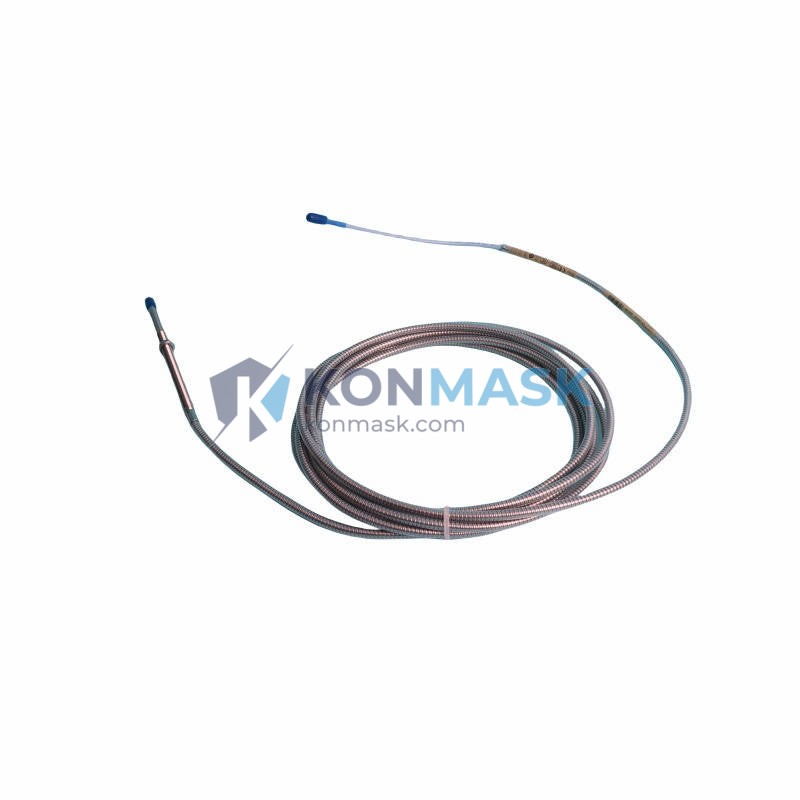

Bently Nevada 330104-02-08-10-02-00 – Eddy-Current Proximity Transducer System | 3300 Series Platform
Engineering Background: The Bently Nevada 3300 Series Proximity Transducer System is the industry benchmark for non-contact, continuous shaft vibration and position measurement in rotating machinery. Engineered to API 670 standards, this system has been deployed in critical turbomachinery protection applications across power generation, oil & gas, petrochemical, and heavy industrial sectors for decades.
Product Positioning: Part number 330104-02-08-10-02-00 is a complete eddy-current transducer system comprising a probe, extension cable, and proximitor/oscillator-demodulator. It delivers a DC voltage output linearly proportional to the gap between the probe tip and the observed conductive target surface — enabling real-time radial vibration, axial position, differential expansion, and eccentricity measurements with micron-level resolution.
Complete Technical Specifications
- Part Number: 330104-02-08-10-02-00
- Series / Platform: Bently Nevada 3300 Series
- System Type: Eddy-Current Proximity Transducer System (Probe + Extension Cable + Proximitor)
- Measurement Principle: Eddy-current (non-contact)
- Probe Thread: 8 mm
- Probe Length: Standard (per part number suffix)
- Extension Cable Length: 5 m (per -10- suffix)
- Proximitor Supply Voltage: –24 VDC (nominal)
- Output Signal: –2 VDC to –18 VDC (linear range)
- Scale Factor: 200 mV/mil (7.87 V/mm)
- Linear Range: 80 mil (2.032 mm) typical
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Operating Temperature: –35°C to +121°C (probe); –35°C to +85°C (proximitor)
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Connector Type: Standard BNC / integral per system configuration
- Compliance: API 670, CE, RoHS
- Weight: ~80 g (probe assembly)
- Country of Origin: United States
Proven Application Environments
- Steam and gas turbine radial shaft vibration monitoring
- Compressor axial position and thrust measurement
- Pump and motor eccentricity and differential expansion
- Gearbox and expander shaft orbit analysis
- Integration with Bently Nevada 3500 Series rack-based protection systems
- Retrofit and replacement for legacy 3300 Series installations
- Offshore platforms, LNG trains, and refinery critical machinery
Engineering Advantages
- Non-contact measurement: Zero mechanical wear; suitable for continuous 24/7 operation
- High linearity: ±1% linearity across full measurement range
- Wide temperature range: Qualified for high-temperature turbine environments
- API 670 compliant: Meets machinery protection standard for critical rotating equipment
- Plug-and-play compatibility: Direct replacement for existing 3300 Series installations without recalibration
- EMI/RFI immunity: Shielded cable design minimizes interference in industrial environments
- Long service life: Solid-state design with no moving parts; MTBF >100,000 hours
System Architecture & Signal Flow
The 330104-02-08-10-02-00 system operates as a three-component eddy-current chain:
- Probe (330104): Generates a high-frequency electromagnetic field at the tip. As the conductive shaft surface approaches, eddy currents are induced, loading the oscillator circuit.
- Extension Cable: Transmits the RF signal between probe and proximitor with controlled impedance. Length is matched to the proximitor calibration (5 m in this configuration).
- Proximitor / Oscillator-Demodulator: Converts the RF loading change into a calibrated DC voltage output. Output is directly wired to the 3500 Series monitor input card or equivalent DCS/PLC analog input.
Output voltage range: –2 VDC (near gap) to –18 VDC (far gap), with a nominal gap of 50 mil (1.27 mm) at –10 VDC midpoint.
Sourcing & Quality Verification
- Source: Konmask.com sources 3300 Series components from verified OEM channels and authorized industrial distributors
- Inspection: Each unit undergoes visual inspection, label verification, and functional continuity check prior to shipment
- Authenticity: Part numbers, date codes, and serial numbers are cross-referenced against Bently Nevada documentation
- Condition: New (factory-sealed) or Refurbished-Tested — clearly stated at time of quotation
- Documentation: Certificate of conformance and test report available upon request
Procurement Process
- Submit your RFQ via support@konmask.com with quantity, required delivery, and site application details
- Receive quotation with lead time, condition, and documentation package within 24 business hours
- Confirm purchase order — payment via T/T, PayPal, or credit card accepted
- Shipment via DHL / FedEx / UPS with full tracking; export documentation included for international orders
- Post-delivery technical support available for installation and commissioning queries
Technical FAQ
Q: Is the 330104-02-08-10-02-00 compatible with the Bently Nevada 3500/42M monitor?
A: Yes. The 3300 Series proximity system outputs a standard –24 VDC-powered, voltage-output signal fully compatible with all 3500 Series transient data and machinery protection monitors.
Q: Can the extension cable length be changed?
A: No. The extension cable length is factory-matched to the proximitor calibration. Changing cable length requires a recalibrated proximitor. Always order the complete matched system.
Q: What is the recommended gap for initial commissioning?
A: Set the initial gap to 50 mil (1.27 mm), which corresponds to the –10 VDC midpoint output. This maximizes the usable linear range in both directions.
Q: Do you supply calibration certificates?
A: Yes. Factory calibration data and certificates of conformance are available upon request for critical applications.
Q: What is the lead time for this part?
A: Typically 3–7 business days for in-stock units. Contact us for urgent requirements.
