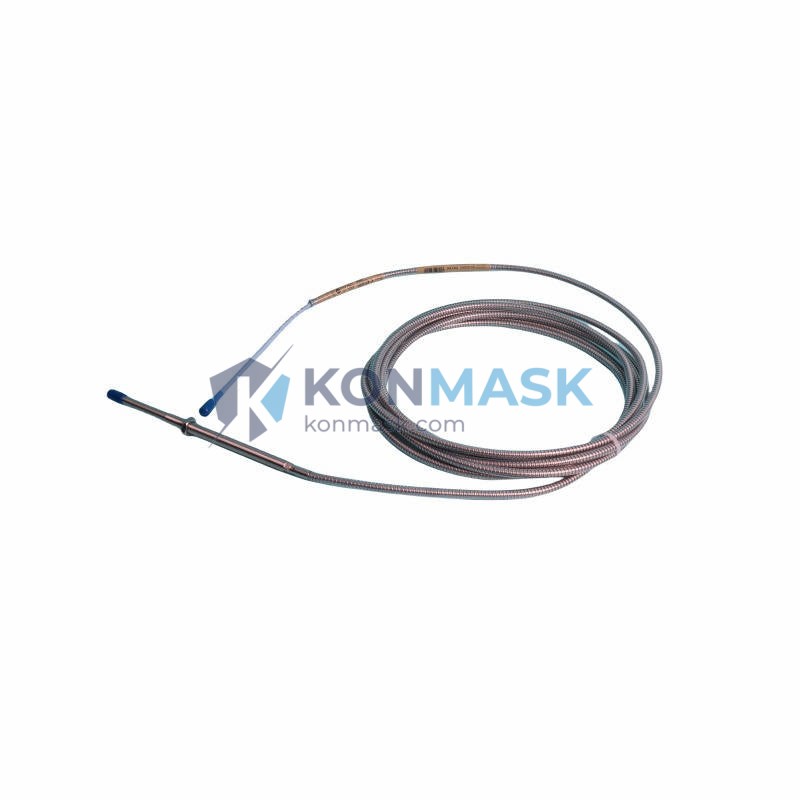

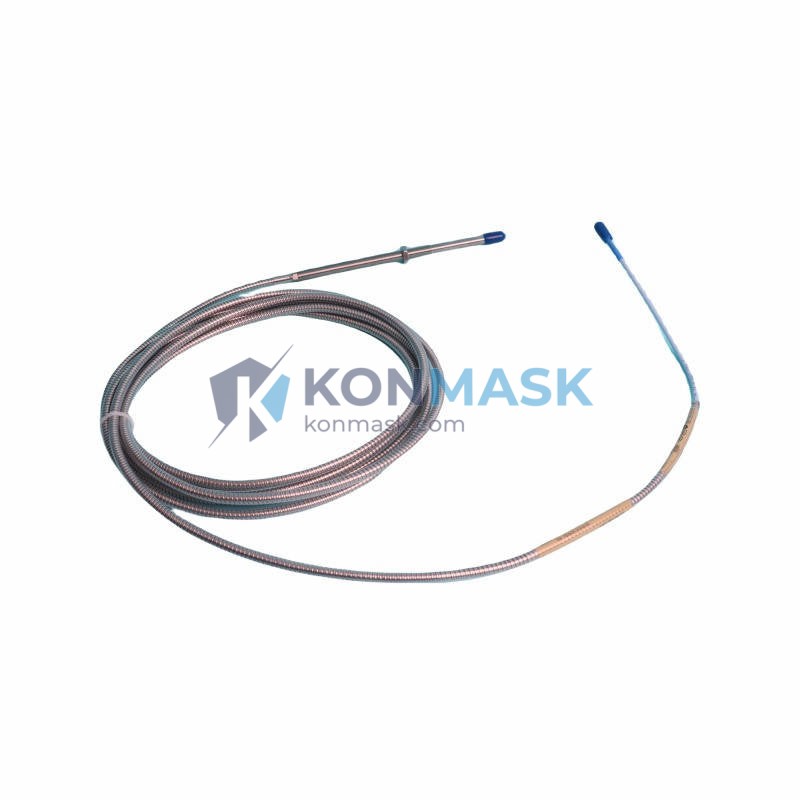

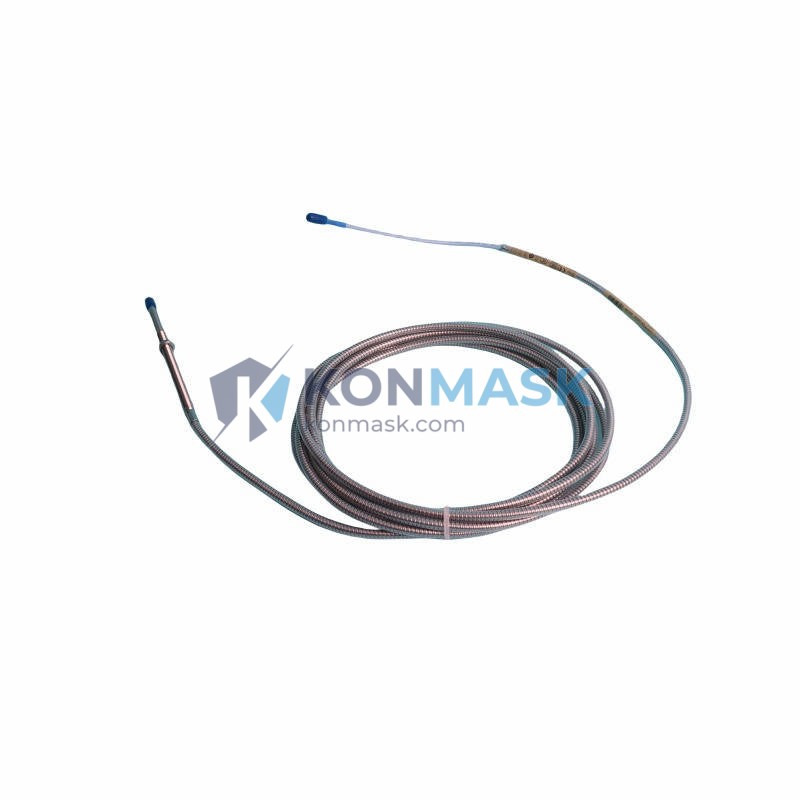

Bently Nevada 330104-06-16-50-02-00 Eddy Current Proximity Probe – 3300 Series Proximity Transducer System
When a critical rotating machine — a steam turbine, centrifugal compressor, or high-speed pump — loses its vibration monitoring signal, the consequences are immediate and severe. Without a functioning proximity probe, operators are blind to shaft displacement, orbital motion, and axial position changes. A single undetected surge event or rub condition can destroy a rotor worth hundreds of thousands of dollars and trigger unplanned downtime that costs far more. The Bently Nevada 330104-06-16-50-02-00 Proximity Transducer System exists precisely to prevent that scenario — delivering continuous, high-resolution non-contact measurement that keeps your machinery protection system fully operational.
Within the industry-standard Bently Nevada 3300 Series, the 330104-06-16-50-02-00 occupies a well-defined technical niche: a 5 mm eddy current probe with a 6-inch (152 mm) armored extension cable, 16-foot (5 m) interconnect cable, and a 50 mm driver/extension combination — configured for 2 mm gap, –24 VDC supply, and a standard output scale factor of 200 mV/mil (7.87 V/mm). This configuration is among the most widely deployed in API 670-compliant machinery protection systems globally, making it a cornerstone component in refineries, power generation plants, LNG facilities, and petrochemical complexes across six continents.
Technical Specifications
- Part Number: 330104-06-16-50-02-00
- Series: Bently Nevada 3300 Series
- Probe Type: Eddy Current (Non-Contact) Proximity Probe
- Probe Tip Diameter: 5 mm
- Extension Cable Length: 6 inches (152 mm) armored
- Interconnect Cable Length: 16 feet (approximately 5 m)
- Driver/Extension Length: 50 mm
- Nominal Gap: 2 mm (recommended operating gap)
- Supply Voltage: –24 VDC (nominal)
- Output Scale Factor: 200 mV/mil (7.87 V/mm)
- Frequency Range: DC to 10,000 Hz
- Target Material: AISI 4140 steel or equivalent (per API 670)
- Temperature Range: –35°C to +177°C (probe); –35°C to +66°C (driver)
- Connector: Standard BNC / integral coaxial
- Compliance: API 670 (4th & 5th Edition), CE
- Weight: Approximately 230 g (complete system)
Key Features & Benefits
- Non-Contact Measurement: Zero mechanical wear — measures shaft vibration, position, and speed without touching the rotating element, ensuring indefinite service life under normal conditions.
- API 670 Compliant: Fully meets the machinery protection standard required by EPC contractors, insurance underwriters, and plant safety auditors worldwide.
- High Linearity: Consistent scale factor across the full operating gap range minimizes calibration drift and ensures accurate alarm/trip setpoints.
- Armored Extension Cable: The 6-inch armored section protects the probe-to-extension junction in high-vibration, high-temperature bearing housings.
- Plug-and-Play Compatibility: Direct replacement for existing 3300 Series installations — no recalibration of the monitor required when replacing like-for-like.
- Wide Temperature Tolerance: Rated for demanding environments including hot gas expanders, steam turbines, and cryogenic compressors.
- Long-Term Availability: Konmask.com maintains stock of legacy and current-production 3300 Series components to support long-lifecycle plant assets.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, expanders, and pipeline booster stations requiring continuous shaft vibration monitoring per API 670.
- Power Generation: Steam turbines, gas turbines, and hydro generators where rotor displacement monitoring is critical for safe operation.
- Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, and process gas blowers in high-availability service.
- LNG & Offshore: Liquefaction train compressors and offshore platform rotating equipment requiring marine-grade reliability.
- Pulp & Paper / Mining: Large induced-draft fans, ID/FD fans, and mill drive systems with sleeve bearings.
- General Industrial: Any rotating machine equipped with a Bently Nevada 3300 or compatible monitoring system requiring a 5 mm eddy current probe.
System Integration & Compatible Parts
The 330104-06-16-50-02-00 is designed to integrate seamlessly with the Bently Nevada 3300 Series ecosystem. Compatible and commonly paired components include:
- Monitors: 3300/16 Dual Vibration Monitor, 3300/20 Thrust Position Monitor, 3500/42M Proximitor/Seismic Monitor
- Drivers (Proximitors): 330180-X1-05, 330130-040-00-00 (3300 XL 8mm series for adjacent channels)
- Extension Cables: 330130 Series armored extension cables (various lengths)
- Junction Boxes: Bently Nevada field junction boxes for multi-probe installations
- Barriers: Zener barriers and galvanic isolators for hazardous area (ATEX/IECEx) installations
When upgrading from legacy 3300 to 3500 Series monitors, this probe remains compatible with appropriate driver selection — contact our technical team for cross-reference guidance.
Our Quality Assurance Process
Every Bently Nevada 330104-06-16-50-02-00 unit sourced through Konmask.com undergoes a structured verification process before shipment:
- Visual Inspection: Probe tip, cable jacket, connector, and labeling checked against OEM specifications.
- Continuity & Impedance Test: Coaxial cable continuity and probe coil impedance verified within OEM tolerance.
- Documentation Review: Traceability documentation, country of origin, and batch records reviewed where available.
- Secure Packaging: Anti-static, moisture-barrier packaging with foam cushioning to prevent transit damage to the probe tip and cable assembly.
We do not sell counterfeit, refurbished-as-new, or specification-deviated parts. If a unit does not pass our checks, it is not shipped.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Confirm & Pay: Approve the proforma invoice and arrange payment via T/T, PayPal, or other agreed method.
- Shipment & Tracking: Parts are dispatched via DHL, FedEx, or UPS Express with full tracking provided.
- After-Sales Support: Our engineers are available post-delivery for installation guidance and compatibility questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not a generalist distributor.
- Global Sourcing Network: Access to both current-production and legacy/obsolete Bently Nevada parts that are difficult to source through standard channels.
- Technical Expertise: Our team includes engineers with hands-on experience in turbomachinery protection system commissioning and maintenance.
- Fast Response: Inquiry-to-quote in under 24 hours. Emergency orders accommodated.
- Transparent Process: No hidden fees. Clear documentation. Honest lead times.
- Worldwide Shipping: Serving customers in 50+ countries with reliable express logistics.
Frequently Asked Questions
- Q: Is the 330104-06-16-50-02-00 a direct replacement for my existing 3300 Series probe?
- A: Yes, provided your existing installation uses the same probe tip diameter (5 mm), cable configuration, and driver model. The scale factor and gap range are identical to the standard 3300 Series specification, so no monitor recalibration is required for a like-for-like swap.
- Q: Can this probe be used with a Bently Nevada 3500 Series monitor?
- A: The 3300 Series probe can be used with 3500 Series monitors when paired with the correct 3500-compatible driver/proximitor. Contact us with your monitor model number for a specific compatibility confirmation.
- Q: What is the lead time for this part?
- A: Lead time varies by stock availability. In-stock units typically ship within 2–3 business days. For out-of-stock items, lead time is typically 2–4 weeks. Submit an inquiry for a real-time availability check.
- Q: Do you provide a warranty?
- A: Yes. We offer a standard 90-day warranty against manufacturing defects on all parts supplied. Extended warranty options are available — please discuss at the time of inquiry.
- Q: Can you supply the complete transducer system (probe + extension + driver)?
- A: Yes. We can supply the complete matched set or individual components. Please specify your requirements when submitting your inquiry.
