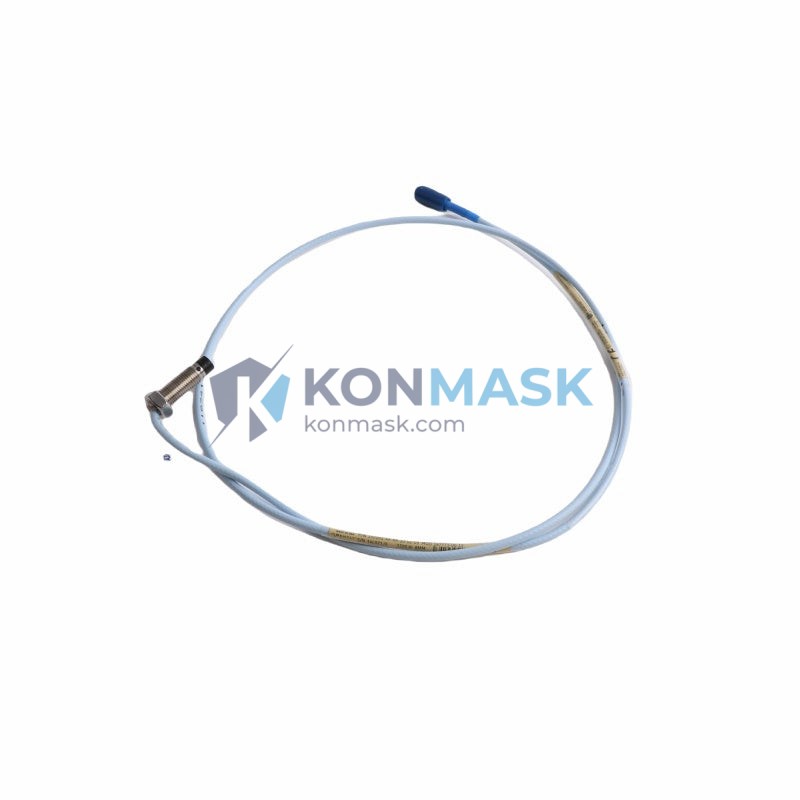

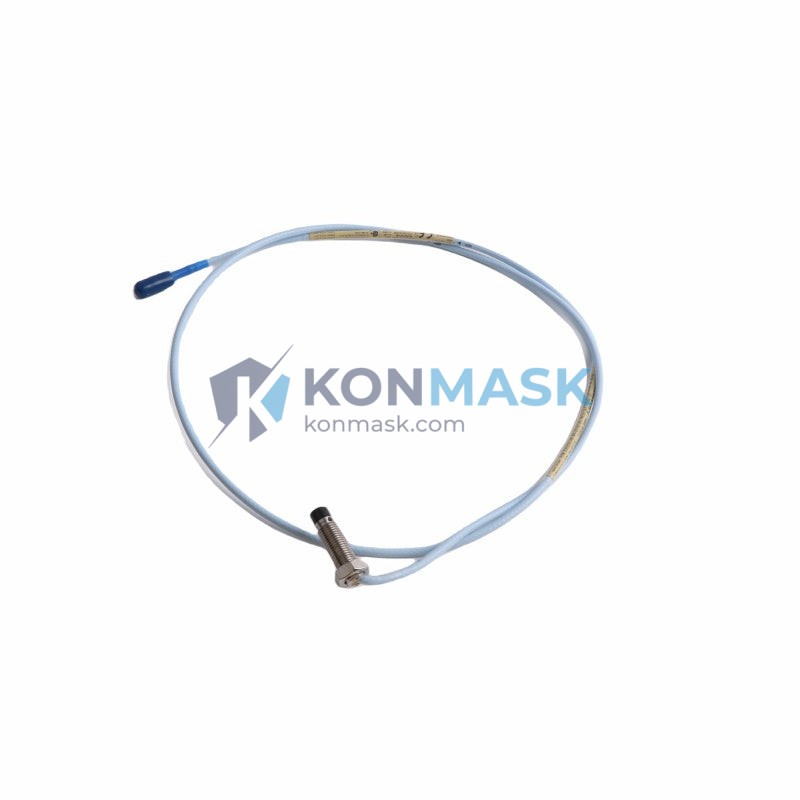

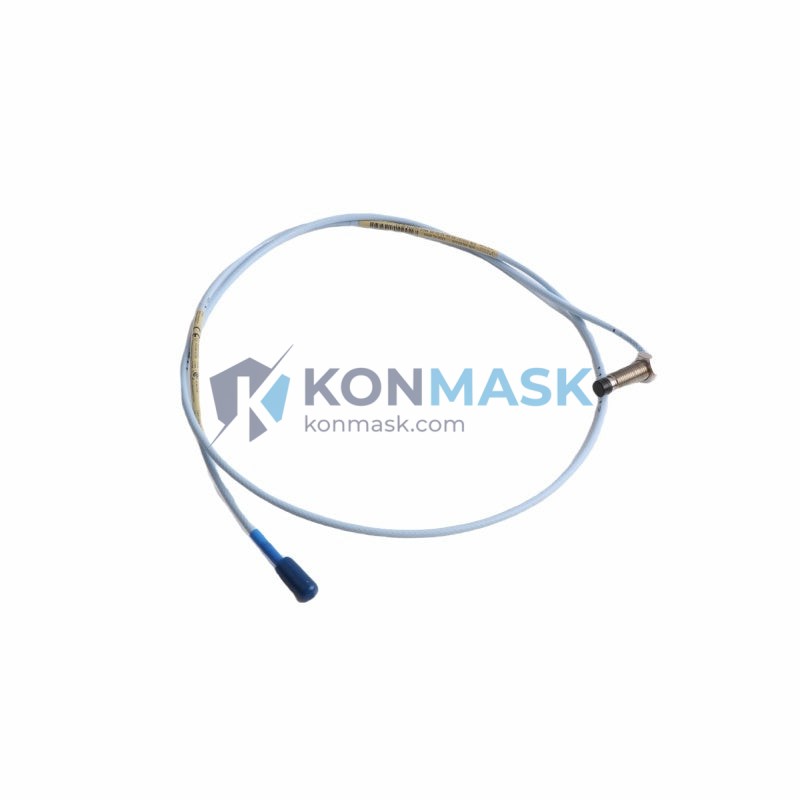

Bently Nevada 330101-00-20-20-12-CN Proximity Transducer System – 3300 XL Series
Imagine a critical turbine, compressor, or pump shaft beginning to exhibit abnormal radial vibration — without a reliable proximity transducer system in place, that early warning signal goes undetected. The result: catastrophic bearing failure, unplanned downtime, and production losses that can cost hundreds of thousands of dollars per hour. The Bently Nevada 330101-00-20-20-12-CN Proximity Transducer System exists precisely to prevent this scenario, delivering continuous, non-contact shaft displacement measurement that keeps your rotating machinery running safely and predictably.
Within the renowned Bently Nevada 3300 XL Series — the global benchmark for machinery protection and condition monitoring — the 330101-00-20-20-12-CN represents a precisely engineered configuration: a 20 mm diameter probe with a 2.0 m (200 cm) integral cable, paired for use with the 3300 XL signal conditioning system. This series is deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities on every continent, trusted by reliability engineers who cannot afford false trips or missed faults.
Technical Specifications
- Part Number / SKU: 330101-00-20-20-12-CN
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Probe Diameter: 8 mm (standard 3300 XL probe tip)
- Integral Cable Length: 2.0 m (200 cm)
- Extension Cable: Compatible with 330130 series extension cables
- Driver / Proximitor: Compatible with 3300 XL Proximitor® Sensor
- Measurement Type: Non-contact eddy-current radial shaft displacement
- Target Material: AISI 4140 steel or equivalent (per API 670)
- Operating Temperature: -35°C to +177°C (probe)
- Output Signal: -24 VDC nominal (linear range per calibration)
- Approvals: API 670 compliant; CE marked
- Weight: Approx. 40 g
- Country of Origin: USA (Bently Nevada manufacturing)
Key Features & Benefits
- Non-Contact Measurement: Eddy-current technology eliminates mechanical wear, ensuring decades of reliable service without sensor degradation.
- API 670 Compliance: Meets the industry standard for machinery protection systems, accepted by EPC contractors and end-users worldwide.
- High Linearity & Sensitivity: Delivers precise gap voltage output across the full measurement range, enabling accurate vibration amplitude and DC gap trending.
- Integral Cable Design: The 2.0 m integral cable minimizes connection points, reducing signal noise and improving installation reliability in harsh environments.
- Wide Temperature Range: Suitable for hot sections of gas turbines, steam turbines, and high-temperature compressor trains.
- Drop-in Replacement: Direct replacement for existing 330101 series installations — no recalibration of the Proximitor required when replacing like-for-like.
- Robust EMI Resistance: Shielded cable construction rejects electromagnetic interference common in motor control centers and switchgear rooms.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — radial vibration and axial position monitoring per API 670.
- Oil & Gas: Centrifugal compressors, expanders, and pipeline pumps in upstream, midstream, and downstream facilities.
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, and critical agitators requiring continuous machinery health data.
- Marine & Offshore: Propulsion turbines and auxiliary machinery on FPSOs and offshore platforms.
- Pulp & Paper / Steel: High-speed rolls, ID fans, and induced draft fans where bearing health is critical to production continuity.
- General Rotating Machinery: Any application requiring API 670-compliant shaft vibration monitoring with a Bently Nevada 3300 XL system.
System Integration & Compatible Parts
- Extension Cable: Bently Nevada 330130-045-00-00 (4.5 m), 330130-080-00-00 (8.0 m) — total system cable length must match Proximitor calibration.
- Proximitor Sensor: Bently Nevada 3300 XL Proximitor® (e.g., 330180-X1-05)
- Monitoring System: Bently Nevada 3500 Series Machinery Protection System (MPS)
- Mounting Hardware: Standard 3300 XL probe holders and armored conduit fittings
- Calibration Standard: AISI 4140 steel target per Bently Nevada calibration curves
When sourcing replacement or spare parts, always verify the complete part number — including the suffix -CN — to ensure correct cable length and connector configuration for your installation.
Our Quality Assurance Process
- Authenticity Verification: Every unit sourced through authorized distribution channels or verified surplus with full traceability documentation.
- Visual & Functional Inspection: Probe tip, cable jacket, and connector integrity checked before dispatch.
- Packaging: Anti-static, moisture-resistant packaging with individual part number labeling to prevent mix-ups.
- Documentation: Certificate of conformance and original manufacturer documentation provided upon request.
- Warranty: 12-month warranty against manufacturing defects; returns accepted within 30 days for unused items.
How to Order
- Submit your inquiry via the Contact / Get a Quote button on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice; shipment is arranged via DHL, FedEx, or sea freight per your preference.
- Tracking information and shipping documents (commercial invoice, packing list, COC) are provided upon dispatch.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and instrumentation components — no generalist catalog noise.
- Global B2B Supply: Serving engineering firms, EPCs, and plant maintenance teams across 40+ countries.
- Fast Response: Dedicated account managers respond to RFQs within one business day.
- Competitive Pricing: Direct sourcing relationships enable pricing that beats typical distributor markups.
- Technical Support: Our engineers can advise on system compatibility, cable length selection, and installation best practices.
- Secure Transactions: T/T, L/C, and PayPal accepted; all transactions documented for customs compliance.
Frequently Asked Questions
- Q: What does the “-CN” suffix mean in part number 330101-00-20-20-12-CN?
- A: The “-CN” suffix designates a specific connector type used in the Bently Nevada 3300 XL system configuration. Always match the suffix to your existing Proximitor and extension cable to ensure system compatibility.
- Q: Can I use this probe with a Bently Nevada 3500 monitoring rack?
- A: Yes. The 330101-00-20-20-12-CN probe is designed to work within the 3300 XL transducer system, which is fully compatible with the Bently Nevada 3500 Series Machinery Protection System when paired with the correct Proximitor sensor.
- Q: What is the total system cable length for this configuration?
- A: This probe has a 2.0 m (200 cm) integral cable. Total system cable length (probe + extension) must match the Proximitor’s calibrated range — typically 5 m, 9 m, or 15 m total. Select your extension cable accordingly.
- Q: Is this part API 670 compliant?
- A: Yes. The Bently Nevada 3300 XL Proximity Transducer System is designed and tested to meet API 670 (Machinery Protection Systems) requirements, the industry standard for critical rotating equipment monitoring.
- Q: Do you offer expedited shipping for urgent plant shutdowns?
- A: Yes. We maintain relationships with express freight carriers (DHL Express, FedEx Priority) and can arrange next-flight-out shipments for critical maintenance situations. Contact us directly for urgent requirements.
