Bently Nevada 330130-080-00-BR Extension Cable Replacement, Equivalent & Selection Guide | 3300 XL Proximity Probe System

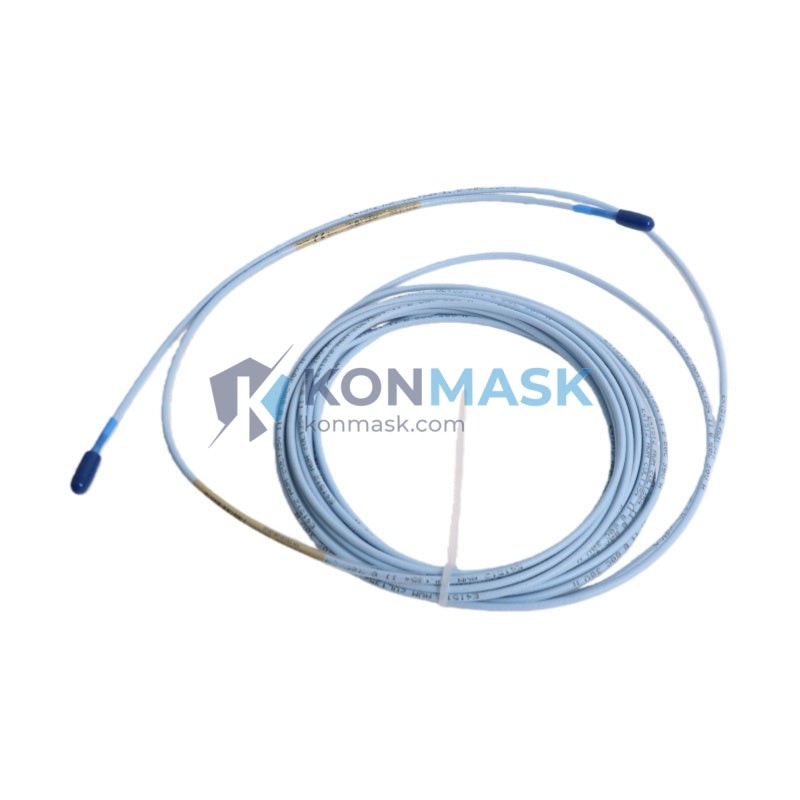

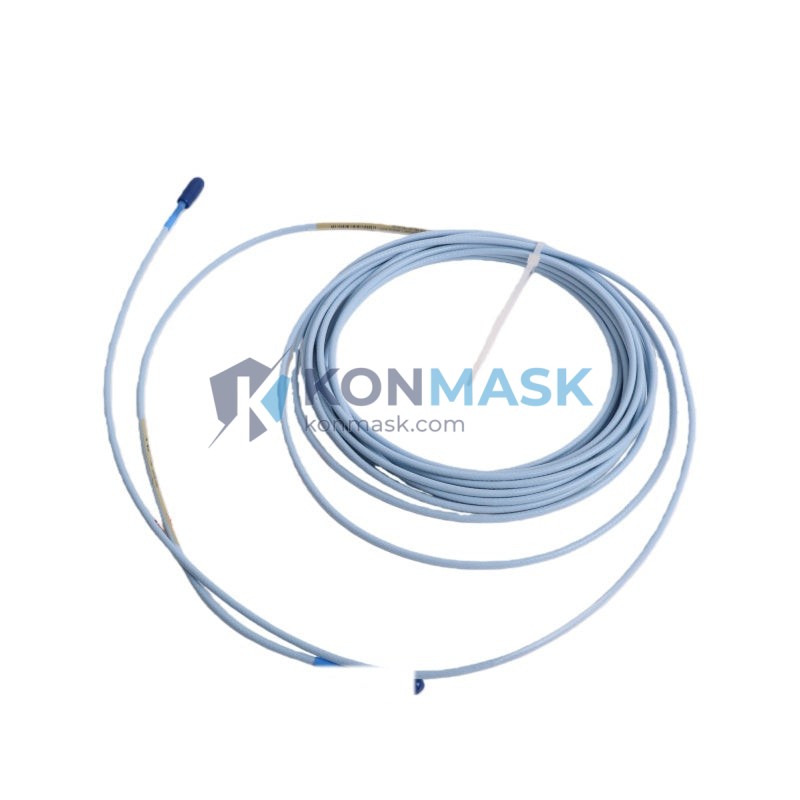

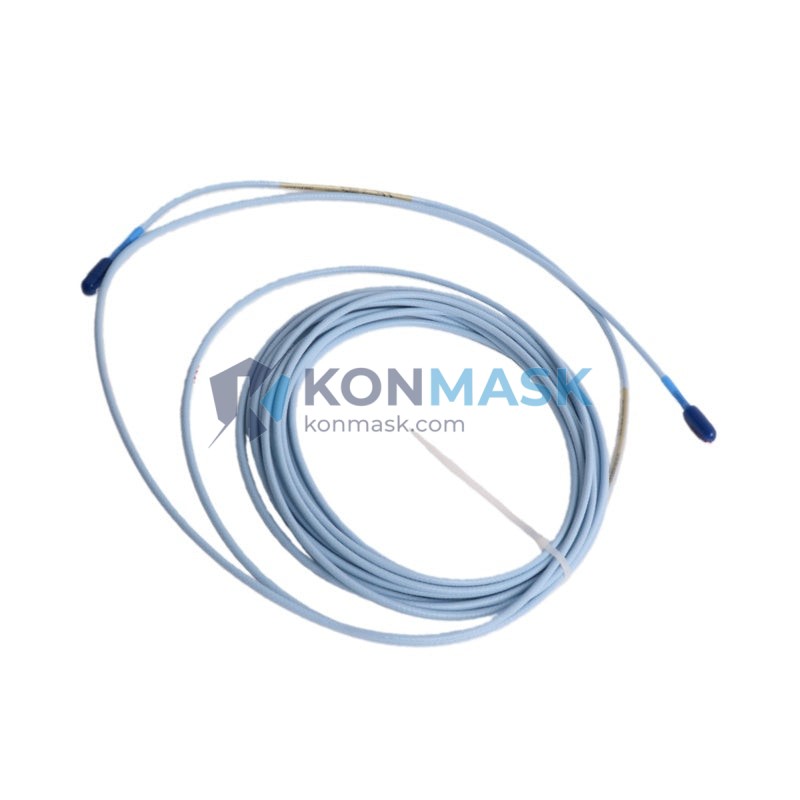

The Bently Nevada 330130-080-00-BR is an 8.0 m (26.2 ft) standard extension cable with BR-style (Bayonet Reverse) connectors, engineered for the 3300 XL Proximity Transducer System. It transmits eddy-current signals between the proximity probe and the proximitor/driver with minimal loss, making it a critical link in API 670-compliant machinery protection systems. This page provides full technical specifications, verified replacement models, and a structured selection guide for engineers and procurement teams.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330130-080-00-BR |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3300 XL Proximity Transducer System |
| Cable Length | 8.0 m (26.2 ft) |
| Cable Type | Standard Extension Cable |
| Connector Style | BR (Bayonet Reverse) |
| Compatible Probe Series | 3300 XL 8 mm, 3300 XL 11 mm |
| Operating Temperature | -40 °C to +85 °C |
| Shielding | Double-shielded coaxial, low-noise |
| Weight | Approx. 260 g |
| Condition Available | New / Surplus / Refurbished (specified on invoice) |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330130-080-00-BR. Always verify system compatibility before substitution:
- 330130-040-00-BR — Same series, 4.0 m length variant
- 330130-060-00-BR — Same series, 6.0 m length variant
- 330130-100-00-BR — Same series, 10.0 m length variant
- 330130-080-00-CN — CN connector style, same 8.0 m length (verify connector fitment)
- 330130-080-00-00 — Standard (non-BR) termination, same length
- 3300 XL Third-Party Extension Cable — Must match impedance, shielding spec, and connector type; re-calibration required
⚠ Note: Bently Nevada extension cables are system-matched components. Non-OEM substitutions may affect calibration accuracy and void API 670 compliance. Contact Konmask for verified alternatives.
Why Choose the Original Model
- Factory-Calibrated Match: Paired with the 3300 XL proximitor for accurate gap voltage and sensitivity curves.
- Superior Signal Integrity: Double-shielded coaxial construction minimizes EMI/RFI in high-noise plant environments.
- Proven Field Reliability: Deployed globally in turbomachinery, compressors, and rotating equipment for decades.
- OEM Traceability: Full manufacturer documentation, COC, and test reports available on request.
- Wide Environmental Rating: Rated -40 °C to +85 °C for demanding industrial installations.
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor radial and axial displacement measurement
- Pump and motor bearing condition monitoring
- Gearbox and fan vibration surveillance
- API 670 compliant machinery protection systems
- Petrochemical, power generation, and LNG plant rotating equipment
System Compatibility
The 330130-080-00-BR is designed for the Bently Nevada 3300 XL Proximity Transducer System. Verified compatible components:
- Probes: 330101-XX-XX (8 mm), 330103-XX-XX (11 mm)
- Proximitors: 330180-X1-CN (8 mm), 330185-X1-CN (11 mm)
- Monitors: 3500 Series Machinery Protection System, 3300 Series Monitors
- Signal Output: Compatible with 4–20 mA and voltage output DCS/PLC integration modules
Selection Guide
- Step 1 — Determine Cable Length: Measure probe tip to proximitor distance. Total system cable (probe cable + extension) must match the proximitor’s calibrated range (typically 5 m or 9 m total).
- Step 2 — Identify Connector Style: Confirm BR (Bayonet Reverse), CN, or standard connector. The 330130-080-00-BR uses BR-style termination on both ends.
- Step 3 — Verify Probe Series: Confirm probe diameter (8 mm or 11 mm) and series (3300 XL). Extension cables are not interchangeable across all probe families.
- Step 4 — Check Environment Rating: For high-temperature or hazardous-area installations, verify cable jacket and connector ratings against site conditions.
- Step 5 — Confirm System Calibration: After installation, verify gap voltage and sensitivity per Bently Nevada commissioning procedures.
Quality Assurance & Sourcing
- All units inspected by Konmask.com prior to shipment.
- New, surplus, and refurbished stock available — condition specified on invoice.
- Traceability documentation (COC, test reports) available upon request.
- Export compliance: ECCN classification and export licensing support for international orders.
- Secure packaging to prevent connector damage during transit.
How to Order
- Online: Add to cart directly from this page.
- Email RFQ: [email protected]
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock items ship within 1–3 business days. Contact us for bulk or urgent requirements.
- Payment: T/T, PayPal, credit card, and trade assurance accepted.
Replacement & Compatibility FAQ
Q: Can I use a 330130-080-00-00 instead of the 330130-080-00-BR?
A: The connector style differs (BR vs. standard). Physical fitment depends on your proximitor’s input connector. Verify before ordering.
Q: What happens if the extension cable length doesn’t match the calibrated system length?
A: The proximitor is calibrated for a specific total cable length. A mismatched length shifts the gap voltage curve and introduces measurement error. Always match total cable length to the proximitor calibration.
Q: Are third-party extension cables safe to use?
A: Third-party cables may function electrically but can affect calibration accuracy. They are not recommended for API 670 critical machinery without re-calibration and engineering approval.
Q: Can you supply the full 3300 XL system (probe + extension + proximitor)?
A: Yes. Contact us with your system requirements for a complete matched-set quotation.
Q: What is the lead time for the 330130-080-00-BR?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time. Contact us for current availability.
