Bently Nevada 330901-00-40-10-02-CN – High-Precision Proximity Transducer | 3300 XL NSv Platform
Engineering Background
The Bently Nevada 3300 XL NSv series represents the industry benchmark for non-contacting eddy-current proximity measurement in rotating machinery protection. Developed by Baker Hughes (Bently Nevada), this platform is deployed globally in critical turbomachinery applications where continuous, real-time shaft vibration and position data are mandatory for API 670-compliant machinery protection systems.
Product Positioning

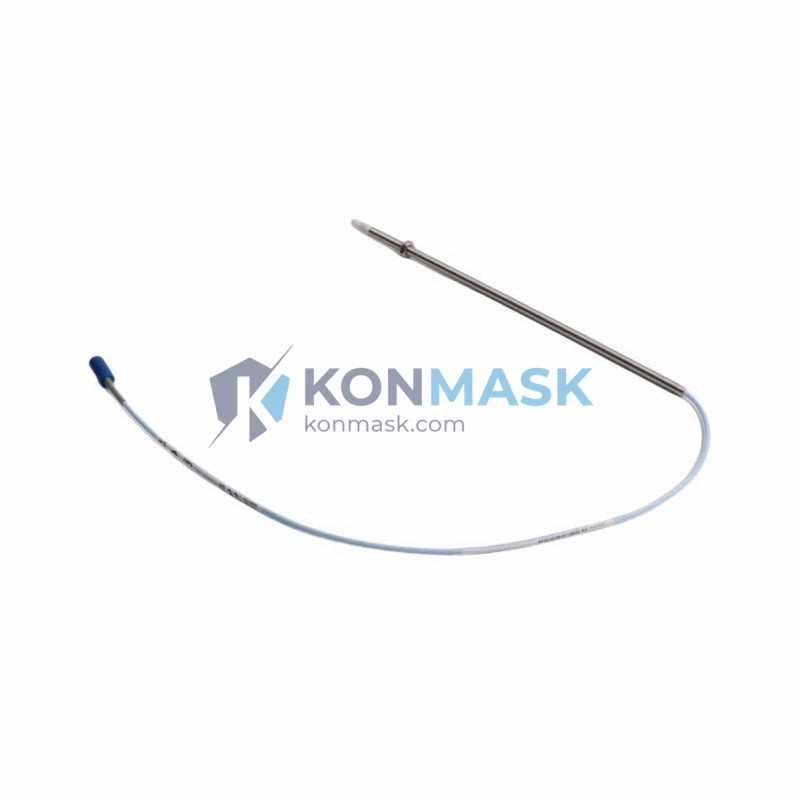

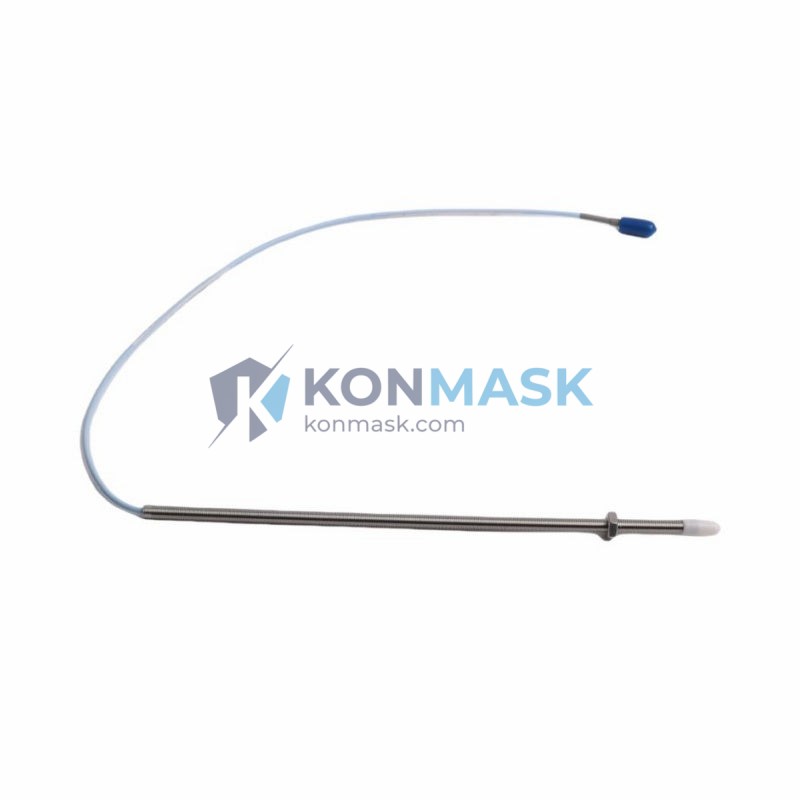

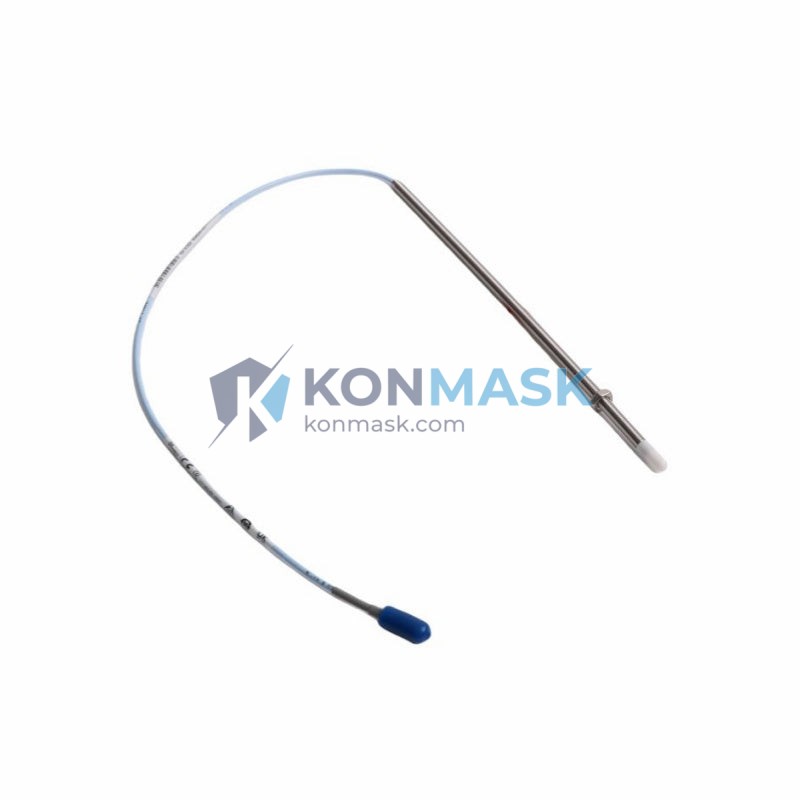

Part number 330901-00-40-10-02-CN is a complete proximity transducer optimized for 3300 XL NSv monitor compatibility. It delivers calibrated output across a defined linear range, enabling procurement engineers to specify a drop-in replacement or new-build component with full OEM traceability. Konmask.com supplies this unit with documented sourcing, functional verification, and rapid international dispatch.
Complete Technical Specifications
- Part Number: 330901-00-40-10-02-CN
- Series / Platform: Bently Nevada 3300 XL NSv
- Transducer Type: Eddy-Current Non-Contacting Proximity Transducer
- Probe Tip Diameter: 8 mm (standard)
- Cable Length: 1.0 m integral armored cable
- Extension Cable: Compatible with 3300 XL NSv extension cable (sold separately)
- Linear Range: 0.25 mm – 2.25 mm (10 mil – 90 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil) nominal
- Frequency Response: DC – 10,000 Hz (–3 dB)
- Operating Temperature: –35 °C to +177 °C (probe); –35 °C to +85 °C (driver)
- Supply Voltage: –24 VDC (nominal), –20 VDC to –26 VDC range
- Output Voltage: –1 VDC to –19 VDC (within linear range)
- Target Material: AISI 4140 steel (standard calibration)
- Connector Type: CN-style (per part number suffix)
- Ingress Protection: IP67 (probe body)
- Compliance: API 670 4th Edition, CE Marked
- Country of Origin: United States
- HS Code: 9031.80.9090
Proven Application Environments
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position (thrust) measurement
- Pump and motor bearing housing displacement sensing
- Gearbox and expander differential expansion monitoring
- API 670 machinery protection systems in oil & gas, petrochemical, and power generation plants
- Retrofit and upgrade of legacy 3300 series installations to XL NSv standard
Engineering Advantages
- NSv Technology: Non-Standard voltage output architecture reduces susceptibility to cable capacitance variation, enabling longer cable runs without recalibration
- Wide Temperature Range: Probe rated to +177 °C, suitable for high-temperature bearing housings without additional thermal isolation
- Direct Monitor Compatibility: Plug-and-play with 3300 XL NSv monitor cards — no field calibration required when replacing like-for-like
- Armored Cable: Integral stainless-steel armor provides mechanical protection in harsh industrial environments
- API 670 Compliance: Meets all transducer performance requirements for machinery protection per API 670 4th Edition
- CN Connector: Bayonet-lock CN connector ensures secure, vibration-resistant field termination
System Architecture & Signal Flow
The 330901-00-40-10-02-CN operates as the sensing element within a three-component Bently Nevada proximity system:
- Proximity Probe (330901-00-40-10-02-CN) — Generates eddy-current field; outputs raw impedance change as voltage shift via integral cable to driver.
- Extension Cable (3300 XL NSv compatible) — Transmits signal from probe to driver/oscillator; length must be matched to system calibration.
- Driver / Oscillator (3300 XL NSv series) — Conditions signal, provides –24 VDC excitation, outputs calibrated –1 V to –19 V proportional to gap distance to monitor card.
- Monitor Card (3300 XL NSv) — Processes driver output for vibration amplitude, phase, and DC gap; triggers alarms and trips per API 670 setpoints.
Note: Total system cable length (probe + extension) must match the driver calibration. Consult Bently Nevada system documentation (D/N 141536-01) for cable length combinations.
Sourcing & Quality Verification
- Source: Procured from authorized industrial distributors and verified OEM surplus channels
- Inspection: Each unit undergoes visual inspection, connector integrity check, and impedance verification prior to dispatch
- Documentation: Original Bently Nevada part label, traceability documentation available on request
- Packaging: Ships in anti-static protective packaging with foam insert; original OEM packaging where available
- Warranty: 12-month functional warranty from Konmask.com; DOA replacement within 7 days of receipt
Procurement Process
- Confirm part number 330901-00-40-10-02-CN matches your system’s driver and monitor card calibration set
- Verify target material (AISI 4140 standard; alternative target correction factors available on request)
- Place order via Konmask.com — stock availability confirmed at time of order
- Receive pro-forma invoice and export documentation (HS 9031.80.9090) within 24 hours
- Dispatch within 1–3 business days; DHL / FedEx international express available
- Technical support available pre- and post-sale via support@konmask.com
Technical FAQ
Q: Is this probe compatible with the standard 3300 series (non-XL NSv) drivers?
A: No. The 3300 XL NSv probe is calibrated for NSv-architecture drivers. Use with standard 3300 drivers will result in incorrect scale factor output. Verify your driver part number before ordering.
Q: Can this probe be used with non-AISI 4140 target materials?
A: Yes, with a correction factor. Bently Nevada publishes target material correction factors for common alloys (stainless steel, titanium, etc.). Contact us for the applicable factor for your application.
Q: What is the maximum allowable cable length for this probe?
A: The integral cable is 1.0 m. Total system length (probe + extension) is determined by the driver calibration — typically 5 m, 9 m, or 15 m total. Consult your driver documentation.
Q: Do you provide calibration certificates?
A: Functional verification data is available. NIST-traceable calibration certificates can be arranged for an additional fee — contact support@konmask.com.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 2–4 weeks for confirmed OEM-channel procurement. Contact us for urgent requirements.
