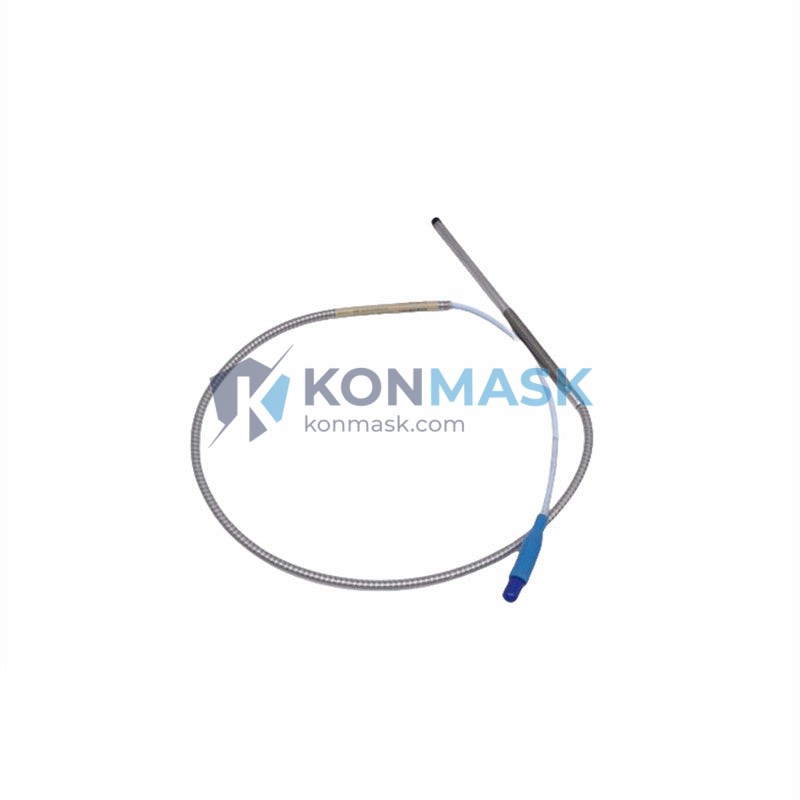

Bently Nevada 330902-00-30-05-02-05 Proximity Probe – 3300 XL 8mm Eddy Current Sensor Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft imbalance, bearing wear, or rotor rub can escalate within minutes into catastrophic equipment failure, unplanned downtime, and six-figure repair costs. In high-stakes environments — power generation turbines, petrochemical compressors, marine propulsion systems — the absence of a reliable proximity probe is not a maintenance gap; it is an operational crisis waiting to happen.
The Bently Nevada 330902-00-30-05-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most trusted vibration and position measurement platforms in global industrial automation. Within the 3300 XL family, this specific configuration (30-inch armored cable, 5-meter extension cable, 2-meter driver cable, standard tip) occupies the sweet spot between installation flexibility and signal integrity, making it the preferred choice for OEM turbomachinery builders and plant maintenance engineers worldwide.
Technical Specifications
- Part Number / SKU: 330902-00-30-05-02-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Probe Tip Diameter: 8 mm
- Probe Cable Length: 30 inches (armored)
- Extension Cable Length: 5 meters
- Driver Cable Length: 2 meters
- Sensing Technology: Eddy Current (non-contact)
- Linear Range: 0.25 mm – 2.25 mm (typical for 8mm tip)
- Output: -18 VDC nominal (compatible with 3300 XL drivers)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Target Material: AISI 4140 steel (standard calibration)
- Operating Temperature: -35°C to +177°C (probe body)
- Connector: Standard Bently Nevada coaxial
- Weight: Approx. 230 g
- Compliance: API 670 compatible
Key Features & Benefits
- Non-Contact Measurement: Eddy current technology eliminates mechanical wear, ensuring continuous, maintenance-free operation in harsh rotating machinery environments.
- API 670 Compatibility: Meets the industry standard for machinery protection systems, ensuring acceptance by plant safety and reliability engineers globally.
- Armored Cable Construction: The 30-inch armored probe cable provides superior protection against mechanical damage, vibration fatigue, and chemical exposure in demanding plant environments.
- Plug-and-Play with 3300 XL System: Factory-calibrated and fully compatible with Bently Nevada 3300 XL drivers and monitors — zero recalibration required upon installation.
- High-Temperature Tolerance: Rated to +177°C, suitable for steam turbine bearing pedestals and high-temperature compressor housings.
- Dual Measurement Capability: Simultaneously measures radial vibration and average shaft position (gap voltage), providing comprehensive rotor dynamic data.
- Long Cable Configuration: The 5m + 2m extension/driver cable combination accommodates installations where the monitor rack is located remotely from the machine.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft vibration and eccentricity monitoring per API 670.
- Oil & Gas: Centrifugal compressors, expanders, and pipeline pumping stations requiring continuous rotor position feedback.
- Petrochemical & Refining: Reactor agitators, boiler feed pumps, and critical process compressors.
- Marine & Offshore: Propulsion shaft monitoring and auxiliary machinery protection on FPSOs and LNG carriers.
- Pulp & Paper / Steel Mills: High-speed rolls, ID fans, and induced draft fans with continuous duty cycles.
- General Turbomachinery OEM: Factory-installed on new equipment requiring Bently Nevada-compatible vibration monitoring from day one.
System Integration & Compatible Parts
The 330902-00-30-05-02-05 probe is designed to operate as part of the complete Bently Nevada 3300 XL Proximity Transducer System. Compatible and commonly paired components include:
- Drivers / Oscillator-Demodulators: Bently Nevada 3300 XL 8mm Driver (e.g., 330180-X1-05)
- Monitors: Bently Nevada 3500/42M Proximitor / Seismic Monitor, 3500/40M Proximitor Monitor
- Junction Boxes: Bently Nevada 3300 XL field junction boxes for multi-channel installations
- Mounting Hardware: Bently Nevada probe holders and bracket kits for standard bearing housing configurations
- Alternative Probe Lengths: 330902 series available in multiple cable length configurations to suit various machine frame sizes
Our Quality Assurance Process
At Konmask.com, every Bently Nevada proximity probe undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Each unit is cross-referenced against Bently Nevada part number databases and inspected for genuine OEM markings, labels, and connector specifications.
- Physical Inspection: Cable jacket integrity, connector pin condition, probe tip surface, and armoring continuity are checked against factory standards.
- Documentation Review: Original manufacturer documentation, calibration certificates (where available), and traceability records are verified and provided upon request.
- Secure Packaging: Units are packed in anti-static, shock-absorbing packaging with individual part number labeling to prevent transit damage.
How to Order
- Submit an Inquiry: Use the contact form or email [email protected] with your required quantity and delivery timeline.
- Receive a Quote: Our technical sales team will respond within 24 hours with pricing, lead time, and availability confirmation.
- Order Confirmation: Upon agreement, we issue a proforma invoice and confirm your shipping method (DHL, FedEx, UPS, or sea freight for bulk orders).
- Shipment & Tracking: Orders are dispatched with full tracking information and export documentation as required.
For urgent requirements or large-volume procurement, please call us directly at +0086 19859288691.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC modules, DCS parts, proximity sensors, and vibration monitoring equipment from leading global brands.
- ✅ Global B2B Supply — Serving maintenance engineers, procurement teams, and OEM builders across 50+ countries.
- ✅ Fast Response — Dedicated technical sales team responds to all inquiries within 24 business hours.
- ✅ Competitive Pricing — Direct sourcing relationships enable competitive pricing on both single units and bulk orders.
- ✅ Reliable Logistics — Partnerships with DHL, FedEx, and UPS ensure safe, trackable delivery worldwide.
- ✅ Technical Support — Our engineers can assist with system compatibility questions, installation guidance, and cross-reference inquiries.
Frequently Asked Questions
Q: Is the 330902-00-30-05-02-05 compatible with older Bently Nevada 3300 systems?
A: The 330902-00-30-05-02-05 is designed for the 3300 XL system. While the eddy current sensing principle is the same, cable connectors and driver compatibility should be verified before use with legacy 3300 (non-XL) systems. Contact our technical team for cross-compatibility guidance.
Q: What target material is this probe calibrated for?
A: Standard factory calibration is performed against AISI 4140 steel. If your shaft material differs (e.g., Inconel, titanium, or stainless steel), a recalibration or scale factor correction may be required.
Q: Can I use this probe for axial position measurement?
A: Yes. The 330902-00-30-05-02-05 can be used for both radial vibration and axial (thrust) position measurement when paired with the appropriate 3300 XL driver and monitor configuration.
Q: What is the minimum order quantity?
A: We supply single units as well as bulk orders. There is no minimum order quantity for standard inquiries.
Q: Do you provide a warranty?
A: All products are supplied with a quality guarantee. Warranty terms are confirmed at the time of quotation based on product condition (new OEM, surplus new, or tested used).
Q: How long does shipping take?
A: Express shipping via DHL or FedEx typically takes 3–7 business days to most destinations. Lead times for in-stock items are confirmed at the time of inquiry.
