Bently Nevada 330903-00-12-05-02-05 NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide

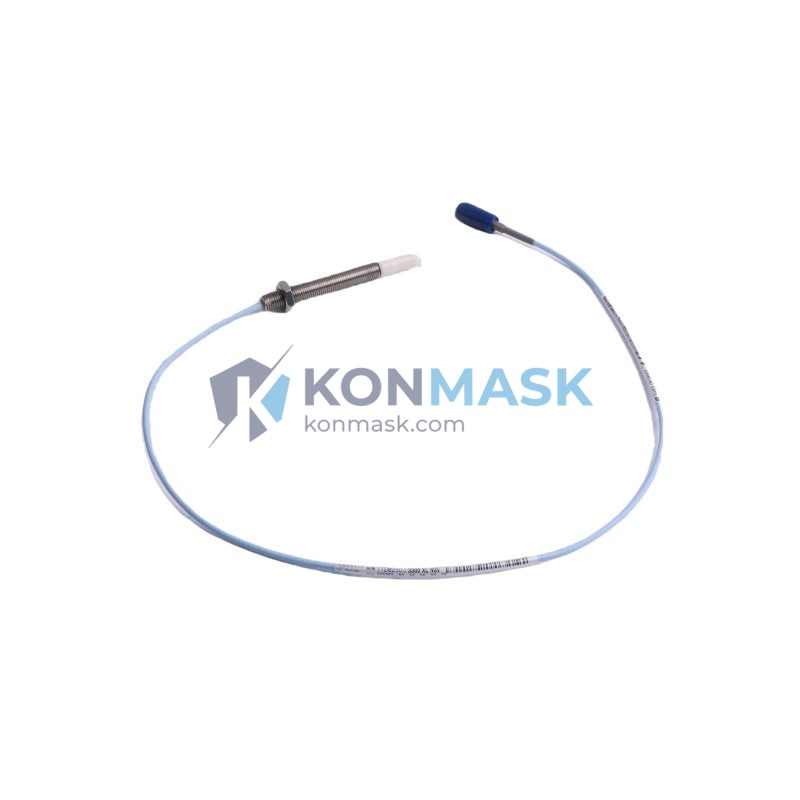

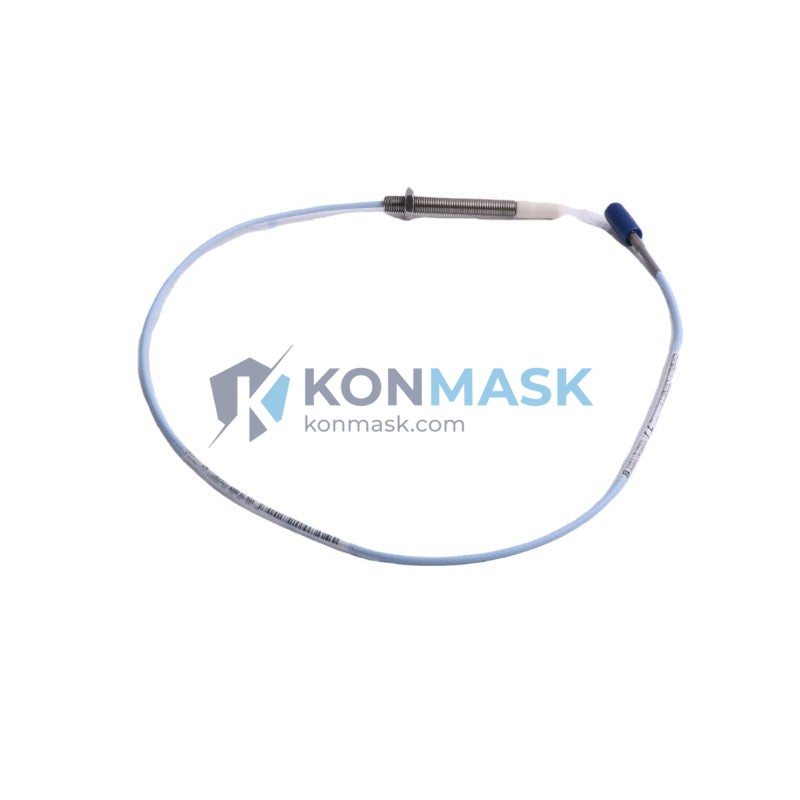

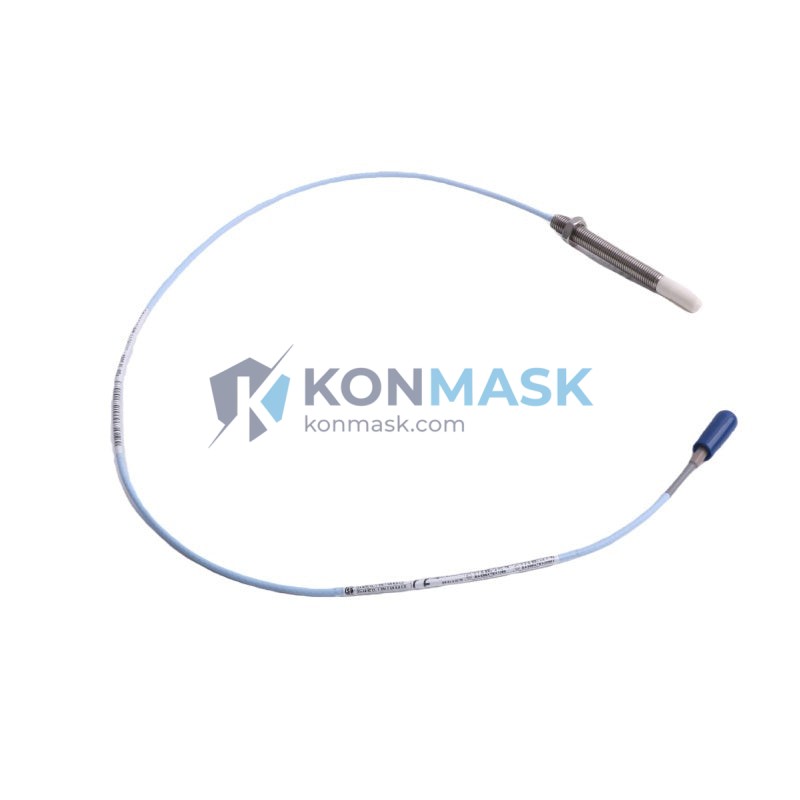

The Bently Nevada 330903-00-12-05-02-05 is a precision NSv (Non-Standard Voltage) Proximity Transducer System from the 3300 XL Series. Engineered for continuous shaft vibration and position monitoring in rotating machinery, it is widely deployed in turbines, compressors, and pumps across oil & gas, power generation, and petrochemical industries. Konmask.com supplies verified OEM and compatible-grade units with full traceability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330903-00-12-05-02-05 |
| Series | Bently Nevada 3300 XL NSv |
| Transducer Type | Eddy-Current Proximity Transducer |
| Probe Tip Diameter | Approx. 11 mm |
| Integral Cable Length | 1.2 m |
| Extension Cable Length | 5 m |
| Output Voltage Range | NSv (Non-Standard Voltage) |
| Measurement Range | 0.25 mm – 2.26 mm (10–89 mil) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Supply Voltage | –24 VDC (nominal) |
| Operating Temperature (Probe) | –35°C to +121°C |
| Operating Temperature (Driver) | –35°C to +66°C |
| Target Material (Calibrated) | AISI 4140 Steel |
| Approvals | CE, ATEX, IECEx |
| Weight | ~120 g |
Compatible Replacement & Equivalent Models
When sourcing a replacement for the 330903-00-12-05-02-05, the following models offer functional or dimensional compatibility. Always verify system configuration before substitution:
- 330903-00-12-05-02-00 – Standard voltage variant; same probe body, different driver output
- 330905-00-12-05-02-05 – Extended temperature NSv variant for high-heat environments
- 330180-91-00 – 3300 XL 8 mm probe (dimensional substitute; verify gap range)
- 330101-00-35-10-02-00 – 3300 XL 8 mm Proximity Probe (standard voltage; confirm driver compatibility)
- Emerson / GE Bently Nevada 3300 XL NSv Series – Any NSv-designated probe with matching cable and driver part numbers
⚠ NSv systems require matched NSv drivers. Do not substitute standard-voltage drivers without recalibration.
Why Choose the Original Model
- Factory-Calibrated Sensitivity: 7.87 V/mm ensures direct drop-in compatibility with existing Bently Nevada monitoring systems
- NSv-Specific Driver Matching: Eliminates signal offset errors common with cross-voltage substitutions
- Proven Field Reliability: 3300 XL NSv systems installed in thousands of critical rotating machines globally
- Full OEM Traceability: Genuine units include original packaging and documentation where available
- Regulatory Compliance: Maintains ATEX/IECEx certification integrity for hazardous area installations
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing proximity sensing
- Axial thrust position monitoring on rotating shafts
- Critical machinery protection systems (API 670 compliant)
- Petrochemical plant continuous condition monitoring
System Compatibility
The 330903-00-12-05-02-05 integrates with the following Bently Nevada system components:
- Monitors: 3300/16 Monitor, 3500/42 Proximitor/Seismic Monitor, 3500/40M Proximitor Monitor
- NSv Drivers: 330180-X0-00 series NSv Proximitor drivers
- Extension Cables: 330130-050-00-00 (5 m), 330130-080-00-00 (8 m)
- DCS/PLC Integration: 4–20 mA via signal conditioner; compatible with Emerson DeltaV, Honeywell Experion, ABB 800xA
Selection Guide
| Requirement | Recommended Model | Key Differentiator |
|---|---|---|
| Standard NSv, 1.2 m probe + 5 m extension | 330903-00-12-05-02-05 | This model — baseline NSv configuration |
| Standard voltage (non-NSv) replacement | 330903-00-12-05-02-00 | Different driver; requires system reconfiguration |
| High-temperature environment (>121°C) | 330905-00-12-05-02-05 | Extended temp probe body |
| Shorter probe cable (0.9 m) | 330903-00-09-05-02-05 | Same NSv spec, shorter integral cable |
| Longer extension cable (8 m) | 330903-00-12-08-02-05 | Extended reach for large machinery housings |
Not sure which variant fits your system? Contact our engineers at support@konmask.com with your existing part number and monitor model.
Quality Assurance & Sourcing
- Verified Supply Chain: All units sourced from authorized distributors or certified surplus channels with full documentation
- Pre-Shipment Inspection: Physical condition, label verification, and connector integrity checked before dispatch
- Authenticity Guarantee: Counterfeit-free commitment — units failing verification are rejected and not listed
- Traceability Records: Batch and serial documentation available on request for critical installations
- Global Logistics: DHL / FedEx express with export documentation (HS Code, COO) for customs clearance
How to Order
- Confirm part number 330903-00-12-05-02-05 matches your existing system label
- Verify driver model is NSv-compatible (check driver suffix -05 designation)
- Add to cart or contact us for bulk pricing and lead time confirmation
- Provide shipping country for accurate freight and customs documentation
- Receive order confirmation with tracking within 1 business day
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace 330903-00-12-05-02-05 with a standard-voltage 330903-00-12-05-02-00?
A: Not directly. NSv and standard-voltage systems use different driver bias voltages. Substitution requires driver replacement and system recalibration.
Q: Is this probe compatible with the Bently Nevada 3500 monitoring system?
A: Yes, when paired with the correct NSv Proximitor driver module. Confirm the 3500/40M or 3500/42 monitor accepts NSv input in your system configuration.
Q: What target material is this probe calibrated for?
A: Factory calibration is on AISI 4140 steel. For other materials (titanium, Inconel, etc.), apply a correction factor per Bently Nevada application notes.
Q: Do you supply the complete system (probe + extension cable + driver)?
A: Yes. Contact us with your full system part numbers and we will quote the complete matched set.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Sourced units: 7–14 business days. Contact us for current availability.
