Vibration Monitoring Solution – Bently Nevada 330904-00-21-10-01-00 | 3300 XL NSv Series
Where This Product Is Used

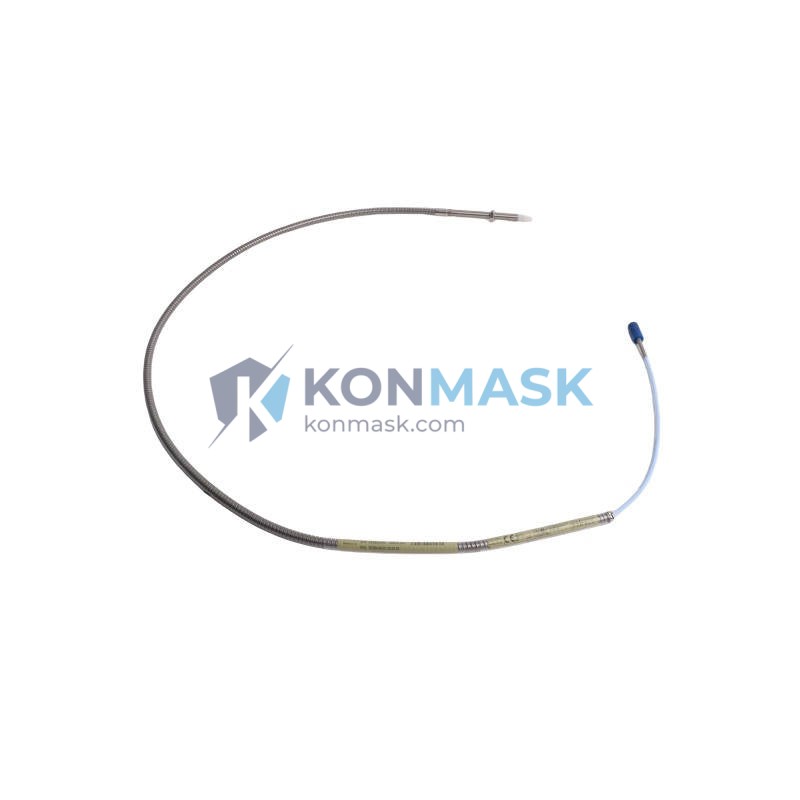

The Bently Nevada 330904-00-21-10-01-00 is a core component of the 3300 XL NSv Proximity Transducer System, engineered for continuous, non-contact vibration and position measurement in rotating machinery. It is widely deployed in:
- Steam & Gas Turbines – shaft radial vibration monitoring per API 670
- Centrifugal & Axial Compressors – real-time rotor displacement tracking in petrochemical plants
- Pumps & Fans – bearing journal orbit analysis in power generation facilities
- Gearboxes – differential expansion and eccentricity measurement
- Marine Propulsion Systems – shaft position monitoring in offshore platforms
Technical Specifications
- Part Number: 330904-00-21-10-01-00
- Series: 3300 XL NSv (Non-Standard voltage)
- Transducer Type: Eddy-Current Proximity Transducer
- Cable Length: 5m (integral)
- Extension Cable: 10m (system total: 15m)
- Output Voltage: -18 VDC nominal (NSv)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz
- Temperature Range: -35°C to +177°C (transducer tip)
- Target Material: AISI 4140 steel or equivalent
- Thread Size: M10 x 1 (metric)
- Connector: 2-pin MIL-C-5015 style
- Weight: 220 g (approx.)
- Agency Approvals: CE, FM, CSA
Why Engineers Specify This Model
- NSv Output Compatibility – Designed for systems requiring non-standard voltage output, ensuring direct drop-in compatibility with legacy 3300 monitor racks without signal conditioning
- High-Temperature Stability – Maintains calibration accuracy up to 177°C, critical for hot-section turbine bearing housings
- API 670 Compliant – Meets the machinery protection standard mandated by EPC contractors and end-users in oil & gas
- Integral Cable Design – Eliminates field-splice failure points; the 5m integral cable reduces installation error in confined bearing pedestals
- Proven Platform – The 3300 XL series has over two decades of field-proven reliability in tier-1 LNG, refinery, and power generation assets
Complete System Bill of Materials
- Transducer: 330904-00-21-10-01-00 (this unit)
- Extension Cable: 330130-080-00-00 (10m, recommended)
- Proximitor® Sensor: 330180-X1-05 (3300 XL NSv driver)
- Monitor Module: 3300/16 or 3500/42M (rack-mount)
- Barrier (if required): 3300/20 Zener Barrier for hazardous area installations
Contact Konmask.com for complete system quotations and compatibility verification.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems
- IEC 61511 – Functional Safety (SIL-capable installations)
- ATEX / IECEx – Zone 1 & Zone 2 hazardous area ratings (with approved barrier)
- CE Marking – EMC Directive 2014/30/EU
- FM & CSA – North American hazardous location approvals
Quality Assurance & Sourcing
Every Bently Nevada 330904-00-21-10-01-00 unit supplied by Konmask.com undergoes:
- Visual and dimensional inspection against OEM datasheet tolerances
- Functional output verification (static calibration check)
- Traceability documentation – serial number, manufacture date, and test records provided on request
- Secure anti-static packaging with humidity indicator card
We source exclusively from authorized distributors and verified surplus channels. Counterfeit-risk screening is applied to all Bently Nevada inventory.
How to Source This Part
- In-Stock Orders: Add to cart and check out – ships within 1–3 business days from our warehouse
- Bulk / Project Quotations: Email support@konmask.com with your BOM and required delivery schedule
- Expedite Requests: Call +0086 19859288691 for same-day quotation on urgent plant shutdowns
- Technical Pre-Sales: Our engineers can verify system compatibility before you order
Application-Specific FAQ
Q: Is the 330904-00-21-10-01-00 compatible with the 3500 monitoring rack?
A: Yes, when paired with the appropriate 3300 XL NSv Proximitor driver (330180 series), the output is compatible with 3500/42M and 3500/45 monitor modules.
Q: What is the difference between the standard 330900 and the 330904 series?
A: The 330904 designates the metric-thread (M10 x 1) housing variant. The 330900 uses imperial threads. Verify your bearing housing thread specification before ordering.
Q: Can this transducer be used in a Zone 1 hazardous area?
A: Yes, with an approved Zener barrier (e.g., Bently Nevada 3300/20) or galvanic isolator. The transducer itself is passive; the safety rating applies to the complete loop.
Q: What target material is required for accurate calibration?
A: The factory calibration is performed on AISI 4140 steel. For other target materials (e.g., Inconel, titanium), a field recalibration or material correction factor must be applied.
Q: Does Konmask.com provide a warranty?
A: Yes. We offer a 12-month warranty against defects in materials and workmanship. OEM warranty terms apply to new, sealed units.
