Bently Nevada 330905-00-20-10-02-00 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

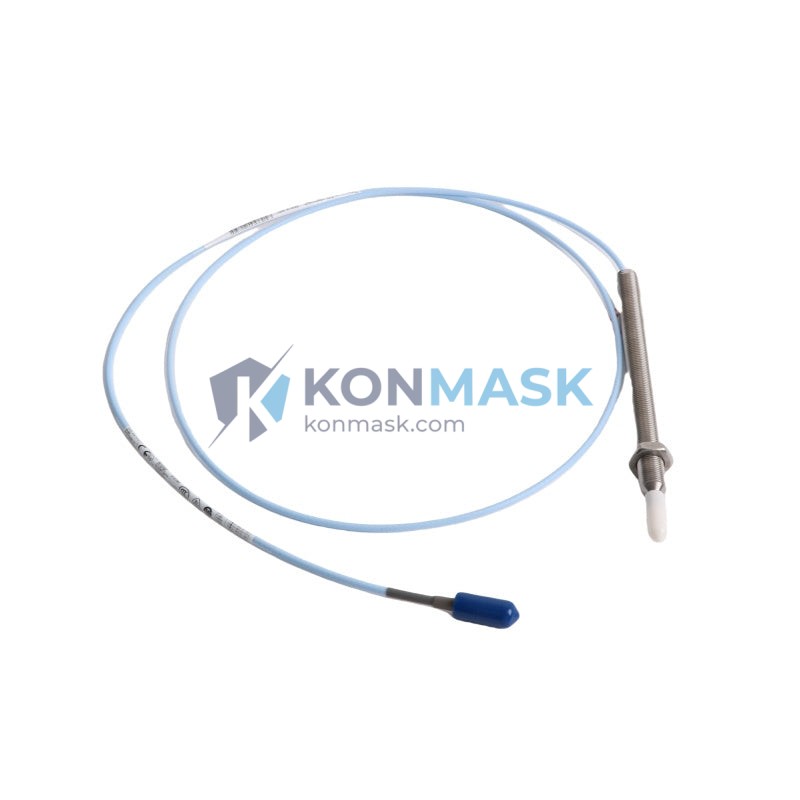

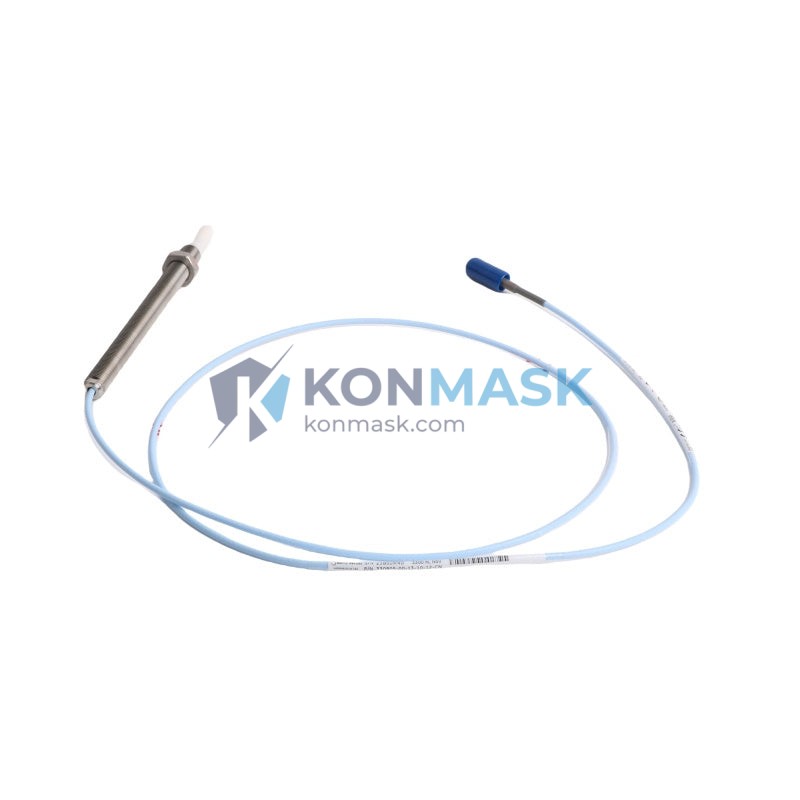

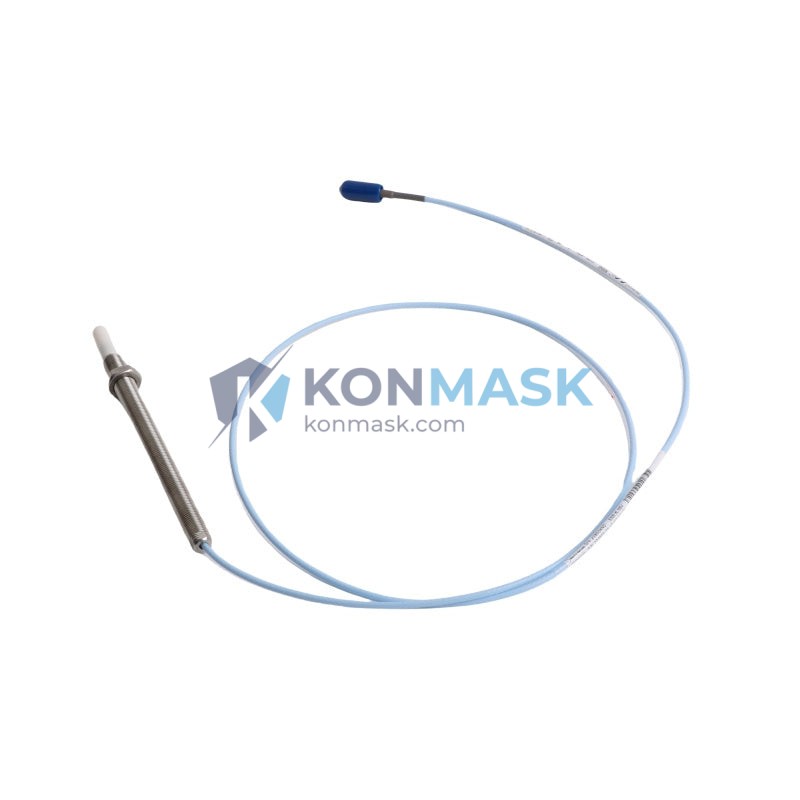

The Bently Nevada 330905-00-20-10-02-00 is a 5 mm eddy-current proximity probe from the 3300 NSv Series, designed for continuous non-contact vibration, position, and eccentricity measurement on rotating machinery. This page provides full technical specifications, compatible replacement models, cross-reference data, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 330905-00-20-10-02-00
- Series: Bently Nevada 3300 NSv (Non-Standard Voltage)
- Probe Tip Diameter: 5 mm
- Cable Length: 2.0 m (integral cable)
- Extension Cable: 5.0 m (total system length 7.5 m with standard extension)
- Measurement Range: 0.25 mm – 2.26 mm (linear range)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Supply Voltage: –24 VDC (nominal)
- Output: Voltage proportional to gap distance
- Temperature Range: –35 °C to +177 °C (probe body)
- Connector Type: 02 (standard BN connector)
- Approvals: CE, ATEX, IECEx (consult datasheet for zone ratings)
- Weight: Approx. 80 g
- Country of Origin: USA
Compatible Replacement & Equivalent Models
The table below lists direct and near-equivalent replacements for the 330905-00-20-10-02-00. Always verify system driver/conditioner compatibility before substitution.
| Part Number | Brand | Series | Tip Dia. | Cable Length | Notes |
|---|---|---|---|---|---|
| 330905-00-20-10-02-00 | Bently Nevada | 3300 NSv | 5 mm | 2.0 m | OEM Original |
| 330905-00-20-05-02-00 | Bently Nevada | 3300 NSv | 5 mm | 0.5 m | Shorter cable variant |
| 330905-00-20-10-01-00 | Bently Nevada | 3300 NSv | 5 mm | 2.0 m | Alternate connector |
| 3300 XL 5mm Probe | Bently Nevada | 3300 XL | 5 mm | Various | Upgraded series; driver change required |
| PR6423/010-100 | Epro / Baker Hughes | PR6423 | 8 mm | 1.0 m | Different tip size; check gap range |
| CWY-DO-810-05-00 | CNPEC / Zhonghang | CWY-DO | 8 mm | 0.5 m | Chinese equivalent; verify sensitivity |
Contact us for a full cross-reference list or OEM-to-aftermarket comparison.
Why Choose the Original Model
- Guaranteed System Compatibility: Designed and calibrated specifically for Bently Nevada 3300 NSv drivers and monitors — no re-calibration required.
- Proven Field Reliability: Widely deployed in power generation, oil & gas, and petrochemical plants worldwide.
- API 670 Compliance: Meets the requirements of API 670 for machinery protection systems.
- Traceable Calibration: Each probe ships with factory calibration data traceable to NIST standards.
- Long Service Life: Robust stainless-steel housing rated for harsh industrial environments.
Typical Applications
- Radial shaft vibration monitoring on steam and gas turbines
- Axial position (thrust) measurement on compressors
- Differential expansion monitoring on large rotating machinery
- Eccentricity measurement during slow-roll and startup
- Speed and phase reference (Keyphasor) in conjunction with 3300 monitors
- Bearing housing vibration on pumps, fans, and gearboxes
System Compatibility
The 330905-00-20-10-02-00 probe is designed to operate as part of a complete Bently Nevada 3300 NSv proximity transducer system, which includes:
- Extension Cable: 330130-XX-XX (5 m or 9 m options)
- Driver / Oscillator-Demodulator: 330180-X1-00 (3300 NSv driver)
- Monitor: 3300/16 or 3500/42 series vibration monitors
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy (non-magnetic targets require recalibration)
Note: This probe is NOT directly interchangeable with 3300 XL or 3500 series probes without driver replacement.
Selection Guide
Use the decision matrix below to confirm the correct part number for your application:
| Parameter | Option A | Option B | Option C |
|---|---|---|---|
| Probe Tip Diameter | 5 mm (this model) | 8 mm | 11 mm |
| Integral Cable Length | 0.5 m / 1.0 m / 2.0 m | — | — |
| Connector Type | 02 (standard) | 01 (alternate) | — |
| Temperature Rating | Standard (–35 to +177 °C) | High-temp variant | — |
| Hazardous Area | ATEX / IECEx certified | Non-certified | — |
If you are unsure which variant suits your installation, contact our engineering team with your monitor model number and shaft diameter.
Quality Assurance & Sourcing
- Source: Konmask.com sources from authorized distributors and verified OEM surplus channels.
- Inspection: All units undergo visual inspection and packaging integrity check before dispatch.
- Documentation: Original factory documentation, calibration certificates, and test reports available on request.
- Warranty: 12-month warranty against manufacturing defects.
- Lead Time: In-stock units ship within 1–3 business days; ex-stock lead time quoted on inquiry.
How to Order
- Confirm part number: 330905-00-20-10-02-00
- Specify quantity and required delivery date.
- Submit your RFQ via the Add to Cart button or email support@konmask.com.
- Receive quotation with lead time, pricing, and shipping options within 24 hours.
- Confirm purchase order — we accept T/T, PayPal, and major credit cards.
Replacement & Compatibility FAQ
Q: Can I use the 330905-00-20-10-02-00 with a 3300 XL driver?
A: No. The 3300 NSv and 3300 XL systems use different driver electronics and calibration curves. Mixing components will result in measurement errors.
Q: What is the difference between connector type 01 and 02?
A: The connector suffix (01 vs 02) refers to the physical connector style on the probe body. Verify your extension cable connector before ordering.
Q: Is this probe suitable for non-ferrous target materials?
A: Standard calibration is for AISI 4140 steel. For non-ferrous targets (e.g., titanium, aluminum), a special calibration is required — contact us for details.
Q: Can Konmask supply the complete 3300 NSv transducer system?
A: Yes. We can supply the probe, extension cable (330130 series), and driver (330180 series) as a matched set. Request a system quote via email.
Q: Do you offer expedited shipping?
A: Yes. DHL Express, FedEx International Priority, and UPS Worldwide Expedited are available. Contact us for rates.
