Turbine & Compressor Vibration Monitoring Solution – Bently Nevada 330906-02-12-70-02-05 | 3300 XL Series
Where This Product Is Used

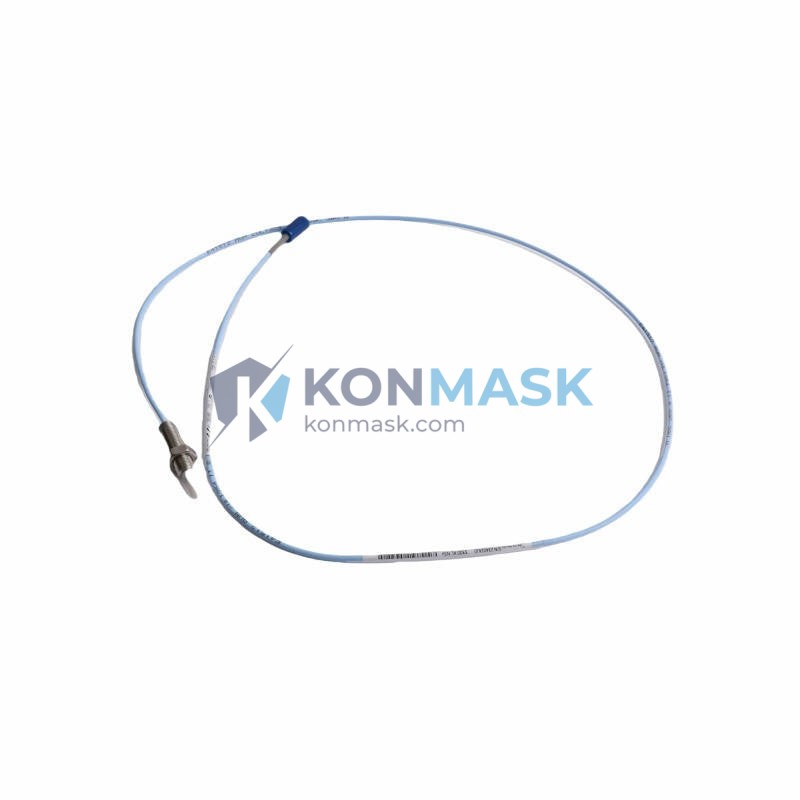

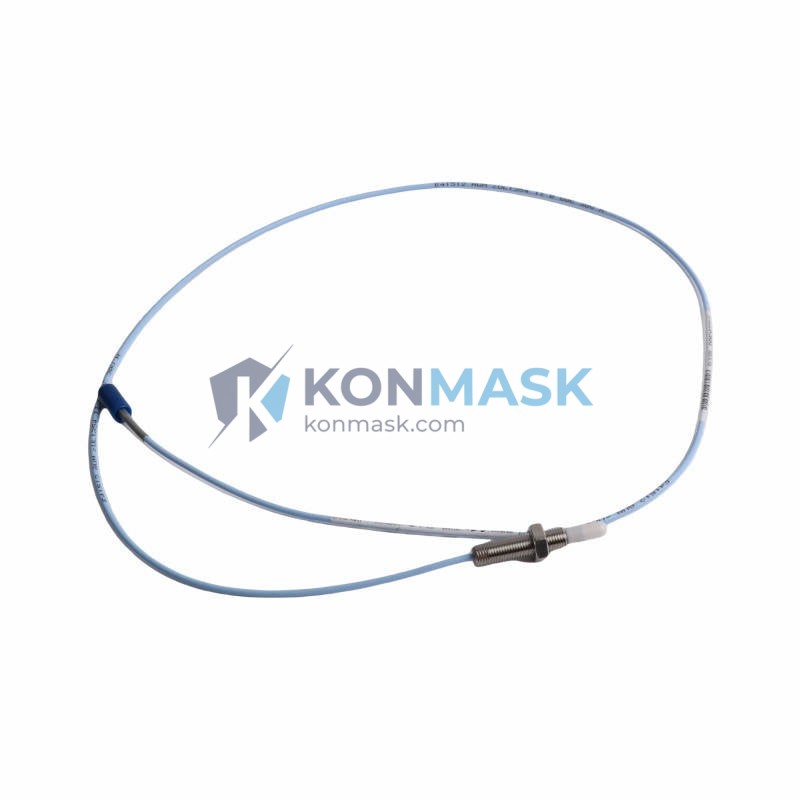

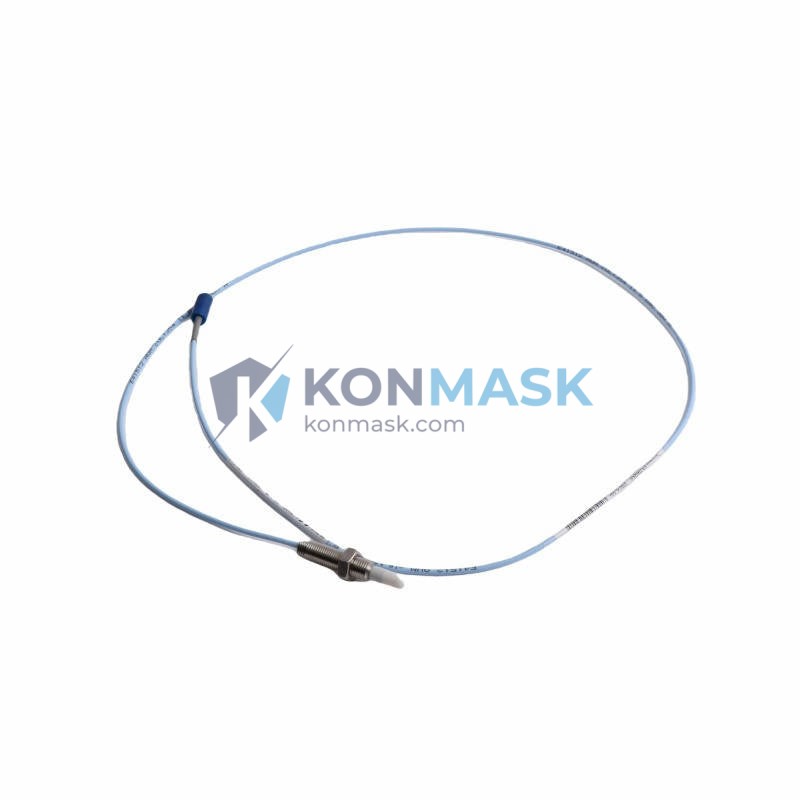

The Bently Nevada 330906-02-12-70-02-05 is a precision 8 mm eddy-current proximity probe engineered for continuous, non-contact shaft vibration and axial position measurement in rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – radial shaft vibration monitoring per API 670
- Centrifugal & Axial Compressors – rotor dynamic analysis and surge detection
- Pumps & Fans – bearing journal orbit measurement
- Gearboxes – gear mesh frequency and eccentricity tracking
- Hydro Turbines & Motors – thrust position and differential expansion
- Petrochemical & Refinery Plants – continuous online machinery protection systems
- Power Generation Facilities – integrated with DCS/SCADA for predictive maintenance
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330906-02-12-70-02-05 |
| Series | Bently Nevada 3300 XL |
| Sensor Type | Eddy Current Proximity Probe |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Cable Length | 5 m (standard extension) |
| Measurement Range | 0–2 mm (0–80 mil) linear |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | −35 °C to +177 °C (probe tip) |
| Target Material | AISI 4140 steel (or equivalent) |
| Connector | Coaxial, reverse-polarity protected |
| Approvals | CE, ATEX, IECEx |
| Compatible Driver | Bently Nevada 3300 XL 8mm Driver |
| Compatible Monitor | 3500/40M, 3500/42M, System 1 |
Why Engineers Specify This Model
- API 670 Compliant – meets the industry standard for machinery protection systems in oil & gas
- High Linearity – ±1% linearity over full measurement range ensures accurate orbit plots
- Robust Construction – stainless steel housing withstands high-pressure, high-temperature lube oil environments
- Plug-and-Play with 3300 XL System – factory-calibrated as a matched probe/driver/extension cable set
- Non-Contact Measurement – zero mechanical wear, ideal for continuous 24/7 machinery protection
- Wide Frequency Bandwidth – captures sub-synchronous, synchronous, and super-synchronous vibration events
Complete System Bill of Materials
For a fully functional 3300 XL proximity probe system, the following components are required:
- Probe: 330906-02-12-70-02-05 (this item)
- Extension Cable: 330130-080-00-00 (8 m) or equivalent 3300 XL series cable
- Driver / Oscillator-Demodulator: 330180-X1-00 (3300 XL 8mm Driver)
- Monitor Module: Bently Nevada 3500/40M or 3500/42M Proximitor I/O Module
- Rack: Bently Nevada 3500 Monitoring Rack
- Software: System 1 Evolution (optional, for advanced diagnostics)
Contact support@konmask.com for bundle pricing on complete system configurations.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems
- API 670 Annex D – Eddy Current Probe Systems
- IEC 61511 – Functional Safety (SIL-capable installations)
- ATEX Directive 2014/34/EU (zone-rated variants)
- IECEx Scheme – International explosion protection
- CE Marking – European conformity
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation
Quality Assurance & Sourcing
All Bently Nevada components supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes:
- Visual and dimensional inspection upon receipt
- Functional verification against OEM calibration data
- Secure anti-static packaging for transit protection
- Traceability documentation available upon request
We do not supply counterfeit, refurbished-as-new, or grey-market parts. Authenticity concerns? Request a certificate of conformance before purchase.
How to Source This Part
Ready to order or need a formal quotation?
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: Typically 3–7 business days (ex-stock); 2–4 weeks for special configurations
- MOQ: 1 piece
- Payment: T/T, PayPal, credit card via Shopify Payments
- Shipping: DHL / FedEx Express worldwide; EXW Xiamen available
Application-Specific FAQ
Q: Is the 330906-02-12-70-02-05 compatible with older Bently Nevada 3300 (non-XL) systems?
A: No. The 3300 XL series uses a different driver impedance. Use 330905-XX series probes for legacy 3300 systems.
Q: Can this probe be used on non-ferrous targets (e.g., titanium or aluminum rotors)?
A: Yes, but sensitivity and linearity will differ. A target-specific calibration is required. Contact us for application support.
Q: What is the maximum shaft speed this probe can monitor?
A: The 10 kHz bandwidth supports shaft speeds up to approximately 600,000 RPM, well beyond typical turbomachinery operating ranges.
Q: Do you supply the full matched set (probe + cable + driver)?
A: Yes. We can supply individual components or complete matched sets. Specify your cable length and driver model when enquiring.
Q: Is an ATEX-rated version available?
A: Yes. Please specify your hazardous area classification (Zone 1/2, Gas Group, Temperature Class) when requesting a quote.
