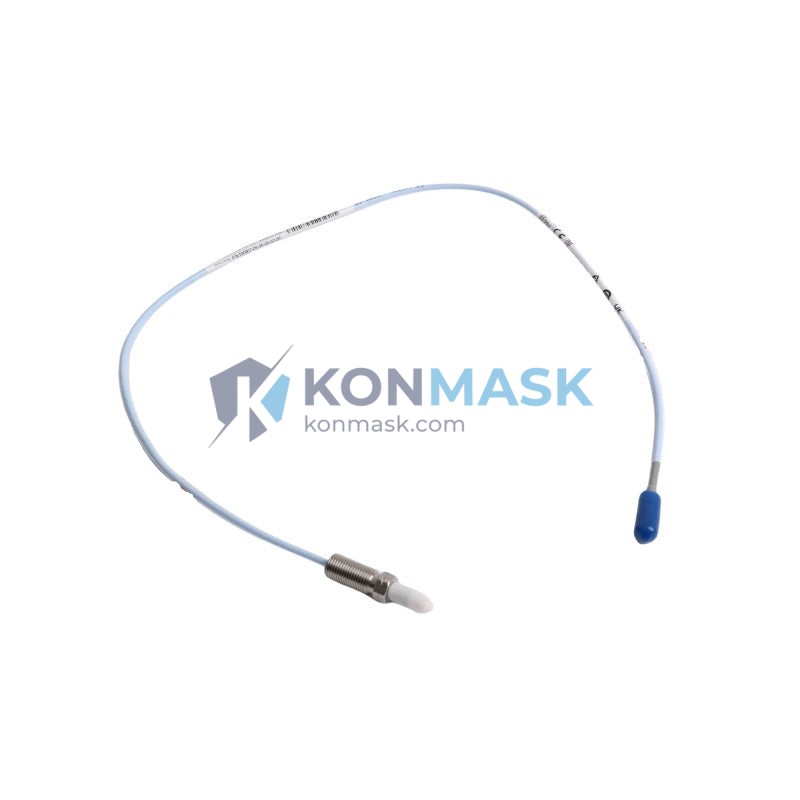

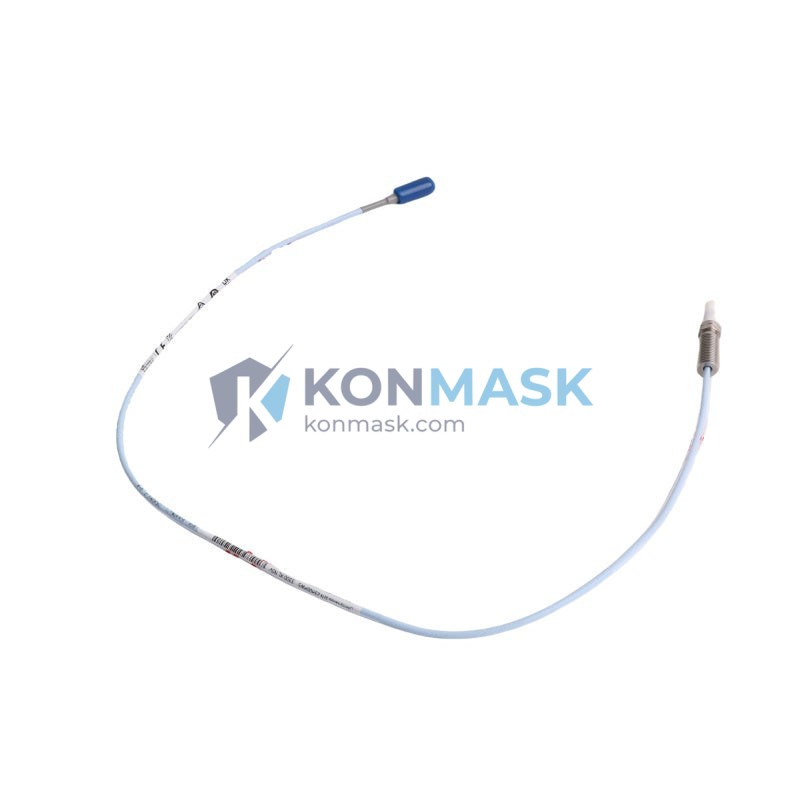

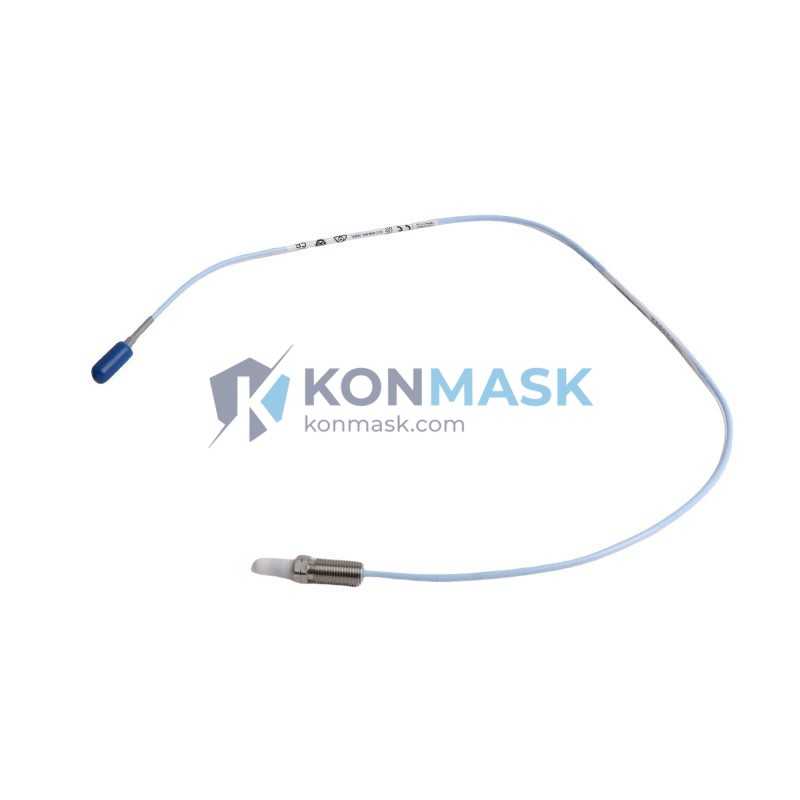

Bently Nevada 330907-05-30-10-02-05 Reverse Mount Eddy Current Proximity Probe – 3300 NSv Proximity Transducer Series
Picture a high-speed centrifugal compressor or steam turbine running blind — no shaft vibration data, no radial position feedback. Within hours, an undetected imbalance, misalignment, or oil-film instability can cascade into catastrophic bearing failure, emergency shutdown, and production losses exceeding tens of thousands of dollars per hour. The Bently Nevada 330907-05-30-10-02-05 Reverse Mount Eddy Current Proximity Probe is the precision sensing element that prevents that scenario. Engineered for installations where standard front-mount access is physically impossible — blocked by machine structure, piping, or confined bearing housings — this probe delivers the full measurement integrity of the 3300 NSv system from the opposite mounting direction, without compromise.
Within the Bently Nevada 3300 NSv Proximity Transducer Series — the industry’s most widely deployed eddy current platform for rotating machinery protection — the 330907-05-30-10-02-05 occupies a precisely defined configuration: reverse-mount geometry, 5 mm tip diameter, 30 cm armored probe cable, 10 mm linear sensing range, 2 m extension cable, and 5 m driver cable. This specific combination is extensively specified across petrochemical, power generation, and heavy industrial facilities worldwide, making it one of the most sourced reverse-mount probe configurations in the Bently Nevada catalog. Its global installed base reflects decades of proven reliability in the most demanding rotating machinery environments.
Technical Specifications
- Part Number / SKU: 330907-05-30-10-02-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 NSv Proximity Transducer System
- Probe Type: Reverse Mount Eddy Current Proximity Probe
- Tip Diameter: 5 mm
- Probe Cable Length: 30 cm (armored)
- Linear Sensing Range: 10 mm
- Extension Cable Length: 2 m
- Driver Cable Length: 5 m
- Mounting Style: Reverse Mount
- Compatible Driver/Conditioner: 3300 NSv Series Proximitor
- Output Signal: –18 Vdc nominal (system-dependent)
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Approvals: Designed for hazardous area installations per applicable Bently Nevada certifications
All specifications are based on published Bently Nevada 3300 NSv system documentation. Konmask.com does not fabricate or alter OEM specifications.
Key Features & Benefits
- Reverse-Mount Geometry: Installs from the back of the bearing housing — eliminates costly mechanical redesign when front access is obstructed by machine structure or process piping.
- 5 mm Compact Tip Diameter: Fits tight radial clearances common in high-speed turbomachinery without requiring housing modification.
- 10 mm Linear Sensing Range: Wide measurement window for accurate gap calibration and reliable vibration amplitude capture across the full operating envelope.
- Armored Probe Cable: 30 cm armored construction resists mechanical damage in high-vibration, high-temperature cycling environments.
- Drop-In 3300 NSv Compatibility: Direct replacement within existing 3300 NSv installations — no driver recalibration required for like-for-like substitution.
- Non-Contact Eddy Current Technology: Wear-free, continuous shaft position and vibration measurement with zero mechanical contact and no moving parts.
- API 670 System Alignment: The 3300 NSv platform is designed to support API 670 machinery protection compliance requirements.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, and generator shaft radial vibration and position monitoring.
- Oil & Gas / Petrochemical: Centrifugal compressors, expanders, and process pumps in upstream, midstream, and downstream facilities.
- Pulp & Paper / Steel Mills: High-speed rotating equipment requiring continuous condition monitoring in confined installations.
- Marine Propulsion: Shaft monitoring in confined engine room installations where front-mount access is restricted.
- General Heavy Industry: Any rotating machinery where reverse-mount probe geometry is the only viable installation approach.
System Integration & Compatible Parts
The 330907-05-30-10-02-05 operates as part of the complete Bently Nevada 3300 NSv Proximity Transducer System. Typical system components include:
- Extension Cable: 3300 NSv series extension cables (2 m, as specified in this part number)
- Driver / Conditioner: 3300 NSv series Proximitor driver modules
- Machinery Protection Monitor: Bently Nevada 3500 Series or equivalent
- Mounting Hardware: Reverse-mount probe holders and lock nuts per OEM specifications
When sourcing replacement or spare parts, always verify the complete part number string to confirm cable length and configuration compatibility with your existing installation.
Our Quality Assurance Process
Every Bently Nevada component supplied by Konmask.com undergoes a structured verification process before shipment:
- Part number cross-check against OEM documentation and customer purchase order
- Physical inspection for label integrity, connector condition, and cable sheath damage
- Traceability documentation provided upon request (batch records, test certificates where available)
- Anti-static packaging for all electronic sensing components
- Export compliance review for international shipments
How to Order
- Submit an inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical team confirms part number compatibility with your existing 3300 NSv system configuration.
- Receive a formal quotation with lead time, shipping options, and payment terms within 1 business day.
- Confirm order and receive proforma invoice or commercial invoice as required.
- Shipment dispatched with full documentation: packing list, commercial invoice, certificate of origin if required.
For urgent requirements or volume orders, contact us directly: [email protected] | +0086 19859288691
Why Choose Konmask.com?
- Industrial Automation Specialists: Exclusively focused on industrial control and automation components — not a generalist marketplace.
- B2B-First Workflow: Structured for procurement teams, MRO buyers, and plant engineers with formal quotation, invoicing, and documentation processes.
- Global Export Experience: Proven documentation workflows for Asia-Pacific, Middle East, Europe, and Americas destinations.
- Technical Pre-Sales Support: Part number verification, cross-referencing, and system compatibility assistance before you commit to an order.
- Competitive Lead Times: Established supplier relationships enable faster sourcing for both standard and hard-to-find Bently Nevada parts.
Frequently Asked Questions
- Q: What is the difference between a standard mount and a reverse mount proximity probe?
- A standard (front-mount) probe installs with the tip facing the target from the accessible side of the bearing housing. A reverse-mount probe installs from the back of the housing with the tip oriented in the opposite direction — required when front access is blocked by machine structure or piping.
- Q: Is the 330907-05-30-10-02-05 compatible with older 3300 XL or 3300 RAM drivers?
- The 3300 NSv series is designed for NSv-compatible drivers. Compatibility with older 3300 XL or 3300 RAM drivers must be verified against Bently Nevada documentation or confirmed with our technical team before installation.
- Q: Can you supply the complete 3300 NSv system or only individual components?
- Konmask.com supplies both complete system sets and individual components including probes, extension cables, and Proximitor drivers. Contact us with your specific bill of materials.
- Q: What is the typical lead time for the 330907-05-30-10-02-05?
- Lead time depends on current stock availability. Submit an RFQ and we will confirm availability and estimated delivery within 1 business day.
- Q: Can you provide a certificate of conformance or test report?
- Traceability documentation is provided where available from our supply chain. Please specify your documentation requirements at the time of inquiry.
