Rotating Machinery Vibration Monitoring Solution – Bently Nevada 330909-10-99-10-11-CN | 3300 XL NSv Series
Where This Product Is Used

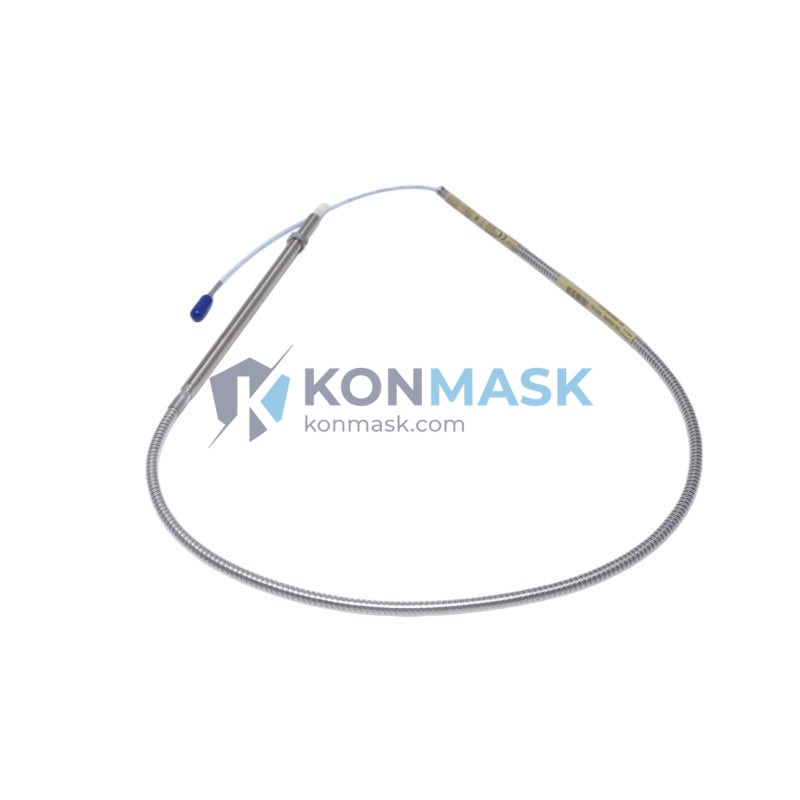

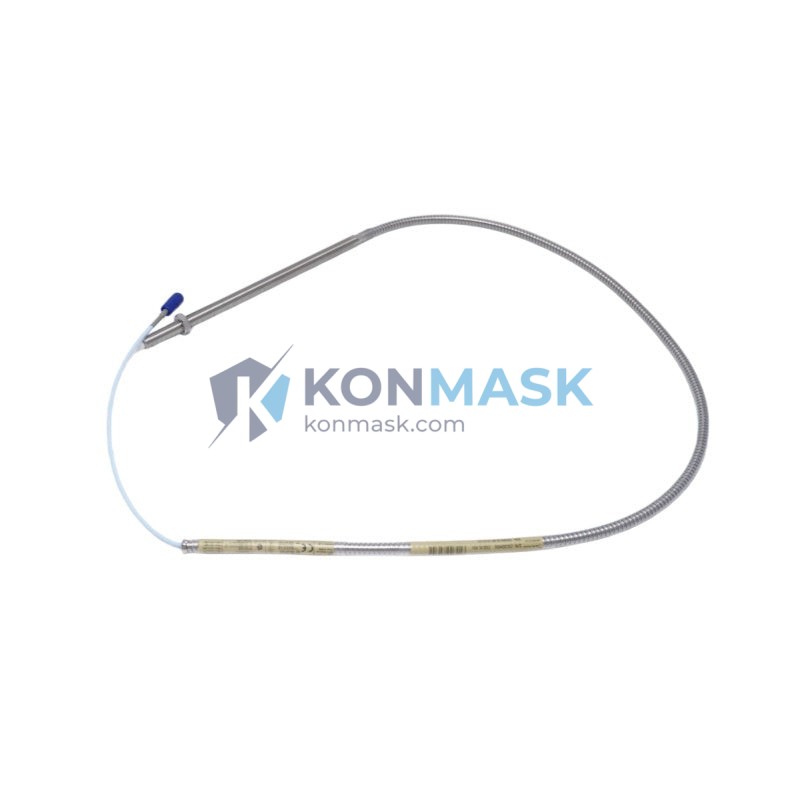

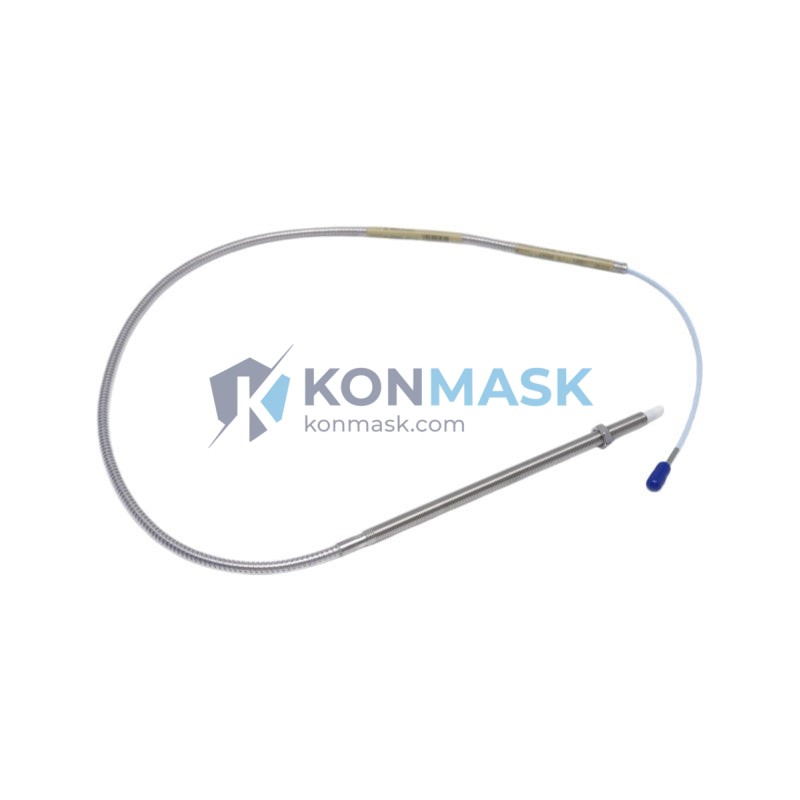

The Bently Nevada 330909-10-99-10-11-CN NSv Proximity Probe is engineered for continuous, non-contact vibration and position measurement on rotating machinery in demanding industrial environments. Typical deployment sites include:
- Oil & Gas: Compressor trains, gas turbines, centrifugal pumps on upstream and downstream platforms
- Power Generation: Steam turbines, hydro generators, and combined-cycle plant shaft monitoring
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, and blower trains
- Pulp & Paper / Heavy Industry: High-speed rolls, fans, and gearbox monitoring
- Marine & Offshore: Propulsion shaft and auxiliary machinery surveillance
Technical Specifications
| Part Number | 330909-10-99-10-11-CN |
| Series | 3300 XL NSv (Non-Standard voltage) |
| Brand | Bently Nevada (Baker Hughes) |
| Probe Type | Eddy-Current Proximity Probe |
| Probe Length | 10 mm (tip-to-connector) |
| Cable Length | Integrated, 99 cm extension |
| Thread Size | 10-32 UNF |
| Connector | 11-pin configuration |
| Target Material | AISI 4140 steel (standard); compatible with most ferrous/non-ferrous metals |
| Operating Temperature | -35°C to +177°C |
| Sensitivity | 200 mV/mil (7.87 V/mm) nominal |
| Linear Range | Approx. 0–90 mil (0–2.29 mm) |
| Supply Voltage | NSv (Non-Standard voltage) – consult driver datasheet |
| Weight | 50 g |
| Country of Origin | USA / Global Manufacturing |
Why Engineers Specify This Model
- NSv Designation: Non-Standard voltage output allows integration with legacy DCS/PLC systems that cannot accept standard ±24 VDC driver supply, reducing retrofit costs.
- 3300 XL Platform Compatibility: Fully interchangeable within the Bently Nevada 3300 XL ecosystem — no recalibration required when replacing worn probes.
- High-Temperature Resilience: Rated to 177°C, suitable for hot-section turbine bearing pedestals without additional thermal shielding.
- API 670 Alignment: Meets the measurement chain requirements for radial vibration, axial position, and differential expansion per API 670 5th Edition.
- Minimal Maintenance: Non-contact sensing eliminates mechanical wear; MTBF exceeds 100,000 hours in clean environments.
Complete System Bill of Materials
For a fully functional 3300 XL NSv measurement channel, the following components are required:
- Proximity Probe: 330909-10-99-10-11-CN (this item)
- Extension Cable: Bently Nevada 330130-xxx-xx-xx (length to suit installation)
- Proximitor® Driver/Oscillator: Bently Nevada 330180-x1-00 (NSv compatible)
- Monitor Module: 3500/42M or 3500/40M (radial vibration / axial position)
- Rack: Bently Nevada 3500 Series 19″ rack with power supply
- Mounting Hardware: Probe holder, lock nut, and armored conduit (site-specific)
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation
- IEC 61511 – Functional Safety (SIL-capable monitoring chains)
- ATEX / IECEx – Consult Bently Nevada for zone-rated variants
- CE Marking – Electromagnetic compatibility per EN 61000 series
Quality Assurance & Sourcing
Konmask.com sources Bently Nevada components through verified industrial distribution channels. Every unit undergoes:
- Visual and dimensional inspection against OEM drawings
- Continuity and insulation resistance verification
- Serialization cross-check against manufacturer records where available
- Secure anti-static packaging with humidity indicator cards for long-haul shipping
Traceability documentation and test reports are available upon request for critical plant applications.
How to Source This Part
- In Stock: Ready to ship within 1–3 business days from our warehouse.
- Lead Time (if out of stock): 2–4 weeks via authorized supply chain.
- Minimum Order: 1 unit; volume pricing available for 5+ units.
- Export: We ship globally — DDP/DAP terms available for most destinations.
- RFQ: Contact support@konmask.com or call +0086 19859288691 for bulk quotes, expedited sourcing, or consignment stock programs.
Application-Specific FAQ
Q: Is the 330909-10-99-10-11-CN a direct replacement for the standard 330909-10-99-10-00-CN?
A: The -11 suffix denotes the NSv (Non-Standard voltage) output configuration. It is physically identical but electrically incompatible with standard-voltage drivers. Always verify driver compatibility before substitution.
Q: Can this probe be used with a 3500/42M monitor without modification?
A: Yes, provided the corresponding NSv Proximitor driver is installed. The 3500/42M accepts the NSv signal chain natively when configured correctly in the rack software.
Q: What is the recommended gap voltage for this probe on AISI 4140 steel?
A: The nominal gap is set to achieve –10 VDC output (approximately 50 mil / 1.27 mm gap) for standard radial vibration monitoring per Bently Nevada calibration curves.
Q: Does Konmask provide installation support?
A: We provide technical documentation, wiring diagrams, and remote commissioning guidance. On-site support can be arranged through our partner network — contact us for details.
Q: Is this part available with ATEX certification for hazardous areas?
A: The -CN suffix indicates a China-market configuration. For ATEX/IECEx-rated variants, please contact us with your zone classification and we will source the appropriate certified assembly.
