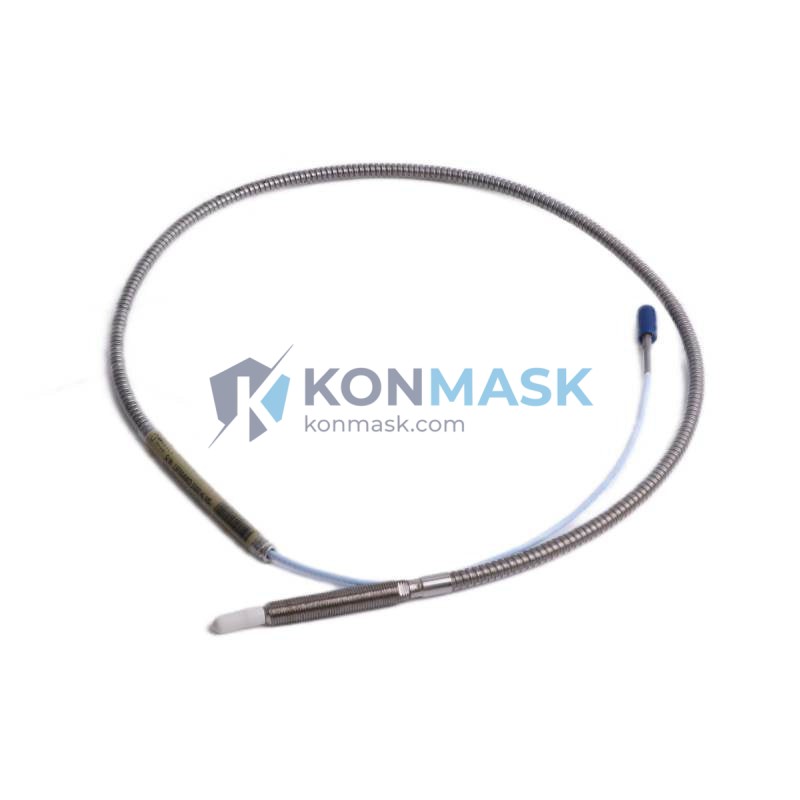

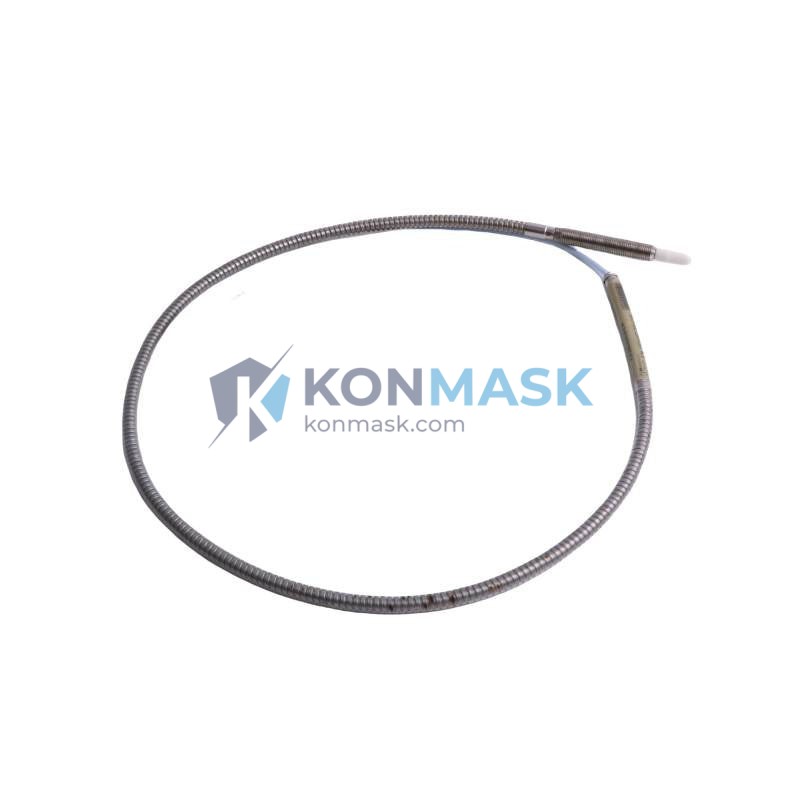

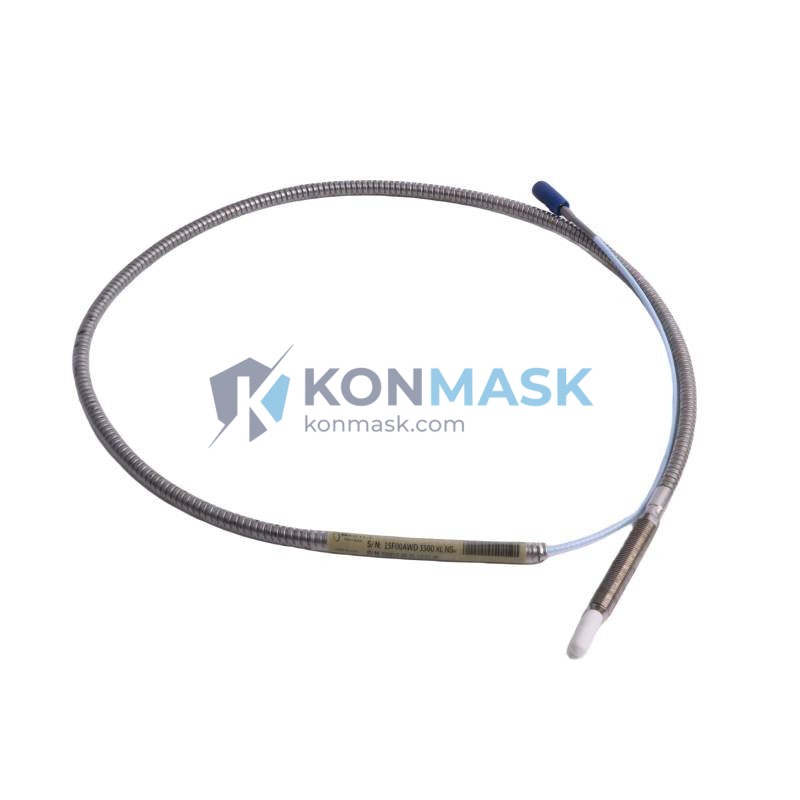

Bently Nevada 330910-00-04-10-02-00 – Eddy Current Proximity Probe | 3300 NSv Platform
Engineering Background: The Bently Nevada 3300 NSv Series represents the industry benchmark for non-contacting eddy current measurement in rotating machinery protection systems. Engineered to API 670 standards, this platform has been deployed across gas turbines, steam turbines, compressors, and pumps in critical process industries worldwide for over three decades.
Product Positioning: The 330910-00-04-10-02-00 is a 5 mm diameter proximity probe designed for shaft radial vibration, axial position (thrust), and differential expansion measurement. It integrates seamlessly with the 3300 NSv signal conditioning system, delivering high-resolution displacement data to plant DCS, SIS, and condition monitoring platforms.
Complete Technical Specifications
- Part Number: 330910-00-04-10-02-00
- Series / Platform: Bently Nevada 3300 NSv
- Probe Type: Eddy Current Non-Contacting Proximity Probe
- Probe Diameter: 5 mm (0.197 in)
- Cable Length: 1.0 m (standard; see part number matrix for alternatives)
- Extension Cable: Compatible with 330130 / 330180 series extension cables
- Driver / Proximitor: 3300 XL 8mm / 3300 NSv Proximitor Module
- Measurement Range: 0 – 2.0 mm (0 – 80 mil) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Frequency Response: DC – 10,000 Hz (–3 dB)
- Operating Temperature: –35 °C to +177 °C (probe tip)
- Connector Type: Integral coaxial, reverse SMA compatible
- Target Material: AISI 4140 steel (standard); consult factory for non-ferrous targets
- Agency Approvals: CE, ATEX, IECEx (intrinsically safe configurations available)
- Compliance: API 670 5th Edition
- Weight: Approx. 100 g (probe + integral cable)
- Country of Origin: USA
Proven Application Environments
- Gas turbine radial shaft vibration monitoring (bearing proximity)
- Steam turbine axial thrust position measurement
- Centrifugal compressor differential expansion and eccentricity
- Boiler feed pump and motor shaft orbit analysis
- Gearbox and expander rotor dynamic monitoring
- API 670-compliant machinery protection systems (MPS)
- Retrofit and upgrade of legacy Bently Nevada 3300 XL installations
Engineering Advantages
- Non-contacting measurement: Zero mechanical wear; continuous operation without maintenance intervals
- High bandwidth: DC–10 kHz response captures sub-synchronous, synchronous, and super-synchronous vibration components
- Plug-and-play compatibility: Direct replacement for 3300 XL 5 mm probes with no recalibration required when paired with NSv Proximitor
- Robust construction: Stainless steel housing with hermetically sealed tip; rated for high-pressure wash-down and hydrocarbon environments
- Traceable calibration: Factory-calibrated with NIST-traceable standards; calibration certificate available on request
- Long service life: Solid-state design with no moving parts; MTBF >100,000 hours in typical installations
System Architecture & Signal Flow
The 330910-00-04-10-02-00 probe forms the sensing element of a three-component measurement chain:
- Proximity Probe (330910-00-04-10-02-00) → generates eddy current field at target surface
- Extension Cable (330130 / 330180 series) → transmits RF signal with minimal loss over distances up to 9 m total
- NSv Proximitor Module (3300/16-xx-xx-xx) → demodulates signal, outputs –24 VDC bias and 7.87 V/mm displacement voltage to monitor rack or DCS analog input
Total system gap voltage at mid-range: approximately –10.5 VDC. Monitor rack alarm setpoints are configured per API 670 alert/danger thresholds.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with full traceability documentation
- Pre-shipment inspection includes: visual examination, dimensional check, coil resistance verification, and static sensitivity test
- Original Bently Nevada packaging and labeling preserved where available
- Counterfeit-risk mitigation: serial number cross-referenced against Baker Hughes / Bently Nevada product database prior to dispatch
- Calibration certificates and test reports available upon request for critical applications
Procurement Process
- Confirm part number: Verify 330910-00-04-10-02-00 against your system BOM and Proximitor model
- Request quote: Contact support@konmask.com for volume pricing, lead time, and documentation package
- Place order: Purchase via this listing or submit a formal PO to our procurement team
- Receive & inspect: All shipments include packing list, inspection report, and tracking number
- Technical support: Post-installation commissioning support available via email or video call
Technical FAQ
Q: Is the 330910-00-04-10-02-00 compatible with the 3300 XL Proximitor?
A: Yes. The 3300 NSv probe is backward-compatible with 3300 XL 5 mm Proximitor modules. Verify gap voltage and sensitivity settings before commissioning.
Q: What is the maximum total cable length for this probe system?
A: The combined probe integral cable + extension cable must not exceed 9.0 m (29.5 ft) to maintain specified sensitivity and linearity.
Q: Can this probe measure non-ferrous targets (aluminum, titanium)?
A: Standard calibration is for AISI 4140 steel. Non-ferrous target applications require a target-specific calibration factor; contact our engineering team for guidance.
Q: Do you provide ATEX/IECEx certified units?
A: Intrinsically safe configurations are available. Please specify hazardous area classification (Zone 0/1/2, Gas Group, Temperature Class) when ordering.
Q: What documentation is included with shipment?
A: Standard shipment includes inspection report and packing list. Calibration certificate, material certificate (CoC), and original Bently Nevada datasheet available on request.
