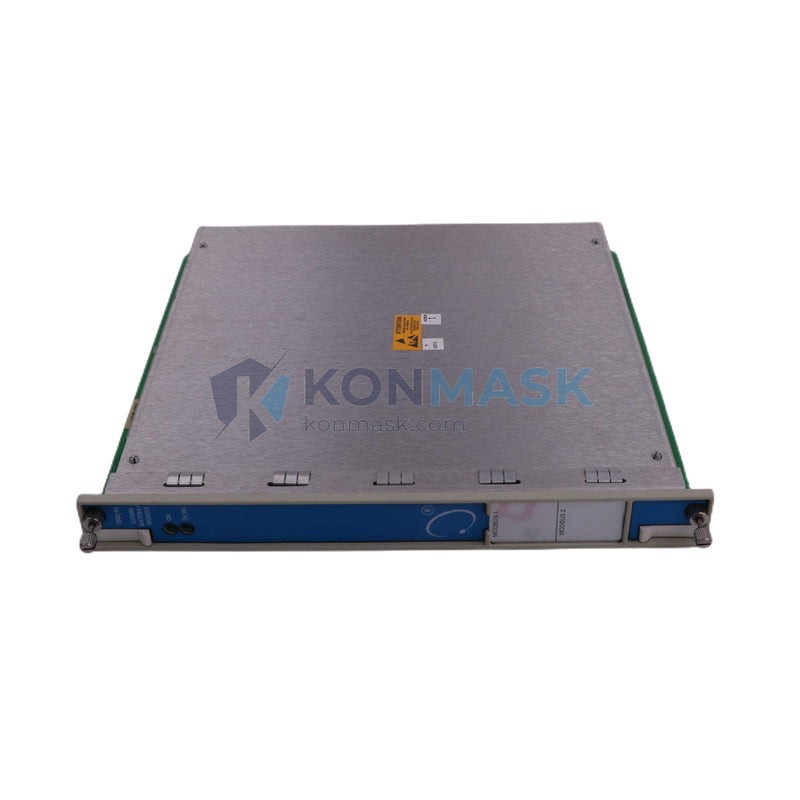

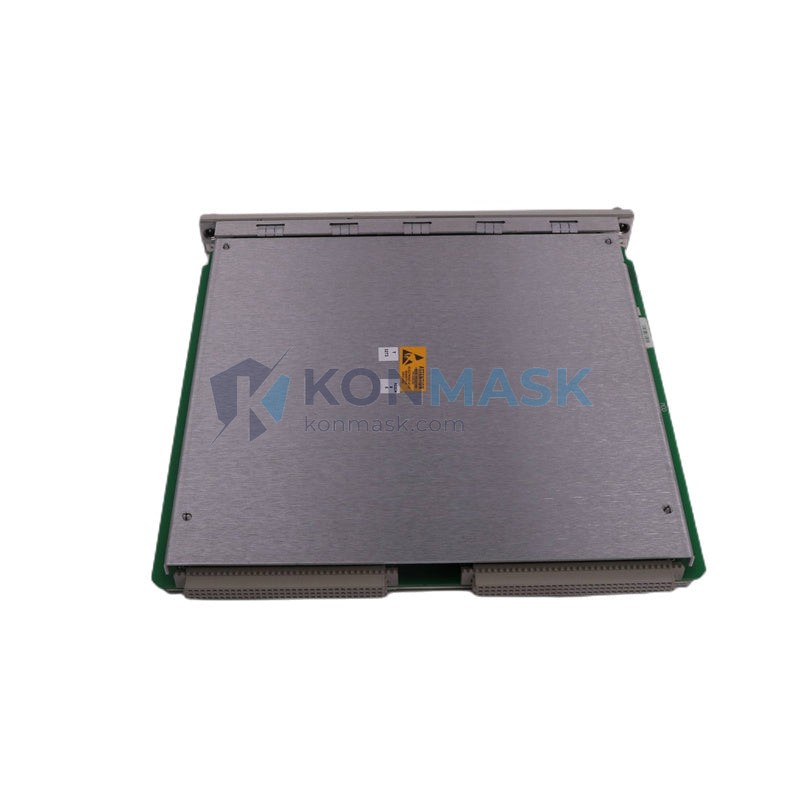

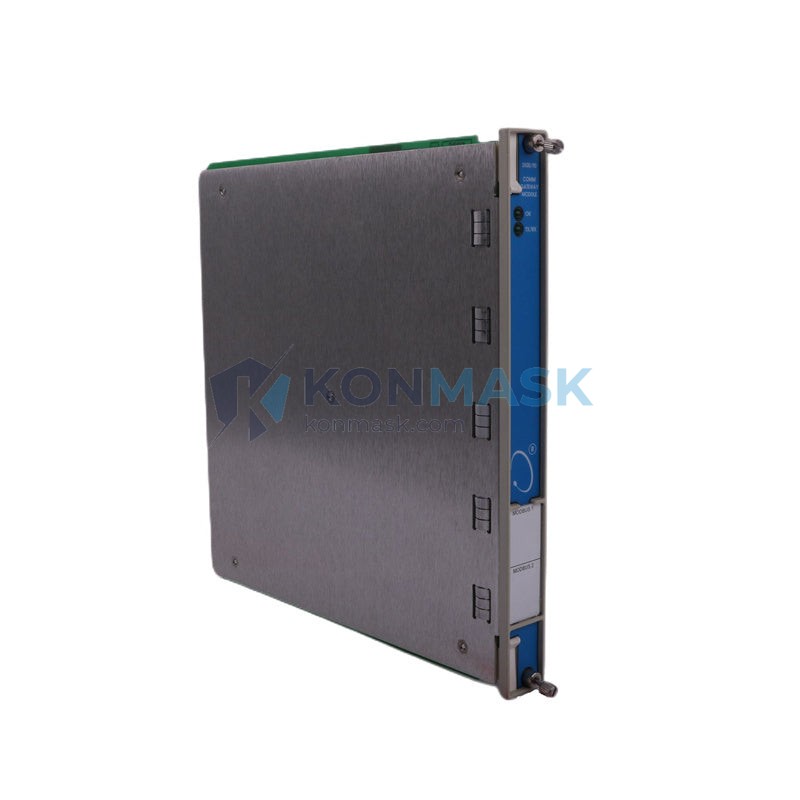

BENTLY NEVADA 3500/90 Communication Gateway | Replacement, Equivalent & Selection Guide
The Bently Nevada 3500/90 Communication Gateway is a critical interface module within the Bently Nevada 3500 Series Machinery Protection System. It enables seamless data exchange between the 3500 rack and plant-level DCS, SCADA, or PLC systems via standard industrial communication protocols. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to support your procurement and engineering decisions.
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number: 3500/90
- Module Type: Communication Gateway
- Series: Bently Nevada 3500 Machinery Protection System
- Supported Protocols: Modbus RTU, Modbus TCP/IP, OPC DA/UA (firmware dependent)
- Interface: RS-232 / RS-485 / Ethernet (model variant dependent)
- Rack Compatibility: 3500 Series Rack (3500/05, 3500/15, 3500/20, 3500/25)
- Power Supply: Supplied via rack backplane
- Operating Temperature: 0°C to +60°C
- Certifications: CE, UL (refer to original datasheet for full listing)
- Weight: Approx. 800 g
- Form Factor: Single-slot module for 3500 rack
Compatible Replacement & Equivalent Models
When the original 3500/90 is unavailable or end-of-life, the following models may serve as functional equivalents or replacements depending on your system configuration. Always verify protocol compatibility and firmware version before substitution.
- Bently Nevada 3500/92 – Enhanced communication module with additional protocol support; direct upgrade path for most 3500 racks
- Bently Nevada 3500/93 – Ethernet-based gateway variant; suitable for TCP/IP-centric plant networks
- Bently Nevada 3500/94 – Dual-port communication gateway for redundant network topologies
- Third-party Modbus Gateways – Protocol converters (e.g., Moxa MGate, ProSoft MVI series) can bridge 3500 serial output to modern DCS/SCADA; requires custom configuration
- Refurbished / Reconditioned 3500/90 – Factory-tested units available through authorized distributors including Konmask.com
Note: Konmask.com recommends using original Bently Nevada modules for safety-critical machinery protection applications. Third-party alternatives should only be used after thorough engineering review.
Why Choose the Original Model
- Certified Compatibility: Designed and validated exclusively for the 3500 Series rack — no integration risk
- Safety Integrity: Maintains SIL-rated system integrity required for rotating machinery protection
- Firmware Ecosystem: Fully supported by System 1 Evolution software and Bently Nevada configuration tools
- Long-term Support: Spare parts, firmware updates, and technical support available through Baker Hughes channels
- Audit & Compliance: Original part numbers simplify asset management, FAT/SAT documentation, and regulatory audits
Typical Applications
- Gas turbine and steam turbine machinery protection systems
- Compressor train monitoring in oil & gas upstream/midstream facilities
- Pump and motor protection in petrochemical plants
- Integration of vibration/proximity data into plant DCS (e.g., Emerson DeltaV, Honeywell Experion, ABB 800xA)
- SCADA data acquisition for condition monitoring and predictive maintenance programs
- Power generation facilities requiring real-time machinery health data at the control room level
System Compatibility
- Rack: Bently Nevada 3500/05, 3500/15, 3500/20, 3500/25 (19-inch rack formats)
- Software: System 1 Evolution, Bently Nevada Configuration & Utilities Software (BNCS)
- DCS Platforms: Emerson DeltaV, Honeywell Experion PKS, ABB 800xA, Yokogawa CENTUM VP
- SCADA: Wonderware InTouch, Ignition (Inductive Automation), GE iFIX
- Protocols: Modbus RTU (RS-232/RS-485), Modbus TCP/IP, OPC DA (via System 1)
- Not Compatible With: 3300 Series racks; 1900 Series monitors (different form factor and backplane)
Selection Guide
Use the following criteria to determine whether the 3500/90 or an alternative model is appropriate for your application:
- Protocol Requirement: If Modbus RTU over RS-485 is sufficient → 3500/90 is the standard choice. If Ethernet/TCP/IP is required → consider 3500/93 or 3500/94.
- Redundancy Requirement: Single-network installations → 3500/90. Dual-network redundancy → 3500/94.
- Firmware Version: Confirm rack firmware supports the selected gateway module. Contact Konmask.com for compatibility matrix.
- Budget vs. Risk: For safety-critical SIL applications, always specify original OEM modules. For non-critical monitoring extensions, refurbished units may be acceptable.
- Lead Time Sensitivity: Konmask.com maintains stock of both new and reconditioned 3500/90 units for rapid dispatch.
Quality Assurance & Sourcing
- All units sourced through verified industrial supply chains with full traceability
- Reconditioned modules undergo functional testing, visual inspection, and burn-in procedures
- Original packaging, documentation, and firmware version records provided where available
- Certificate of Conformance (CoC) available upon request for critical applications
- Anti-counterfeit verification: Konmask.com only supplies modules from traceable, auditable sources
How to Order
- Step 1: Confirm your rack model and current firmware version
- Step 2: Specify quantity and preferred condition (new OEM / reconditioned)
- Step 3: Contact Konmask.com via email or phone with your PO or RFQ
- Step 4: Receive quotation with lead time, shipping terms (EXW/CIF/DAP), and payment options
- Step 5: Confirm order — dispatch within 1–3 business days for in-stock items
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can the 3500/90 be used in a 3300 Series rack?
A: No. The 3500/90 is designed exclusively for the 3500 Series rack backplane and is not physically or electrically compatible with the 3300 Series.
Q: Is the 3500/90 still in production?
A: Bently Nevada (Baker Hughes) periodically updates its product line. Availability of new units may be limited; Konmask.com can supply reconditioned and new-old-stock (NOS) units. Contact us for current availability.
Q: Can I replace a 3500/90 with a 3500/92 without reconfiguring the rack?
A: The 3500/92 is generally backward compatible but may require firmware updates and reconfiguration of communication parameters. Consult the Bently Nevada 3500/92 installation manual and verify with your system integrator.
Q: Does Konmask.com provide warranty on reconditioned units?
A: Yes. Reconditioned units come with a standard 12-month warranty covering functional defects. Terms and conditions available upon request.
Q: What documentation is provided with the module?
A: Depending on unit condition, documentation may include the original Bently Nevada installation manual, Certificate of Conformance, test report, and firmware version record.
