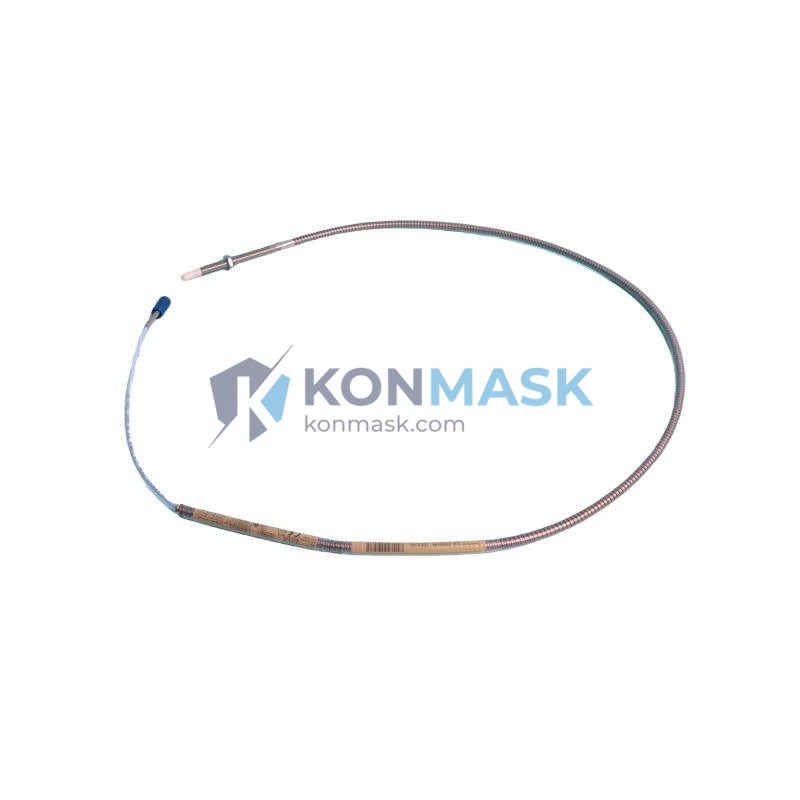

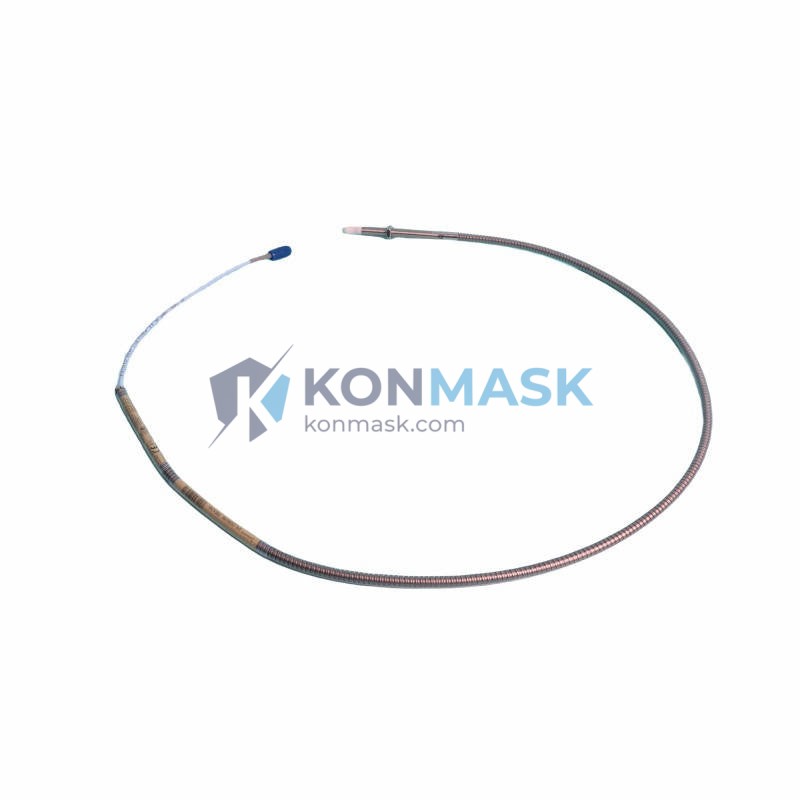

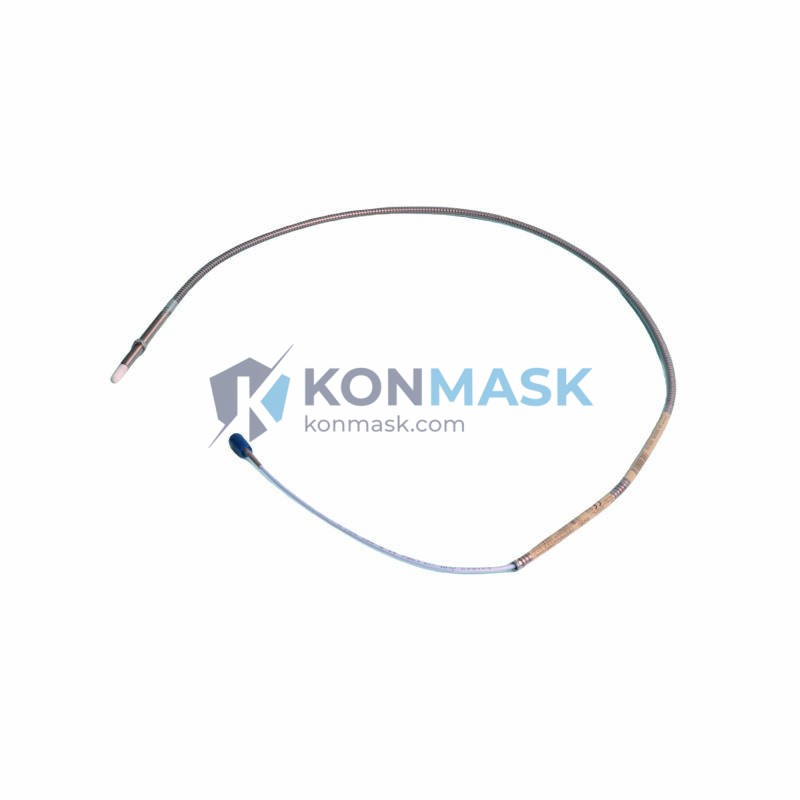

Genuine Bently Nevada 330910-00-15-10-02-00 Proximity Transducer System | 3300 XL Series — Verified Source
The Bently Nevada 330910-00-15-10-02-00 is a high-precision eddy-current proximity transducer system designed for continuous, non-contact vibration and position measurement in rotating machinery. As an authorised distributor and verified reseller, Konmask.com supplies only genuine, traceable units — never counterfeit or refurbished without disclosure.
Technical Specifications
| Part Number (SKU) | 330910-00-15-10-02-00 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL Proximity Transducer System |
| Sensor Type | Eddy-Current (Non-Contact) |
| Cable Length | 15 ft (4.57 m) — integral armored cable |
| Extension Cable | 10 ft (3.05 m) |
| Driver/Oscillator | 3300 XL 8mm Driver (included in system) |
| Measurement Range | 0 – 80 mil pp (0 – 2.032 mm pp) |
| Output Signal | –24 VDC nominal bias; 200 mV/mil (7.87 V/mm) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35 °C to +121 °C (probe tip) |
| Target Material | AISI 4140 steel (standard) |
| Approvals | CE, ATEX, IECEx, FM, CSA |
| Weight | 140 g (approx.) |
| Condition | New / Surplus New |
Our 4-Step Quality Verification Process
Every unit shipped from Konmask.com passes through a documented 4-step QC protocol before dispatch:
- Visual Inspection — Probe tip, connector pins, cable jacket, and labelling examined for physical integrity and OEM markings.
- Electrical Continuity Test — Shield, signal, and power conductors verified against Bently Nevada factory specifications.
- Bias Voltage Check — Output bias voltage confirmed within –24 VDC ± 1 VDC tolerance at nominal gap.
- Documentation Audit — Serial number, date code, and country of manufacture cross-referenced with OEM records where available.
A QC checklist is available upon request for every order.
Key Features & Benefits
- ✅ Non-contact measurement — zero mechanical wear, ideal for continuous 24/7 monitoring
- ✅ High sensitivity — 200 mV/mil scale factor for precise shaft displacement readings
- ✅ Wide frequency response — DC to 10 kHz captures both slow-roll and high-speed vibration events
- ✅ Armored integral cable — resists oil, moisture, and mechanical abrasion in harsh plant environments
- ✅ Drop-in replacement — fully compatible with existing 3300 XL monitor racks; no recalibration required
- ✅ Hazardous-area certified — ATEX / IECEx rated for Zone 1 & Zone 2 installations
- ✅ Traceable sourcing — every unit documented with supplier chain records
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and thrust measurement
- Pump and motor bearing displacement surveillance
- Gearbox and expander condition monitoring
- API 670 machinery protection systems
- Petrochemical, power generation, and LNG plant installations
Compatible System Components
| Monitor Rack | Bently Nevada 3500 Series, 3300 Series |
| I/O Module | 3500/42M, 3500/40M Proximitor I/O |
| Extension Cable | 330130-080-00-00 (8 m), 330130-045-00-00 (4.5 m) |
| Driver | 330180-X1-05 3300 XL 8mm Driver |
| Junction Box | Bently Nevada 3300 XL field junction enclosures |
Need a complete system quote? Contact us — we stock most 3300/3500 series components.
Global Sourcing & Shipping Capabilities
- Stock location: Mainland China warehouse with bonded export capability
- Lead time: In-stock units ship within 1–3 business days of payment confirmation
- Shipping methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight (LCL/FCL) for bulk orders
- Export documentation: Commercial invoice, packing list, certificate of origin, and MSDS provided as standard
- Customs support: HS Code 9031.80 — we assist with import declarations and duty classification queries
- Served regions: USA, EU, Middle East, Southeast Asia, South America, and Africa
Certifications & Compliance Statement
The Bently Nevada 330910-00-15-10-02-00 carries the following certifications as issued by the OEM:
- CE — European Conformity (EMC & LVD Directives)
- ATEX — II 2G Ex ia IIC T6 Ga (Zone 1 & Zone 2)
- IECEx — International Electrotechnical Commission Explosive Atmospheres
- FM Approved — Factory Mutual (North America)
- CSA — Canadian Standards Association
- API 670 — Compliant with machinery protection standard
Konmask.com does not alter, re-label, or modify OEM certification markings. All compliance documentation is OEM-original.
How to Order
- Add to Cart — Click “Add to Cart” above and proceed to checkout.
- Request a Quote — For bulk orders (5+ units), email support@konmask.com for volume pricing.
- Confirm Lead Time — We will confirm stock availability and estimated ship date within 24 hours of order receipt.
- Payment — We accept T/T (wire transfer), PayPal, and major credit cards. LC accepted for orders above USD 10,000.
- Dispatch & Tracking — Tracking number provided within 24 hours of shipment.
Authenticity & Trust FAQ
Q: Are these units genuine Bently Nevada OEM parts?
A: Yes. We source exclusively from authorised distribution channels and surplus OEM stock. Every unit is inspected and documented before shipment.
Q: Can you provide a certificate of conformance?
A: Yes, upon request. Please note this is a Konmask.com inspection certificate; OEM factory CoC is provided where available in the original packaging.
Q: What is your return policy?
A: We accept returns within 30 days for units that are DOA (dead on arrival) or materially mis-described. Units must be returned in original packaging with all accessories.
Q: Do you offer warranty?
A: All units carry a 12-month Konmask.com warranty against manufacturing defects. This does not cover damage from improper installation or misuse.
Q: Can you source other Bently Nevada part numbers?
A: Yes — we maintain an extensive 3300/3500 series inventory. Contact us with your full BOM for a consolidated quote.
