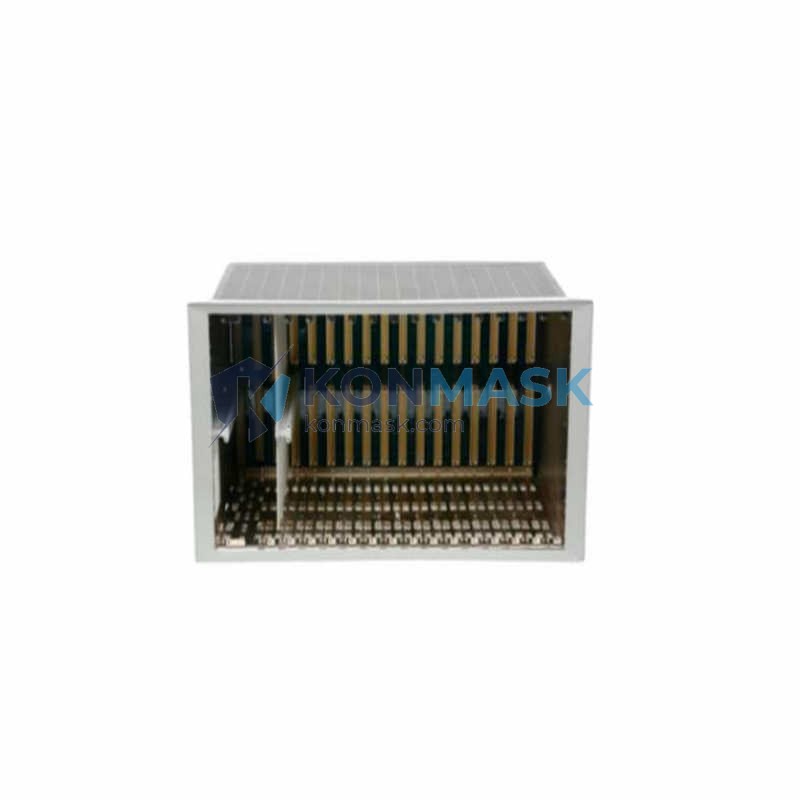

Machinery Protection & Condition Monitoring Solution – Bently Nevada 3500/05-01-02-00-00-01 | 3500 Series System Rack
Where This Product Is Used
The Bently Nevada 3500/05-01-02-00-00-01 System Rack is the backbone of continuous machinery protection systems deployed across heavy industry. Typical installation environments include:
- Oil & Gas: Upstream compressor trains, midstream pipeline pumping stations, LNG liquefaction turbines, and offshore platform rotating equipment.
- Power Generation: Steam turbine-generator sets, gas turbines, hydro-turbine shaft monitoring, and combined-cycle plant auxiliaries.
- Petrochemical & Refining: Reactor feed compressors, cracked gas compressors, and critical centrifugal pump protection.
- Pulp & Paper / Mining: Large induced-draft fans, ball mills, and kiln drive monitoring.
- Marine & Offshore: Propulsion shaft monitoring and topside processing equipment protection.
Wherever API 670-compliant machinery protection is mandated, the 3500 rack provides the certified, modular platform engineers rely on.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 3500/05-01-02-00-00-01 |
| Series | 3500 Machinery Protection System |
| Module Type | System Rack (Main Chassis) |
| Rack Slots | Up to 14 module slots (I/O + power) |
| Power Supply Input | Configured per suffix (-01 = 115/230 VAC) |
| Communication | Supports TDI, Modbus, Ethernet/IP, OPC-DA/UA (via gateway modules) |
| Mounting | 19-inch rack panel mount |
| Operating Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Approvals | CE, cULus, ATEX (zone-dependent modules), SIL 1 capable |
| SKU / Catalog No. | 3500/05-01-02-00-00-01 |
Note: Full suffix decode available on request. Contact our technical team for configuration verification.
Why Engineers Specify This Model
- API 670 Compliance: Meets the industry standard for machinery protection systems — a non-negotiable requirement for most EPC and owner-operator specifications.
- Modular Architecture: Mix-and-match monitor cards (vibration, position, speed, temperature) within a single rack, reducing panel footprint and wiring complexity.
- Proven Field Reliability: The 3500 platform has decades of installed-base history across thousands of critical machines globally, with well-documented MTBF performance.
- Seamless DCS Integration: Native Modbus RTU/TCP and optional Ethernet/IP allow direct historian and DCS tie-in without additional signal conditioning.
- Hot-Swap Capability: Individual monitor modules can be replaced under power, minimizing planned and unplanned downtime.
- Scalability: A single rack accommodates up to 14 modules, supporting both small auxiliary machines and large multi-bearing turbine trains.
Complete System Bill of Materials
A fully operational 3500 protection system typically includes the following components (available separately or as a configured system from Konmask):
- 3500/05 System Rack (this item)
- 3500/15 Power Supply Module (redundant pair recommended)
- 3500/20 Rack Interface Module (RIM) — for Modbus/Ethernet communication
- 3500/22M Transient Data Interface (TDI) — for waveform capture
- 3500/40M Proximitor®/Seismic Monitor — radial vibration & position
- 3500/42M Proximitor®/Seismic Monitor — axial position
- 3500/45 Position Monitor — thrust position
- 3500/50M Tachometer Module — speed & phase reference
- 3500/60 Temperature Monitor — thermocouple/RTD inputs
- 3500/70M Temperature Monitor — bearing temperature
- Bently Nevada 3300 XL / 3300 8mm Proximitor® Sensors (field-mount)
- Interconnect cables and terminal blocks
Contact support@konmask.com for a complete BOM quotation tailored to your machine train.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 61511 — Functional Safety (SIL-capable configurations)
- IEC 60068 — Environmental Testing
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- cULus Listed — UL 508 Industrial Control Equipment
- ATEX / IECEx — Zone 2 rated configurations available (verify suffix)
- ISO 10816 / ISO 20816 — Mechanical vibration measurement standards
Quality Assurance & Sourcing
Konmask.com specializes in the procurement of genuine, traceable industrial automation components for critical applications. Our sourcing process for the Bently Nevada 3500/05-01-02-00-00-01 includes:
- Authorized & Verified Supply Chain: Units sourced from authorized distributors, decommissioned plant inventories, and certified surplus channels — each with documented chain of custody.
- Pre-Shipment Functional Verification: Where applicable, modules undergo power-on and communication checks prior to dispatch.
- Original Packaging & Labeling: Products shipped in OEM or equivalent protective packaging with original part labels intact.
- Warranty: 90-day replacement warranty against DOA (Dead on Arrival) defects. Extended warranty available on request.
- Counterfeit Prevention: All units inspected against known counterfeit indicators per IDEA-STD-1010 guidelines.
How to Source This Part
- Request a Quote: Email support@konmask.com with your required quantity, delivery timeline, and any configuration requirements.
- Receive Availability & Lead Time Confirmation: Our team responds within 1 business day with stock status, pricing, and estimated delivery.
- Place Order & Confirm Shipping Details: Orders can be placed via purchase order (PO), wire transfer, or online checkout.
- Inspection & Dispatch: Units are inspected, documented, and shipped via DHL / FedEx International Priority or your nominated freight forwarder.
- After-Sales Support: Technical assistance available post-delivery for installation verification and commissioning questions.
📞 +0086 19859288691 | ✉️ support@konmask.com
Application-Specific FAQ
Q: Is the 3500/05-01-02-00-00-01 compatible with older 3500 monitor modules?
A: Yes. The 3500 rack is backward-compatible with all standard 3500-series monitor cards. Verify firmware revision compatibility for TDI and RIM modules with your system integrator.
Q: Can this rack be used in a SIL 2 safety loop?
A: The standard 3500 platform is SIL 1 capable as a single unit. SIL 2 is achievable through redundant rack configurations. Consult the Bently Nevada SIL documentation (document 141556-01) for details.
Q: What is the difference between the -01 and -02 power supply suffix?
A: The -01 suffix denotes an AC power input configuration (115/230 VAC). The -02 suffix typically denotes DC input. Confirm your site power specification before ordering.
Q: Do you supply the full 3500 system as a pre-configured assembly?
A: Yes. Konmask can supply fully populated and tested rack assemblies. Provide your machine train data sheet and we will configure the appropriate monitor complement.
Q: What is the lead time for this part?
A: In-stock units ship within 3–5 business days internationally. Out-of-stock items typically have a 2–6 week lead time depending on sourcing channel. Contact us for current availability.
Q: Can Konmask provide a Certificate of Conformance (CoC)?
A: Yes. A CoC is provided with every shipment upon request, including part number, serial number, and inspection records.
