Machinery Protection Solution – Bently Nevada 3500/05-02-04-00-00-01 | 3500 Series System Rack

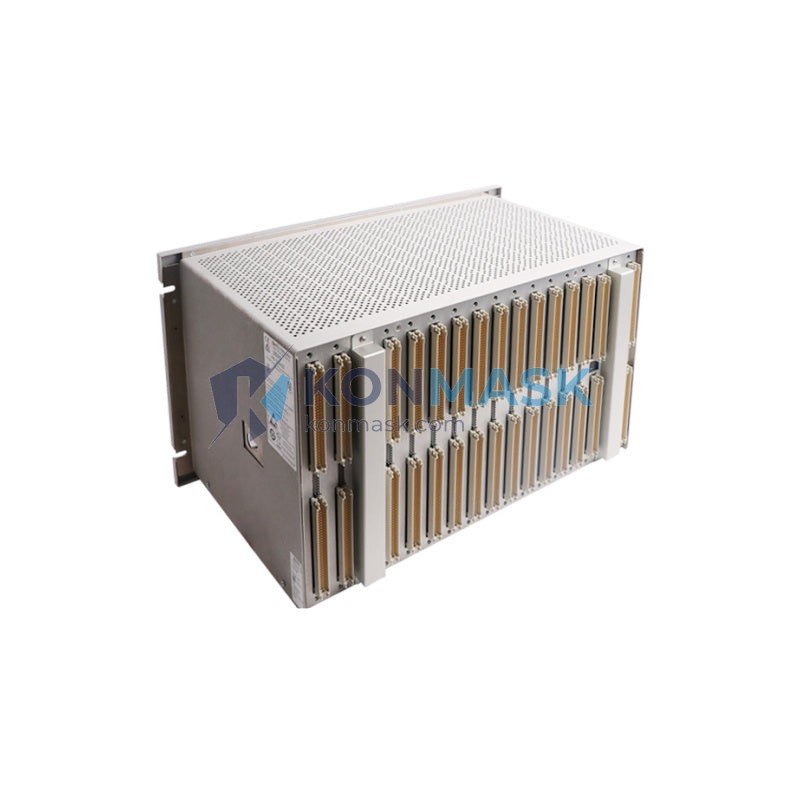

The Bently Nevada 3500/05-02-04-00-00-01 is a modular system rack at the heart of the 3500 Series Machinery Protection System (MPS). Engineered for continuous, real-time monitoring of rotating and reciprocating machinery, this rack serves as the backbone for housing monitor modules, power supplies, and communication cards in mission-critical industrial environments.
Where This Product Is Used
The 3500/05 System Rack is deployed across the most demanding industrial sectors where unplanned downtime is unacceptable:
- Oil & Gas: Upstream compressor trains, midstream pipeline pumping stations, LNG liquefaction turbines
- Power Generation: Steam turbine-generator sets, gas turbines, hydro turbine shaft monitoring
- Petrochemical & Refining: Cracker unit compressors, reactor feed pumps, blower trains
- Marine & Offshore: Platform propulsion systems, FPSO machinery decks
- Pulp & Paper / Mining: Large induced-draft fans, ball mills, kiln drive systems
Wherever API 670-compliant machinery protection is mandated, the 3500/05 rack is the industry-standard chassis of choice.
Technical Specifications
- Part Number: 3500/05-02-04-00-00-01
- Series: Bently Nevada 3500 Machinery Protection System
- Form Factor: 19-inch rack-mount, modular card cage
- Slot Capacity: Accommodates up to 14 monitor/I/O module slots
- Power Input: Dual-redundant power supply bays (AC/DC options per PSU module)
- Backplane Communication: Internal data bus for inter-module communication and system integration
- I/O Connectivity: Front-panel terminal I/O via individual monitor modules
- Environmental Rating: Designed for industrial environments per IEC 60068 standards
- Weight: Approx. 5.76 kg (chassis only, without modules)
- Compliance: API 670, CE, cULus
Why Engineers Specify This Model
- Modular Architecture: Mix-and-match monitor cards (vibration, axial position, speed, temperature) within a single rack — no dedicated chassis per measurement type
- Redundant Power: Dual PSU bays ensure continuous operation even during a single power supply failure
- Hot-Swap Capability: Individual modules can be replaced under power without shutting down the protection system
- Scalability: Expand monitoring points by adding modules; no rewiring of the rack backplane required
- Proven Reliability: The 3500 platform has decades of field-proven deployment in Tier-1 oil & gas and power generation facilities worldwide
- DCS/SCADA Integration: Supports Modbus, FOUNDATION Fieldbus, and Ethernet/IP via optional communication gateway modules
Complete System Bill of Materials
A fully operational 3500 MPS installation typically includes:
- 3500/05-02-04-00-00-01 – System Rack (this item)
- 3500/15 – Power Supply Module (AC or DC variant)
- 3500/22M – Transient Data Interface (TDI) / System Monitor
- 3500/40M – Proximitor / Seismic Monitor (radial vibration)
- 3500/42M – Proximitor / Seismic Monitor (axial & radial)
- 3500/45 – Position Monitor (axial thrust)
- 3500/50M – Tachometer Module (speed & keyphasor)
- 3500/60 – Temperature Monitor
- 3500/92 – Communication Gateway Module (Modbus/Ethernet)
- Bently Nevada 330xxx Series Proximity Probes & Extension Cables
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61511 – Functional Safety for Process Industry (SIL-capable configurations)
- IEC 60068 – Environmental Testing (vibration, temperature, humidity)
- CE Marking – European conformity for EMC and Low Voltage Directive
- cULus Listed – North American safety certification
Quality Assurance & Sourcing
At Konmask.com, every Bently Nevada 3500/05-02-04-00-00-01 unit is:
- Sourced from verified industrial surplus, OEM-authorized distributors, or decommissioned plant inventories with full traceability
- Inspected for physical integrity: backplane connector condition, rack rail alignment, and label/nameplate verification
- Cross-referenced against Bently Nevada factory part number databases to confirm authenticity
- Shipped with anti-static packaging and foam-lined protective crating
- Supported by our technical team for pre-sale compatibility consultation
How to Source This Part
Ready to integrate the 3500/05 rack into your protection system? Here’s how to proceed:
- Add to Cart – Immediate checkout for in-stock units
- Request a Quote – For bulk orders, system-level BOM sourcing, or expedited delivery
- Technical Consultation – Contact our engineering team to confirm module compatibility and slot configuration for your specific application
- Email: support@konmask.com
- Phone/WhatsApp: +0086 19859288691
Application-Specific FAQ
Q: Can the 3500/05-02-04-00-00-01 rack accept all 3500 Series monitor modules?
A: Yes. The 3500/05 rack is the universal chassis for the 3500 platform and accepts all standard monitor, power supply, and communication modules within the series.
Q: What is the difference between the various 3500/05 part number suffixes?
A: The suffix digits encode options such as rack depth, display type, and communication backplane configuration. The -02-04-00-00-01 suffix specifies a standard 19-inch, non-display, standard backplane configuration. Contact us to confirm the exact variant for your application.
Q: Is this rack compatible with legacy 3300 Series monitors?
A: No. The 3500 and 3300 series use different backplane architectures and are not cross-compatible. The 3500/05 rack is exclusively for 3500 Series modules.
Q: Can I use this rack in a SIL 2 safety instrumented function?
A: The 3500 platform supports SIL-capable configurations when combined with appropriate safety-rated modules and a validated SIS architecture. Consult your functional safety engineer and Bently Nevada documentation for SIL loop assessment.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock inquiries, contact us for sourcing timeline — we maintain active procurement channels for the full 3500 Series.
