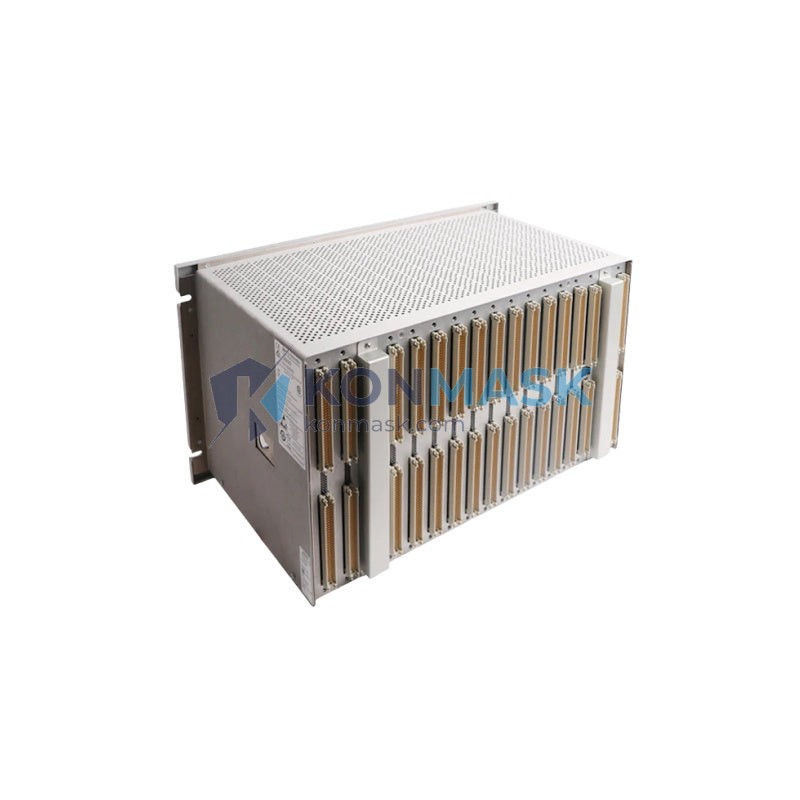

Bently Nevada 3500/05-01-01-01-00-01 – 19-Inch Rack-Mount Chassis | 3500 Machinery Protection System
Engineering Background: The Bently Nevada 3500 Series is the industry benchmark for continuous online machinery protection, trusted by petrochemical, power generation, and rotating equipment engineers worldwide. The 3500/05 System Rack serves as the structural and electrical backbone of the entire 3500 platform, housing all monitor modules, the power supply, and the communication interface in a single, standards-compliant 19-inch enclosure.
Product Positioning: Designed for mission-critical installations where unplanned downtime is unacceptable, the 3500/05-01-01-01-00-01 rack configuration supports full-complement module population, dual-channel power redundancy options, and seamless integration with DCS/SCADA systems via Modbus, Ethernet, and 3500 TDI protocols. It is the preferred chassis for new greenfield installations and direct OEM replacement in existing 3500 protection panels.
Complete Technical Specifications
- Part Number: 3500/05-01-01-01-00-01
- Series / Platform: Bently Nevada 3500 Machinery Protection System
- Chassis Type: 19-inch rack-mount system rack
- Module Slots: Up to 14 monitor module slots (configurable)
- Power Input: 85–264 VAC / 90–300 VDC (per installed power supply module)
- Backplane Communication: Internal high-speed serial bus for inter-module data exchange
- External Interfaces: RS-232/RS-485 Modbus RTU, Ethernet TCP/IP (with 3500/92 module), 3500 TDI
- Operating Temperature: 0 °C to +65 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5%–95% non-condensing
- Enclosure Rating: Designed for installation in NEMA 12 / IP54 control cabinets
- Approvals: CE, cULus, FM, ATEX (zone-dependent; verify with project datasheet)
- Dimensions (W × H × D): 19 in × 10.5 in (6U) × ~12 in (rack depth)
- Weight: ~4.5 kg (chassis only, without modules)
- Country of Origin: United States
Proven Application Environments
- Oil & Gas: compressor trains, gas turbines, centrifugal pumps, pipeline booster stations
- Power Generation: steam turbines, hydro generators, combined-cycle plant auxiliaries
- Petrochemical & Refining: reactor agitators, large motor-driven fans, critical blowers
- Pulp & Paper / Mining: high-speed rotating equipment requiring continuous vibration surveillance
- Marine & Offshore: topside machinery protection panels on FPSOs and drilling rigs
Engineering Advantages
- Modular scalability: Populate only the slots required today; expand without chassis replacement.
- Hot-swap capability: Individual monitor modules can be replaced under power (with appropriate configuration), minimizing process interruption.
- Redundant power architecture: Dual power supply slots allow N+1 redundancy for SIL-rated installations.
- Unified configuration: All modules share a single System 1 / Rack Configuration Manager software environment, reducing engineering hours.
- Backward compatibility: Accepts all current 3500-series monitor, I/O, and communication modules without hardware modification.
System Architecture & Signal Flow
Field transducers (accelerometers, proximity probes, velocity sensors) connect to individual monitor modules installed in the 3500/05 rack. Each module conditions raw signals, applies alarm setpoints, and passes processed data across the internal backplane to the 3500/22 or 3500/92 communication gateway. The gateway aggregates all channel data and transmits to the plant DCS or historian via Modbus or OPC-DA/UA, enabling real-time trending, alarm annunciation, and predictive maintenance workflows.
Sourcing & Quality Verification
- All units sourced from authorized distributors or directly decommissioned from documented industrial sites.
- Each rack undergoes visual inspection, backplane continuity test, and power-on verification prior to shipment.
- Serialized traceability records available upon request for critical SIL/IEC 61511 projects.
- OEM firmware version and hardware revision documented in the accompanying test report.
Procurement Process
- Submit your RFQ via support@konmask.com or the on-site inquiry form.
- Receive a formal quotation with lead time, warranty terms, and shipping options within 24 business hours.
- Confirm purchase order; payment via T/T, PayPal, or approved credit terms.
- Unit ships with test report, packing list, and commercial invoice for customs clearance.
- Post-delivery technical support available via email and WhatsApp (+0086 19859288691).
Technical FAQ
Q: Is the 3500/05-01-01-01-00-01 compatible with older 3500-series modules?
A: Yes. The 3500/05 backplane is backward-compatible with all production 3500-series monitor and communication modules.
Q: Can this rack be used in a SIL 2 safety loop?
A: The 3500 platform supports SIL 2 applications when configured per Bently Nevada’s functional safety manual (document 141228). Consult your safety engineer for the full SIL assessment.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. Sourced units typically require 7–15 business days depending on availability.
Q: Do you provide a warranty?
A: Yes — 12-month warranty against manufacturing defects and functional failure under normal operating conditions.
