Vibration Monitoring Power Solution – Bently Nevada 3500/15-05-05-00 | 3500 Series
Where This Product Is Used

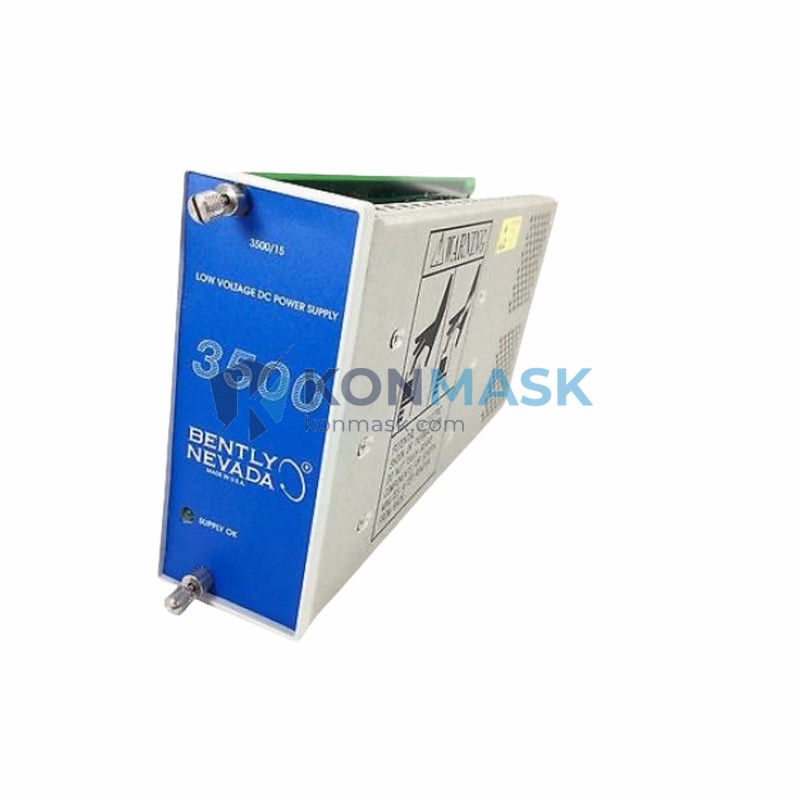

The Bently Nevada 3500/15-05-05-00 Power Supply Module (P/N 106M1079-01 / 106M1081-01) is the backbone power source for the 3500 Series Machinery Protection System — the industry-standard platform for continuous vibration and condition monitoring of rotating machinery. Engineers specify this module in:
- Oil & Gas: Turbine and compressor protection on offshore platforms, LNG terminals, and pipeline stations
- Power Generation: Steam turbine and gas turbine monitoring in utility and cogeneration plants
- Petrochemical & Refining: Critical pump, fan, and expander protection in continuous-process facilities
- Pulp & Paper / Mining: Large motor and gearbox health monitoring where unplanned downtime is unacceptable
- Marine & Offshore: Propulsion and auxiliary machinery protection systems requiring high-reliability DC power
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 3500/15-05-05-00 |
| Alternate P/N | 106M1079-01 / 106M1081-01 |
| Series | 3500 Machinery Protection System |
| Module Type | Power Supply Module |
| Input Voltage | 85–264 VAC / 90–300 VDC (universal input) |
| Output | Regulated DC for 3500 rack backplane |
| Form Factor | Single-wide 3500 rack module |
| Weight | 1,380 g (approx.) |
| Operating Temperature | -20°C to +70°C |
| Certifications | CE, CSA, FM (Class I Div 2) |
| Country of Origin | USA |
Why Engineers Specify This Model
- Dual P/N Compatibility: 106M1079-01 and 106M1081-01 are functionally interchangeable, simplifying spare-parts management across multi-site fleets.
- Universal AC/DC Input: Accepts wide-range AC and DC supply, enabling deployment in both utility-powered and battery-backed control rooms.
- Hot-Swap Capable: Designed for live insertion/removal within the 3500 rack without interrupting monitoring — critical for 24/7 process plants.
- Redundancy Ready: Supports dual power supply configurations for SIL-rated protection loops.
- Long Field Life: Ruggedized for harsh industrial environments; widely stocked as a critical spare by reliability engineers worldwide.
Complete System Bill of Materials
This power supply is typically deployed alongside the following 3500 Series components:
- 3500/20 Rack Interface Module (RIM)
- 3500/22M Transient Data Interface (TDI)
- 3500/25 Enhanced Keyphasor Module
- 3500/40M Proximitor / Seismic Monitor
- 3500/42M Proximitor / Seismic Monitor (4-channel)
- 3500/45 Position Monitor
- 3500/50M Tachometer Module
- 3500/92 Communication Gateway Module
- Bently Nevada 3300 / 3500 Series Proximity Probes & Extension Cables
Contact us to source complete rack assemblies or individual replacement modules.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 61511 — Functional Safety for SIS in the Process Industry
- IEC 61508 — Functional Safety of E/E/PE Safety-Related Systems
- ATEX / IECEx — Suitable for use in Zone 2 / Class I Div 2 hazardous areas (verify with local AHJ)
- CE Marking — EU Low Voltage and EMC Directives
Quality Assurance & Sourcing
- Authentic Parts: All units sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Pre-Shipment Testing: Each module undergoes functional power-on verification before dispatch.
- Warranty: 12-month replacement warranty against manufacturing defects.
- Packaging: ESD-safe anti-static packaging with foam cushioning; export-compliant labeling.
- Lead Time: In-stock units ship within 3–5 business days; expedited options available.
How to Source This Part
Submit your inquiry via support@konmask.com or call +0086 19859288691. Please include:
- Required quantity
- Delivery destination and Incoterms preference
- Any urgency / shutdown window
- Acceptable alternate part numbers (if any)
We respond to all RFQs within 24 business hours.
Application-Specific FAQ
Q: Is the 3500/15-05-05-00 compatible with both 3500 and 3300 Series racks?
A: This module is designed specifically for the 3500 Series rack. It is not directly interchangeable with 3300 Series power supplies.
Q: Can I run two power supplies in the same rack for redundancy?
A: Yes. The 3500 rack supports dual power supply slots. Installing a second 3500/15 module provides N+1 redundancy with automatic failover.
Q: What is the difference between 106M1079-01 and 106M1081-01?
A: These are revision-level part numbers for the same functional module. Both are drop-in replacements for each other in standard 3500 rack configurations.
Q: Do you provide export documentation for international shipments?
A: Yes — we provide commercial invoice, packing list, certificate of origin, and ECCN classification documentation as required.
Q: Is this module available for immediate shipment?
A: Stock availability varies. Contact us for real-time inventory confirmation and lead time.
