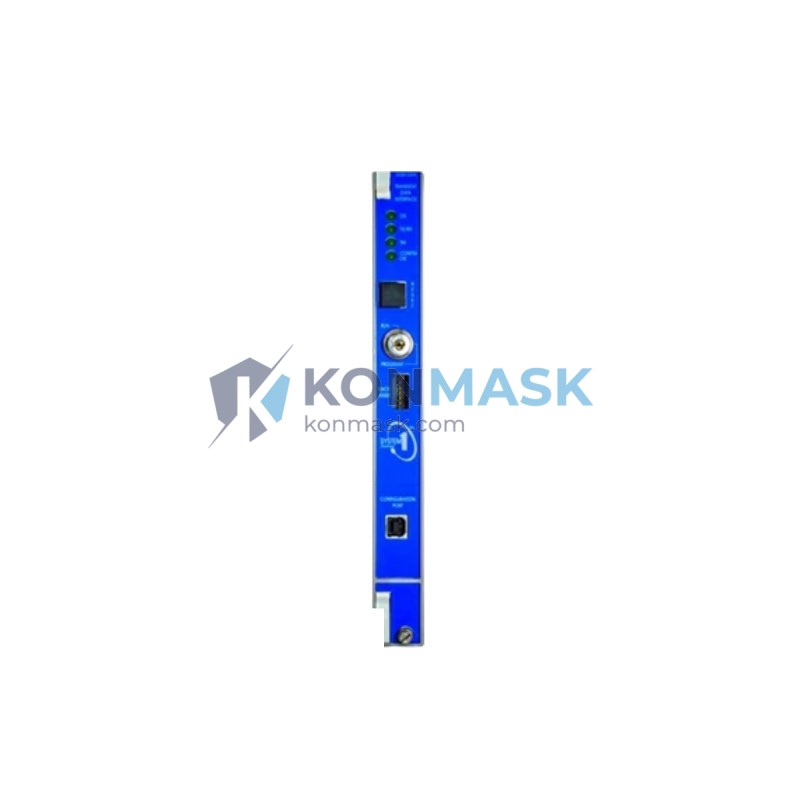

Bently Nevada 3500/20 – Rack Interface Module | 3500 Series Vibration Monitoring Platform
Engineering Background
The Bently Nevada 3500 Series is the industry-standard continuous vibration monitoring platform deployed across power generation, oil & gas, petrochemical, and rotating machinery applications worldwide. Developed by Baker Hughes (Bently Nevada), the 3500 system provides real-time machinery protection and condition monitoring in compliance with API 670 standards.
Product Positioning
The 3500/20 Rack Interface Module (RIM) is the central communication and power management backbone of every 3500 Series rack. It provides the primary interface between the monitoring rack and the host control system (DCS/PLC/SCADA), manages rack-level power distribution, and enables system-wide configuration and diagnostics. Without the 3500/20, the rack cannot operate — making it a mission-critical spare for any facility running Bently Nevada 3500 machinery protection systems.
Complete Technical Specifications
| Part Number | 3500/20 |
| Module Type | Rack Interface Module (RIM) |
| Platform | Bently Nevada 3500 Series |
| Manufacturer | Bently Nevada / Baker Hughes |
| Communication Interfaces | RS-232 (front panel), RS-485 (Modbus RTU), Ethernet (model-dependent) |
| Supported Protocols | Modbus RTU, Modbus TCP/IP (with Ethernet option) |
| Power Input | 88–264 VAC, 47–63 Hz / 18–32 VDC (model-dependent) |
| Power Output | Distributes regulated DC power to all rack-mounted I/O modules |
| Rack Compatibility | 3500 Series 19-inch rack (3, 7, 14-slot configurations) |
| Slot Position | Slot 1 (mandatory, leftmost position) |
| Configuration Interface | Rack Configuration Software (RCS) via RS-232 front port |
| Relay Outputs | System OK relay, Rack Not OK relay |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Approvals / Standards | API 670, CE, UL, CSA, ATEX (zone-dependent variants) |
| Weight | Approx. 630 g |
| Country of Origin | USA |
Proven Application Environments
- Power Generation: Steam turbines, gas turbines, hydro generators — continuous shaft vibration and axial position monitoring
- Oil & Gas: Compressor trains, centrifugal pumps, expanders — API 670-compliant machinery protection
- Petrochemical & Refining: Critical rotating equipment protection in hazardous area installations
- Marine & Offshore: Propulsion machinery and auxiliary equipment monitoring
- Pulp & Paper / Mining: High-availability process machinery protection
Engineering Advantages
- API 670 Compliant: Meets the international standard for machinery protection systems — accepted by EPC contractors and end-users globally
- Centralized Rack Management: Single module controls power distribution, system health, and host communications for the entire rack
- Dual Redundancy Support: Compatible with redundant power supply configurations for SIL-rated installations
- Flexible Host Integration: Modbus RTU/TCP support enables direct integration with Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7, and other DCS/SCADA platforms
- Hot-Swap Capable: Designed for live rack maintenance to minimize process downtime
- Proven Field Reliability: Deployed in thousands of installations across 6 continents with documented MTBF exceeding 100,000 hours
System Architecture & Signal Flow
In a 3500 Series rack, the 3500/20 RIM occupies Slot 1 and performs three core functions:
- Power Management: Accepts AC or DC plant power, converts and distributes regulated DC bus voltage to all I/O monitor modules (3500/40M, 3500/42M, 3500/45, 3500/50, etc.)
- System Communication: Acts as the Modbus gateway — aggregates alarm, OK, and dynamic data from all monitor modules and presents them to the host DCS/PLC via RS-485 or Ethernet
- System Health Monitoring: Continuously monitors module health across the rack; asserts System Not OK relay and front-panel LED on any module failure
Configuration is performed offline using Bently Nevada’s Rack Configuration Software (RCS) connected to the front RS-232 port, then downloaded to the module’s non-volatile memory.
Sourcing & Quality Verification
Konmask.com sources the 3500/20 through verified industrial automation supply channels. Every unit undergoes the following before dispatch:
- Visual inspection for physical damage, corrosion, and connector integrity
- Label and part number verification against OEM documentation
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Certificate of conformance available on request
Units are available as new surplus (factory-sealed or shelf-new) or refurbished (tested, cleaned, warranted). Condition is clearly stated at time of quotation.
Procurement Process
- Submit Inquiry: Contact us with your required quantity, required delivery date, and preferred condition (new/refurbished)
- Quotation: We respond within 1 business day with pricing, lead time, and stock confirmation
- Order Confirmation: Purchase order or proforma invoice issued
- Quality Check & Dispatch: Unit inspected, packed, and shipped with tracking within 2–5 business days
- After-Sales Support: 12-month warranty on refurbished units; technical support available throughout
Shipping: DHL Express / FedEx International Priority — worldwide delivery. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
Technical FAQ
Q: Can the 3500/20 be used with any 3500 Series rack?
A: Yes. The 3500/20 RIM is compatible with all standard 3500 Series rack configurations (3-slot, 7-slot, 14-slot). Verify the power input variant (AC vs. DC) matches your plant supply.
Q: What is the difference between 3500/20 and 3500/20-01-00-00?
A: The suffix codes denote option configurations (e.g., Ethernet option, power input range, approval markings). Contact us with your full part number for exact variant matching.
Q: Is Modbus TCP/IP supported?
A: Modbus TCP/IP is available on 3500/20 variants equipped with the Ethernet communication option. Standard units support Modbus RTU over RS-485.
Q: What software is required for configuration?
A: Bently Nevada Rack Configuration Software (RCS), available from Baker Hughes. Configuration is performed via the front-panel RS-232 port.
Q: Do you provide a warranty?
A: Yes — 12 months on all refurbished units. New surplus units carry OEM warranty terms where applicable.
