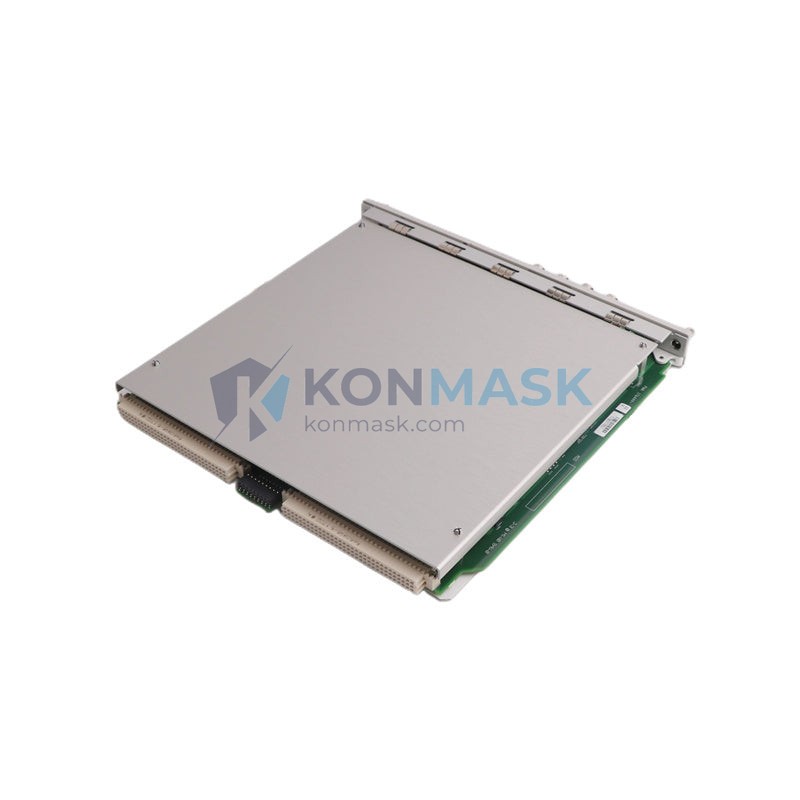

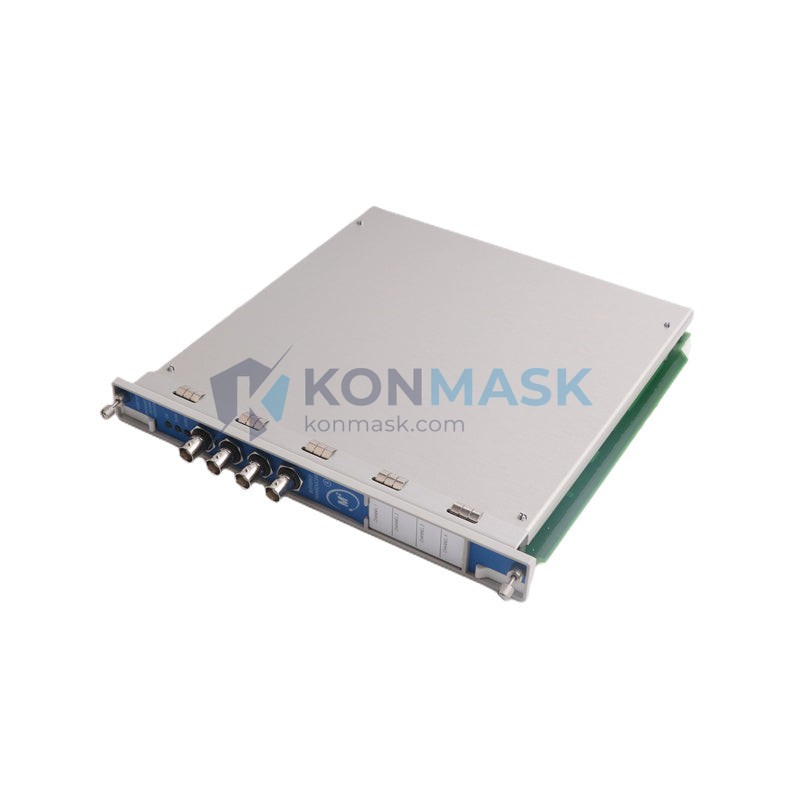

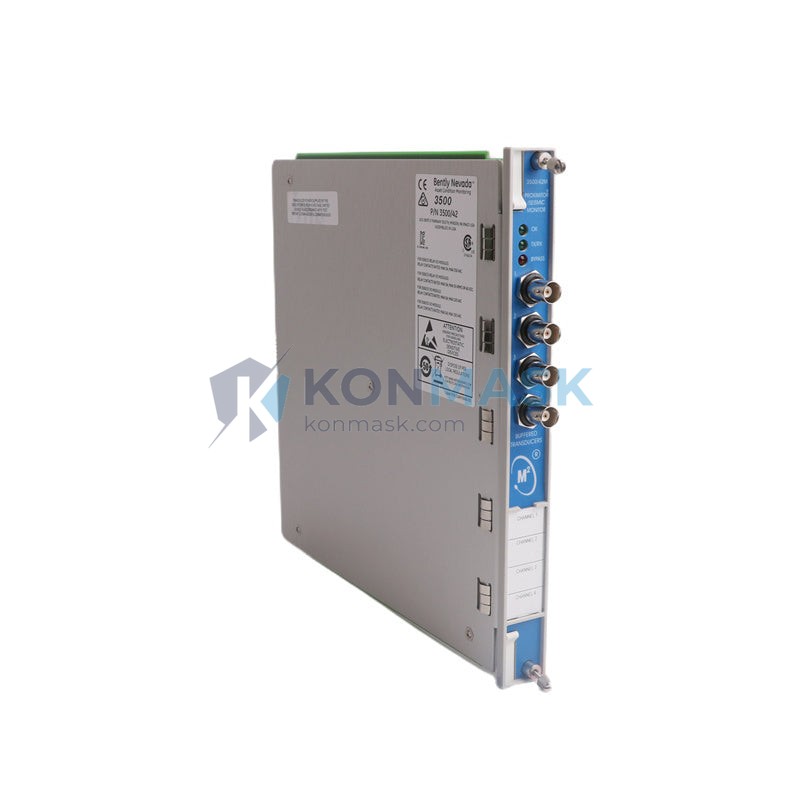

BENTLY NEVADA 3500/42M – Proximity & Seismic Monitor Module | 3500 Series Platform
Engineering Background: The Bently Nevada 3500 Series is the industry-standard machinery protection platform deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities worldwide. Engineered by Baker Hughes (Bently Nevada), the 3500 rack-based architecture delivers continuous, real-time vibration monitoring with relay output protection — trusted in critical rotating machinery applications for over four decades.
Product Positioning: The 3500/42M (P/N 176449-02) is a dual-channel Proximity/Seismic Monitor Module designed for simultaneous monitoring of shaft relative vibration (via eddy-current proximity probes) and absolute seismic vibration (via velocity or accelerometer transducers). It is the preferred solution for turbines, compressors, pumps, and gearboxes where both shaft and casing motion must be tracked within a single monitor slot.
Complete Technical Specifications
- Part Number: 176449-02
- Model: 3500/42M
- Manufacturer: Bently Nevada (Baker Hughes)
- Monitor Type: Dual-Channel Proximity / Seismic
- Input Channels: 2 (configurable per channel: proximity or seismic)
- Proximity Input Range: Compatible with 3300 XL & 7200 series eddy-current probes
- Seismic Input: Velocity transducers (e.g., 9000 series) or accelerometers
- Measurement Parameters: Direct (gap), 1X amplitude/phase, 2X amplitude/phase, Not-1X, overall RMS, peak-to-peak
- Alert/Danger Setpoints: Independently configurable per channel
- Relay Outputs: Via 3500/32 or 3500/33 Relay Module (rack-shared)
- Communication: Rack backplane (System 1 / TDI compatible)
- Power Supply: Supplied via 3500 rack backplane (–24 VDC)
- Operating Temperature: 0°C to +65°C
- Storage Temperature: –40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Approvals: CE, CSA, FM (Class I, Div 2), ATEX (Zone 2)
- Form Factor: Single-slot 3500 rack module
- Weight: Approx. 850 g
- Configuration Tool: Bently Nevada Rack Configuration Software (RCS)
Proven Application Environments
- Steam & Gas Turbines: Simultaneous shaft eccentricity and casing seismic monitoring on HP/LP turbine stages
- Centrifugal Compressors: Radial vibration (X/Y proximity) combined with bearing housing seismic for API 670 compliance
- Boiler Feed Pumps: Shaft relative displacement monitoring with seismic backup on high-speed pump trains
- Gearboxes: Gear mesh frequency analysis via seismic channel; shaft orbit via proximity channels
- Fans & Blowers: Casing velocity monitoring for balance and structural resonance detection
- Reciprocating Compressors: Crosshead and frame vibration via seismic inputs
Engineering Advantages
- Dual-Mode Flexibility: Each channel independently configurable as proximity or seismic — eliminates the need for two separate monitor modules in mixed-transducer applications
- API 670 Compliant: Meets the 5th Edition standard for machinery protection systems in critical service
- Rack-Native Integration: Seamless backplane communication with 3500/20 rack interface, 3500/32 relay modules, and System 1 software — no external wiring between modules
- High-Resolution DSP: On-board digital signal processing delivers accurate vector (amplitude + phase) measurements for precision balancing and diagnostics
- Non-Volatile Configuration: Module retains all setpoints and configuration through power cycling — critical for plant restart reliability
- Hot-Swap Capable: Designed for in-service replacement without rack power-down (verify with site safety procedures)
System Architecture & Signal Flow
The 3500/42M occupies a single module slot within the 3500 rack. Transducer signals enter via the I/O module connector on the rear of the rack. The monitor performs real-time DSP processing and outputs conditioned measurement data to the rack backplane. Alert and Danger relay logic is executed locally within the module and transmitted to the relay module via backplane — ensuring protection response is independent of host communication status. Configuration and live data are accessible via the front-panel RS-232 port or through the rack’s Ethernet/Serial gateway to System 1 or third-party DCS/SCADA systems via Modbus or OPC.
Sourcing & Quality Verification
Konmask.com sources the 3500/42M 176449-02 through established industrial automation supply channels with documented provenance. Every unit undergoes our 4-step verification process before dispatch:
- Physical Inspection: Label authenticity, PCB condition, connector integrity, and housing check against OEM reference standards
- Firmware & Part Number Verification: Module firmware version and internal part number confirmed against Bently Nevada documentation
- Functional Bench Test: Power-up, backplane communication, and channel response verified using 3500 test rack where applicable
- Packaging & Documentation: ESD-safe packaging, serialized inspection record, and Certificate of Conformance issued with each shipment
Procurement Process
- Submit RFQ: Email [email protected] with part number, required quantity, and delivery timeline
- Receive Quotation: Formal quotation with lead time, shipping options, and payment terms issued within 1 business day
- Order Confirmation: Purchase order or proforma invoice accepted; TT wire transfer, L/C, and major credit cards supported
- Inspection & Dispatch: Unit inspected, documented, and shipped with full tracking — DHL Express, FedEx, or freight forwarder per buyer preference
- Post-Delivery Support: Technical assistance available for installation, configuration, and commissioning queries
Technical FAQ
Q: What is the difference between 176449-01 and 176449-02?
A: The -02 revision incorporates updated firmware and minor PCB revisions for improved EMC performance. Both are functionally compatible within the 3500 rack but -02 is the current production revision.
Q: Can the 3500/42M replace a 3500/40M in an existing rack?
A: Yes, the 3500/42M is backward-compatible with 3500/40M slots. Reconfiguration via RCS software is required to map the new module’s channel assignments.
Q: Is System 1 software required for operation?
A: No. The module operates autonomously with locally stored setpoints. System 1 is required only for advanced diagnostics, trending, and remote configuration.
Q: Do you supply the matching I/O module?
A: Yes. The corresponding I/O module (e.g., 3500/42M I/O) can be quoted separately. Please specify your transducer types when requesting a quote.
Q: What warranty is provided?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available upon request.
