Turbomachinery Vibration Protection Solution – Bently Nevada 3500/42M | 3500 Series

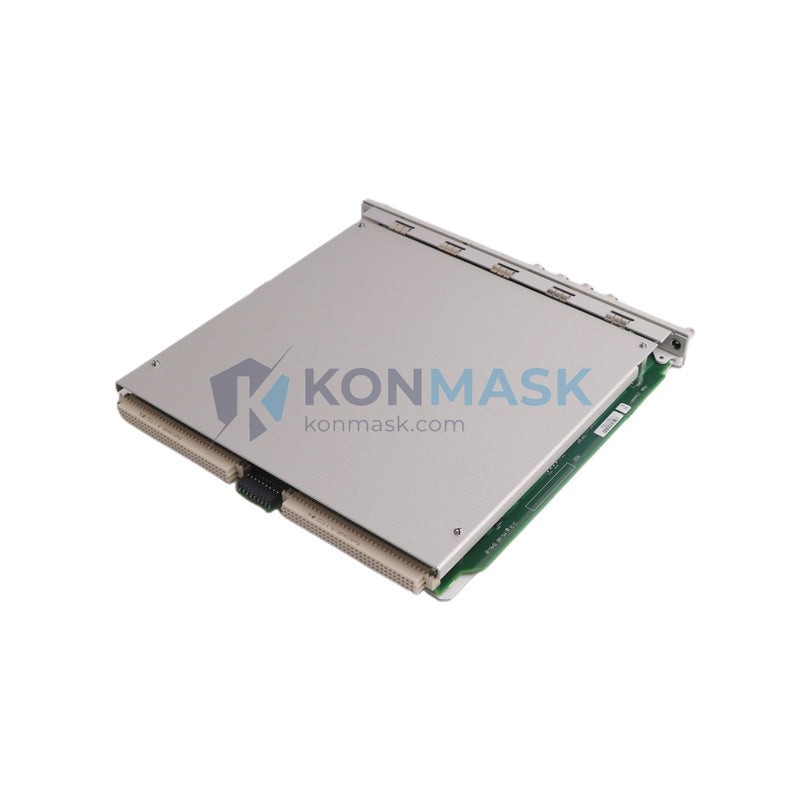

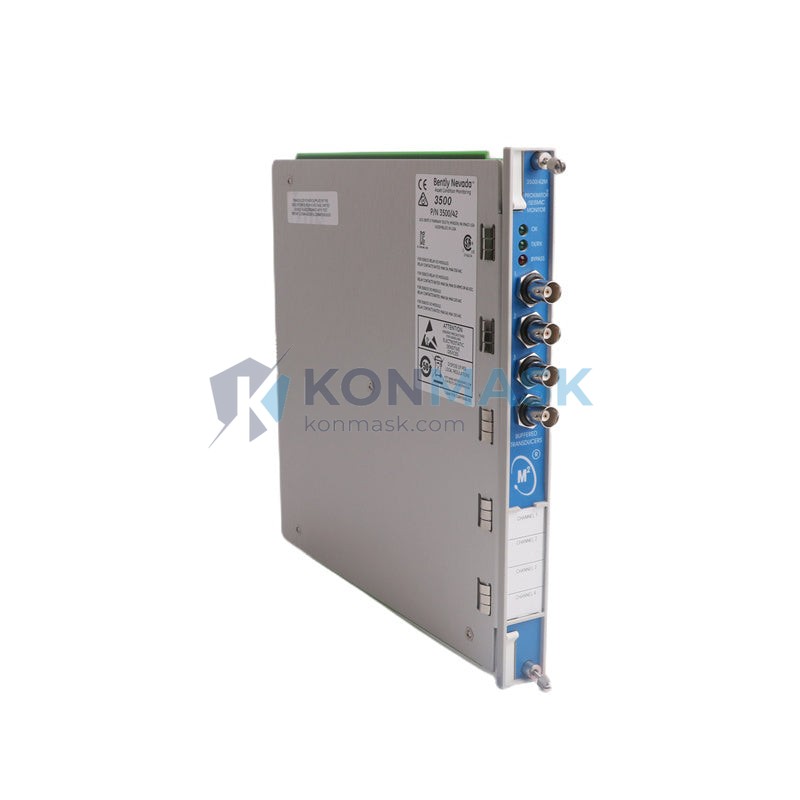

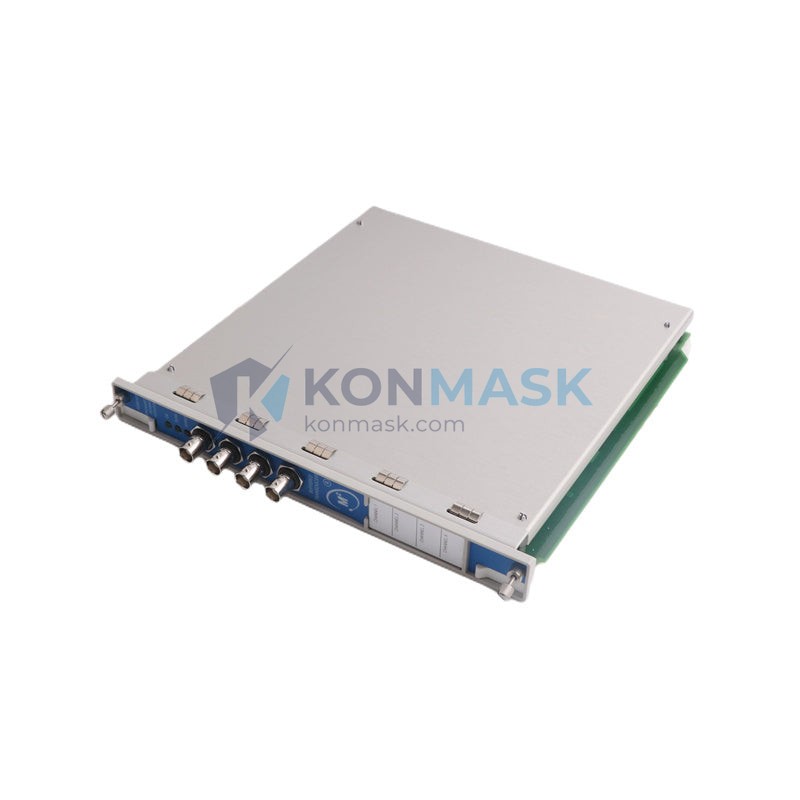

Where This Product Is Used
The Bently Nevada 3500/42M Proximity/Seismic Monitor Module is purpose-built for continuous machinery protection in high-stakes rotating equipment environments. Engineers and reliability teams deploy this module across:
- Steam & Gas Turbines — Real-time shaft proximity and casing seismic monitoring to detect imbalance, misalignment, and rub events before catastrophic failure.
- Centrifugal Compressors — Radial vibration surveillance on high-speed compressor trains in petrochemical, LNG, and refinery service.
- Pumps & Fans (Critical Service) — Seismic velocity monitoring on large BFW pumps, cooling tower fans, and boiler feed systems.
- Hydro & Wind Power Generation — Shaft displacement and bearing housing vibration monitoring for generator protection.
- Marine Propulsion Systems — Vibration surveillance on main propulsion shafting and auxiliary machinery.
- Offshore Platforms & FPSOs — SIL-rated protection loops integrated with ESD systems for unmanned or remote-operated facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 3500/42M |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3500 Machinery Protection System |
| Module Type | Proximity / Seismic Monitor |
| Input Channels | 2 (dual-channel) |
| Measurement Types | Radial vibration (proximity), Casing vibration (seismic/velocity) |
| Transducer Compatibility | Bently Nevada 3300 XL / 7200 Series eddy-current probes; velocity transducers |
| OK Relay Output | Form C relay, configurable |
| Alert / Danger Relays | Configurable per channel; latching or non-latching |
| Communication | System 1 / TDI (Transient Data Interface) compatible |
| Power Supply | Supplied via 3500 Rack Power Module |
| Operating Temperature | -20°C to +65°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 850 g (approx.) |
| Form Factor | Single-slot 3500 rack module |
Why Engineers Specify This Model
- Dual-Function Monitoring — Combines proximity (shaft displacement) and seismic (casing velocity) measurement in a single module slot, reducing rack space and wiring complexity.
- API 670 Compliance — Meets the industry standard for machinery protection systems, satisfying insurance, EPC contractor, and end-user specifications without deviation.
- Configurable Alarm Architecture — Independent Alert and Danger setpoints per channel with latching/non-latching relay options allow precise protection logic tailored to each machine train.
- System 1 Integration — Native compatibility with Bently Nevada System 1 software enables waveform capture, trend analysis, and predictive diagnostics without additional hardware.
- Proven Field Reliability — The 3500 platform has decades of installed base in critical service globally; the 3500/42M is a direct replacement and upgrade path for legacy 3300 series installations.
- Hot-Swap Capable — Module can be replaced in a live rack (with appropriate procedures) minimizing planned downtime during maintenance windows.
Complete System Bill of Materials
A fully functional 3500 protection channel using the 3500/42M typically requires the following components:
- 3500/20 Rack Interface Module (RIM)
- 3500/15 Power Supply Module (or 3500/15E for redundant power)
- 3500/42M Proximity/Seismic Monitor Module (this item)
- Bently Nevada 3300 XL or 7200 Series Eddy-Current Probe + Extension Cable + Proximitor
- Velocity Transducer (e.g., 9000 Series) for seismic channel
- 3500/92 or 3500/94 Communication Gateway (for Modbus/OPC integration)
- System 1 Software License (for advanced diagnostics)
- Rack Termination Module (I/O terminal block)
Contact support@konmask.com to source complete system packages or individual replacement modules.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 61511 — Functional Safety for SIS applications (SIL-capable architecture)
- CE Marking — EMC Directive compliance
- ISO 10816 / ISO 20816 — Mechanical vibration evaluation standards
- ATEX / IECEx — Suitable for use with certified intrinsically safe barriers in Zone 1/Zone 2 hazardous areas (verify with project-specific documentation)
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for critical infrastructure. Every 3500/42M module offered through our platform is:
- Sourced from verified supply channels with documented provenance
- Inspected for physical integrity, label authenticity, and firmware revision prior to dispatch
- Shipped with anti-static packaging and humidity indicators
- Supported by pre-sale technical consultation to confirm compatibility with your existing rack configuration
We do not list modules of unknown origin. If a unit cannot be verified, it is not offered for sale.
How to Source This Part
- Confirm your rack slot availability — Verify an open single-slot position in your 3500 chassis.
- Identify your transducer type — Proximity (eddy-current) or seismic (velocity) or both — the 3500/42M supports mixed configurations.
- Check firmware revision requirements — If integrating with System 1 v7+ or newer DCS, confirm compatible firmware revision with our team.
- Request a quote — Email support@konmask.com or call +0086 19859288691 with your PO requirements, delivery timeline, and any export compliance needs.
- Receive & commission — We provide post-sale technical support for configuration and commissioning queries.
Application-Specific FAQ
Q: Can the 3500/42M monitor both proximity and seismic inputs simultaneously?
A: Yes. The module supports one proximity channel and one seismic/velocity channel concurrently, each with independent alarm setpoints and relay outputs.
Q: Is this module compatible with the older 3300 series rack?
A: No. The 3500/42M is designed exclusively for the 3500 series rack. It is not backward-compatible with 3300 series chassis. Contact us if you need a 3300-compatible alternative.
Q: What is the difference between the 3500/42 and 3500/42M?
A: The “M” suffix denotes the enhanced version with expanded transducer compatibility, improved noise immunity, and support for System 1 TDI communication. The 3500/42M is the current production standard and the recommended replacement for legacy 3500/42 units.
Q: Can this module be used in a SIL 2 safety loop?
A: The 3500 platform supports SIL-capable architectures per IEC 61511. SIL suitability depends on the complete loop design including sensors, logic solver, and final elements. Consult your functional safety engineer and the Bently Nevada SIL documentation for your specific application.
Q: Do you offer exchange or repair services?
A: Yes. We can facilitate module exchange programs and connect you with certified repair facilities. Contact our team for details.
Q: What lead time should I expect?
A: Stock availability varies. Contact us directly for real-time availability and expedited shipping options for critical plant shutdowns.
