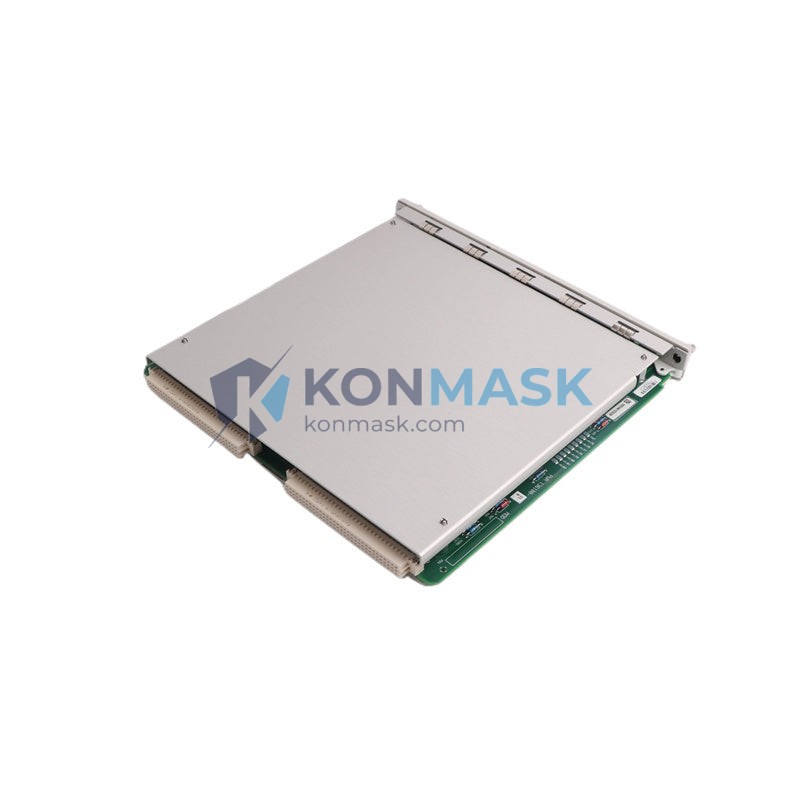

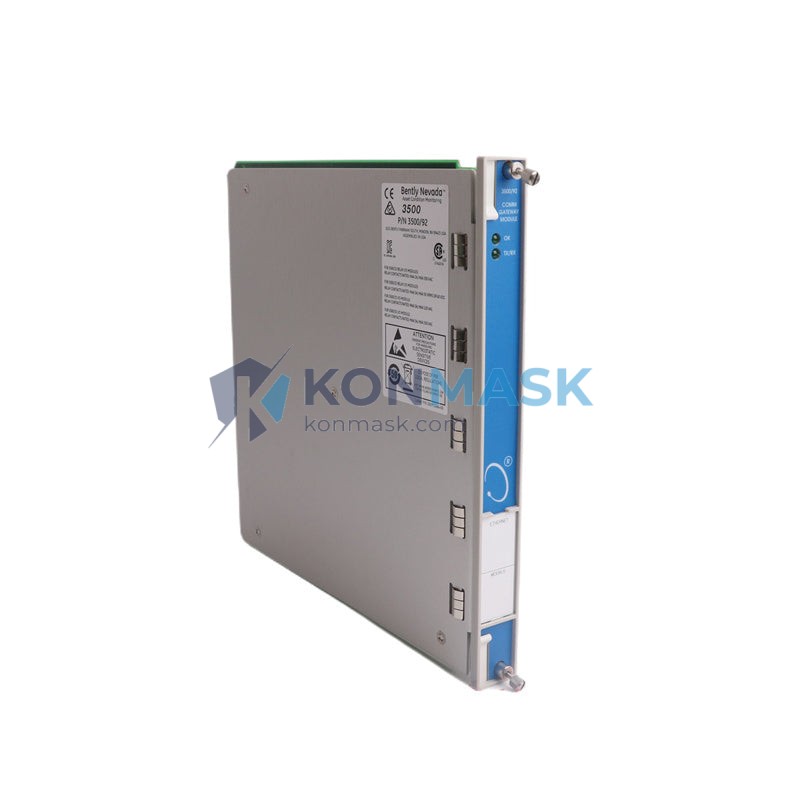

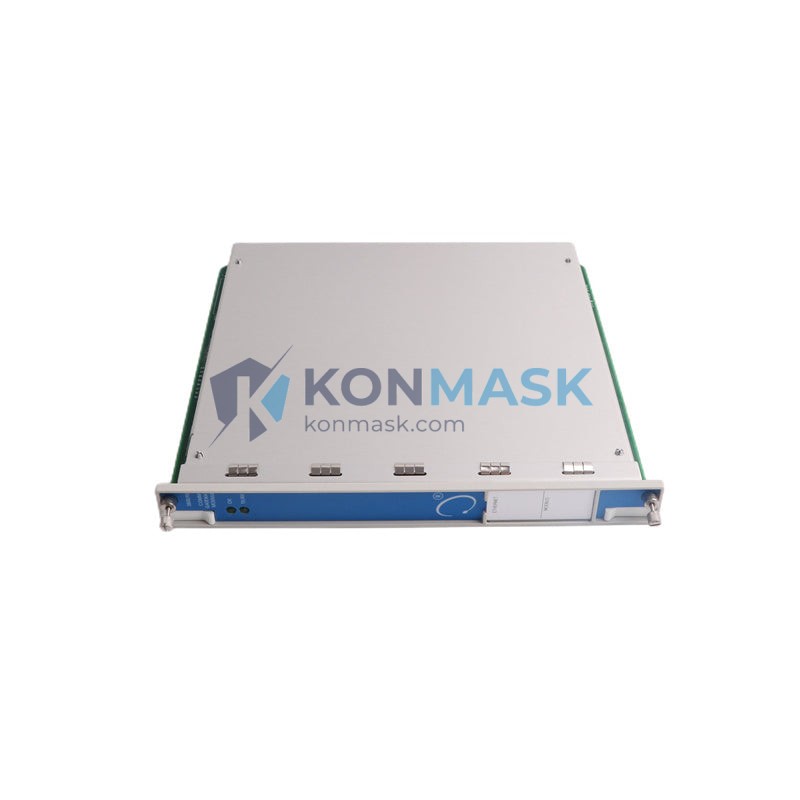

Industrial Communication Gateway Solution – Bently Nevada 3500/92 | 3500 Series Rack System
Where This Product Is Used
The Bently Nevada 3500/92 (Part No. 136180-01) Communication Gateway is deployed in mission-critical rotating machinery protection and condition monitoring applications across heavy industry. Engineers specify this module wherever a 3500 Series rack must exchange real-time vibration, speed, and process data with plant-level control and historian systems.
- Oil & Gas: Compressor trains, gas turbines, centrifugal pumps on offshore platforms and onshore processing facilities — where continuous uptime is non-negotiable and DCS integration is mandatory.
- Power Generation: Steam turbine-generator sets and combined-cycle plants requiring synchronised machinery health data in the plant DCS or SCADA historian.
- Petrochemical & Refining: Reactor charge pumps, cracked-gas compressors, and critical agitators where API 670 compliance and real-time alarming are regulatory requirements.
- LNG Terminals: Main refrigerant compressors and boil-off gas compressors where gateway redundancy and deterministic data latency are specified by the EPC contractor.
- Pulp & Paper / Mining: Large induced-draft fans, ball mills, and kiln drives integrated into plant-wide OSIsoft PI or Honeywell PHD historians via Modbus TCP/IP.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 136180-01 |
| Model | 3500/92 |
| Series | Bently Nevada 3500 Machinery Protection System |
| Module Type | Communication Gateway |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, Ethernet (10/100 Base-T) |
| Rack Compatibility | 3500 Series Rack (all frame sizes) |
| Slot Requirement | Single slot, I/O module bay |
| Power Supply | Supplied by 3500 rack backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 820 g (module only) |
| Approvals | CE, cULus (refer to current product certificate) |
| Country of Origin | USA |
Specifications are based on Bently Nevada published data. Confirm with the current product datasheet for your revision level.
Why Engineers Specify This Model
- Seamless DCS/SCADA Integration: The 3500/92 exposes all rack channel data — vibration, phase, speed, temperature, and relay status — over standard Modbus registers, eliminating custom OPC bridges and reducing integration engineering hours.
- Deterministic Data Latency: Polled Modbus architecture delivers predictable scan-cycle performance, critical for historian trending and alarm management in SIL-rated environments.
- Non-Intrusive Retrofit: Slots directly into an existing 3500 rack without rewiring field sensors or reconfiguring monitor modules — minimising planned outage duration during upgrades.
- Dual-Port Ethernet: Supports network redundancy configurations, reducing single-point-of-failure risk on the communication layer.
- Proven Field Record: Deployed globally in Baker Hughes / Bently Nevada installed base since the 3500 platform launch; replacement parts are stocked by authorised distributors and specialist suppliers worldwide.
Complete System Bill of Materials
The 3500/92 gateway operates within the broader 3500 Machinery Protection System. A typical integration BOM includes:
- 3500/05 Rack (19-inch, 4-slot or 14-slot frame)
- 3500/15 Power Supply Module
- 3500/20 Rack Interface Module (RIM)
- 3500/22M Transient Data Interface (TDI) — optional
- 3500/40M Proximitor / Seismic Monitor
- 3500/42M Proximitor / Seismic Monitor (dual-channel)
- 3500/45 Position Monitor
- 3500/50M Tachometer Module
- 3500/60 Temperature Monitor
- 3500/92 (136180-01) Communication Gateway ← this module
- Ethernet patch cable (Cat 5e or Cat 6, shielded recommended for industrial environments)
- Modbus TCP/IP-capable DCS I/O card or SCADA gateway (customer-supplied)
Contact support@konmask.com for availability on companion modules.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition): The 3500 platform, including the 3500/92 gateway, is designed to support API 670-compliant installations for covered equipment.
- IEC 61511 / IEC 61508 — Functional Safety: Communication gateway data is used in SIL-assessed alarm management loops; confirm SIL rating with the current Bently Nevada functional safety manual.
- IEEE 802.3 — Ethernet standard compliance for the TCP/IP port.
- CE Marking — Electromagnetic compatibility and low-voltage directive compliance for EU installations.
- cULus Listing — North American safety certification.
Quality Assurance & Sourcing
Konmask.com specialises in industrial automation components for the global MRO and capital-project market. Every unit offered through our platform is subject to the following sourcing controls:
- Traceability: Modules are sourced from documented supply chains including authorised distributors, decommissioned OEM-maintained assets, and certified repair facilities.
- Inspection: Physical inspection for label integrity, firmware revision marking, connector condition, and absence of counterfeit indicators prior to listing.
- Packaging: ESD-safe anti-static bags, foam-lined cartons, and climate-controlled storage to preserve module integrity during transit.
- Warranty: 90-day functional warranty against defects in materials and workmanship. Extended warranty available on request.
- Documentation: Certificate of conformance and inspection report available upon request for regulated industries.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly. Stock is limited; confirm availability with our team for urgent requirements.
- Request a Quote — For project quantities (>1 unit), OEM-equivalent pricing, or lead-time commitments, email support@konmask.com with your project details.
- Technical Pre-Sales — Our engineering team can confirm compatibility with your existing 3500 rack revision, firmware version, and DCS protocol requirements before you commit to purchase.
- Expedited Shipping — DHL Express, FedEx International Priority, and UPS Worldwide available. Export documentation (commercial invoice, packing list, EAR99 classification) provided as standard.
Application-Specific FAQ
Q: Is the 3500/92 (136180-01) compatible with all 3500 rack frame sizes?
A: Yes. The module occupies a single I/O slot and is compatible with both the 4-slot and 14-slot 3500 rack frames, provided the rack firmware is at a supported revision level.
Q: Can this gateway communicate with a Yokogawa CENTUM VP or Emerson DeltaV DCS?
A: Yes, via Modbus TCP/IP. Both DCS platforms support Modbus TCP client functionality. Map the 3500/92 Modbus register table to your DCS I/O tags using the Bently Nevada Modbus register map document (available from Baker Hughes).
Q: Does the 3500/92 support redundant Ethernet connections?
A: The 136180-01 variant provides dual Ethernet ports. Consult the product manual for supported redundancy topologies (active-standby vs. parallel).
Q: What is the maximum number of Modbus registers accessible via this gateway?
A: The gateway exposes all monitor module channel data within the rack. The exact register count depends on the number and type of monitor modules installed. Refer to the 3500/92 Modbus Communication Manual (GEH-6721 or equivalent) for the full register map.
Q: Can Konmask supply a tested and configured unit?
A: Yes. Bench-tested units with factory-default configuration are available. Custom pre-configuration (IP address, Modbus node ID) can be arranged — contact us with your requirements.
