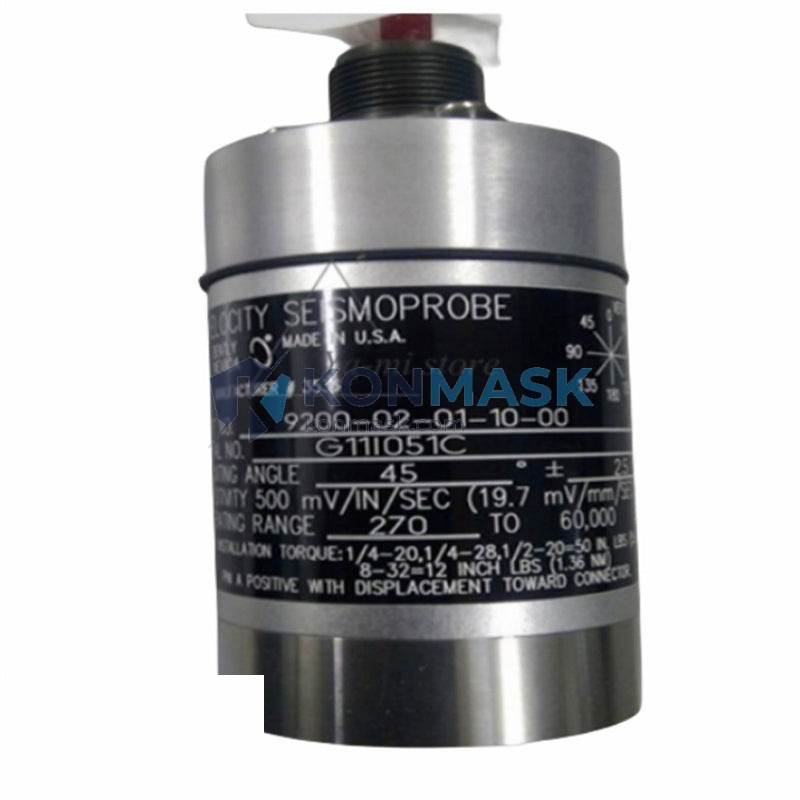

Genuine BENTLY NEVADA 9200-01-05-10-00 - Industrial Automation Part

BENTLY NEVADA 9200-01-05-10-00 Seismoprobe Transducer | 3300 Series Vibration Monitoring

SKU: 9200-01-05-10-00 Category: Bently Nevada Tags: 9200 Series, bently-nevada, Seismoprobe, Turbomachinery Monitoring, Vibration Transducer

Description

BENTLY NEVADA 9200-01-05-10-00 – Seismoprobe Velocity Transducer | 3300 Series Vibration Monitoring Platform

Engineering Background: The Bently Nevada 9200 Series Seismoprobe is a self-generating velocity transducer engineered for absolute vibration measurement on non-rotating machine structures. Unlike proximity probes that measure shaft relative motion, the Seismoprobe captures casing/bearing housing vibration in absolute terms — a critical complement in complete turbomachinery protection architectures. The 9200-01-05-10-00 is a field-proven variant widely deployed across power generation, petrochemical, and heavy industrial rotating equipment.

Product Positioning: This transducer is designed for integration with Bently Nevada 3300 Series monitoring systems and compatible rack-based or standalone monitors. It serves as a primary sensing element where absolute velocity measurement is mandated by API 670 or plant-specific vibration protection standards. Procurement engineers sourcing OEM replacements or system expansions will find this unit fully interchangeable with original installation specifications.

Complete Technical Specifications

Parameter	Specification
Part Number	9200-01-05-10-00
Manufacturer	Bently Nevada (Baker Hughes)
Series	9200 Seismoprobe
Transducer Type	Velocity (Self-Generating, Electromagnetic)
Measurement Type	Absolute Casing / Bearing Housing Vibration
Sensitivity	Typically 200 mV/in/s (7.87 mV/mm/s)
Frequency Range	10 – 1,000 Hz (–3 dB points)
Full-Scale Range	0 – 2 in/s pk (0 – 50.8 mm/s pk)
Resonant Frequency	Approx. 8 Hz (internal spring-mass system)
Coil Resistance	Approx. 1,750 Ω
Mounting Orientation	Vertical or Horizontal (specify at order)
Cable Length	5 ft (1.52 m) integral armored cable
Connector	MIL-C-5015 style, 2-pin
Operating Temperature	–40 °C to +121 °C (–40 °F to +250 °F)
Housing Material	316 Stainless Steel
IP Rating	IP67 (dust-tight, immersion-resistant)
Mounting Thread	1/4-28 UNF or 1/4 NPT (per configuration)
Weight	Approx. 100 g
Compatible Monitors	Bently Nevada 3300 Series, 3500 Series (with adapter), ADRE systems
Standards Compliance	API 670, CE

Proven Application Environments

Steam Turbines: Bearing housing absolute vibration monitoring per API 670 requirements; complements shaft relative displacement probes for full vibration picture.
Gas Turbines & Compressors: Casing vibration surveillance on high-speed rotating equipment where proximity probe access is limited or impractical.
Centrifugal Pumps & Fans: Structural vibration trending for predictive maintenance programs; early detection of imbalance, misalignment, and bearing defects.
Gearboxes: Gear mesh frequency monitoring and structural resonance identification.
Power Generation (Nuclear, Fossil, Hydro): Continuous online monitoring in safety-critical environments requiring certified, traceable instrumentation.
Petrochemical & Refinery: Hazardous area installations (with appropriate housing/barrier) on process-critical rotating machinery.
Marine Propulsion: Shipboard machinery vibration monitoring in high-humidity, salt-spray environments.

Engineering Advantages

Self-Generating Output: No external power supply required for the sensing element — simplifies wiring and eliminates power supply as a failure point in the measurement chain.
Absolute Velocity Measurement: Directly measures casing velocity in engineering units (in/s or mm/s), compatible with ISO 10816 and API 670 alarm setpoint conventions.
Rugged Stainless Steel Construction: 316 SS housing withstands aggressive industrial environments including oil mist, steam, and chemical exposure.
Integral Armored Cable: Factory-terminated, strain-relieved cable assembly eliminates field termination errors and ensures signal integrity from day one.
Wide Temperature Range: Qualified to –40 °C / +121 °C, suitable for both cold-climate outdoor installations and high-temperature turbine environments.
Direct 3300 Series Compatibility: Plug-and-play replacement for existing Bently Nevada installations — no recalibration of monitor required when replacing like-for-like.
Long Service Life: Hermetically sealed internal mechanism minimizes contamination ingress; designed for continuous 24/7 operation over multi-year maintenance intervals.

System Architecture & Signal Flow

The 9200-01-05-10-00 operates as the primary sensing node in a Bently Nevada 3300 Series vibration monitoring loop. The signal flow is as follows:

Seismoprobe (9200-01-05-10-00): Converts mechanical casing velocity into an analog voltage signal (mV-level, self-generated).
Field Wiring / Junction Box: Shielded twisted-pair cable routes signal from machine to control room or local panel. Maintain shield grounding at one end only to prevent ground loops.
3300 Series Monitor (e.g., 3300/16, 3300/20): Receives raw velocity signal, applies signal conditioning, RMS or peak detection, and compares against configured alarm setpoints (Alert / Danger).
System Rack / DCS Integration: Monitor outputs 4–20 mA or relay contacts to DCS/PLC for integration into plant-wide machinery protection and historian systems.
ADRE / System 1 Software (Optional): For advanced spectrum analysis, trend logging, and predictive diagnostics using Bently Nevada software platforms.

Note: For installations requiring intrinsic safety (IS) or explosion-proof (Ex d) certification, consult Bently Nevada documentation for appropriate barrier/isolator selection before field installation.

Sourcing & Quality Verification

OEM Traceability: All units sourced through verified Bently Nevada / Baker Hughes authorized distribution channels or certified surplus with full documentation.
Incoming Inspection: Each unit undergoes visual inspection, dimensional verification, coil resistance check (target: ~1,750 Ω ±10%), and connector integrity test prior to dispatch.
Documentation Package: Certificate of Conformance (CoC), test report, and original manufacturer datasheet available upon request — essential for regulated industries (nuclear, offshore, power generation).
Shelf Life & Storage: Units stored in climate-controlled, ESD-safe environment per manufacturer storage guidelines. Shelf life tracking maintained for all inventory.
Anti-Counterfeit Measures: Serial number verification against manufacturer records; holographic labels and packaging integrity checked on every unit.
Warranty: 12-month warranty against manufacturing defects from date of shipment.

Procurement Process

Submit RFQ: Email support@konmask.com or call +0086 19859288691 with your part number (9200-01-05-10-00), required quantity, and delivery timeline.
Quotation & Lead Time Confirmation: Our technical team responds within 24 hours with pricing, availability, and estimated lead time. Expedited sourcing available for critical shutdowns.
Purchase Order: Issue PO to Konmask.com. We accept T/T bank transfer, L/C, and major corporate payment terms for qualified accounts.
Quality Documentation: Specify required documentation (CoC, test report, datasheet) at PO stage. Documentation prepared and included with shipment.
Shipping & Export: Worldwide export via DHL, FedEx, or freight forwarder. Export classification and customs documentation handled by our logistics team. Typical dispatch: 3–7 business days from PO confirmation.
After-Sales Support: Technical support available post-delivery for installation queries, compatibility verification, and warranty claims.

Technical FAQ

Q: What is the difference between the 9200 Seismoprobe and a proximity probe (e.g., 3300 XL 8mm)?
A: The Seismoprobe measures absolute casing velocity (self-generating, no power required). Proximity probes measure relative shaft displacement using eddy-current technology and require a driver/oscillator. Both are used together in API 670-compliant systems for complete machine protection.

Q: Is the 9200-01-05-10-00 compatible with the Bently Nevada 3500 Series monitors?
A: Direct compatibility depends on the specific 3500 monitor module and input card configuration. An input adapter or signal conditioner may be required. Contact our technical team for a compatibility assessment before ordering.

Q: Can this transducer be used in a hazardous (classified) area?
A: The standard 9200-01-05-10-00 is not intrinsically safe (IS) rated. For hazardous area installations, a certified IS barrier (e.g., Zener barrier or galvanic isolator) must be installed in the signal loop. Consult the applicable area classification and Bently Nevada IS documentation.

Q: What is the correct mounting torque and orientation?
A: Mounting orientation (vertical vs. horizontal) must match the part number suffix and installation design. Typical mounting torque is 15–20 in-lb (1.7–2.3 N·m) on the mounting stud. Do not over-torque — this can damage the internal spring-mass mechanism.

Q: How do I verify the transducer is functioning correctly in the field?
A: Measure coil resistance at the connector pins — should read approximately 1,750 Ω. A reading of 0 Ω indicates a short; open circuit (OL) indicates a broken coil. For functional verification, a calibrated shaker table test against a reference standard is recommended for critical applications.

Q: What is the lead time for the 9200-01-05-10-00?
A: Standard lead time is 3–7 business days for in-stock units. For out-of-stock situations, sourcing lead time is typically 2–4 weeks. Emergency/shutdown sourcing is available — contact us directly for expedited options.
