BERGER LAHR WDP3-318.0801 Positioning Control | Replacement, Equivalent & Selection Guide

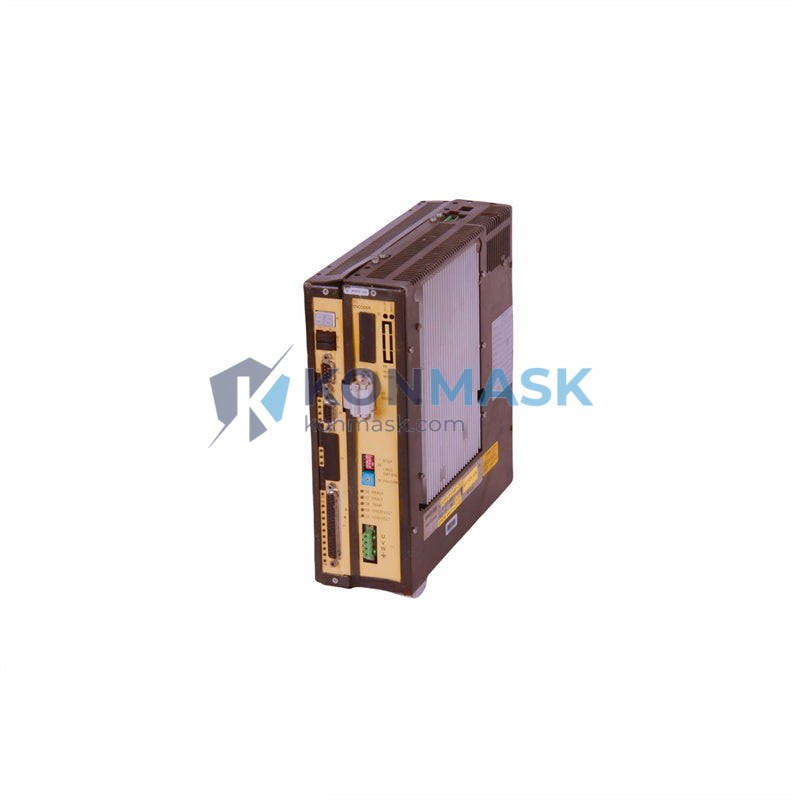

The BERGER LAHR WDP3-318 / WDP3-318.0801 is a compact stepper motor positioning control module designed for precise motion control in industrial automation systems. As an authorized sourcing partner, Konmask.com supplies genuine and compatible units with full technical support.
Technical Specifications
- Manufacturer: BERGER LAHR (Schneider Electric)
- Part Number: WDP3-318 / WDP3-318.0801
- Product Type: Positioning Control / Stepper Drive Module
- Series: WDP3
- Function: Stepper motor positioning and speed control
- Weight: 3,400 g (approx.)
- Interface: Compatible with standard PLC I/O and fieldbus systems
- Mounting: DIN rail / panel mount
- Operating Temperature: 0°C to +40°C (typical industrial range)
- Country of Origin: Germany / EU
Compatible Replacement & Equivalent Models
If the WDP3-318.0801 is discontinued or on long lead time, the following models may serve as functional equivalents depending on your system configuration:
- BERGER LAHR WDP3-318.0601 – Same WDP3 series, lower resolution variant
- BERGER LAHR WDP3-318.1201 – Higher-resolution variant in same form factor
- Schneider Electric ILA2E572PB1A0 – Lexium integrated drive (next-gen replacement)
- Schneider Electric SD328B – Lexium 32 stepper drive, compatible motion profile
- Oriental Motor CVDD series – Third-party equivalent for stepper positioning
Note: Always verify electrical ratings, encoder resolution, and communication protocol before substituting. Contact support@konmask.com for a compatibility assessment.
Why Choose the Original WDP3-318.0801
- ✅ Proven reliability in high-cycle industrial environments
- ✅ Seamless integration with existing BERGER LAHR / Schneider motion systems
- ✅ No re-parameterization or firmware changes required
- ✅ Genuine OEM part — eliminates compatibility risk
- ✅ Supported by Konmask.com with sourcing, testing, and documentation
Typical Applications
- CNC machine tool axis positioning
- Packaging line indexing and feed control
- Textile and printing machinery
- Semiconductor handling and wafer transport
- Laboratory automation and dispensing systems
- Conveyor and pick-and-place systems
System Compatibility
- PLC Brands: Siemens S7, Schneider Modicon, Mitsubishi MELSEC, Omron CJ/CS series
- Fieldbus: Profibus-DP, CANopen, RS-485 (model-dependent)
- Motor Types: 2-phase and 5-phase stepper motors (BERGER LAHR SER/SIG series)
- Software: Compatible with BERGER LAHR WinDrive configuration software
Selection Guide
Use the table below to select the correct WDP3 variant for your application:
| Model | Steps/Rev | Max Current | Best For |
|---|---|---|---|
| WDP3-318.0601 | 600 | 3A | Standard positioning |
| WDP3-318.0801 | 800 | 3A | High-resolution indexing |
| WDP3-318.1201 | 1200 | 3A | Ultra-fine positioning |
Need help selecting? Send your motor datasheet and application requirements to support@konmask.com.
Quality Assurance & Sourcing
- 🔍 All units inspected and function-tested before shipment
- 📦 Anti-static packaging with original labels preserved
- 📄 Certificate of conformity and traceability documentation available on request
- 🏭 Sourced from authorized distributors and verified industrial surplus channels
- 🔒 12-month warranty on all stocked units
How to Order
- Add the WDP3-318.0801 to your cart and proceed to checkout
- Or contact us directly for bulk pricing, lead time, or custom sourcing
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- We respond within 1 business day (Mon–Fri, UTC+8)
Replacement & Compatibility FAQ
Q: Is the WDP3-318.0801 still in production?
A: BERGER LAHR has been integrated into Schneider Electric. Some WDP3 variants are discontinued; Konmask.com maintains stock of genuine and refurbished units.
Q: Can I replace WDP3-318.0801 with a Schneider Lexium drive?
A: Functionally possible in most cases, but requires re-wiring and re-parameterization. We recommend consulting our engineers before substituting.
Q: Do you provide a datasheet or wiring diagram?
A: Yes. Request documentation via email after placing your order or inquiry.
Q: What is the lead time?
A: In-stock units ship within 2–3 business days. Out-of-stock sourcing typically takes 7–21 business days.
Q: Do you ship internationally?
A: Yes. We ship worldwide from China with DHL, FedEx, and UPS express options.
