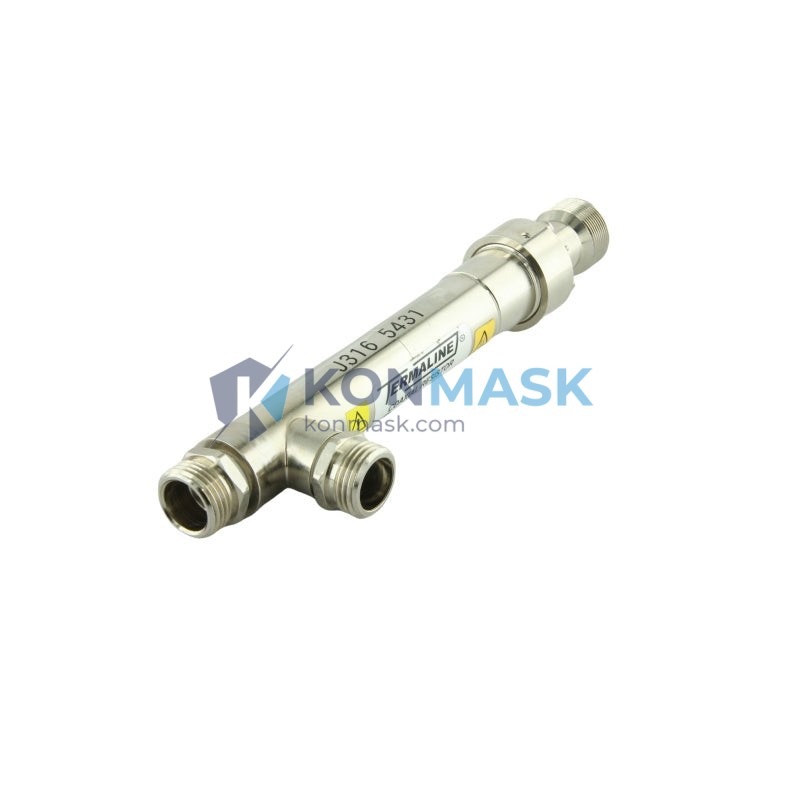

RF Power Termination Solution – BIRD 1210-03191 | Termaline LC40/M3/WI Series
Where This Product Is Used
The BIRD 1210-03191 Termaline Coaxial Resistor is engineered for high-reliability RF power termination across demanding industrial and broadcast environments. Typical deployment scenarios include:
- Broadcast Transmitter Testing – Used as a precision dummy load during AM/FM/TV transmitter commissioning and maintenance, safely absorbing RF output without radiating energy.
- Telecommunications Infrastructure – Deployed in base station test benches and antenna switching systems to terminate unused ports and protect sensitive downstream equipment.
- Industrial Automation RF Systems – Integrated into SCADA and process-control RF links where signal integrity and load stability are critical.
- Military & Defense RF Labs – Used in EMC test chambers and radar system calibration rigs requiring traceable, stable termination impedance.
- Research & University RF Laboratories – Standard reference load for vector network analyzer (VNA) calibration and power amplifier characterization.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1210-03191 |
| Manufacturer | BIRD Technologies (BIRD Electronic) |
| Series | Termaline LC40/M3/WI |
| Legacy Reference | DSQC545A / 3HAB8101-19/07A |
| Type | Coaxial Termination / Dummy Load Resistor |
| Connector Interface | LC40 (7/16 DIN compatible, M3 mount) |
| Cooling Method | WI – Water / Liquid Cooled |
| Impedance | 50 Ω (nominal) |
| Weight | 1,450 g |
| Origin Reference | ELBA/D-68794 (legacy production batch) |
Why Engineers Specify This Model
- Liquid-Cooled (WI) Design – Sustains continuous high-power operation without thermal derating, critical for 24/7 broadcast and telecom duty cycles.
- LC40 Connector Interface – Provides low-loss, high-power coaxial mating compatible with standard 7/16 DIN infrastructure, minimizing VSWR at the termination point.
- BIRD Termaline Pedigree – The Termaline series is the industry benchmark for RF dummy loads; specified by engineers worldwide for over 50 years.
- Traceable Legacy Cross-References – Cross-referenced to DSQC545A and 3HAB8101-19/07A, enabling direct drop-in replacement in legacy ABB robotics and RF control panels.
- Robust Construction – Precision-machined body with stable resistive element ensures consistent 50 Ω termination across the rated frequency and power range.
Complete System Bill of Materials
For a complete RF power termination and measurement system, engineers typically pair this unit with:
- BIRD Thruline® Wattmeter (Model 43 or 4421) – inline power measurement
- 7/16 DIN to N-Type adapter – interface to test instrumentation
- Liquid cooling manifold / chiller unit – for sustained WI-cooled operation
- Coaxial cable assembly (LC40 rated) – low-loss interconnect
- RF power amplifier or transmitter under test
Compliance & Industry Standards
- Designed and manufactured to BIRD Electronics quality standards
- Compatible with IEC 61169-4 (7/16 DIN coaxial connector standard)
- Suitable for use in CE-marked RF test systems
- Legacy cross-reference compliant with ABB robotics documentation (DSQC545A / 3HAB8101-19/07A)
Quality Assurance & Sourcing
All units offered by Konmask.com are sourced through verified industrial surplus and OEM channels. Each unit undergoes:
- Visual and mechanical inspection upon receipt
- Cross-reference verification against manufacturer part databases
- Secure anti-static packaging for international shipment
Condition is clearly stated on each listing. Contact us for test reports or additional documentation where available.
How to Source This Part
Ready to order the BIRD 1210-03191? Here’s how:
- Add to Cart – Proceed directly through our secure checkout.
- Request a Quote – For bulk orders or project BOM requirements, email support@konmask.com.
- Lead Time – In-stock units ship within 1–3 business days. Contact us for expedited options.
- Export & Customs – We support international shipments with full commercial invoice and HS code documentation.
Application-Specific FAQ
Q: Can this unit replace a DSQC545A in an ABB robot controller?
A: The 1210-03191 carries the DSQC545A cross-reference. Verify connector and mounting dimensions against your specific ABB cabinet before installation.
Q: What coolant flow rate is required for the WI (water-cooled) version?
A: Refer to the BIRD Termaline LC40 installation manual for rated flow and pressure specifications. Konmask can supply the datasheet upon request.
Q: Is this compatible with 75 Ω systems?
A: No. The Termaline LC40/M3/WI is a 50 Ω termination. It is not suitable for 75 Ω cable TV or CATV infrastructure.
Q: Do you offer calibration certificates?
A: Calibration certificates are available for select units. Please inquire at the time of order.
Q: What is the maximum continuous power rating?
A: Power rating depends on coolant flow and frequency. Contact us with your specific operating conditions for a derating confirmation.
