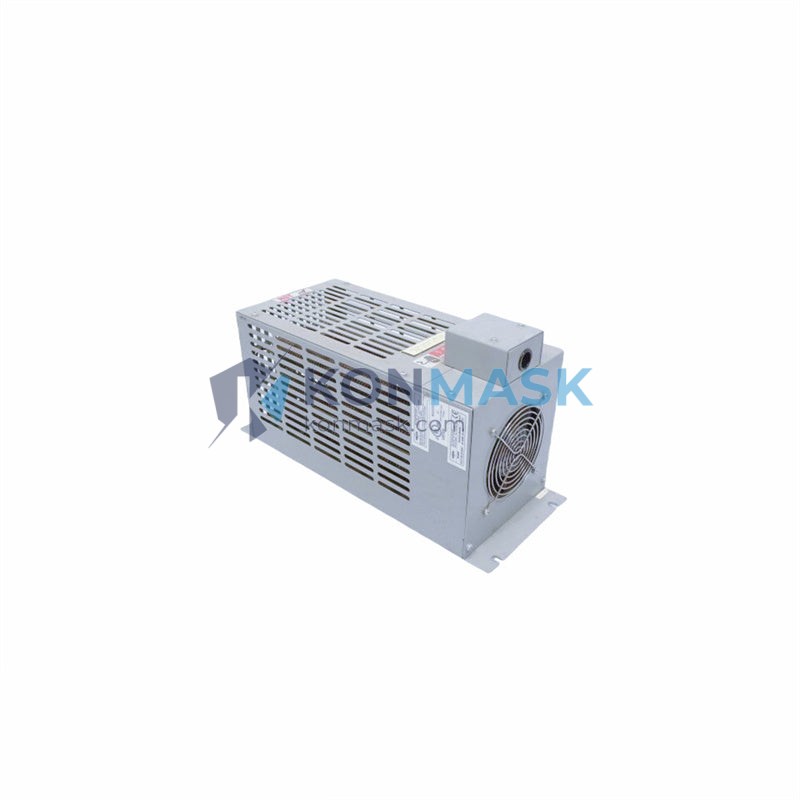

BONITRON M3575R-H33BF Resistor Brake Module | Replacement, Equivalent & Selection Guide
The BONITRON M3575R-H33BF is a dynamic braking resistor module designed to dissipate regenerative energy in variable frequency drive (VFD) and servo drive systems. It protects drive electronics by absorbing excess DC bus voltage during deceleration, emergency stops, or overhauling load conditions. This page serves as a comprehensive selection, replacement, and compatibility reference for industrial automation engineers and procurement specialists.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | BONITRON |
| Part Number / SKU | M3575R-H33BF |
| Product Type | Dynamic Braking Resistor Module |
| Series | M3575R |
| Weight | 1850 g (approx.) |
| Mounting | Panel / Enclosure Mount |
| Application | VFD / AC Drive Dynamic Braking |
| Enclosure | Industrial Grade |
| Condition | New / Surplus / Refurbished Available |
For full electrical ratings (resistance value, power rating, voltage class), please contact our technical team or refer to the BONITRON M3575R series datasheet.
Compatible Replacement & Equivalent Models
When the M3575R-H33BF is unavailable or discontinued, the following models may serve as functional equivalents — always verify resistance (Ω), power rating (W/kW), and voltage class before substitution:
- BONITRON M3575R-H33B — Same series, verify suffix differences for enclosure/connector variant
- BONITRON M3575R series — Other suffix variants within the M3575R family
- Yaskawa CDBR-series — External braking resistor units for compatible drive ratings
- Danfoss MBR-series — Brake resistors for equivalent kW/voltage class
- Rockwell / Allen-Bradley AK-R series — For equivalent HP/voltage drive systems
- Generic / OEM resistor modules — Must match: resistance (Ω), continuous power (W), peak power, and DC bus voltage rating
⚠️ Important: Substitution requires matching resistance value, power dissipation rating, and DC bus voltage. Incorrect selection may damage the drive or cause unsafe braking performance.
Why Choose the Original BONITRON M3575R-H33BF
- ✅ Factory-engineered for precise resistance and thermal performance
- ✅ Designed and tested to BONITRON’s drive compatibility standards
- ✅ Consistent quality — no derating or tolerance surprises
- ✅ Plug-and-play replacement for existing BONITRON drive systems
- ✅ Backed by BONITRON’s industrial reliability track record
- ✅ Reduces commissioning time vs. custom-built alternatives
Typical Applications
- AC variable frequency drives (VFDs) requiring dynamic braking
- Crane and hoist systems with regenerative loads
- Conveyor and elevator drive systems
- CNC machine tool spindle drives
- Pump and fan drives with rapid deceleration requirements
- Industrial servo and motion control systems
- Energy recovery and braking in material handling equipment
System Compatibility
The M3575R-H33BF is engineered for use with BONITRON drive systems and compatible third-party VFDs sharing the same DC bus voltage class. Confirm compatibility by matching:
- DC Bus Voltage: Must match drive’s DC bus rating
- Resistance Value (Ω): Must meet drive’s minimum braking resistance specification
- Power Rating (W/kW): Must handle peak regenerative energy of the application
- Duty Cycle: Continuous vs. intermittent braking duty
- Connector / Interface: H33BF suffix — verify terminal/connector compatibility
Selection Guide
Use this guide to confirm the M3575R-H33BF is the right choice, or to identify the correct alternative:
- Identify your drive model — Check the VFD nameplate for braking resistor specifications
- Confirm DC bus voltage class — Typically 400V, 480V, or 690V class
- Calculate required resistance — R(min) = V²DC / P(brake peak)
- Determine power rating — Based on braking duty cycle and load inertia
- Verify physical fit — Enclosure dimensions, mounting holes, terminal type
- Cross-reference suffix — H33BF suffix indicates specific configuration; confirm with BONITRON documentation or contact Konmask for assistance
Quality Assurance & Sourcing
At Konmask.com, all BONITRON M3575R-H33BF units are sourced through verified industrial supply channels. Each unit undergoes:
- Visual and physical inspection upon receipt
- Label and part number verification
- Packaging integrity check
- Traceability documentation available on request
We supply new, surplus, and professionally refurbished units. Condition is clearly stated on each listing. OEM warranty applies to new units where available.
How to Order
- Add the BONITRON M3575R-H33BF to your cart on this page
- For bulk orders (>5 units) or urgent requirements, contact us directly for lead time and pricing
- Provide your drive model number for compatibility confirmation if needed
- We ship worldwide — DHL, FedEx, UPS express options available
- Proforma invoice and commercial documentation provided for customs clearance
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use a generic braking resistor instead of the M3575R-H33BF?
A: Yes, if the resistance (Ω), power rating (W), and voltage class match exactly. However, the original BONITRON unit ensures optimal performance and warranty compliance.
Q: What does the “H33BF” suffix mean?
A: BONITRON uses alphanumeric suffixes to denote configuration variants such as resistance value, power rating, enclosure type, or connector style. Contact us or refer to the BONITRON M3575R datasheet for the exact breakdown.
Q: Is the M3575R-H33BF still in production?
A: Contact our team for current availability. We maintain stock of both current-production and legacy/surplus BONITRON components.
Q: Can Konmask source other BONITRON M3575R variants?
A: Yes. We can source the full M3575R series. Submit your part number via email for a quote.
Q: Do you provide a certificate of conformance?
A: Yes, available upon request for new and traceable surplus units.
