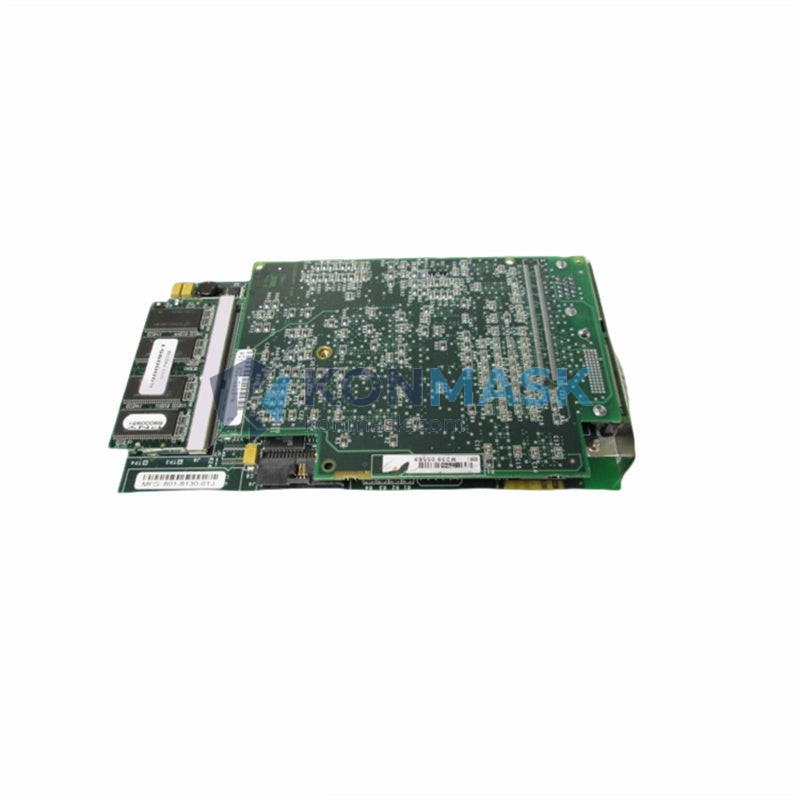

Cognex VPM-8120X-5061-P – High-Performance Vision Processor Module | In-Sight 8000 Series
Engineering Background: The Cognex In-Sight 8000 Series represents the pinnacle of embedded machine vision technology, engineered for demanding industrial inspection, identification, and measurement applications. The VPM-8120X-5061-P is the dedicated Vision Processor Module (VPM) for this platform, delivering the computational backbone required for real-time image acquisition and analysis at production-line speeds.
Product Positioning: Designed for procurement engineers and systems integrators who require a verified, OEM-sourced replacement or expansion module for existing In-Sight 8000 deployments. This module ensures full hardware and firmware compatibility within the Cognex ecosystem, eliminating integration risk and reducing commissioning time.
Complete Technical Specifications
- Part Number / SKU: VPM-8120X-5061-P
- Manufacturer: Cognex Corporation
- Product Series: In-Sight 8000
- Module Type: Vision Processor Module (VPM)
- Platform Compatibility: Cognex In-Sight 8000 Series vision systems
- Processor Architecture: High-speed embedded DSP / FPGA image processing core
- Image Acquisition: Supports high-resolution, high-frame-rate sensor interfaces
- Communication Interfaces: EtherNet/IP, PROFINET, RS-232/RS-422 (platform-dependent)
- Software Compatibility: Cognex In-Sight Explorer, EasyBuilder, VisionPro integration
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Storage Temperature: -20°C to +70°C
- Power Supply: Via In-Sight 8000 base unit (24 VDC system)
- Weight: 1,290 g (module + packaging)
- Compliance: CE, UL, RoHS
- Country of Origin: USA
Proven Application Environments
- Automotive body-in-white inspection and weld verification
- Electronics PCB assembly defect detection and component placement verification
- Pharmaceutical blister pack inspection and label verification
- Food & beverage packaging integrity and date-code reading
- Semiconductor wafer handling and die-level inspection
- Logistics and warehouse barcode / 2D code reading at high throughput
- Metal fabrication dimensional measurement and surface defect analysis
Engineering Advantages
- Drop-in Replacement: 100% hardware-compatible with In-Sight 8000 Series chassis — no re-wiring or re-programming of the host system required.
- Real-Time Processing: Dedicated processor architecture eliminates latency bottlenecks, supporting cycle times down to milliseconds.
- Cognex PatMax® Ready: Full support for Cognex’s industry-leading geometric pattern matching algorithm, enabling robust part location under variable lighting and orientation.
- Industrial-Grade Reliability: Designed to MIL-spec vibration and shock standards; suitable for harsh factory floor environments.
- Scalable Vision Architecture: Modular design allows independent upgrade of the processor without replacing the entire vision system, protecting capital investment.
System Architecture & Signal Flow
The VPM-8120X-5061-P interfaces directly with the In-Sight 8000 base unit via a proprietary high-bandwidth internal bus. Image data from the connected sensor is streamed to the VPM for pre-processing (noise reduction, sharpening, geometric correction), then passed to the embedded vision tools (blob analysis, edge detection, OCR, barcode decoding). Results are output via the configured industrial protocol (EtherNet/IP, PROFINET, or discrete I/O) to the host PLC or SCADA system within a deterministic cycle window.
[Camera Sensor] → [In-Sight 8000 Base Unit] → [VPM-8120X-5061-P]
→ [Vision Tool Execution] → [Result Output: EtherNet/IP / PROFINET / I/O]
→ [Host PLC / SCADA / MES]
Sourcing & Quality Verification
- Source: Procured from authorized Cognex distribution channels and verified industrial surplus with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional power-on check prior to shipment.
- Packaging: Ships in anti-static ESD packaging with foam cushioning. Original Cognex packaging preserved where available.
- Warranty: 90-day Konmask operational warranty. Extended warranty available upon request.
- Documentation: Cognex datasheet and installation guide available on request.
Procurement Process
- Confirm Compatibility: Verify your In-Sight 8000 base unit revision and firmware version against the VPM-8120X-5061-P compatibility matrix (contact our engineers for assistance).
- Request Quote: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required lead time.
- Order Confirmation: Receive proforma invoice with unit price, shipping cost (DHL/FedEx/UPS), and estimated delivery window.
- Payment: T/T (bank transfer), PayPal, or trade assurance accepted.
- Shipment & Tracking: Ships within 1–3 business days of payment confirmation. Full tracking number provided.
- After-Sales Support: Technical integration support available post-delivery via email or video call.
Technical FAQ
Q: Is the VPM-8120X-5061-P compatible with In-Sight 8200 and 8400 models?
A: The VPM is designed for the In-Sight 8000 platform family. Compatibility with specific sub-models (8200, 8400) depends on the chassis revision. Please contact us with your exact model number for confirmation.
Q: Can this module be used with Cognex VisionPro software?
A: The VPM-8120X-5061-P is an embedded module for the In-Sight 8000 standalone vision system. VisionPro is a PC-based platform and uses a different hardware architecture. These are not directly interchangeable.
Q: What is the lead time for this part?
A: Typically 1–5 business days for in-stock units. For bulk orders or specific revision requirements, lead time may extend to 2–3 weeks. Contact us for real-time stock status.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. A Konmask CoC is provided with every shipment. OEM CoC is available where original packaging is intact.
Q: What industrial protocols does this module support?
A: When installed in the In-Sight 8000 base unit, the system supports EtherNet/IP, PROFINET, Modbus TCP, RS-232, RS-422, and discrete I/O — protocol availability depends on the base unit firmware configuration.
