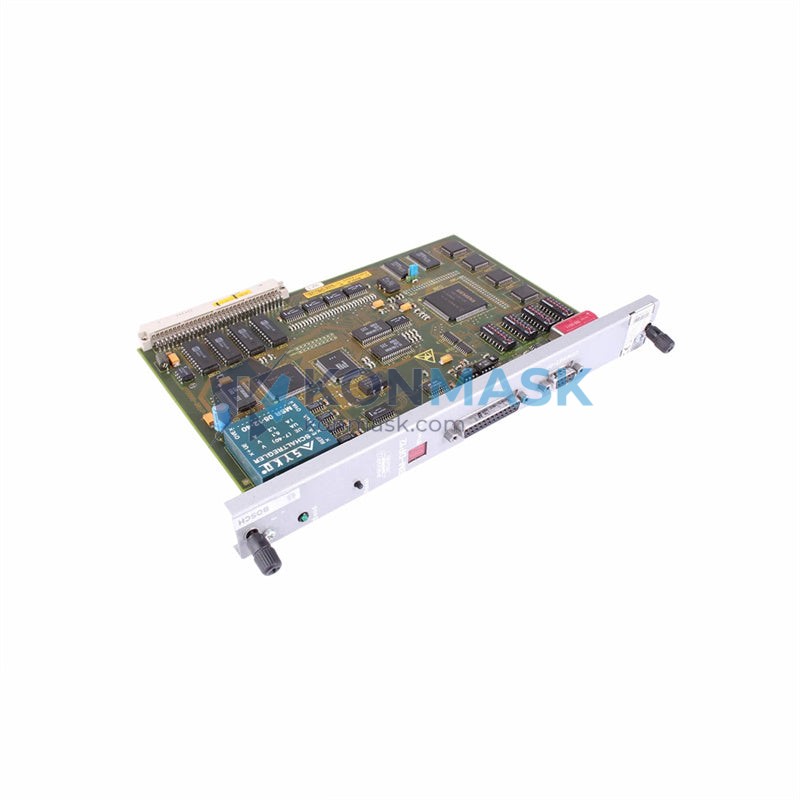

BOSCH Rexroth BM-DP12 (1070075887-202) – PROFIBUS DP Expansion Module | Indramat Drive Platform
Engineering Background: The BM-DP12 is a PROFIBUS DP communication expansion module developed by BOSCH Rexroth under the Indramat drive controller platform. It enables seamless integration of Rexroth servo and spindle drives into PROFIBUS DP fieldbus networks, a standard widely adopted in European and Asian manufacturing automation since the mid-1990s. Part number 1070075887-202 identifies the specific hardware revision with enhanced EMC shielding and extended temperature tolerance.
Product Positioning: Designed for procurement engineers and maintenance teams managing legacy or active Rexroth Indramat drive systems, the BM-DP12 provides a plug-in fieldbus interface that eliminates the need for full drive replacement when upgrading communication architecture. It is the preferred sourcing target for OEM machine builders and system integrators maintaining PROFIBUS-based production lines.
Complete Technical Specifications
- Manufacturer: BOSCH Rexroth (Indramat)
- Part Number: 1070075887-202
- Model: BM-DP12
- Module Type: PROFIBUS DP Communication Expansion Module
- Fieldbus Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Baud Rate: Up to 12 Mbit/s (auto-detect)
- Station Address: Configurable via DIP switch or parameterization tool
- Connector: 9-pin Sub-D (DB9) female, standard PROFIBUS pinout
- Compatible Drive Families: Indramat DDS, MDD, MKD, HDS, HMS series
- Supply Voltage: Powered via host drive backplane (no external supply required)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Weight: 1,110 g (including packaging)
- Dimensions: Standard Rexroth plug-in module form factor
- Certifications: CE, UL (per host drive assembly)
- Country of Origin: Germany
Proven Application Environments
- CNC machining centers with PROFIBUS-networked Rexroth spindle and servo drives
- Injection molding machines using Indramat HDS/DDS drive systems
- Automotive body-in-white welding lines with multi-axis servo coordination
- Packaging and printing machinery requiring deterministic fieldbus timing
- Retrofit projects upgrading legacy Indramat systems to modern PLC controllers (Siemens S7, Beckhoff, B&R)
- Semiconductor and electronics assembly equipment with precision motion control
Engineering Advantages
- Drop-in Compatibility: Plug-in module design requires no drive firmware modification; recognized automatically by host drive on power-up.
- Deterministic Communication: PROFIBUS DP cyclic data exchange ensures <1 ms update cycles at 12 Mbit/s for real-time torque and speed control.
- Revision 202 Enhancements: Improved EMC filtering on the PROFIBUS interface and wider operating temperature range vs. earlier -201 revision.
- Diagnostic Transparency: Module status LEDs (BF, SF) provide immediate fieldbus fault indication without requiring a laptop or programming tool.
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in harsh factory environments.
System Architecture & Signal Flow
The BM-DP12 inserts into the option slot of compatible Rexroth Indramat drive controllers. The host drive’s internal bus provides power and data exchange to the module. On the fieldbus side, the DB9 connector links to the PROFIBUS DP segment. The PLC master (DP master class 1) cyclically exchanges process data (setpoints, actual values, status words) with the drive acting as a DP slave. Acyclic parameter access (DPV1) is supported for drive parameterization via the fieldbus without interrupting cyclic operation.
[PLC / DP Master] ──PROFIBUS DP cable──► [BM-DP12 DB9] ──backplane──► [Indramat Drive Controller] ──► [Servo / Spindle Motor]
Sourcing & Quality Verification
- Source: Konmask.com sources BM-DP12 modules from decommissioned OEM machines, authorized distributors, and verified industrial surplus channels.
- Inspection: Each unit undergoes visual inspection, connector integrity check, and functional power-on verification prior to listing.
- Part Number Verification: Label and PCB silkscreen are cross-checked against Rexroth documentation to confirm revision 202 authenticity.
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for international shipments.
- Warranty: 90-day replacement warranty against DOA or latent defects.
Procurement Process
- Confirm your drive model and option slot compatibility (refer to your drive’s project planning manual).
- Add BM-DP12 (1070075887-202) to cart or contact us for bulk/project pricing.
- Receive order confirmation with estimated lead time (typically 1–3 business days for in-stock units).
- Unit ships with tracking; export documentation (commercial invoice, packing list, HS code 8537.10) provided for international orders.
- Post-delivery technical support available via email or phone for installation queries.
Technical FAQ
Q: Is the BM-DP12 compatible with Rexroth DIAX04 drives?
A: Compatibility depends on the specific DIAX04 variant and option slot configuration. Contact us with your drive nameplate data for confirmation.
Q: Can this module be used with a Siemens S7-300/400 PROFIBUS master?
A: Yes. The BM-DP12 is a standard PROFIBUS DP slave and is compatible with any DP master class 1 controller, including Siemens S7, Beckhoff TwinCAT, and B&R Automation Studio.
Q: What is the difference between revision -201 and -202?
A: Revision -202 incorporates enhanced EMC suppression components and an extended operating temperature ceiling. It is a direct drop-in replacement for -201 in all documented applications.
Q: Do you provide the GSD file for PROFIBUS configuration?
A: Yes. The Rexroth GSD file for BM-DP12 is available upon request or can be downloaded from the Bosch Rexroth support portal.
Q: Is this a new or refurbished unit?
A: Units are sourced as genuine OEM pulls or new-old-stock (NOS). Condition is clearly stated on the product listing. All units pass pre-shipment inspection.
