CNC & Motion Control Solution — Bosch Rexroth HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW | IndraDrive Cs Series

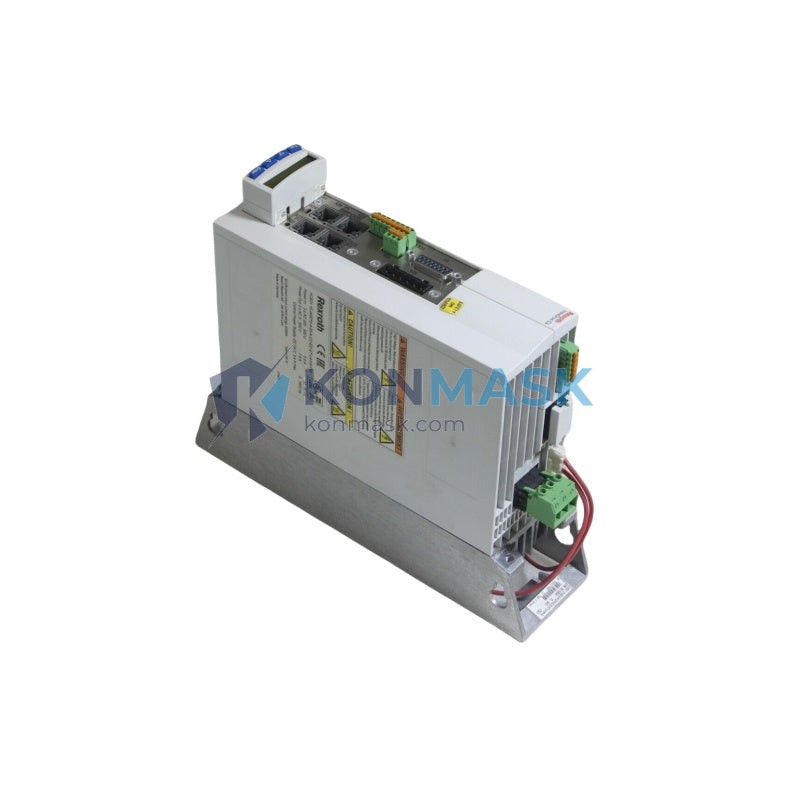

The Bosch Rexroth HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW is a compact, high-performance servo drive from the IndraDrive Cs series, engineered for precision motion control in demanding industrial environments. With a continuous output current of 18 A and a modular design, this drive is the preferred choice for machine builders and system integrators requiring reliable, spec-accurate axis control.
Where This Product Is Used
This servo drive is deployed across a wide range of industrial applications where precise, dynamic motion control is critical:
- CNC Machining Centers — Axis feed drives for milling, turning, and grinding machines requiring sub-micron positioning accuracy.
- Robotic Assembly Lines — Joint actuation in articulated robots and SCARA systems in automotive and electronics manufacturing.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and cartoning equipment demanding synchronized multi-axis motion.
- Printing & Converting Equipment — Web tension control and register correction in offset, flexo, and digital printing lines.
- Semiconductor & Electronics Manufacturing — Wafer handling, PCB drilling, and SMT placement machines requiring ultra-low vibration drives.
- Plastics & Injection Molding — Servo-hydraulic clamping and injection axis control for energy-efficient cycle optimization.
- Material Handling & Conveyors — Precision positioning of gantries, shuttles, and automated storage/retrieval systems (AS/RS).
Technical Specifications
| Part Number | HCS01.1E-W0018-A-03-E-S3-EC-NN-NN-NN-FW |
| Series | IndraDrive Cs (Compact Single-Axis) |
| Manufacturer | Bosch Rexroth AG |
| Drive Type | AC Servo Drive Controller |
| Continuous Output Current | 18 A (W0018) |
| Supply Voltage | 3 × AC 200–480 V, 50/60 Hz |
| Control Interface | SERCOS III / EtherCAT (EC) |
| Firmware | FW (Standard Firmware) |
| Safety Function | S3 — Safe Torque Off (STO), Safe Stop 1 (SS1) |
| Cooling | Integrated forced-air cooling |
| Protection Rating | IP20 (panel-mount) |
| Ambient Temperature | 0 °C to +40 °C (operating) |
| Weight | Approx. 220 g (drive module) |
| Mounting | DIN rail / panel mount |
| Compatible Motors | Bosch Rexroth MSK, MKE, MSE series servo motors |
Why Engineers Specify This Model
- EtherCAT Real-Time Communication — The EC variant supports EtherCAT fieldbus, enabling deterministic, sub-millisecond cycle times for tight multi-axis synchronization.
- Integrated Safety (SIL 2 / PLd) — On-board STO and SS1 safety functions eliminate external safety relays, reducing panel footprint and wiring complexity.
- Compact IndraDrive Cs Form Factor — Narrow 45 mm width allows high-density axis packing in space-constrained control cabinets.
- Auto-Commissioning & Drive-Integrated PLC — Supports IndraWorks DS commissioning software and optional integrated motion logic, reducing external PLC load.
- Wide Voltage Range — 200–480 V AC input accommodates global machine variants without hardware changes.
- Proven Reliability — MTBF-rated for continuous 24/7 industrial duty; field-proven in millions of installed axes worldwide.
Complete System Bill of Materials
For a fully operational IndraDrive Cs axis, the following components are typically required alongside this drive:
- Bosch Rexroth MSK / MKE Series Servo Motor (matched to W0018 current rating)
- Rexroth HNF / HNL Mains Filter & Line Choke (EMC compliance)
- Rexroth HLB Braking Resistor (for high-inertia or vertical axis applications)
- EtherCAT Master Controller (e.g., Beckhoff CX series, Siemens S7-1500 with CM module)
- 24 VDC Control Power Supply (min. 3 A)
- Rexroth Motor Power Cable & Encoder Feedback Cable (IKS / IKG series)
- Safety PLC or Safety Relay for STO wiring (if not using integrated safety master)
Compliance & Industry Standards
- CE Marked — EU Machinery Directive 2006/42/EC & Low Voltage Directive 2014/35/EU
- UL Listed — UL 508C (Power Conversion Equipment)
- RoHS 2 Compliant — Directive 2011/65/EU
- Functional Safety — IEC 62061 (SIL 2), ISO 13849-1 (PLd) for integrated STO/SS1
- EMC — EN 61800-3 Category C2
- EtherCAT Conformance Certified — ETG (EtherCAT Technology Group)
Quality Assurance & Sourcing
At Konmask.com, every unit undergoes a structured verification process before dispatch:
- Visual inspection for physical damage, connector integrity, and label authenticity
- Firmware version verification against Bosch Rexroth official release records
- Functional power-on test where applicable
- Sourced from authorized distributors, OEM decommissions, or certified refurbishers
- Condition clearly stated: New / Surplus New / Tested Refurbished
- Backed by Konmask’s 90-day replacement warranty on verified units
How to Source This Part
Ready to order or need a formal quotation for procurement?
- Online Order — Add to cart and check out directly on Konmask.com with secure payment.
- RFQ / Bulk Inquiry — Email [email protected] with your required quantity, delivery timeline, and destination country.
- Urgent Requirement — Call or WhatsApp +0086 19859288691 for same-day stock confirmation and expedited shipping options.
- Cross-Reference — If you have an alternate part number or need a compatible substitute, contact us with your application specs.
Application-Specific FAQ
Q: Is this drive compatible with non-Rexroth servo motors?
A: The HCS01.1E is optimized for Bosch Rexroth MSK/MKE/MSE motors. Third-party motor compatibility requires custom parameterization and is not guaranteed without engineering validation.
Q: What fieldbus does the EC variant support?
A: The -EC- suffix denotes EtherCAT. This drive operates as an EtherCAT slave and is compatible with any EtherCAT master controller conforming to the ETG standard.
Q: Can this drive replace an older IndraDrive C (HCS02/HCS03) unit?
A: The IndraDrive Cs (HCS01) is a compact single-axis variant. Direct mechanical and electrical replacement of HCS02/HCS03 requires adapter brackets and parameter migration — consult Konmask technical support for a compatibility assessment.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock inquiries, typical lead time is 2–4 weeks depending on sourcing channel. Contact us for real-time availability.
Q: Do you provide a test report or inspection certificate?
A: Yes. A functional test report is available upon request for refurbished units. New/surplus units ship with original manufacturer documentation where available.
