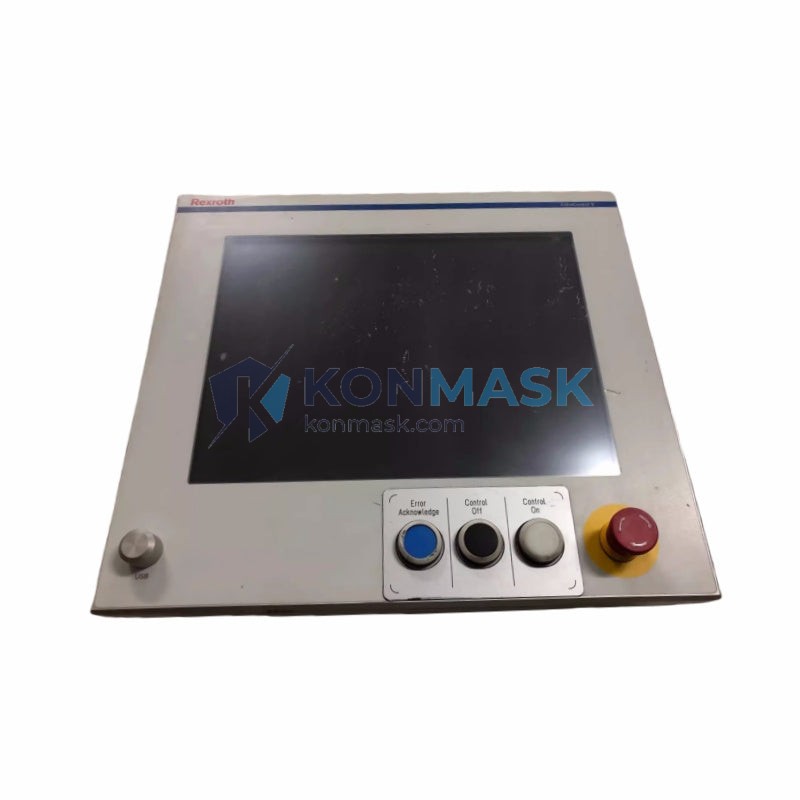

Bosch Rexroth MV-VPB40*3-PB002 – Industrial Control & Display Unit | VPB Series Platform
Engineering Background
The Bosch Rexroth VPB (Variable Panel Box) series represents the company’s integrated approach to machine-level human-machine interface (HMI) and control visualization. Designed for demanding industrial environments, VPB units combine rugged enclosure engineering with high-resolution display technology to deliver reliable operator interaction at the machine level. The MV-VPB40*3-PB002 is a purpose-built control and display unit within this platform, engineered to interface directly with Rexroth drive and motion control systems.
Product Positioning
Part number MV-VPB40*3-PB002 (Rexroth material number R91133860), configured as VPB-38/43-AC2-715, is a panel-mount control/display unit targeting machine builders, OEM integrators, and end-user maintenance teams operating Bosch Rexroth drive platforms. It serves as the primary operator interface for parameter visualization, diagnostics, and real-time status monitoring in automated production lines.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bosch Rexroth AG |
| Part Number | MV-VPB40*3-PB002 |
| Material Number | R91133860 |
| Configuration Code | VPB-38/43-AC2-715 |
| Product Family | VPB (Variable Panel Box) Series |
| Device Category | Control / Display Unit (HMI Panel) |
| Mounting Type | Panel Mount |
| Supply Voltage | AC 2 (per configuration code AC2) |
| Display Size Reference | 38–43 (per configuration code) |
| Weight (Gross) | 19 kg (as listed) |
| Origin | Germany / EU (Bosch Rexroth manufacturing) |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
Note: Full electrical ratings, communication interfaces, and environmental specifications are available in the Bosch Rexroth VPB Series technical datasheet. Contact Konmask for documentation.
Proven Application Environments
- CNC Machining Centers – Operator panel integration for Rexroth IndraMotion MTX/MLC platforms
- Hydraulic Press Lines – Real-time pressure and cycle visualization via Rexroth drive feedback
- Automated Assembly Lines – Status monitoring and fault diagnostics at the machine cell level
- Injection Molding Machines – Process parameter display and operator command input
- Printing & Packaging Machinery – High-cycle HMI applications requiring robust panel construction
- Steel & Metal Processing – Harsh-environment control visualization with industrial-grade enclosure
Engineering Advantages
- Native Rexroth Integration – Designed and validated within the Bosch Rexroth ecosystem; eliminates third-party compatibility risk
- Rugged Industrial Construction – Panel-mount form factor rated for continuous industrial duty cycles
- Unified Part Traceability – Dual identification via part number (MV-VPB40*3-PB002) and material number (R91133860) simplifies procurement and MRO documentation
- Reduced Commissioning Time – Plug-compatible with existing VPB-series infrastructure; no custom firmware required for standard configurations
- Long-Term Availability – Konmask maintains access to surplus and new-old-stock (NOS) Rexroth components to support legacy machine fleets
System Architecture & Signal Flow
The MV-VPB40*3-PB002 operates as a front-end display and control node within a Bosch Rexroth drive or motion control architecture. Typical signal flow:
- Drive/Controller Layer – Rexroth IndraDrive, IndraMotion, or equivalent controller generates process data and status signals
- Communication Bus – Data transmitted via Rexroth-native fieldbus or serial interface to the VPB unit
- VPB Display Unit (MV-VPB40*3-PB002) – Renders process values, alarms, and operator prompts; accepts operator input commands
- Operator Feedback Loop – Commands entered via the panel are relayed back to the controller for execution
This architecture ensures deterministic response times and eliminates latency associated with PC-based HMI solutions in time-critical applications.
Sourcing & Quality Verification
- Authorized Sourcing Channels – Konmask sources Bosch Rexroth components through verified industrial surplus, OEM overstock, and authorized distribution networks
- Pre-Shipment Inspection – Each unit undergoes visual inspection and label/serial number verification against Rexroth documentation standards
- Counterfeit Prevention – All units are cross-referenced against Rexroth material number databases; suspect units are quarantined and not listed
- Packaging Integrity – Units shipped in anti-static, impact-resistant packaging with desiccant where applicable
- Documentation Available – CE declarations, material safety data, and original Rexroth datasheets available upon request
Procurement Process
- Submit Inquiry – Contact Konmask via email or phone with your required quantity and delivery timeline
- Stock Confirmation – Our team confirms availability, unit condition, and lead time within 1 business day
- Quotation Issued – Formal quotation provided with unit price, shipping cost, and payment terms
- Order Confirmation – Purchase order accepted; payment processed via agreed method (T/T, credit card, etc.)
- Shipment & Tracking – Unit dispatched with full tracking; export documentation provided for international orders
- After-Sales Support – Technical assistance available post-delivery for installation and commissioning queries
Technical FAQ
Q: Is the MV-VPB40*3-PB002 compatible with all Bosch Rexroth drive platforms?
A: The VPB series is primarily validated for Rexroth IndraDrive and IndraMotion platforms. Compatibility with specific drive generations should be confirmed against the Rexroth system compatibility matrix or by contacting our technical team.
Q: What is the difference between part number MV-VPB40*3-PB002 and material number R91133860?
A: The part number (MV-VPB40*3-PB002) is the Rexroth ordering designation including configuration options. The material number (R91133860) is the unique internal Rexroth database identifier for this exact configured unit. Both refer to the same physical product.
Q: Can Konmask supply the matching Rexroth cables and connectors for this unit?
A: Yes. Konmask stocks a range of Rexroth accessory components. Please specify your system configuration when inquiring and we will identify compatible cable assemblies and connectors.
Q: What warranty is provided?
A: Warranty terms depend on unit condition (new, surplus, or refurbished). Details are specified in the quotation. Konmask provides a minimum 90-day functional warranty on all shipped units.
Q: Is export documentation available for international shipments?
A: Yes. Konmask provides commercial invoices, packing lists, and HS code documentation for all international orders. Country-of-origin certificates are available upon request.
