Hydraulic Servo Control Solution – BOSCH Rexroth WV45-RGC2 | VT-VSPA Series

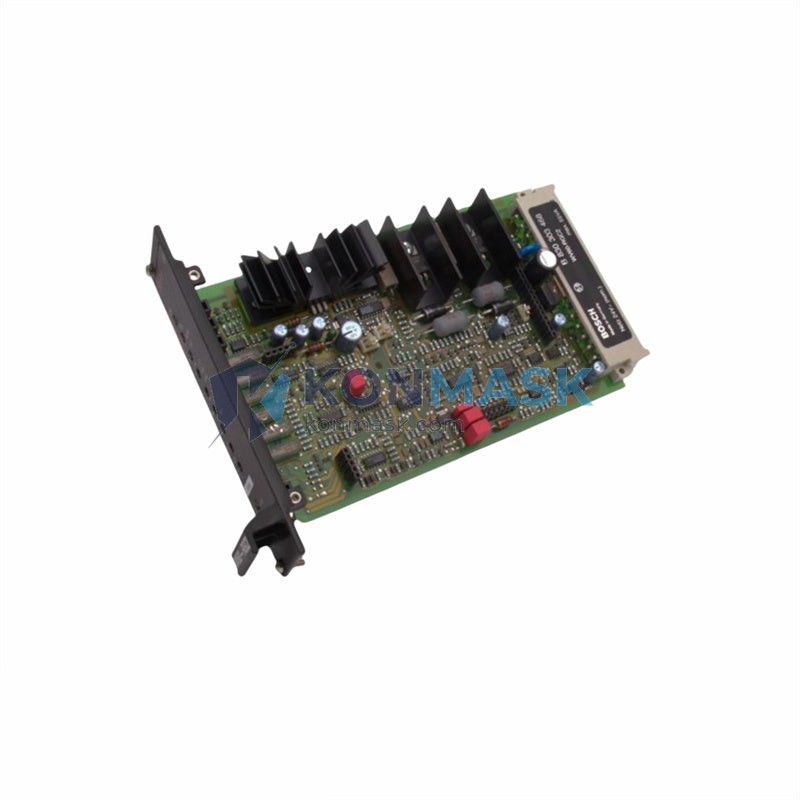

The BOSCH Rexroth WV45-RGC2 Amplifier Card (P/N: 0811405119) is a precision analog amplifier module engineered for closed-loop control of hydraulic proportional and servo valves. Designed for demanding industrial environments, this card delivers stable, repeatable valve positioning with integrated ramp, dither, and enable functions — making it the preferred choice for OEM machine builders and MRO replacement applications worldwide.
Where This Product Is Used
- Injection Molding Machines — Controls proportional pressure/flow valves for precise clamp force and injection speed regulation.
- Metal Forming Presses — Manages servo valve positioning in hydraulic press brakes and stamping lines for repeatable stroke control.
- Steel Mill Rolling Equipment — Provides high-bandwidth valve drive for AGC (Automatic Gauge Control) loops in hot and cold rolling mills.
- Marine & Offshore Hydraulics — Used in steering gear, stabilizer fin, and deck crane control systems requiring reliable proportional valve amplification.
- Test Bench & Simulation Rigs — Integrated into servo-hydraulic fatigue and materials testing machines for precise force/displacement control.
- Plastic Extrusion Lines — Regulates melt pressure and die gap via proportional valve control for consistent product dimensions.
Technical Specifications
- Part Number: 0811405119 (also referenced as 0 811 405 119)
- Model: WV45-RGC2
- Series: VT-VSPA / WV45 Amplifier Card Series
- Manufacturer: BOSCH Rexroth AG
- Type: Analog Proportional/Servo Valve Amplifier Card
- Form Factor: Plug-in Euro card module
- Supply Voltage: ±15 VDC (typical, rack-supplied)
- Output: Current-controlled valve coil driver
- Functions: Enable, ramp generator, dither, setpoint input, feedback input
- Weight: 1,240 g (including packaging)
- Condition: New / Surplus / Tested Refurbished (specify on inquiry)
Why Engineers Specify This Model
- Drop-in Replacement: Direct OEM equivalent — no re-wiring or rack modification required when replacing a failed WV45-RGC2 card.
- Integrated Ramp & Dither: On-board ramp generator prevents hydraulic shock on valve actuation; adjustable dither eliminates valve hysteresis.
- Stable Closed-Loop Performance: Precision current output ensures consistent valve positioning even under varying supply voltage or temperature.
- Long Service Life: BOSCH Rexroth industrial-grade components rated for continuous duty in harsh plant environments.
- Broad Valve Compatibility: Compatible with BOSCH Rexroth 4WRPH, 4WRE, and equivalent proportional directional control valves.
Complete System Bill of Materials
For a complete hydraulic proportional control system using the WV45-RGC2, engineers typically specify:
- WV45-RGC2 Amplifier Card (0811405119) — this item
- BOSCH Rexroth VT-VSPA1 / VT-VSPA2 Amplifier Rack / Power Supply Card
- BOSCH Rexroth 4WRPH / 4WRE Series Proportional Directional Control Valve
- Linear position transducer (LVDT or magnetostrictive) for closed-loop feedback
- Hydraulic power unit (HPU) with pressure-compensated pump
- System controller (PLC or CNC) providing ±10 V analog setpoint signal
Compliance & Industry Standards
- Designed and manufactured in accordance with ISO 4413 (Hydraulic fluid power — General rules)
- CE marked for European machinery directive compliance
- RoHS compliant (confirm specific batch on inquiry)
- Compatible with IEC 61131-3 PLC analog output modules (±10 V command interface)
Quality Assurance & Sourcing
All BOSCH Rexroth modules supplied by Konmask.com are sourced through verified industrial channels — OEM surplus, authorized distributor stock, or factory-refurbished units. Each unit undergoes:
- Visual inspection for physical damage, corrosion, and component integrity
- Functional bench test against BOSCH Rexroth factory test parameters (where applicable)
- Anti-static packaging with humidity indicator card
- Traceable documentation provided on request
How to Source This Part
Stock availability for legacy and current-production BOSCH Rexroth amplifier cards changes frequently. To confirm availability, lead time, and pricing for the WV45-RGC2 (0811405119):
- Submit a quote request via the product page
- Email: [email protected]
- WhatsApp / Phone: +0086 19859288691
- Typical response time: within 24 business hours
- Export documentation (commercial invoice, packing list, COO) available for international orders
Application-Specific FAQ
Q: Is the WV45-RGC2 compatible with the VT-VSPA1-1-10/V0/0 amplifier rack?
A: Yes. The WV45-RGC2 card is designed for the VT-VSPA Euro-card rack system. Confirm slot assignment and jumper settings with your system documentation before installation.
Q: Can this card control a servo valve (not just proportional)?
A: The RGC2 variant is optimized for proportional valve control. For high-performance servo valve applications requiring <1% hysteresis, consult Konmask for the appropriate servo amplifier card.
Q: What is the lead time for a replacement WV45-RGC2?
A: In-stock units ship within 1–3 business days. For sourced or refurbished units, typical lead time is 7–15 business days. Contact us to confirm current stock.
Q: Do you provide a warranty?
A: Yes. New surplus units carry a 12-month warranty against manufacturing defects. Tested refurbished units carry a 6-month functional warranty. Terms available on request.
Q: Can you supply the complete VT-VSPA rack system?
A: Yes. Konmask.com can source complete rack assemblies, individual cards, and associated proportional valves. Submit your full BOM for a consolidated quote.
