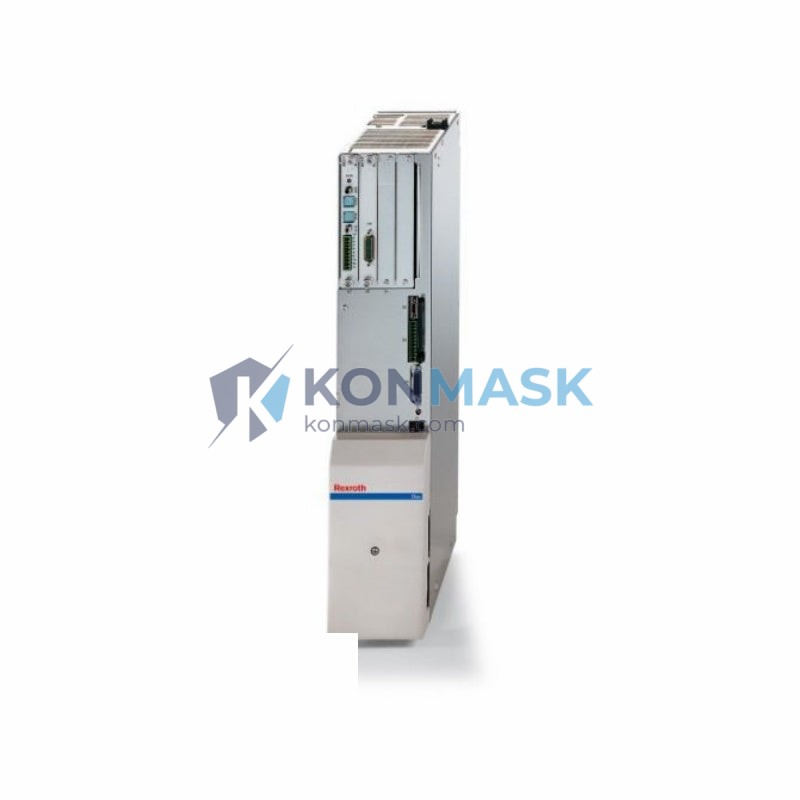

Bosch Rexroth HDS03.2-W100N-HT20-01-FW AC Servo Drive Controller – HDS Series
When a servo drive fails on a production line, the consequences are immediate and costly: axes lose position, safety interlocks trip, and the entire machine comes to a controlled — or uncontrolled — stop. Every minute of unplanned downtime in a modern manufacturing cell can cost thousands of dollars in lost output, missed delivery windows, and emergency maintenance labor. The Rexroth HDS03.2-W100N-HT20-01-FW is the precision power-conversion heart of your servo axis; without it, motion simply does not happen.
Within Bosch Rexroth’s HDS (High-Dynamic Servo) drive family, the HDS03.2-W100N-HT20-01-FW occupies the high-current, high-torque tier — rated at 100 A continuous output current with the HT20 power section — making it the preferred choice for demanding axes such as heavy gantries, large rotary tables, and high-inertia spindles. Bosch Rexroth’s DIAX04 / IndraControl platform, of which the HDS series is a cornerstone, is deployed in tens of thousands of machine tools, presses, and assembly systems worldwide, cementing its reputation as one of the most field-proven servo drive architectures in global industrial automation.
Technical Specifications
- Part Number / SKU: HDS03.2-W100N-HT20-01-FW
- Series: HDS (High-Dynamic Servo Drive)
- Generation: HDS03.2 (third-generation, second revision)
- Continuous Output Current: 100 A (W100N designation)
- Power Section: HT20 — high-torque module
- Firmware Variant: FW (standard firmware)
- Drive Type: AC Servo Drive Controller (digital, field-oriented control)
- Compatible Motor Feedback: Resolver, EnDat, Hiperface (drive-dependent configuration)
- Bus Interface: SERCOS II / analog ±10 V (configuration-dependent)
- Supply Voltage: 3-phase AC, compatible with HVR/HVE/HVD Rexroth power supply units
- Cooling: Forced-air (internal fan)
- Protection Class: IP20 (cabinet-mount)
- Weight: approx. 300 g (module only)
- Manufacturer: Bosch Rexroth AG
Note: All specifications are based on Bosch Rexroth published documentation. Konmask.com does not fabricate or alter manufacturer data. Always cross-reference with the official Rexroth project planning guide for your specific application.
Key Features & Benefits
- High Continuous Current (100 A): Handles demanding axes with large motors and high inertia loads without thermal derating under sustained duty cycles.
- HT20 High-Torque Power Section: Optimized for peak-torque applications — ideal for clamping, pressing, and heavy-load positioning where instantaneous torque demand is critical.
- Digital Field-Oriented Control: Delivers sub-millisecond current-loop response for tight velocity and position regulation, essential in synchronized multi-axis systems.
- SERCOS II Compatibility: Enables deterministic real-time communication with Rexroth IndraControl and third-party CNC/PLC masters over fiber-optic ring topology.
- Modular HDS Platform Architecture: Shares a common DC bus with other HDS/HVR modules, reducing cabinet footprint and simplifying energy recovery across axes.
- Proven Field Reliability: The HDS03.2 generation has accumulated decades of runtime in machine tools, injection molding machines, and automated assembly lines globally.
- Firmware Flexibility (FW): Standard firmware supports a broad range of motor types and control modes, reducing spare-parts complexity across mixed motor fleets.
Industry & Equipment Applications
- CNC Machine Tools: Milling centers, turning centers, grinding machines — feed and spindle axes requiring high dynamic stiffness.
- Injection Molding Machines: Clamp, injection, and ejector axes demanding precise force and position control.
- Metal Forming & Presses: Servo presses and bending machines where high peak torque and accurate ram positioning are mandatory.
- Automated Assembly Systems: Multi-axis Cartesian and SCARA robots in automotive and electronics manufacturing.
- Printing & Packaging Machinery: Register-controlled web-tension and cut-to-length axes.
- Semiconductor & Flat-Panel Display Equipment: Ultra-precise stage drives requiring low-ripple current output.
- Renewable Energy Test Rigs: Wind-turbine gearbox and generator test benches using high-torque servo loading.
System Integration & Compatible Parts
The HDS03.2-W100N-HT20-01-FW is designed to operate within the Bosch Rexroth DIAX04 / IndraControl ecosystem. Typical companion components include:
- Power Supply Units: Rexroth HVR, HVE, HVD series (DC-bus feed modules)
- Servo Motors: Rexroth MHD, MKD, MKE, 2AD series (matched by current rating and feedback type)
- Control Cards / Firmware Modules: DSS, DSC, DAE plug-in cards for the HDS03.2 housing
- SERCOS Master Controllers: Rexroth IndraControl L/M/V, Siemens SINUMERIK, Fanuc Series 30i (with SERCOS option)
- Capacitor Modules: Rexroth HLC series (DC-bus buffering for regenerative axes)
- Cables & Connectors: Rexroth IKS/IKG motor power and feedback cables
Contact Konmask.com with your full BOM for cross-compatibility verification before ordering.
Our Quality Assurance Process
Every Rexroth HDS03.2-W100N-HT20-01-FW unit shipped from Konmask.com passes through a structured inspection workflow:
- Visual Inspection: Housing, connectors, PCB, and label integrity checked against OEM reference images.
- Label & Serial Number Verification: Part number, date code, and serial number authenticated against Bosch Rexroth traceability standards.
- Functional Pre-Check: Where test equipment is available, power-on self-test (POST) results are logged.
- Anti-Static Packaging: Units are packed in ESD-safe bags with foam cushioning and double-boxed for international freight.
- Documentation: Certificate of conformity and inspection report available on request.
How to Order
- Submit an inquiry via the “Request a Quote” button on this page, or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Our team will confirm availability, lead time, and a firm CIF/FOB price within 24 business hours.
- Upon agreement, we issue a proforma invoice; payment terms are discussed per order size and customer history.
- Units are dispatched with full tracking; DHL Express, FedEx, and sea freight options available.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drive, and motion-control components — not a general electronics marketplace.
- Global Sourcing Network: Access to both new OEM stock and professionally refurbished units, giving you options when lead times are critical.
- Technical Pre-Sales Support: Our engineers can help verify compatibility with your existing Rexroth system before you commit to a purchase.
- Fast International Shipping: Consolidated export experience to Europe, Southeast Asia, the Middle East, and the Americas.
- Transparent Communication: Real-time order status updates and dedicated account management for repeat B2B customers.
Frequently Asked Questions
Q1: Is the HDS03.2-W100N-HT20-01-FW new or refurbished?
A: We stock both new (surplus) and professionally refurbished units. Condition is clearly stated in your quotation. Refurbished units carry a 90-day warranty; new surplus units carry a 12-month warranty.
Q2: Can this drive replace an HDS03.1-W100N unit?
A: The HDS03.2 is the successor to the HDS03.1 with improved firmware and hardware revisions. Physical and electrical compatibility is generally maintained, but firmware version alignment with your control system must be verified. Contact us for a compatibility check.
Q3: What is the typical lead time?
A: In-stock units ship within 2–5 business days. Out-of-stock items typically have a 4–12 week lead time depending on sourcing channel. We will confirm at the time of quotation.
Q4: Do you provide a warranty?
A: Yes. All units come with a minimum 90-day warranty against manufacturing defects. Extended warranty options are available for high-volume orders.
Q5: Can you supply the matching Rexroth servo motor and cables?
A: Yes. Konmask.com can source compatible MHD/MKD motors, IKS/IKG cables, and HVR power supply modules. Provide your full system BOM for a consolidated quotation.
Q6: What export documentation do you provide?
A: We provide commercial invoice, packing list, certificate of origin, and inspection report. Additional documentation (e.g., FORM E for ASEAN preferential tariff) can be arranged on request.
