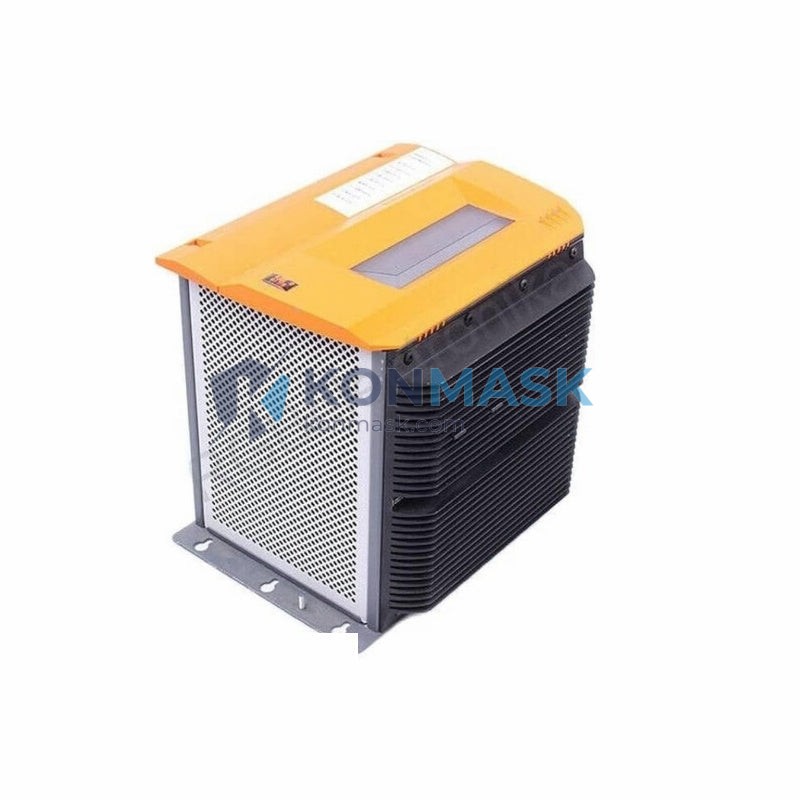

Machine Control & HMI Solution – B&R 5PC600.SX02-01 | 5PC600 Series
Where This Product Is Used
The B&R 5PC600.SX02-01 is a high-performance industrial automation PC engineered for demanding real-time control environments. It is widely deployed across the following sectors:
- Packaging Machinery: Servo-coordinated motion control and HMI visualization on form-fill-seal and cartoning lines.
- Plastics & Injection Molding: Cycle-accurate process control with integrated I/O management and recipe handling.
- Printing & Converting: High-speed register control and web tension management requiring deterministic real-time response.
- Automotive Assembly: End-of-line test stations, torque monitoring, and traceability data logging.
- Food & Beverage Processing: Hygienic-zone machine controllers with SCADA connectivity and OEE reporting.
- Semiconductor & Electronics Manufacturing: Precision motion platforms and vision-integrated inspection systems.
- Water & Wastewater Treatment: Remote SCADA node with robust fanless design for continuous 24/7 operation.
Technical Specifications
| Part Number | 5PC600.SX02-01 |
| Manufacturer | B&R Industrial Automation |
| Series | 5PC600 Automation PC |
| Form Factor | Fanless Embedded Industrial PC |
| Processor | Intel Atom / Celeron (series-dependent configuration) |
| Operating System Support | B&R Automation Runtime, Windows Embedded, Linux |
| Display Interface | DVI / VGA (panel-mount compatible) |
| Communication Ports | Ethernet (POWERLINK / standard), USB, RS-232/422/485, CAN |
| Expansion Slots | CompactFlash / SSD storage options |
| Power Supply | 24 VDC nominal |
| Operating Temperature | 0 °C to +55 °C |
| Protection Rating | IP20 (control cabinet installation) |
| Weight | 4,200 g (approx.) |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Fanless Thermal Design: Eliminates moving parts for maintenance-free operation in dusty or vibration-prone environments.
- B&R Automation Runtime Integration: Native support for IEC 61131-3 programming, motion libraries, and POWERLINK real-time Ethernet — no third-party middleware required.
- Scalable I/O Architecture: Seamlessly expands via X20 and X67 I/O modules for distributed or centralized topologies.
- Unified Engineering Environment: Programmed entirely within Automation Studio, reducing commissioning time and lifecycle support costs.
- Long-Term Availability: B&R’s industrial product lifecycle policy ensures spare-part availability for 10+ years.
- Compact Panel-Mount Form Factor: Optimized for space-constrained control cabinets and machine-integrated HMI enclosures.
Complete System Bill of Materials
For a fully operational B&R 5PC600-based control system, engineers typically specify the following complementary components:
- B&R X20CP series CPU module (for distributed I/O head)
- B&R X20 digital/analog I/O modules
- B&R POWERLINK managed switch (e.g., X20HB series)
- B&R Automation Panel (AP9xx series) for operator interface
- 24 VDC DIN-rail power supply (Phoenix Contact or equivalent)
- CompactFlash or industrial SSD storage card
- UPS module for controlled shutdown protection
Contact support@konmask.com for complete BOM sourcing assistance.
Compliance & Industry Standards
- CE Marking: EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL / cUL Listed: UL 508A Industrial Control Equipment
- IEC 61131-3: Full compliance for PLC programming languages
- POWERLINK: IEC 61784-2 real-time Ethernet protocol
- RoHS: Restriction of Hazardous Substances compliant
Quality Assurance & Sourcing
All B&R modules supplied by Konmask.com undergo a structured verification process:
- Visual inspection against OEM reference standards
- Label, firmware version, and serial number cross-check
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards
- Full traceability documentation available on request
We source from authorized distributors, certified resellers, and verified industrial surplus channels. Counterfeit-free guarantee backed by our sourcing policy.
How to Source This Part
- Add to Cart directly on this page for standard lead times.
- Request a Quote for volume orders (>3 units) or urgent delivery requirements.
- Email us at support@konmask.com with your project BOM for consolidated sourcing.
- Call / WhatsApp: +0086 19859288691 for time-critical procurement.
Typical lead time: 3–7 business days for in-stock units. Express shipping available worldwide.
Application-Specific FAQ
Q: Can the 5PC600.SX02-01 run B&R Automation Runtime and Windows simultaneously?
A: Yes. The 5PC600 platform supports hypervisor-based partitioning, allowing Automation Runtime and a Windows partition to operate concurrently on supported configurations.
Q: Is this unit compatible with B&R X20 I/O modules?
A: Yes. The 5PC600 integrates natively with the X20 I/O system via POWERLINK or X2X Link, enabling modular expansion without additional gateways.
Q: What programming software is required?
A: B&R Automation Studio (free download from br-automation.com) is the sole engineering environment. It supports IEC 61131-3 languages, C/C++, and motion configuration.
Q: Can this PC be used as a standalone SCADA node?
A: Yes. With appropriate software licensing, the 5PC600.SX02-01 can host SCADA/HMI applications (e.g., mapp View, Zenon, WinCC) alongside real-time control tasks.
Q: Do you provide a warranty?
A: All units carry a 90-day functional warranty from Konmask.com. Extended warranty and service contracts are available upon request.
