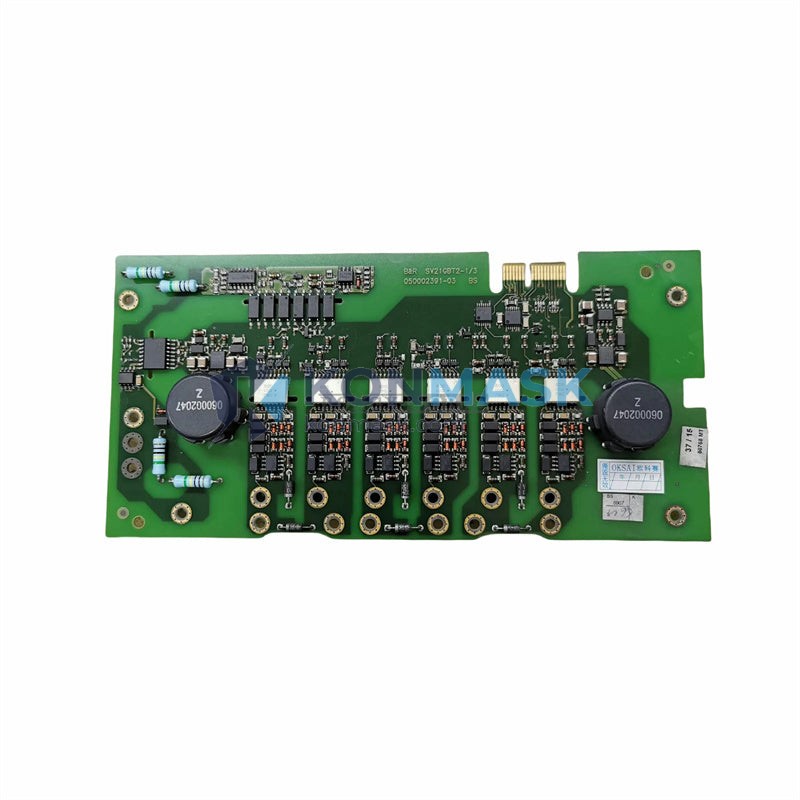

Servo Drive Power Solution – B&R 8BOP0220HC00.001-1 | ACOPOS Series
Where This Product Is Used
The B&R 8BOP0220HC00.001-1 is a dedicated power supply module engineered for the ACOPOS servo drive platform. It is deployed across a wide range of demanding industrial automation environments:
- Automotive body & assembly lines – powering multi-axis servo systems for welding, pressing, and transfer stations
- Packaging machinery – supplying stable DC bus power to high-speed pick-and-place and form-fill-seal equipment
- Printing & converting machines – maintaining tight voltage regulation for register-critical servo axes
- Semiconductor & electronics manufacturing – supporting cleanroom-compatible servo motion in wafer handling and SMT lines
- Plastics injection molding – delivering peak current during high-inertia clamping and ejection cycles
- Material handling & logistics – driving conveyor and sortation servo axes in distribution centers
Technical Specifications
- Part Number: 8BOP0220HC00.001-1
- Series: ACOPOS (B&R)
- Module Type: Power Supply / Line Filter Module
- Rated Output Current: 22 A (continuous)
- Input Voltage: 3 × 200–480 V AC, 50/60 Hz
- DC Bus Output: 750 V DC (nominal)
- Integrated Functions: Mains filter, soft-start, regenerative feedback ready
- Cooling: Forced air (integrated fan)
- Protection Class: IP20
- Mounting: DIN rail / panel mount, ACOPOS backplane compatible
- Weight: approx. 200 g (module only)
- Certifications: CE, UL (per B&R product family)
Why Engineers Specify This Model
- Plug-and-play ACOPOS integration – communicates natively with B&R ACOPOS drive modules via the internal backplane bus, eliminating external wiring
- Integrated mains filter – reduces EMC engineering effort and panel footprint compared to external filter solutions
- Soft-start inrush control – protects upstream fusing and reduces mechanical stress on transformer and capacitor banks at power-on
- Regenerative energy management – compatible with B&R regenerative braking infrastructure, enabling energy recovery in high-cycle applications
- Wide input voltage range – 200–480 V AC supports global deployment without hardware changes
- Compact 22 A rating – right-sized for small-to-mid multi-axis cells, avoiding oversized PSU cost and panel space
Complete System Bill of Materials
The 8BOP0220HC00.001-1 is typically ordered alongside the following ACOPOS system components:
- B&R ACOPOS servo drive modules (8Bxx series) – axis modules powered by this PSU
- B&R ACOPOS plug-in module (8BAC0xxx) – encoder and I/O expansion
- B&R X20 PLC / Automation PC – motion controller communicating via POWERLINK
- B&R ACOPOS motor cables & feedback cables – 8BCMxxxx / 8BCFxxxx
- Mains contactor & fusing – per B&R ACOPOS system design guide
- 24 V DC auxiliary supply – for control electronics and I/O
Compliance & Industry Standards
- CE Marking – Low Voltage Directive (LVD) 2014/35/EU & EMC Directive 2014/30/EU
- UL Listed – per applicable B&R ACOPOS product family certification
- RoHS Compliant – Directive 2011/65/EU
- IEC 61800-5-1 – Adjustable speed electrical power drive systems safety requirements
- EN 55011 / CISPR 11 – Industrial EMC emissions
Quality Assurance & Sourcing
Konmask.com sources the 8BOP0220HC00.001-1 through verified industrial automation supply channels. Every unit undergoes:
- Visual and dimensional inspection against B&R OEM specifications
- Label and serial number authenticity verification
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Full traceability documentation available on request
New, surplus-new, and tested-used grades available — please specify condition requirement at inquiry.
How to Source This Part
Ready to order or need a formal quotation?
- Online: Add to cart directly on this page for in-stock units
- Email RFQ: support@konmask.com – include quantity, required delivery date, and condition preference
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days
- Export: DDP, DAP, EXW terms available; HS Code 8537.10 for customs declaration
Application-Specific FAQ
Q: Can the 8BOP0220HC00.001-1 power multiple ACOPOS axis modules simultaneously?
A: Yes. The 22 A DC bus output is shared across all axis modules connected to the same ACOPOS backplane segment. Total axis current draw must not exceed 22 A continuous.
Q: Is this module compatible with ACOPOS multi or only classic ACOPOS?
A: The 8BOP0220HC00.001-1 is designed for the classic ACOPOS (8B) platform. For ACOPOS multi, refer to the 8EPS series power supply modules.
Q: What happens during a mains power failure?
A: The module supports controlled DC bus discharge. When used with B&R’s safe-stop infrastructure, axes can execute a defined stop sequence before bus voltage drops below operational threshold.
Q: Can I use this module with a non-B&R servo drive?
A: This module is designed exclusively for the B&R ACOPOS backplane architecture and is not compatible with third-party servo drives.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 90-day functional warranty on all tested units. New/surplus-new units carry the remaining OEM warranty where applicable.
