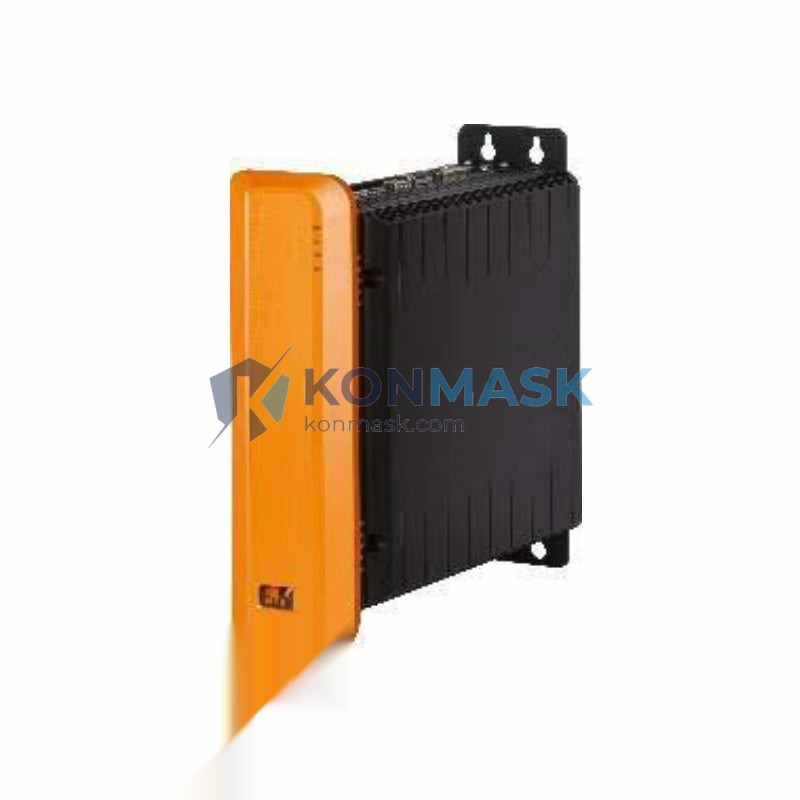

Industrial Automation Solution – B&R 5PC910.SX01-00 | Automation PC 910 Series
Where This Product Is Used
The B&R 5PC910.SX01-00 Automation PC 910 System Unit is engineered for demanding industrial environments where reliable computing, real-time control, and HMI visualization must coexist on a single platform. Typical deployment scenarios include:
- Machine Tool & CNC Control – Serves as the central computing backbone for CNC machining centers, coordinating motion control, operator interface, and data logging in one compact unit.
- Packaging & Filling Lines – Deployed in high-speed packaging machinery where deterministic cycle times and robust I/O communication are critical to throughput.
- Automotive Assembly & Test Stands – Used in end-of-line test stations and robotic welding cells requiring synchronized PLC logic and real-time data acquisition.
- Water & Wastewater Treatment – Installed in SCADA-driven pump stations and filtration systems for continuous process monitoring and remote diagnostics.
- Food & Beverage Processing – Operates in hygienic production environments where fanless or low-maintenance designs reduce contamination risk and downtime.
- Building Automation & Energy Management – Integrated into BMS panels for HVAC control, power metering, and facility-wide energy optimization.
Technical Specifications
| Part Number | 5PC910.SX01-00 |
| Brand | B&R (Bernecker + Rainer) |
| Series | Automation PC 910 |
| Form Factor | System Unit (Panel PC Base) |
| Processor Slot | Configurable CPU module (Intel Core i-series compatible) |
| Display Interface | Supports B&R Automation Panel via SDL/DVI |
| Expansion Slots | PCIe / PCI expansion for fieldbus and I/O cards |
| Operating System | Windows Embedded / B&R Automation Runtime (AR) |
| Storage Interface | CFast, HDD/SSD bay |
| Communication | Ethernet (POWERLINK, Modbus TCP, OPC UA capable) |
| Operating Temperature | 0 °C to +55 °C |
| Protection Rating | IP20 (system unit) |
| Weight | 4.6 kg |
| Power Supply | 24 VDC nominal |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Modular Architecture – The APC910 platform separates CPU, display, and I/O modules, allowing engineers to upgrade processing power without replacing the entire system unit — reducing lifecycle costs significantly.
- Deterministic Real-Time Performance – Tight integration with B&R Automation Runtime delivers sub-millisecond cycle times essential for motion-critical applications.
- Fanless & Vibration-Resistant Design Options – Suitable for harsh shop-floor environments with high dust, vibration, and temperature variation.
- Unified Engineering Environment – Programmed via B&R Automation Studio, supporting IEC 61131-3 languages, C/C++, and MATLAB/Simulink integration.
- Long-Term Availability – B&R commits to extended product availability, making the APC910 a safe long-term investment for OEMs and system integrators.
- Scalable I/O Expansion – Compatible with X20 and X67 I/O systems via POWERLINK for distributed control architectures.
Complete System Bill of Materials
A fully operational APC910-based control system typically includes the following components:
- 5PC910.SX01-00 – System Unit (this item)
- CPU Module – e.g., 5PC900.TS17-00 or compatible Intel Core i5/i7 module
- Automation Panel – e.g., 4PP045.0571-K12 or 4PP065 series touch display
- CFast Storage Card – e.g., 5CFCRD.0512-06 (8 GB / 16 GB)
- Power Supply Unit – 24 VDC DIN-rail PSU (e.g., 0PS103.1)
- X20 I/O Modules – Digital/Analog I/O as required by application
- POWERLINK Cable Set – For SDL/DVI panel connection
- Automation Studio License – For programming and commissioning
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive and EMC Directive
- UL / cUL Listed – Recognized for North American industrial installations
- IEC 61131-3 – Programming language standard compliance via Automation Runtime
- IEC 61000 – EMC immunity and emission standards
- RoHS Compliant – Restriction of Hazardous Substances
- POWERLINK – Ethernet POWERLINK Standardization Group (EPSG) certified fieldbus
Quality Assurance & Sourcing
Every B&R 5PC910.SX01-00 unit offered through Konmask.com undergoes a structured verification process:
- ✔ Visual inspection for physical damage, label integrity, and connector condition
- ✔ Part number and date code verification against B&R official documentation
- ✔ Functional power-on test where applicable
- ✔ Anti-static packaging with humidity indicator card
- ✔ Traceable sourcing from authorized distributors or verified industrial surplus channels
We do not sell counterfeit, remarked, or untested components. All units are shipped with a Konmask inspection certificate.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- In-Stock Orders – Add to cart and check out directly. Most orders ship within 1–3 business days.
- Bulk / Project Quotation – Contact us at support@konmask.com with your BOM and required delivery schedule.
- Lead Time for Out-of-Stock – Typical sourcing lead time is 5–15 business days depending on global availability.
- Export & Cross-Border – We ship worldwide. Export documentation (commercial invoice, packing list, COO) provided upon request.
- Phone / WeChat – +0086 19859288691 for urgent inquiries.
Application-Specific FAQ
Q: Can the 5PC910.SX01-00 run B&R Automation Runtime and Windows simultaneously?
A: Yes. The APC910 platform supports hypervisor-based partitioning, allowing Automation Runtime and a Windows OS to run concurrently on the same hardware — ideal for combined HMI and PLC applications.
Q: Is this unit compatible with B&R X20 I/O modules?
A: Yes, via POWERLINK or integrated X2X Link interface. The APC910 is the standard computing platform for B&R X20 system architectures.
Q: What is the difference between 5PC910.SX01-00 and 5PC910.SX02-00?
A: The SX01 variant is the base system unit without an integrated display interface panel, while SX02 and higher variants may include additional expansion slots or integrated display options. Always verify with your B&R project engineer for exact configuration differences.
Q: Can this unit be used as a SCADA server?
A: Yes. With appropriate software (e.g., Zenon, WinCC, or B&R mapp View), the APC910 can serve as a local SCADA/HMI server with OPC UA connectivity to upstream MES/ERP systems.
Q: What warranty is provided?
A: Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available upon request.
