Precision Motion Control Solution – B&R 8V1010.00-2 | ACOPOS Servo Drive

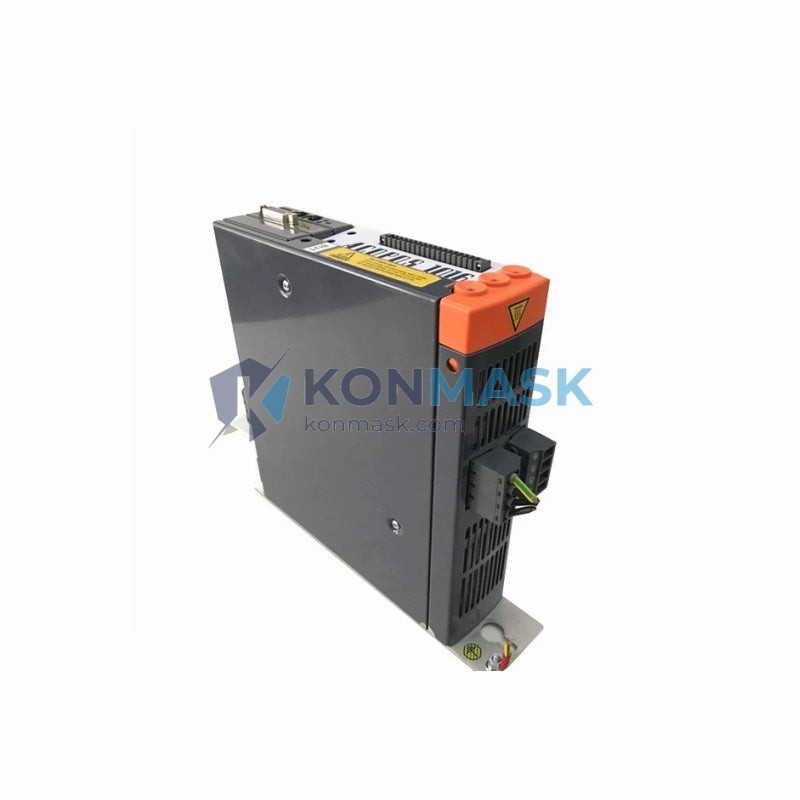

The B&R 8V1010.00-2 is a single-axis servo drive from the ACOPOS series, engineered for high-dynamic motion control applications where precision, speed, and reliability are non-negotiable. Whether you are commissioning a new machine or replacing a failed unit on the production floor, this drive delivers consistent performance across demanding industrial environments.
Where This Product Is Used
The 8V1010.00-2 is specified by automation engineers across a wide range of industries and machine types:
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and cartoning lines requiring sub-millisecond torque response
- Printing & Converting – Register control and tension management on web-fed offset and flexographic presses
- Robotics & Handling – Articulated arm and SCARA robot joint drives where coordinated multi-axis motion is critical
- Semiconductor & Electronics Assembly – Ultra-precise positioning stages in SMT pick-and-place and wafer handling equipment
- Textile Machinery – Winding, unwinding, and traverse drives on yarn and fabric processing lines
- Medical Devices – Diagnostic imaging gantries and surgical robot axes requiring smooth, low-noise motion
- Machine Tools – Feed axis and spindle orientation on CNC milling centers and grinding machines
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 8V1010.00-2 |
| Series | ACOPOS |
| Manufacturer | B&R Automation (ABB Group) |
| Drive Type | Single-Axis Servo Amplifier |
| Continuous Output Current | 10 A |
| Peak Output Current | 20 A (200% for 5 s) |
| DC Bus Voltage | 750 V DC (nominal) |
| Supply Voltage | 3 × 400–480 V AC, 50/60 Hz |
| Communication Interface | POWERLINK (integrated) |
| Encoder Interface | EnDat 2.1/2.2, Resolver, SSI, Incremental TTL |
| Protection Class | IP20 |
| Ambient Temperature | 0 °C to +45 °C (operating) |
| Weight | 2.6 kg |
| Mounting | DIN rail / panel mount |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Native POWERLINK Integration – Hard real-time Ethernet at 100 Mbit/s enables deterministic synchronization across all axes without additional fieldbus hardware
- Plug-and-Play Motor Identification – Automatic motor parameter detection via EnDat 2.2 reduces commissioning time from hours to minutes
- Integrated Safety (STO) – Safe Torque Off (SIL 2 / PLd) eliminates external safety relays and simplifies machine safety architecture
- Compact Footprint – Slim 45 mm width allows dense multi-axis panel layouts without sacrificing thermal headroom
- Seamless B&R Ecosystem – Direct integration with Automation Studio IDE, mapp Motion, and X20 / X67 I/O systems
Complete System Bill of Materials
For a fully operational ACOPOS servo axis, the following companion components are typically required:
- Power Supply Unit – 8V1180.00-2 or 8B0C0160HxS0.000-1 ACOPOS supply module
- Servo Motor – 8LSA / 8LVA / 8LXA series synchronous servo motors (matched by current rating)
- Motor Cable – 8BCM (power) + 8BCF (encoder) shielded cable sets
- Controller – X20CP / APC910 with POWERLINK master module
- Braking Resistor – 8B0W (external) if regenerative energy exceeds internal capacity
- EMC Filter – 8B0F line filter for CE compliance on mains input
Compliance & Industry Standards
- CE Marking – Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C – Power Conversion Equipment (North America)
- IEC 61800-5-1 – Adjustable speed electrical power drive systems safety
- IEC 62061 / ISO 13849-1 – Functional safety: STO rated SIL 2 / PLd
- IEC 61800-3 – EMC requirements for drive systems (Category C2)
Quality Assurance & Sourcing
Every B&R 8V1010.00-2 unit supplied by Konmask.com undergoes a documented inspection process:
- Visual inspection for physical damage, label integrity, and connector condition
- Firmware version verification against B&R release notes
- Functional power-on test with load simulation where applicable
- Anti-static packaging with humidity indicator card
- Full traceability documentation available on request
We source exclusively from authorized distributors, OEM surplus channels, and verified industrial resellers. Counterfeit-free guarantee backed by our return policy.
How to Source This Part
- Click Add to Cart or Contact Us for volume pricing
- Provide your machine model and current firmware version for compatibility confirmation
- Request a proforma invoice for bank transfer or L/C payment
- Standard lead time: 3–7 business days (in-stock units ship same day)
- Express DHL / FedEx worldwide shipping available
Application-Specific FAQ
Q: Can the 8V1010.00-2 replace an older 8V1010.00-1 unit?
A: Yes. The -2 revision is backward-compatible with -1 hardware in the same ACOPOS rack. Firmware update via Automation Studio may be required.
Q: Which motors are directly compatible?
A: All B&R 8LSA / 8LVA series motors up to 10 A continuous are directly supported. Third-party motors with EnDat 2.2 or resolver feedback can be configured manually.
Q: Is STO wiring required for basic operation?
A: No. STO inputs can be bridged for testing, but must be properly wired for CE-compliant machine installation per IEC 62061.
Q: What Automation Studio version is required?
A: Automation Studio 4.2 or later is recommended. AS 3.x is supported with limited mapp Motion functionality.
Q: Can this drive operate on a 480 V supply?
A: Yes. The 8V1010.00-2 accepts 3-phase 400–480 V AC input without hardware modification.
