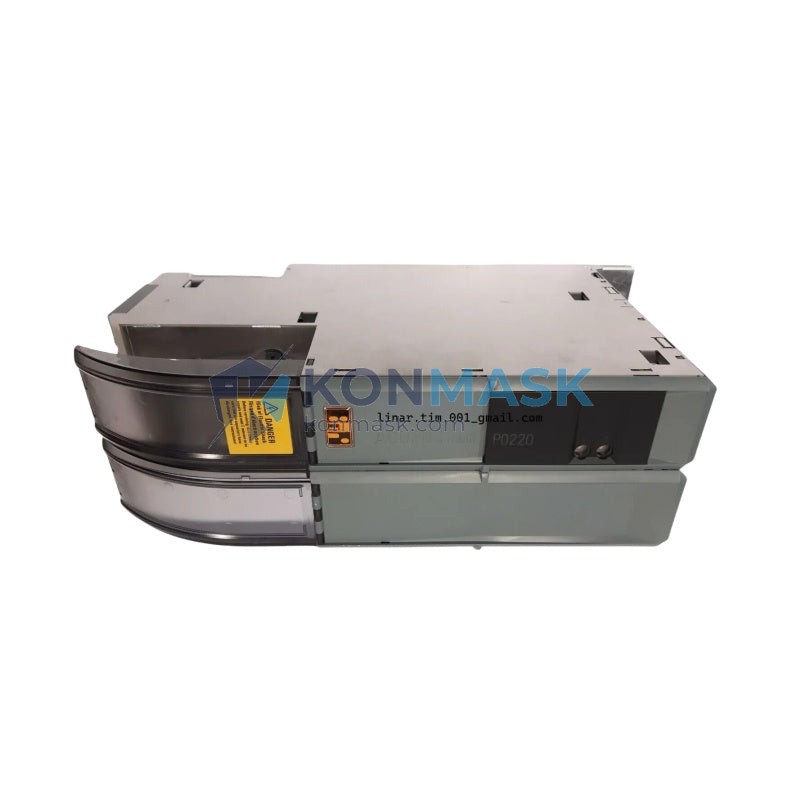

B&R BOP0220HC00.001-1 – ACOPOS P3 Series DC Bus Power Supply Module
Engineering Background
The B&R BOP0220HC00.001-1 (alternate part number: 8B0P0220HC00.001-1) is a DC bus power supply module engineered for the ACOPOS P3 multi-axis servo drive platform. Designed to deliver stable, high-current DC bus power to multi-axis drive nodes, this module is a critical infrastructure component in high-performance motion control architectures across semiconductor, packaging, printing, and precision manufacturing industries.
Product Positioning
As a dedicated bus supply unit within the ACOPOS P3 ecosystem, the BOP0220HC00.001-1 eliminates the need for external DC bus capacitor banks and simplifies cabinet wiring. It is the preferred choice for procurement engineers specifying compact, high-density servo systems where energy efficiency and regenerative braking capability are mandatory requirements.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | BOP0220HC00.001-1 / 8B0P0220HC00.001-1 |
| Manufacturer | B&R Industrial Automation |
| Series / Platform | ACOPOS P3 |
| Module Type | DC Bus Power Supply Module |
| Continuous Output Power | 22 kW |
| DC Bus Voltage | 750 V DC (nominal) |
| Input Voltage Range | 3 × 380–480 V AC, ±10% |
| Input Frequency | 50 / 60 Hz |
| Cooling Method | Forced air (integrated fan) |
| Protection Class | IP20 |
| Ambient Operating Temp. | 0 °C to +40 °C (derating above 40 °C) |
| Storage Temperature | −25 °C to +55 °C |
| Relative Humidity | 5–85%, non-condensing |
| Weight | 560 g |
| Certifications | CE, UL, cUL |
| Communication Interface | POWERLINK / X2X Link (via ACOPOS P3 backplane) |
| Mounting | DIN rail / panel mount (ACOPOS P3 system rail) |
Note: Specifications are based on B&R published datasheets. Always verify against the official B&R technical documentation for your specific application revision.
Proven Application Environments
- Semiconductor & Electronics Manufacturing – Precision multi-axis pick-and-place and wafer handling systems requiring ultra-low ripple DC bus voltage.
- Packaging Machinery – High-speed servo-driven form-fill-seal and cartoning lines with frequent acceleration/deceleration cycles and regenerative energy recovery.
- Printing & Converting – Web tension control and register systems demanding synchronized multi-axis torque response.
- Robotics & Handling – Collaborative and industrial robot joint drives integrated into ACOPOS P3 multi-axis nodes.
- Machine Tool & CNC – Spindle and feed axis drives in machining centers requiring stiff DC bus regulation under dynamic load changes.
Engineering Advantages
- Integrated Regenerative Capability – Returns braking energy to the AC mains, reducing net energy consumption and eliminating braking resistors in most duty cycles.
- Compact Form Factor – ACOPOS P3 system rail integration minimizes cabinet footprint versus standalone supply topologies.
- Active Front End (AFE) Design – Near-unity power factor and low harmonic distortion (THD < 5%) reduce infrastructure costs and comply with EN 61000-3-12.
- Scalable Bus Architecture – A single BOP0220HC00.001-1 can supply multiple ACOPOS P3 axis modules sharing the same DC bus segment.
- Plug-and-Play Integration – Native POWERLINK and X2X Link support enables zero-configuration commissioning within B&R Automation Studio.
System Architecture & Signal Flow
The BOP0220HC00.001-1 occupies the supply module slot at the left end of an ACOPOS P3 drive rail. AC mains (3-phase) enters the module, is rectified and actively regulated to a stable 750 V DC bus, which is distributed via the system rail backplane to all connected axis modules (8BAxxx series). The POWERLINK network connects the supply module to the B&R X20 or APC controller for real-time monitoring of bus voltage, input current, temperature, and fault status. The X2X Link provides deterministic synchronization across all axis nodes at cycle times down to 50 µs.
Sourcing & Quality Verification
- All units sourced through authorized B&R distribution channels or verified OEM-surplus with full traceability documentation.
- Each module undergoes incoming inspection: visual, label verification (part number, revision, serial number), and functional power-on test where applicable.
- Counterfeit-prevention: serial numbers cross-referenced against B&R manufacturer records upon request.
- Packaging: anti-static ESD bag + foam-lined carton; conforms to IEC 61340-5-1 handling standards.
Procurement Process
- Submit RFQ – Email [email protected] or call +0086 198 5928 8691 with your required quantity and delivery timeline.
- Quotation – Receive a formal quotation with unit price, lead time, and shipping options within 1 business day.
- Order Confirmation – Purchase order accepted via email; proforma invoice issued for prepayment or net terms (qualified accounts).
- Shipment – DHL / FedEx / UPS express worldwide; tracking number provided within 24 hours of dispatch.
- After-Sales Support – 12-month warranty on verified OEM units; technical support available via email.
Technical FAQ
Q: Is BOP0220HC00.001-1 the same as 8B0P0220HC00.001-1?
A: Yes. The “8B” prefix is B&R’s internal ordering prefix used in some regional catalogs; both numbers refer to the identical hardware revision.
Q: Can this module be used with ACOPOS P3 axis modules from a different firmware revision?
A: B&R recommends matching firmware revisions across all modules on a drive rail. Konmask can advise on compatible firmware pairings upon request.
Q: What is the maximum number of axis modules one BOP0220HC00.001-1 can supply?
A: This depends on the total continuous power demand of the connected axis modules. The 22 kW continuous rating is the governing constraint; consult B&R’s ACOPOS P3 system design guide for bus load calculations.
Q: Do you provide a test report or certificate of conformance?
A: Yes, a certificate of conformance (CoC) is available upon request for all orders.
Q: What is the lead time for out-of-stock units?
A: Typical lead time for factory-order units is 8–14 weeks. Konmask maintains spot stock of high-demand ACOPOS P3 modules — contact us for current availability.
