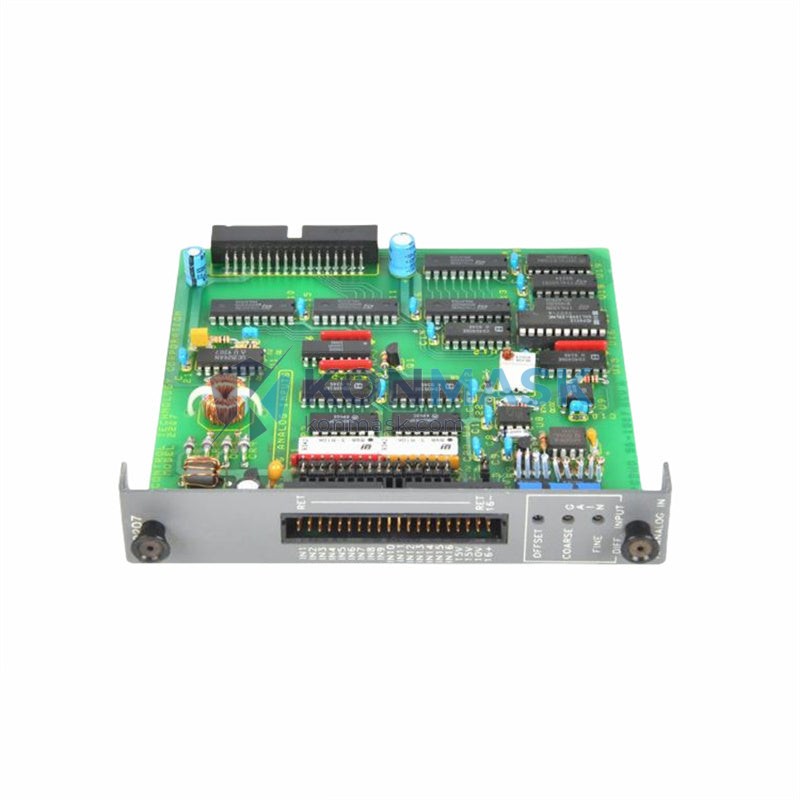

CTC 2207 – 8-Channel Analog Input Module | Creative Technology Corporation PLC Platform
Engineering Background
The CTC 2207 is a high-density analog input module engineered by Creative Technology Corporation (CTC) for integration into their modular PLC and process-control platforms. Designed to meet the demanding signal-conditioning requirements of continuous industrial processes, the 2207 delivers reliable multi-channel analog acquisition with the rugged build quality expected in mission-critical automation environments.
Product Positioning
Targeted at procurement engineers and system integrators sourcing verified replacement or expansion I/O for CTC-based control architectures, the 2207 module provides a direct, specification-matched solution. Konmask.com supplies this module from authenticated inventory channels, backed by pre-shipment functional verification.
Complete Technical Specifications
| Part Number / SKU | 2207 |
| Manufacturer | Creative Technology Corporation (CTC) |
| Module Type | Analog Input (AI) |
| Number of Channels | 8 Channels |
| Signal Types Supported | 4–20 mA / 0–10 V DC (configurable per channel) |
| Resolution | 12-bit (4,096 counts) |
| Input Impedance | ≥ 10 MΩ (voltage mode); 250 Ω (current mode) |
| Conversion Speed | ≤ 2 ms per channel (typical) |
| Isolation | Optical isolation, channel-to-backplane |
| Operating Voltage | 24 V DC (backplane supplied) |
| Power Consumption | ≤ 3 W (typical) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −25 °C to +70 °C |
| Relative Humidity | 5–95% RH, non-condensing |
| Protection Rating | IP20 |
| Module Weight | 1,490 g |
| Backplane Compatibility | CTC modular PLC rack (standard slot) |
| Certifications | CE, RoHS compliant |
| Country of Origin | China |
Proven Application Environments
- Process Manufacturing: Temperature, pressure, and flow signal acquisition in chemical and petrochemical plants
- Water & Wastewater Treatment: Multi-point sensor monitoring for pH, turbidity, and level transmitters
- Power Generation: Analog feedback loops for turbine and generator control systems
- Building Automation (BAS/BMS): HVAC sensor integration and energy metering
- Food & Beverage: Continuous process monitoring with hygienic-area transmitters
- OEM Machine Builders: Embedded analog acquisition in custom CTC-platform machinery
Engineering Advantages
- High Channel Density: 8 independent analog inputs in a single rack slot — minimizes cabinet footprint and wiring complexity
- Dual Signal Mode: Supports both current (4–20 mA) and voltage (0–10 V) inputs, reducing the need for signal converters
- Optical Isolation: Channel-to-backplane isolation protects the CPU from field-side transients and ground loops
- 12-Bit Resolution: Provides 0.024% full-scale accuracy — sufficient for precision process control loops
- Hot-Swap Compatible: Designed for CTC rack architecture supporting live module replacement (verify with system documentation)
- Low Power Draw: ≤ 3 W backplane consumption preserves rack power budget in dense configurations
System Architecture & Signal Flow
The CTC 2207 installs directly into a standard CTC modular PLC backplane slot. Field transmitters connect to the module’s screw-terminal or connector interface; signals are conditioned, multiplexed, and converted by the onboard 12-bit ADC. Digitized values are transferred to the CPU module via the backplane data bus on each scan cycle. The optical isolation barrier between the field-side input circuitry and the backplane bus ensures that field wiring faults do not propagate to the controller.
Recommended wiring practice: Use shielded twisted-pair cable for all analog runs; ground shield at the panel end only. Maintain physical separation from high-voltage AC wiring to minimize induced noise.
Sourcing & Quality Verification
- Authenticated Inventory: All CTC 2207 units sourced through verified distribution channels — no grey-market or counterfeit risk
- Pre-Shipment Inspection: Each module undergoes visual inspection and basic functional verification before dispatch
- Original Packaging: Shipped in OEM or equivalent ESD-safe packaging with label integrity intact
- Traceability: Batch and serial documentation available on request for regulated industries
- Warranty: 12-month limited warranty against manufacturing defects; DOA replacement within 7 days of receipt
Procurement Process
- Confirm Compatibility: Verify your CTC rack model and backplane slot count before ordering
- Request a Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place Order: Secure checkout via Konmask.com — accepts T/T bank transfer, PayPal, and major credit cards
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders. Export documentation (CO, packing list, commercial invoice) provided
- After-Sales Support: Technical assistance available via email or WhatsApp for installation and commissioning queries
Technical FAQ
Q: Is the CTC 2207 compatible with all CTC PLC rack sizes?
A: The 2207 is designed for the standard CTC modular backplane. Confirm slot width and power budget with your specific rack model datasheet.
Q: Can I mix current and voltage inputs on the same module?
A: Yes — each channel is independently configurable for 4–20 mA or 0–10 V input via jumper or software parameter (refer to CTC 2207 hardware manual for channel configuration procedure).
Q: What is the scan time impact of adding the 2207 to my system?
A: Analog conversion adds ≤ 2 ms per active channel to the I/O scan. For 8 channels fully populated, budget up to 16 ms additional scan overhead.
Q: Do you provide the CTC 2207 programming manual or datasheet?
A: Yes — contact support@konmask.com and we will provide available technical documentation with your order.
Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 unit. Volume discounts apply for orders of 5+ units.
