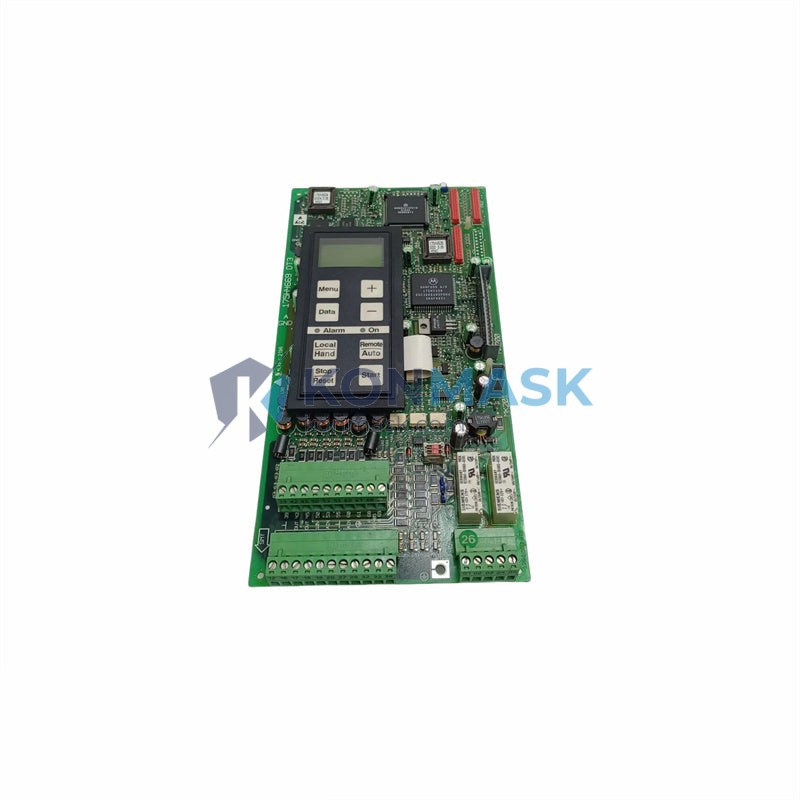

Danfoss 175H4669 DT3 Control Board – VLT AutomationDrive FC 302 Series
When a control board fails inside a Danfoss VLT AutomationDrive, the consequences ripple instantly across the production floor. Variable speed drives lose their command interface, motors run uncontrolled or stop entirely, and entire automated lines grind to a halt — costing manufacturers thousands of dollars per hour in unplanned downtime. The Danfoss 175H4669 DT3 Control Board is the precision-engineered heart of the FC 302 drive, and without it, there is no drive.
The 175H4669 DT3 is a factory-original control board designed specifically for the Danfoss VLT® AutomationDrive FC 302 series — one of the most widely deployed variable frequency drive platforms in global industrial automation. Trusted by OEMs, system integrators, and maintenance engineers across more than 100 countries, the FC 302 platform is the benchmark for high-performance motor control in demanding applications. This control board sits at the core of that platform, managing all logic, communication, and I/O functions that define the drive’s intelligence.
Technical Specifications
- Part Number / SKU: 175H4669 DT3
- Manufacturer: Danfoss
- Compatible Drive Series: VLT® AutomationDrive FC 302
- Component Type: Control Board (Main Control Card)
- Board Revision: DT3
- Communication Interfaces: RS-485 (FC protocol / Modbus RTU), USB (programming port)
- Digital Inputs: 6 programmable digital inputs
- Digital Outputs: 2 programmable digital outputs
- Analog Inputs: 2 analog inputs (0–10 V / 0–20 mA)
- Analog Outputs: 2 analog outputs (0–10 V / 0–20 mA)
- Relay Outputs: 3 relay outputs
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Weight: 430 g
- Condition: New / Refurbished (specify on inquiry)
Note: All specifications are based on Danfoss official documentation. Do not rely on third-party sources for safety-critical parameters.
Key Features & Benefits
- OEM-Grade Precision: Manufactured to Danfoss factory standards — drop-in replacement with zero reconfiguration of drive hardware.
- Full I/O Flexibility: Supports extensive digital and analog I/O for complex process control and feedback loops.
- Multi-Protocol Communication: Native RS-485 with FC protocol and Modbus RTU support enables seamless integration into existing SCADA and PLC networks.
- Rapid Restoration: Board-level replacement restores full drive functionality in minutes, minimizing mean time to repair (MTTR).
- Firmware Compatibility: DT3 revision ensures compatibility with the latest FC 302 firmware releases and optional fieldbus modules.
- Long Service Life: Designed for continuous industrial duty cycles in harsh environments.
Industry & Equipment Applications
- Water & Wastewater: Pump station drives, aeration blowers, and filtration systems relying on FC 302 for precise flow control.
- HVAC & Building Automation: Air handling units, chiller compressors, and cooling tower fans.
- Food & Beverage Processing: Conveyor drives, mixers, and bottling line motors requiring hygienic, reliable speed control.
- Oil & Gas: Submersible pump drives and wellhead automation systems.
- Marine & Offshore: Deck machinery, thruster drives, and HVAC systems on vessels certified for FC 302 drives.
- General Manufacturing: CNC machine tool spindles, extruders, and packaging machinery.
System Integration & Compatible Parts
The 175H4669 DT3 Control Board is designed to work within the broader Danfoss VLT® FC 302 ecosystem. Compatible and frequently co-ordered components include:
- Danfoss VLT® AutomationDrive FC 302 Power Cards
- Danfoss FC 302 Gate Drive Boards
- Danfoss MCA 101 / MCA 120 / MCA 121 Fieldbus Option Cards (PROFIBUS, DeviceNet, EtherNet/IP)
- Danfoss VLT® LCP (Local Control Panel) — LCP 102 / LCP 11
- Danfoss FC 302 Fan and Capacitor Assemblies
Contact our technical team to verify compatibility with your specific drive frame size and software version before ordering.
Our Quality Assurance Process
At Konmask.com, every control board undergoes a rigorous multi-stage inspection before shipment:
- Visual Inspection: PCB surface, solder joints, connectors, and component integrity checked under magnification.
- Functional Verification: Board-level power-on test and I/O signal verification where applicable.
- Authenticity Check: Part number, revision marking, and manufacturer labeling verified against Danfoss documentation.
- ESD-Safe Packaging: All boards shipped in anti-static bags with foam cushioning inside double-wall cartons.
- Documentation: Inspection report and packing list included with every shipment.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page.
- Provide your drive’s nameplate data (model, serial number, software version) for compatibility confirmation.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm order and receive proforma invoice for payment processing.
- Shipment dispatched with tracking number and commercial invoice.
We support T/T bank transfer, PayPal, and other B2B payment methods. Minimum order quantity: 1 piece.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Spares: We focus exclusively on PLC, DCS, VFD, and servo components — not a generalist marketplace.
- ✅ Global Sourcing Network: Direct relationships with authorized distributors and OEM surplus channels across Asia, Europe, and North America.
- ✅ Fast Quotation: RFQ responses within 24 hours for standard parts; expedited sourcing for critical downtime situations.
- ✅ Secure Export Packaging: ESD-safe, shock-resistant packaging engineered for international air and sea freight.
- ✅ Technical Support: Our engineers can assist with installation guidance, compatibility verification, and drive commissioning advice.
- ✅ Transparent Documentation: Full traceability — inspection reports, packing lists, and certificates of conformance available on request.
Frequently Asked Questions
- Q: Is the 175H4669 DT3 a direct replacement for earlier DT revisions?
- A: The DT3 revision is the current production revision for this control board. In most cases it is backward compatible with earlier revisions, but we recommend confirming your drive’s software version with our technical team before ordering.
- Q: Do you supply new or refurbished boards?
- A: We supply both new (OEM) and professionally refurbished units. Please specify your preference in your RFQ. All refurbished units are tested and carry a warranty.
- Q: What is the lead time for the Danfoss 175H4669 DT3?
- A: Standard lead time is 3–7 business days for in-stock units. For sourced units, lead time is typically 7–15 business days. Emergency orders can be expedited — contact us directly.
- Q: Can you ship to my country?
- A: Yes. We ship worldwide via DHL, FedEx, UPS, and sea freight. Export documentation including commercial invoice and packing list is provided for all international shipments.
- Q: How do I install the control board?
- A: Installation should be performed by a qualified drive technician following Danfoss FC 302 service documentation. Our team can provide guidance — contact [email protected] for assistance.
