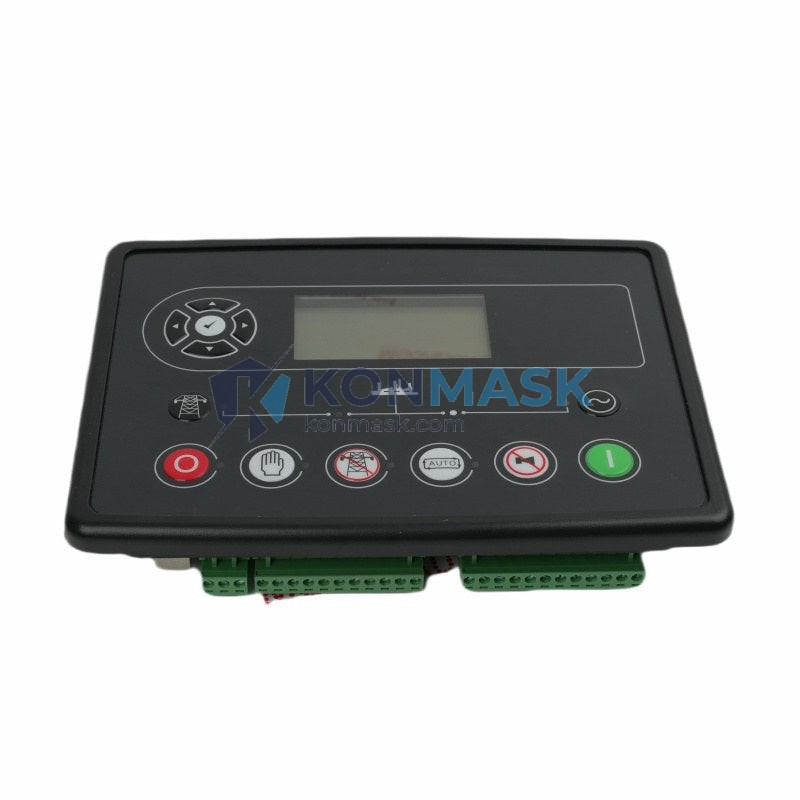

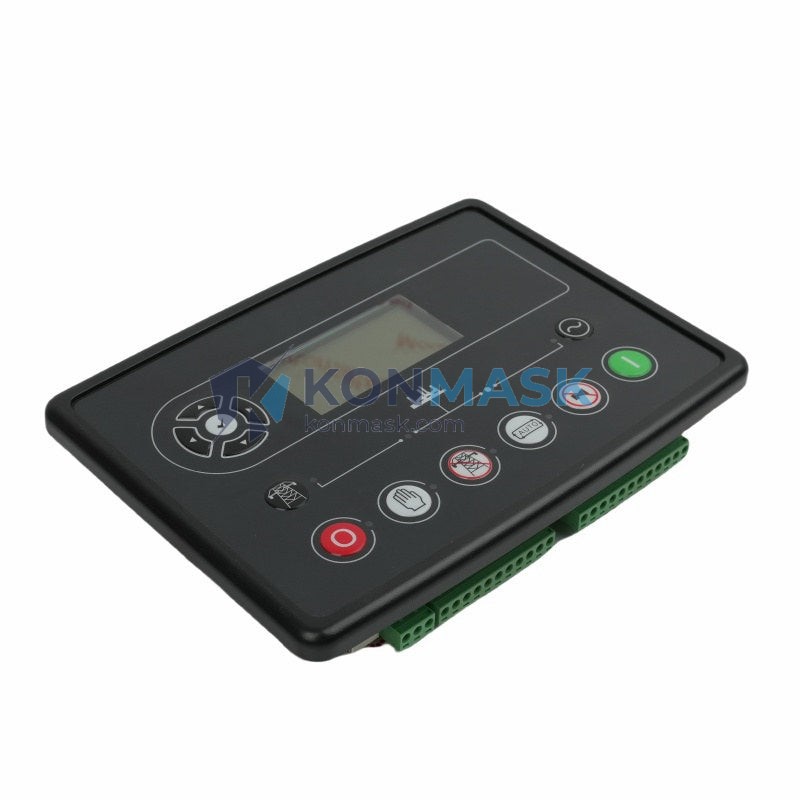

Deep Sea DSE6120 MKIII Auto Mains (Utility) Failure Control Module | Replacement, Equivalent & Selection Guide
The Deep Sea Electronics DSE6120 MKIII is a professional-grade Auto Mains (Utility) Failure (AMF) control module designed for automatic generator start/stop applications. As an authorized sourcing partner, Konmask.com supplies genuine DSE6120 MKIII units along with verified compatible equivalents to support your system integration and replacement needs.

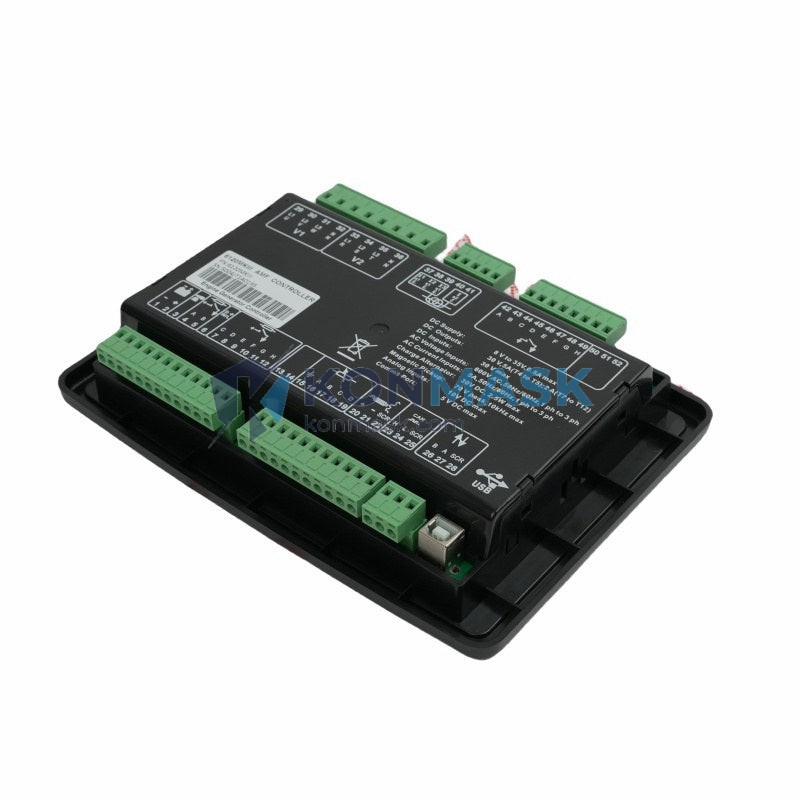

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSE6120 MKIII |
| Manufacturer | Deep Sea Electronics (DSE) |
| Series | DSE6000 Series |
| Function | Auto Mains (Utility) Failure AMF Control |
| Supply Voltage | 8–35 V DC |
| Current Consumption | <35 mA @ 12 V (quiescent) |
| Operating Temperature | -30°C to +70°C |
| Display | LCD with LED indicators |
| Communication | RS-232 / USB (via DSE Configuration Suite) |
| Protections | Over/under voltage, over/under frequency, overcurrent, loss of mains |
| Dimensions | 186 × 122 × 47 mm (panel cutout: 180 × 116 mm) |
| Weight | 450 g |
| Ingress Protection | IP65 (front panel) |
| Certifications | CE, RoHS |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents to the DSE6120 MKIII. Always verify electrical and communication compatibility before substitution:
- DSE6110 MKII — Previous generation DSE AMF module; same form factor, fewer I/O points
- DSE6020 — Entry-level AMF module; suitable for simpler single-generator applications
- DSE7310 MKII — Upgrade path; adds SCADA/Modbus RTU support for networked installations
- ComAp InteliLite 4 AMF 20 — Third-party equivalent; compatible wiring but requires re-parameterization
- Deif GPC-3 Series — Industrial-grade alternative; suitable for marine and heavy-duty applications
- Smartgen HGM6120 — Cost-effective OEM equivalent widely used in Chinese-manufactured gensets
Note: Konmask.com recommends using genuine DSE6120 MKIII for warranty-critical and safety-critical installations.
Why Choose the Original DSE6120 MKIII
- ✅ Proven reliability — Deployed in thousands of standby power installations globally
- ✅ DSE Configuration Suite compatible — Full parameter access via PC software
- ✅ Comprehensive protections — Mains sensing, generator monitoring, and load transfer logic built-in
- ✅ Plug-and-play replacement — Direct drop-in for DSE6110 MKII with same panel cutout
- ✅ Manufacturer support — Backed by Deep Sea Electronics’ global technical support network
Typical Applications
- Standby diesel generator automatic start/stop systems
- Data center and hospital backup power AMF panels
- Industrial facility utility failure protection
- Telecom base station power management
- Commercial building emergency power systems
- Marine auxiliary generator control (with appropriate enclosure)
System Compatibility
The DSE6120 MKIII integrates with the following system architectures:
- Generator sets: Compatible with all major genset brands including Cummins, Perkins, Volvo Penta, Stamford, and Leroy-Somer
- ATS panels: Works with standard 3-phase and single-phase automatic transfer switch configurations
- SCADA/BMS: RS-232 output supports integration with building management systems via DSE gateway modules
- Remote monitoring: Compatible with DSE855 MKII and DSE860 MKII remote annunciator panels
Selection Guide
Use this guide to confirm the DSE6120 MKIII is the right module for your application:
- Single generator, AMF only? → DSE6120 MKIII is the optimal choice
- Need load sharing or parallel operation? → Consider DSE8610 MKII or DSE8620 MKII
- Need Modbus RTU / Ethernet? → Upgrade to DSE7310 MKII or DSE7320 MKII
- Budget-constrained, non-critical application? → DSE6020 or Smartgen HGM6120 may suffice
- Replacing DSE6110 MKII? → DSE6120 MKIII is the direct MKIII upgrade; same cutout dimensions
Quality Assurance & Sourcing
All DSE6120 MKIII units supplied by Konmask.com are:
- Sourced from authorized distributors and verified supply chains
- Inspected for authenticity and packaging integrity prior to dispatch
- Accompanied by original manufacturer documentation where available
- Covered by Konmask’s standard quality guarantee — contact us for details
How to Order
- Confirm your application voltage (8–35 V DC) and panel cutout dimensions (180 × 116 mm)
- Add the DSE6120 MKIII to your cart or contact us for bulk/project pricing
- Provide your project details for pre-sales technical consultation (free of charge)
- Orders are dispatched within 1–3 business days; expedited shipping available
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Is the DSE6120 MKIII a direct replacement for the DSE6110 MKII?
A: Yes. The MKIII shares the same panel cutout (180 × 116 mm) and connector layout. Re-parameterization via DSE Configuration Suite is recommended after swap.
Q: Can the Smartgen HGM6120 replace the DSE6120 MKIII?
A: Functionally similar for basic AMF applications, but the HGM6120 lacks DSE’s configuration software ecosystem and some advanced protection features. Suitable for non-critical OEM genset panels.
Q: Does the DSE6120 MKIII support Modbus?
A: No. The DSE6120 MKIII uses RS-232 for PC configuration only. For Modbus RTU support, select the DSE7310 MKII or higher.
Q: What is the difference between DSE6120 MKII and MKIII?
A: The MKIII adds enhanced LCD display, improved EMC performance, and expanded configurable I/O compared to the MKII.
Q: Can I use the DSE6120 MKIII for a three-phase mains supply?
A: Yes. The module supports single-phase and three-phase mains sensing configurations.
