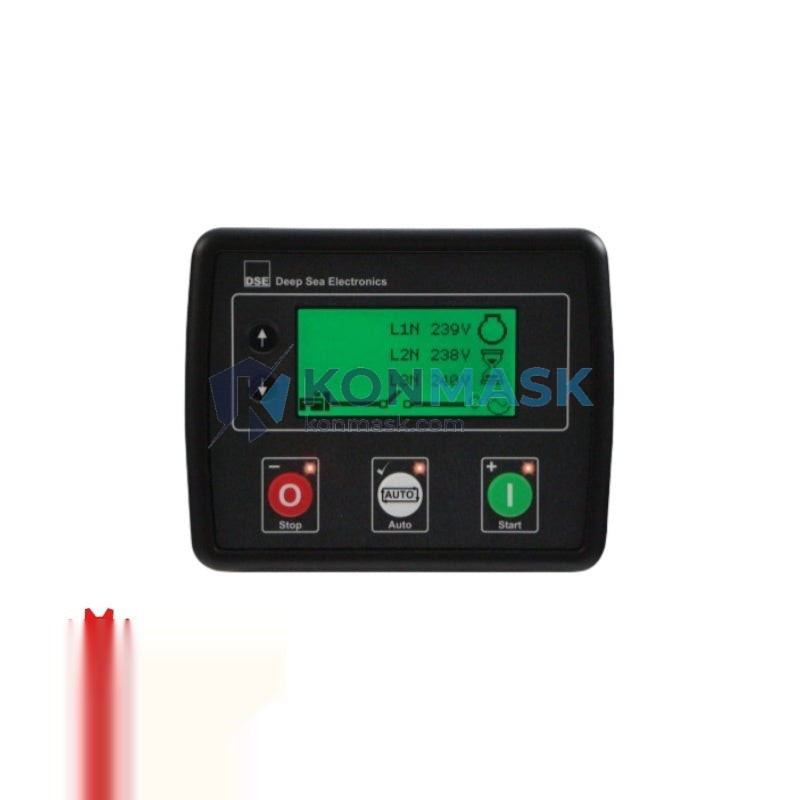

Deep Sea Electronics DSE4620 MKII – Automatic Transfer Switch Control Module | DSE 4000 Series
Engineering Background
The DSE4620 MKII is a second-generation ATS (Automatic Transfer Switch) control module engineered by Deep Sea Electronics (DSE), a globally recognized leader in generator and power management control systems headquartered in the United Kingdom. The MKII revision incorporates refined firmware logic, enhanced EMC compliance, and improved terminal robustness over the original DSE4620, making it the preferred specification for critical power infrastructure projects worldwide.
Product Positioning
Designed for procurement engineers and system integrators who require a reliable, field-proven ATS controller for mains-to-generator changeover applications. The DSE4620 MKII is deployed across data centers, hospitals, industrial facilities, and commercial buildings where uninterrupted power supply is non-negotiable. Konmask.com supplies this module as a verified OEM component with full traceability documentation available upon request.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | DSE4620 MKII |
| Manufacturer | Deep Sea Electronics (DSE), UK |
| Product Series | DSE 4000 Series ATS Controllers |
| Function | Automatic Transfer Switch (ATS) Control Module |
| Supply Voltage | 8–35 V DC |
| Quiescent Current | < 35 mA @ 12 V DC |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 93% RH non-condensing |
| Display | 128 × 64 pixel LCD with LED backlight |
| Mains Sensing | 3-phase + neutral, configurable voltage/frequency thresholds |
| Generator Sensing | 3-phase + neutral, configurable voltage/frequency thresholds |
| Digital Inputs | 8 configurable digital inputs |
| Relay Outputs | 4 configurable relay outputs |
| Communication | RS-232 / RS-485 (Modbus RTU) |
| PC Configuration | DSE Configuration Suite software (free download) |
| Enclosure Rating | IP65 front panel (panel-mount installation) |
| Dimensions | 240 mm × 180 mm × 47 mm (W × H × D) |
| Weight | Approx. 800 g |
| Certifications | CE, RoHS compliant |
| Country of Origin | United Kingdom |
Proven Application Environments
- Data Centers & Server Rooms — Seamless mains-to-generator transfer to protect mission-critical IT loads
- Hospitals & Healthcare Facilities — Compliant with life-safety power requirements; supports configurable transfer delays
- Industrial Manufacturing Plants — Robust operation in high-EMI environments; wide temperature range
- Commercial Buildings & Retail — Cost-effective ATS solution for medium-scale standby power systems
- Telecom Base Stations — RS-485 Modbus integration with SCADA and remote monitoring platforms
- Marine & Offshore Installations — Wide DC supply range accommodates 12 V and 24 V battery systems
Engineering Advantages
- MKII Revision — Enhanced firmware with improved transfer logic, reduced nuisance tripping, and refined voltage/frequency window settings
- Configurable Thresholds — All mains and generator voltage, frequency, and timing parameters are fully adjustable via DSE Configuration Suite
- Dual-Source Monitoring — Simultaneous real-time monitoring of mains and generator supply quality with independent alarm thresholds
- Modbus RTU Communication — Native RS-485 Modbus RTU enables integration with BMS, SCADA, and PLC systems without additional gateways
- IP65 Front Panel — Suitable for panel-mount installation in industrial enclosures with dust and water ingress protection
- Free Configuration Software — DSE Configuration Suite is freely available, reducing commissioning cost and enabling field parameter adjustment
System Architecture & Signal Flow
The DSE4620 MKII operates as the intelligence layer in a two-source ATS system. It continuously monitors both the mains (utility) supply and the standby generator output across all three phases. Upon detection of a mains failure event (voltage or frequency outside configured thresholds), the module initiates a configurable start sequence for the generator, monitors generator readiness, then commands the transfer contactor to switch the load from mains to generator. Upon mains restoration and stability confirmation, the module executes a retransfer sequence and issues a generator cool-down and stop command. All timing parameters — including start delay, transfer delay, return delay, and cool-down period — are independently configurable. Digital inputs accept external signals such as remote start, load inhibit, and auxiliary fault. Relay outputs drive contactor coils, audible alarms, and remote annunciators. RS-485 Modbus RTU provides full register-level access for SCADA integration.
Sourcing & Quality Verification
- OEM Authenticity — All DSE4620 MKII units supplied by Konmask.com are sourced through verified distribution channels with full OEM traceability
- Inspection Protocol — Each unit undergoes incoming inspection including label verification, firmware version check, and packaging integrity assessment
- Documentation Available — OEM datasheet, installation manual, and configuration guide available upon request; CE declaration of conformity provided with shipment
- Warranty — 12-month warranty against manufacturing defects; DOA replacement policy within 7 days of receipt
- Counterfeit Risk Mitigation — Konmask.com does not source from unverified secondary markets; all units include original DSE holographic labels and serial numbers
Procurement Process
- Inquiry — Submit your BOM or part number requirement to support@konmask.com or via the product page inquiry form
- Quotation — Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Check & Dispatch — Units inspected, packed, and dispatched with tracking number; export documentation prepared for international shipments
- After-Sales Support — Technical support available via email and phone; DSE Configuration Suite setup assistance provided free of charge
Technical FAQ
Q: Is the DSE4620 MKII backward compatible with the original DSE4620?
A: The MKII shares the same form factor and wiring terminals as the original DSE4620, making it a direct drop-in replacement in most panel installations. Firmware parameters may require reconfiguration via DSE Configuration Suite after replacement.
Q: What is the maximum mains/generator voltage the DSE4620 MKII can monitor?
A: The module supports sensing up to 415 V AC line-to-line (3-phase systems), covering the majority of global LV distribution standards including 380 V, 400 V, and 415 V systems.
Q: Can the DSE4620 MKII be integrated with a Modbus SCADA system?
A: Yes. The RS-485 port supports Modbus RTU protocol. The full Modbus register map is available in the DSE4620 MKII operator manual, downloadable from the DSE website or available from Konmask.com upon request.
Q: What is the typical lead time for the DSE4620 MKII?
A: Standard lead time is 3–7 business days for in-stock units. For bulk orders or urgent requirements, contact support@konmask.com for expedited options.
Q: Does Konmask.com provide a certificate of conformity?
A: Yes. CE declaration of conformity and RoHS compliance documentation are provided with each shipment upon request.
