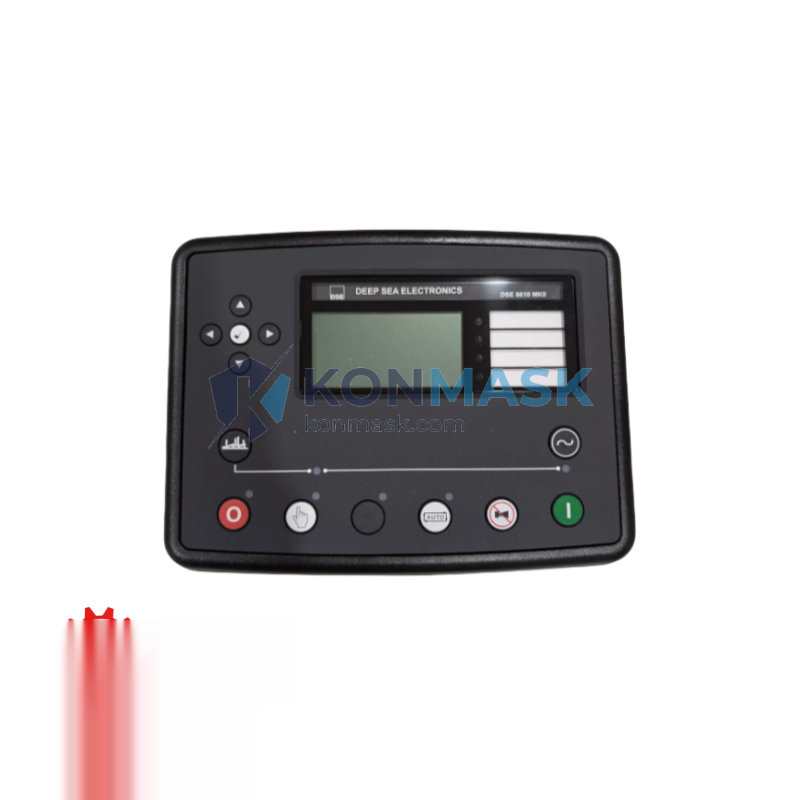

Generator Synchronising & Load Sharing Solution – Deep Sea Electronics DSE8610MKII | DSE8600 Series
Where This Product Is Used
The DSE8610MKII is engineered for mission-critical power applications where multiple generator sets must operate in parallel with precise load sharing and automatic synchronisation. Typical deployment environments include:
- Data Centres & Server Farms – Maintains uninterrupted power supply across parallel genset banks during utility failure or planned maintenance.
- Hospitals & Healthcare Facilities – Ensures seamless generator paralleling to meet IEC 60364-7-710 essential-service requirements.
- Industrial Manufacturing Plants – Coordinates multiple standby generators to share load proportionally, preventing overload on any single unit.
- Oil & Gas Platforms / Offshore Installations – Provides robust synchronising control in harsh environments with high EMI exposure.
- Telecoms Base Stations & NOCs – Supports N+1 redundancy configurations with automatic load transfer and soft load ramping.
- Large Commercial Buildings & Campuses – Manages distributed generation assets from a single control architecture.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | DSE8610MKII |
| Series | DSE8600 |
| Manufacturer | Deep Sea Electronics (DSE), UK |
| Function | Synchronising & Load Sharing Auto Start Control |
| Generator Sets Supported | Up to 32 sets in parallel (via DSENet®) |
| Supply Voltage | 8–35 V DC |
| Operating Temperature | -30°C to +70°C |
| Display | 128 × 64 pixel LCD with LED backlight |
| Communication Ports | RS-232, RS-485, USB, DSENet®, Ethernet (optional) |
| Protections | Over/under voltage, over/under frequency, reverse power, loss of mains |
| Enclosure Rating | IP65 (front panel) |
| Dimensions | 240 × 180 × 47 mm (panel cut-out: 220 × 160 mm) |
| Weight | 880 g |
| Certifications | CE, RoHS |
Why Engineers Specify This Model
- True Digital Synchronising – Closed-loop voltage, frequency, and phase-angle matching before breaker closure eliminates hard paralleling transients.
- Proportional Load Sharing – Active and reactive load sharing algorithms distribute kW and kVAr equally across all paralleled sets, extending engine life.
- DSENet® Bus Architecture – Peer-to-peer communication between modules removes single-point-of-failure risk inherent in master/slave topologies.
- MKII Generation Improvements – Enhanced EMC immunity, wider supply voltage range, and improved LCD contrast vs. original DSE8610.
- DSE Configuration Suite Compatible – Full parameter customisation via free PC software; no proprietary programmer required.
- Comprehensive Event Logging – 250-event log with time-stamp for post-fault analysis and compliance reporting.
Complete System Bill of Materials
For a fully functional parallel generator control system using the DSE8610MKII, engineers typically specify:
- DSE8610MKII – Synchronising & Load Sharing Auto Start Module (this item)
- DSE2130 / DSE2157 – Current Transformer (CT) for load measurement per genset
- DSE124 – PC Interface & Configuration Lead (USB)
- DSE9480 / DSE9490 – Battery Charger for control supply
- DSENet® Termination Resistors (120 Ω, one per bus end)
- Suitable generator circuit breakers with shunt-trip coils
- Mains/bus voltage sensing PTs (if HV application)
Compliance & Industry Standards
- CE Marking – Complies with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
- RoHS – Restriction of Hazardous Substances Directive 2011/65/EU compliant.
- ISO 8528 – Designed for use in generating sets per ISO 8528-4 (control systems).
- IEC 60068 – Environmental testing (temperature, humidity, vibration) per IEC 60068-2 series.
- NFPA 110 – Suitable for emergency and standby power system applications per NFPA 110 Level 1 & 2.
Quality Assurance & Sourcing
Konmask.com sources the DSE8610MKII exclusively through authorised Deep Sea Electronics distribution channels. Every unit is:
- Supplied with original DSE packaging, holographic authenticity label, and factory test certificate.
- Inspected against DSE published firmware revision and hardware revision markings before dispatch.
- Shipped with full manufacturer warranty (24 months from date of manufacture per DSE standard terms).
- Traceable via DSE serial number to production batch for field recall or firmware update notifications.
How to Source This Part
Ready to procure the DSE8610MKII? Here’s how to work with us:
- Single Unit / Small Quantity – Add to cart and check out directly. We ship worldwide via DHL Express, FedEx, and UPS.
- Project / OEM Quantity (5+ units) – Contact our technical sales team for volume pricing, lead-time confirmation, and project registration.
- Urgent / Emergency Orders – Call or WhatsApp +0086 19859288691 for same-day quotation and priority dispatch.
- Technical Pre-Sales Support – Our engineers can review your single-line diagram and confirm module compatibility before purchase.
📧 support@konmask.com | 📞 +0086 19859288691 | 🌐 Konmask.com
Application-Specific FAQ
- Q: Can the DSE8610MKII synchronise with a live mains/utility bus?
- A: Yes. The module supports both dead-bus closing and live-bus synchronising. Mains paralleling requires correct configuration of the mains decoupling relay logic within DSE Configuration Suite.
- Q: How many generators can be paralleled on a single DSENet® bus?
- A: Up to 32 DSE8610MKII modules can share a single DSENet® bus, enabling large-scale parallel plant configurations without additional master controllers.
- Q: Is the DSE8610MKII backward-compatible with the original DSE8610?
- A: The MKII is a direct panel-cut replacement for the DSE8610. Configuration files created in DSE Configuration Suite are compatible, though a firmware re-flash is recommended after hardware swap.
- Q: What engine types and governors are supported?
- A: The module outputs a ±5 V or 0–5 V analogue governor control signal compatible with Woodward, Heinzmann, ComAp, and most OEM electronic governors. CAN J1939 engine interface is also supported.
- Q: Does Konmask.com provide commissioning support?
- A: We offer remote commissioning guidance via video call and can connect customers with DSE-certified service partners in most regions. Contact us before your site commissioning date.
