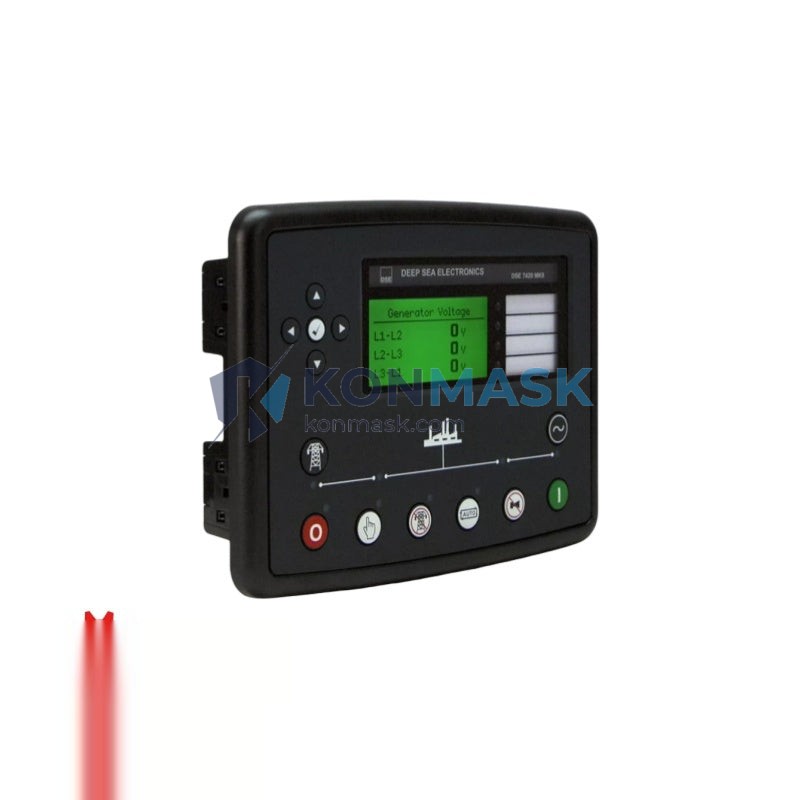

Deep Sea Electronics DSE7420 MKII Auto Mains Failure Control Module – DSE7420 Series
When mains power fails unexpectedly on an industrial site, every second without a functioning generator control system can mean halted production lines, compromised safety systems, and costly downtime. Without a reliable Auto Mains Failure (AMF) controller, a generator set cannot automatically detect the utility failure, start the engine, and transfer the load — leaving critical infrastructure exposed. The Deep Sea Electronics DSE7420 MKII eliminates this vulnerability by providing fully automatic, intelligent mains monitoring and generator control in a single, field-proven module.
Within the DSE7420 Series, the MKII revision represents Deep Sea Electronics’ refined second-generation AMF controller — incorporating enhanced measurement accuracy, expanded communication options, and improved EMC compliance over its predecessor. DSE is a globally recognized leader in generator control technology, with its modules deployed across power plants, data centers, hospitals, and industrial facilities in over 150 countries. The DSE7420 MKII is a benchmark product in the mid-range AMF controller segment, trusted by OEM generator manufacturers and end-users alike.
Technical Specifications
- Model: DSE7420 MKII
- Manufacturer: Deep Sea Electronics (DSE)
- Series: DSE7420 Series
- Function: Auto Mains (Utility) Failure Control Module
- Supply Voltage: 8–35 Vdc
- Operating Temperature: -30°C to +70°C
- Display: Backlit LCD with multi-language support
- Communication Ports: RS232, RS485, USB (PC configuration)
- Remote Monitoring: DSENet® compatible
- Protections: Over/under voltage, over/under frequency, over-current, high coolant temperature, low oil pressure, over-speed
- Configurable Inputs/Outputs: Multiple configurable digital inputs and relay outputs
- Enclosure Rating: IP65 front panel
- Weight: 880 g
- Configuration Software: DSE Configuration Suite PC Software
Note: All specifications are based on publicly available DSE documentation. Contact us to verify the latest datasheet for your application.
Key Features & Benefits
- Fully Automatic AMF Operation: Continuously monitors mains supply; automatically starts the generator on mains failure and transfers load without operator intervention.
- Comprehensive Engine Protection: Built-in protections for high coolant temperature, low oil pressure, over-speed, and more — safeguarding your generator investment.
- Flexible Communication: RS232, RS485, and USB interfaces enable seamless integration with SCADA systems, building management systems (BMS), and remote monitoring platforms.
- DSENet® Networking: Supports DSE’s proprietary networking protocol for multi-module and paralleling applications.
- IP65 Front Panel: Dust-tight and water-resistant front panel suitable for harsh industrial environments.
- Wide Operating Temperature Range: Reliable performance from -30°C to +70°C, covering extreme climate conditions.
- Intuitive LCD Interface: Clear backlit display with multi-language support simplifies commissioning and fault diagnosis.
- PC Configurable: All parameters configurable via DSE Configuration Suite software for rapid site-specific setup.
Industry & Equipment Applications
- Data Centers & IT Infrastructure: Ensures uninterrupted power for servers and network equipment during utility outages.
- Hospitals & Healthcare Facilities: Critical backup power control for life-safety systems and medical equipment.
- Industrial Manufacturing Plants: Protects production lines from costly unplanned shutdowns caused by mains failure.
- Telecommunications: Maintains power continuity for base stations and communication hubs.
- Commercial Buildings & Retail: Automatic standby power management for HVAC, lighting, and security systems.
- Oil & Gas / Petrochemical: Reliable AMF control in hazardous and remote power generation applications.
- Water Treatment & Utilities: Ensures pumping stations and treatment plants remain operational during grid failures.
System Integration & Compatible Parts
The DSE7420 MKII is designed to integrate seamlessly within DSE’s broader control ecosystem. Compatible and commonly paired components include:
- DSE8610 MKII – Load Share & Import/Export Controller for paralleling applications
- DSE2130 – Remote Annunciator Panel for alarm monitoring
- DSE125 – PC Interface & Data Logger Module
- DSE9480 – Battery Charger for standby generator batteries
- DSENet® Cables & Accessories – For multi-module networking
Contact our technical team at support@konmask.com to confirm compatibility with your specific generator set and switchgear configuration.
Our Quality Assurance Process
At Konmask.com, every DSE7420 MKII unit we supply undergoes a rigorous sourcing and verification process:
- Authorized Supply Chain: Units are sourced from verified distributors and authorized channels to ensure authenticity.
- Visual & Label Inspection: Each module is inspected for correct labeling, firmware version markings, and physical integrity before dispatch.
- Documentation Provided: Original manufacturer documentation, CE declaration, and test records are available upon request.
- Traceability: Full batch and serial number traceability maintained for every shipment.
- Warranty Support: We provide after-sales technical support and assist with warranty claims where applicable.
How to Order
- Submit an Inquiry: Contact us via email at support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive a Quotation: Our team will provide a competitive quote with lead time and shipping options within 24 hours.
- Order Confirmation: Confirm your purchase order; we accept T/T bank transfer, PayPal, and other B2B payment methods.
- Shipment & Tracking: We ship via DHL, FedEx, UPS, or sea freight. Full tracking information provided upon dispatch.
- After-Sales Support: Our technical team remains available post-delivery for installation guidance and troubleshooting.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLC modules, DCS parts, HMI panels, drives, and generator controllers.
- Global B2B Supply: Serving engineering firms, system integrators, OEMs, and maintenance teams across 50+ countries.
- Fast Quotation Response: Dedicated sales engineers respond to inquiries within 24 hours.
- Competitive Pricing: Direct sourcing relationships enable us to offer market-competitive pricing on genuine parts.
- Reliable Logistics: Experienced in international export documentation, customs clearance support, and multi-modal shipping.
- Technical Expertise: Our team includes qualified automation engineers who can advise on product selection and system compatibility.
Frequently Asked Questions
- Q: What is the difference between the DSE7420 and DSE7420 MKII?
- A: The MKII (Mark II) is the second-generation revision of the DSE7420, featuring improved measurement accuracy, enhanced EMC compliance, and updated communication capabilities compared to the original DSE7420.
- Q: Can the DSE7420 MKII be used for paralleling multiple generators?
- A: The DSE7420 MKII is primarily an AMF controller for single generator-to-mains applications. For paralleling multiple generator sets, DSE offers dedicated controllers such as the DSE8610 MKII. Contact us to discuss your specific topology.
- Q: What software is required to configure the DSE7420 MKII?
- A: Configuration is performed using the free DSE Configuration Suite PC Software, available from Deep Sea Electronics. A USB connection to the module is required for direct PC configuration.
- Q: Do you supply the DSE7420 MKII with a warranty?
- A: Yes. All units are supplied with manufacturer warranty support. Please contact us for specific warranty terms applicable to your order.
- Q: What is the minimum order quantity (MOQ)?
- A: We supply from single units upward. There is no minimum order quantity for the DSE7420 MKII. Contact us for volume pricing on larger orders.
- Q: How long does shipping take?
- A: Express courier (DHL/FedEx) typically delivers within 3–7 business days internationally. Sea freight options are available for bulk orders. Lead times depend on stock availability — please inquire for current stock status.
