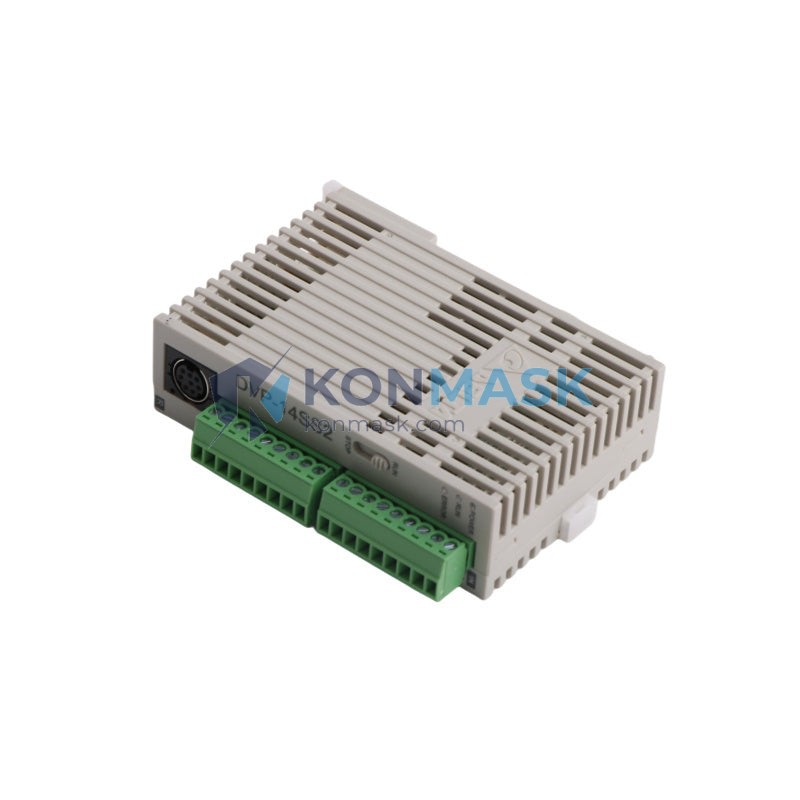

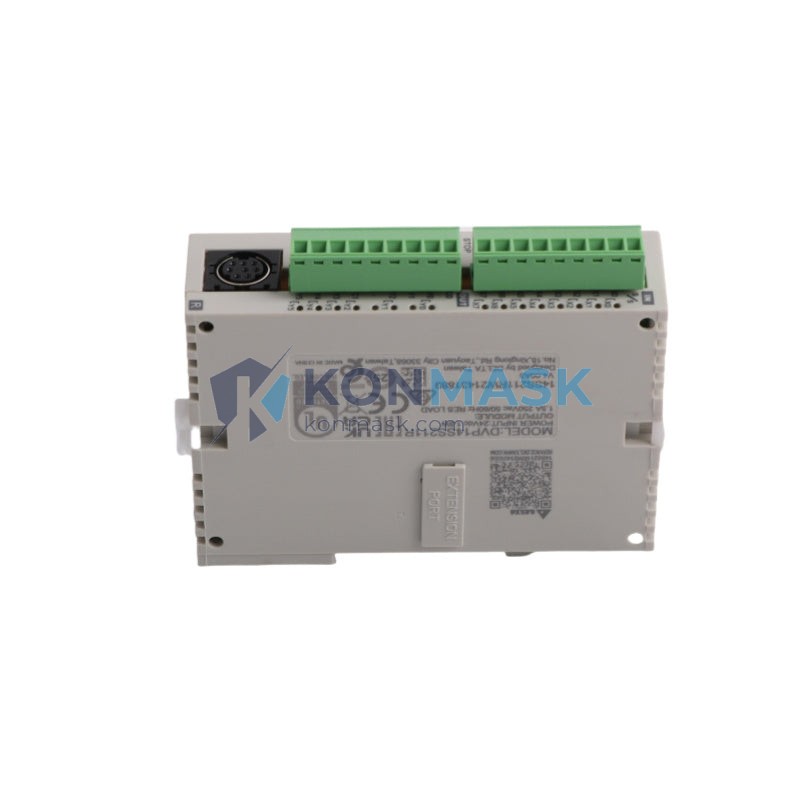

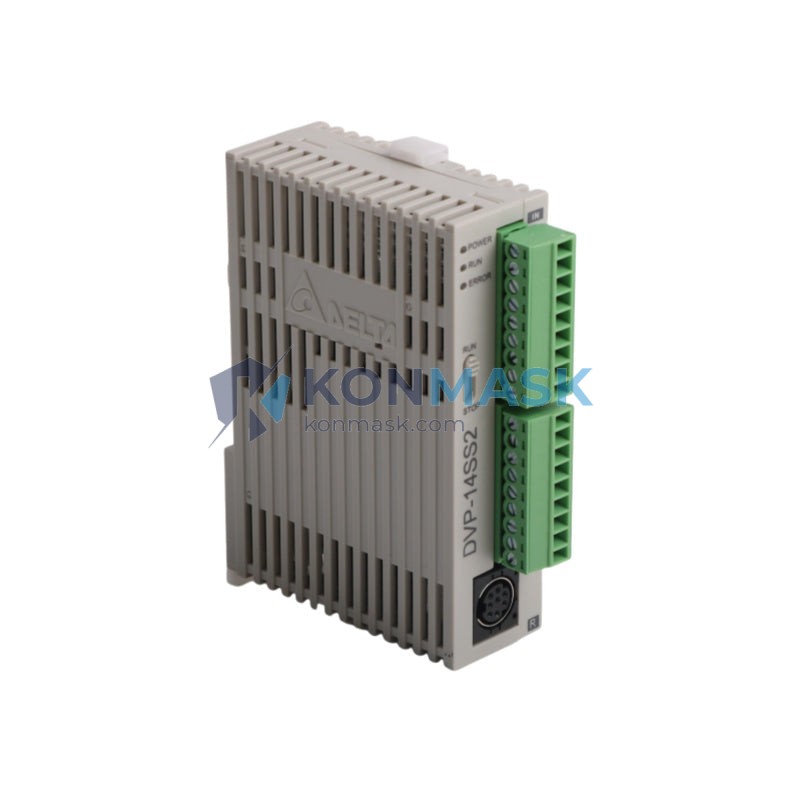

DELTA DVP14SS211R Slim PLC 14-Point I/O Controller – DVP-SS2 Series
Imagine a high-speed packaging line grinding to a halt because the PLC at its heart can no longer keep pace with the machine’s I/O demands — or worse, a compact CNC router losing sequence control mid-cycle due to an undersized controller. In space-constrained industrial panels where every millimeter counts, engineers cannot afford a bulky solution. The DELTA DVP14SS211R was engineered precisely for these moments: a slim, high-performance programmable logic controller that delivers reliable 14-point I/O control without compromising on panel real estate or processing speed.
Within Delta Electronics’ renowned DVP-SS2 Series, the DVP14SS211R occupies a strategic position as the entry-level slim PLC that punches well above its weight class. The SS2 generation succeeded the original SS series with enhanced instruction sets, faster scan times, and improved communication capabilities — making it one of the most widely deployed compact PLCs across Asia-Pacific and emerging markets in Europe and the Americas. Its combination of 8 digital inputs, 6 relay digital outputs, and onboard RS-485 communication has made it a go-to solution for OEMs building small-to-medium automation machinery.
Technical Specifications
- Model: DVP14SS211R
- Brand: DELTA (Delta Electronics)
- Series: DVP-SS2 (Slim PLC)
- I/O Points: 14 (8 Digital Inputs + 6 Digital Outputs)
- Output Type: Relay (R)
- Power Supply: 24VDC
- Communication Ports: RS-232 (COM1) + RS-485 (COM2)
- Program Memory: 8K Steps
- Data Register: D0–D4999 (5000 registers)
- High-Speed Counters: 4 channels (up to 10 kHz)
- Pulse Output: Not supported (relay output model)
- Real-Time Clock (RTC): Built-in
- Expansion Modules: Supports DVP-S series expansion I/O
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
- Protection Rating: IP20
- Certifications: CE, UL, cUL
- Programming Software: WPLSoft / ISPSoft
Key Features & Benefits
- Ultra-Slim Form Factor: Minimizes panel space, enabling dense control cabinet designs without sacrificing functionality.
- Relay Output Versatility: Relay outputs capable of switching both AC and DC loads — ideal for solenoids, contactors, and indicator lamps across mixed-voltage systems.
- Dual Communication Ports: Onboard RS-232 and RS-485 allow simultaneous HMI connection and field device networking (Modbus RTU).
- Rich Instruction Set: Supports 200+ instructions including PID control, floating-point math, and interrupt routines.
- Built-in RTC: Enables time-based scheduling, event logging, and shift management without external hardware.
- Expandable Architecture: Connect DVP-S series analog and digital expansion modules to scale I/O as your application grows.
- WPLSoft / ISPSoft Compatible: Free programming software with IEC 61131-3 ladder diagram support.
- Proven Reliability: Delta’s DVP series has accumulated millions of field hours across global installations.
Industry & Equipment Applications
- Packaging Machinery: Conveyor sequencing, label dispensing, and filling machine control
- Textile & Printing Equipment: Tension control, register mark detection, and step-motor coordination
- Food & Beverage Processing: Temperature-based relay switching, batch control, and recipe management
- HVAC & Building Automation: Fan/pump scheduling, alarm management, and BMS integration via Modbus
- Material Handling: Conveyor interlocking, sorting gate control, and sensor-based routing
- Machine Tool Auxiliaries: Coolant control, tool changer sequencing, and safety interlock circuits
- Water Treatment: Pump station control, level-based switching, and dosing system automation
System Integration & Compatible Parts
The DVP14SS211R integrates seamlessly within the Delta DVP ecosystem and broader industrial automation architectures:
- Expansion I/O: DVP08SM11N (8DI), DVP08SN11R (8DO Relay), DVP04AD-S (4-ch Analog Input), DVP02DA-S (2-ch Analog Output)
- HMI Panels: Delta DOP-B series, DOP-100 series (RS-232 direct connection)
- Communication Adapters: DVP-FPMC (PROFIBUS-DP), DVP-DNET (DeviceNet)
- Programming Cables: UC-PRG015-01A (USB to RS-232)
- Power Supplies: Delta DRP series 24VDC DIN-rail power supplies
- Compatible Drives: Delta VFD-M, VFD-E, VFD-EL series via RS-485 Modbus RTU
Our Quality Assurance Process
- Source Verification: Units sourced exclusively from authorized Delta distributors with traceable supply chains.
- Visual & Physical Inspection: Label authenticity, housing integrity, connector condition, and firmware version markings verified.
- Functional Pre-Check: Units powered up and communication ports verified prior to packaging where applicable.
- Anti-Counterfeit Screening: Serial numbers cross-referenced against Delta’s verification database.
- Secure Packaging: ESD-safe packaging with moisture barrier bags and shock-absorbing foam inserts.
How to Order
- Submit an Inquiry: Contact us via the form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our technical sales team responds within 1 business day with pricing, lead time, and availability.
- Order Confirmation: Upon agreement, we issue a proforma invoice. Payment terms discussed based on order volume.
- Shipment & Tracking: Orders dispatched via DHL, FedEx, or UPS Express with full tracking and customs documentation.
- After-Sales Support: Engineering team available post-delivery for integration guidance and technical questions.
Why Choose Konmask.com?
- ✅ Genuine Parts Guaranteed: 100% authentic DELTA products with verifiable provenance
- ✅ B2B Specialist: Dedicated to industrial automation OEMs, system integrators, and MRO procurement teams
- ✅ Global Shipping: Reliable export logistics to 50+ countries with full customs documentation
- ✅ Technical Expertise: Our team includes qualified automation engineers who understand your application
- ✅ Fast Response: Inquiries answered within 1 business day; urgent requests prioritized
- ✅ Competitive Pricing: Volume discounts available for OEM and project-based procurement
Frequently Asked Questions
Q: What is the difference between DVP14SS211R and DVP14SS211T?
A: The DVP14SS211R features relay (R) outputs for switching both AC and DC loads. The DVP14SS211T uses transistor (NPN) outputs for faster switching and pulse output applications such as stepper motor control.
Q: Can the DVP14SS211R communicate with third-party HMIs and SCADA systems?
A: Yes. The onboard RS-485 port supports Modbus RTU protocol, compatible with the vast majority of industrial HMIs, SCADA platforms, and data acquisition systems.
Q: How many expansion modules can be connected to the DVP14SS211R?
A: The DVP-SS2 series supports up to 8 expansion modules on the right-side expansion bus, significantly extending I/O capacity beyond the base 14 points.
Q: Is WPLSoft free to download and use?
A: Yes. Delta’s WPLSoft and ISPSoft are available as free downloads from Delta’s official website with no licensing fees required.
Q: What warranty do you offer on DVP14SS211R units?
A: We offer a standard 12-month warranty against manufacturing defects. Extended warranty arrangements can be discussed for volume orders.
Q: Can you supply DVP14SS211R in bulk for OEM projects?
A: Absolutely. We specialize in B2B and OEM procurement. Contact us with your project timeline and quantity requirements for a tailored quotation.
