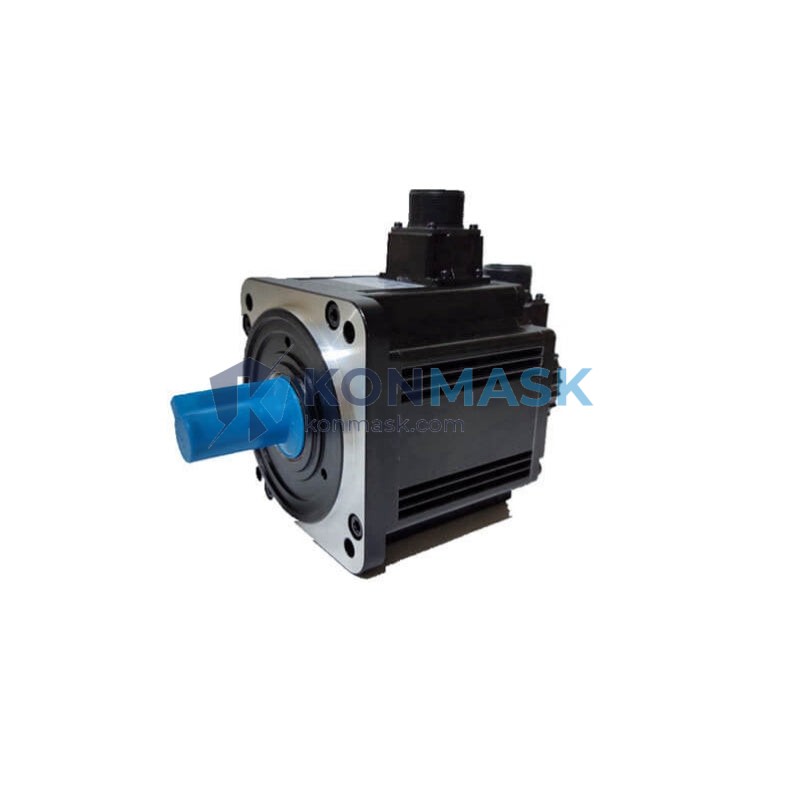

Industrial Motion Control Solution – Delta ECMA-E21320SS | ASDA Series
Where This Product Is Used
The Delta ECMA-E21320SS is a 2kW, 3000 RPM AC servo motor engineered for demanding industrial motion control applications. It is widely deployed in the following sectors:
- Robotic Arms & Articulated Robots – Provides precise torque and speed control for joint actuation in 6-axis industrial robots and SCARA systems, including the EX160-SDN1A robot arm platform.
- CNC Machining Centers – Drives spindle and axis feed systems in milling, turning, and grinding machines requiring sub-micron positioning accuracy.
- Semiconductor & Electronics Assembly – Used in pick-and-place machines, wafer handlers, and SMT equipment where smooth, low-vibration motion is critical.
- Packaging & Filling Lines – Powers servo-driven conveyors, indexing tables, and capping heads in food, beverage, and pharmaceutical packaging.
- Injection Molding Machines – Controls clamp, injection, and ejection axes in all-electric and hybrid injection molding systems.
- Textile & Printing Machinery – Synchronizes multi-axis web tension and registration in high-speed printing and weaving equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ECMA-E21320SS |
| Rated Output Power | 2.0 kW |
| Rated Speed | 3000 RPM |
| Rated Torque | 6.37 N·m |
| Peak Torque | 19.1 N·m |
| Encoder Resolution | 17-bit (131,072 ppr) incremental / absolute optional |
| Voltage | 220–240 V AC, 3-phase |
| Frame Size | 130 mm (ECMA-E series) |
| Protection Class | IP67 (shaft seal standard) |
| Insulation Class | Class F |
| Inertia | Medium inertia |
| Compatible Drive | Delta ASDA-B2 / ASDA-A2 / ASDA-A3 series |
| Cross-Reference SKUs | 1181-000450-15 | MC-31039B | VV5Q11-08-DAL01055 |
| Origin | Taiwan |
| Weight | ~3.6 kg |
Why Engineers Specify This Model
- High Torque Density – 6.37 N·m continuous torque in a compact 130 mm frame reduces machine footprint without sacrificing performance.
- 17-Bit Encoder Precision – 131,072 counts per revolution enables sub-arc-minute positioning, critical for robotic and CNC applications.
- IP67 Sealing – Full dust-tight and water-immersion protection makes it suitable for washdown environments in food processing and pharmaceutical lines.
- Seamless Delta Ecosystem Integration – Plug-and-play compatibility with ASDA-B2/A2/A3 drives eliminates parameter tuning complexity and reduces commissioning time.
- Low Cogging Torque – Smooth rotation at low speeds ensures consistent surface finish in grinding and polishing applications.
- Wide Speed Range – 1:5000 speed ratio supports both ultra-low creep speeds and full 3000 RPM operation within a single axis.
Complete System Bill of Materials
For a fully operational servo axis using the ECMA-E21320SS, the following components are typically required:
- Servo Motor: Delta ECMA-E21320SS (this unit)
- Servo Drive: Delta ASDA-B2-2023-B or ASDA-A2-2023-M (2 kW, 220 V)
- Encoder Cable: Delta ASD-ABEN0003 (3 m) or custom length
- Power Cable: Delta ASD-ABPW0003 (3 m) or custom length
- Brake Resistor: Delta BR400W010 (if regenerative braking required)
- PLC / Motion Controller: Delta DVP-EH3 or AX-308E for multi-axis coordination
- Safety Relay: Pilz PNOZ or equivalent for STO (Safe Torque Off) compliance
Compliance & Industry Standards
- CE Marking – EU Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL Listed – UL 1004 (Rotating Electrical Machines)
- RoHS Compliant – Directive 2011/65/EU
- ISO 9001:2015 – Delta Electronics manufacturing quality system
- IEC 60034 – Rotating electrical machines standard
- SEMI S2 / S8 – Semiconductor equipment safety guidelines (applicable configurations)
Quality Assurance & Sourcing
Konmask.com sources the ECMA-E21320SS exclusively through authorized Delta Electronics distribution channels and verified industrial surplus networks. Every unit undergoes the following before shipment:
- Visual inspection for mechanical damage, shaft runout, and connector integrity
- Encoder signal verification (A/B/Z pulse output confirmed)
- Winding resistance and insulation resistance (IR) test ≥ 100 MΩ at 500 V DC
- Rotation test under no-load conditions to confirm bearing smoothness
- Original Delta serial number and date code verified against manufacturer records
All units ship with an anti-static bag, foam-padded carton, and a Konmask inspection certificate.
How to Source This Part
Ready to order or need a custom quantity? Contact our industrial parts team:
- Email: [email protected]
- Phone / WhatsApp: +0086 198 5928 8691
- Website: https://konmask.com
- Provide your required quantity, delivery timeline, and destination country for a tailored quotation including shipping and import duty estimates.
- OEM cross-reference lookup available: submit part numbers 1181-000450-15, MC-31039B, TS-4000Z-16, or VV5Q11-08-DAL01055 for instant match confirmation.
Application-Specific FAQ
Q: Is the ECMA-E21320SS compatible with the EX160-SDN1A robot arm?
A: Yes. The EX160-SDN1A is a Delta 6-axis industrial robot that uses ECMA-E series servo motors on its primary axes. The ECMA-E21320SS is a documented replacement motor for this platform.
Q: What is the difference between ECMA-E21320SS and ECMA-E21320RS?
A: The suffix “SS” denotes a standard shaft with keyway and IP67 oil seal. “RS” typically indicates a reduced-shaft or application-specific variant. Confirm your robot arm’s motor mount specification before ordering.
Q: Can this motor be used with a non-Delta drive?
A: The ECMA-E21320SS uses Delta’s proprietary 17-bit encoder protocol. While the motor windings are compatible with generic servo drives, full encoder functionality requires a Delta ASDA-series drive or a third-party drive with Delta encoder support (e.g., via SSI or BiSS-C adapter).
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For bulk orders or units requiring factory-new certification, lead time is 2–4 weeks. Contact us for real-time stock confirmation.
Q: Do you provide a warranty?
A: All units sold by Konmask.com carry a 90-day functional warranty covering encoder failure, winding defects, and bearing noise. Warranty excludes physical damage caused during installation.
