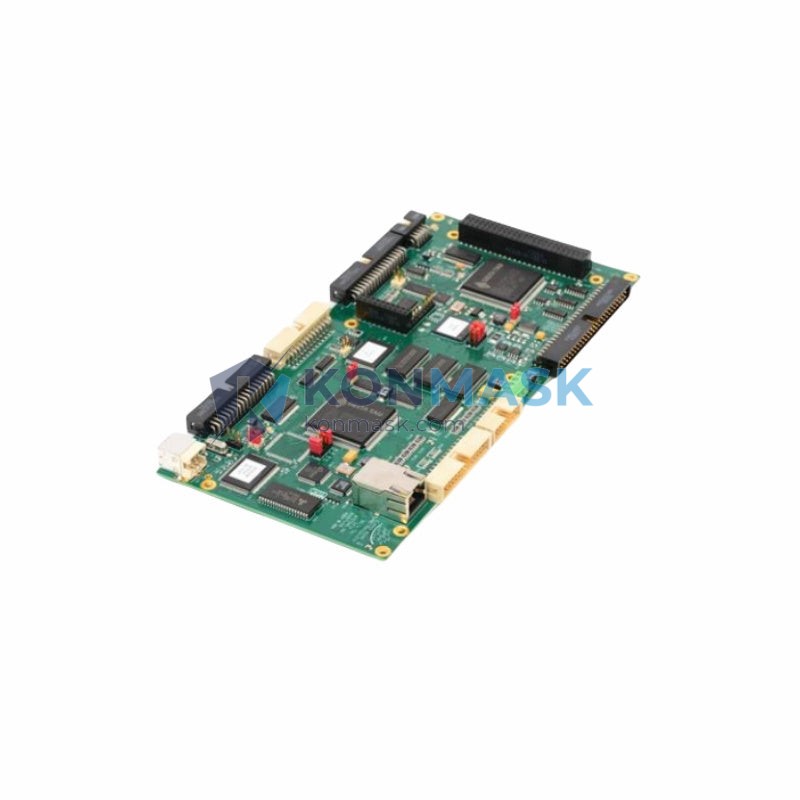

Delta PMAC2A-ETH Motion Controller CPU Board | Replacement, Equivalent & Selection Guide
The Delta PMAC2A-ETH is a high-performance Ethernet-enabled motion controller CPU/control board designed for precision multi-axis automation systems. As an authorized sourcing partner, Konmask.com supplies genuine Delta PMAC2A-ETH units along with verified compatible replacements to keep your production lines running.
Technical Specifications
- Part Number: PMAC2A-ETH
- Brand: Delta Electronics (台达)
- Series: PMAC2A
- Type: Motion Controller CPU / Control Board
- Communication Interface: Ethernet (ETH)
- Form Factor: PCB Control Board
- Application: Multi-axis CNC & motion control systems
- Compatibility: Delta PMAC2A series motion controller platforms
- Weight: ~20 g (board only, without housing)
- Origin: Industrial-grade, OEM specification
Compatible Replacement & Equivalent Models
When sourcing a replacement for the PMAC2A-ETH, the following models may serve as functional equivalents depending on your system configuration. Always verify firmware and hardware revision compatibility before substitution.
- Delta PMAC2A-PC – PCI-bus variant; equivalent CPU core, different interface
- Delta PMAC2A-USB – USB communication variant; same motion engine
- Delta PMAC2 (base model) – predecessor without Ethernet; compatible in legacy setups
- Tau Data Systems PMAC2A-ETH – OEM-equivalent board (original manufacturer)
- Turbo PMAC2-ETH – upgraded Turbo series; pin-compatible in many Delta PMAC2A enclosures
Note: Konmask.com recommends confirming axis count, firmware version, and I/O mapping before deploying any replacement board in a live system.
Why Choose the Original Delta PMAC2A-ETH
- ✅ Proven Ethernet connectivity for real-time network-based motion control
- ✅ Full Delta PMAC2A ecosystem compatibility — no re-engineering required
- ✅ High-speed trajectory calculation for complex multi-axis coordination
- ✅ Stable long-term supply through Konmask’s verified sourcing channels
- ✅ OEM-grade quality with traceability documentation available on request
Typical Applications
- CNC machining centers (milling, turning, grinding)
- Semiconductor wafer handling & inspection equipment
- Laser cutting & engraving systems
- Robotic assembly lines requiring synchronized multi-axis motion
- Medical device manufacturing automation
- Precision measurement & testing platforms
System Compatibility
The PMAC2A-ETH integrates with the following Delta and third-party components:
- Delta ASDA-A2 / ASDA-B2 servo drives — native protocol support
- Delta DVP series PLCs — via Ethernet I/O expansion
- PMAC Executive / PEWIN32PRO2 software environment
- EtherCAT / Modbus TCP network topologies (firmware dependent)
- Standard 100BASE-TX Ethernet infrastructure
Selection Guide
Use the table below to select the correct PMAC2A variant for your application:
| Model | Interface | Best For | Max Axes |
|---|---|---|---|
| PMAC2A-ETH | Ethernet | Networked factory automation | Up to 32 |
| PMAC2A-PC | PCI | PC-embedded control | Up to 32 |
| PMAC2A-USB | USB | Lab / R&D environments | Up to 32 |
| Turbo PMAC2-ETH | Ethernet | High-speed servo loops | Up to 32 |
Need help selecting? Contact our engineers at support@konmask.com with your axis count, servo brand, and network topology.
Quality Assurance & Sourcing
- Source: Authorized distributors and verified OEM channels
- Inspection: Each unit undergoes visual and functional pre-shipment checks
- Documentation: Certificate of conformance and traceability records available
- Warranty: 12-month limited warranty against manufacturing defects
- Anti-counterfeit: Holographic labels and serial number verification on request
How to Order
- Confirm your part number: PMAC2A-ETH
- Specify quantity and required delivery timeline
- Add to cart or contact us for bulk/OEM pricing
- Receive order confirmation with estimated lead time within 24 hours
- Shipment via DHL / FedEx with full tracking provided
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the PMAC2A-ETH replace a Turbo PMAC2-ETH directly?
A: In most cases yes, but firmware re-flashing and I/O remapping may be required. Contact us for a compatibility assessment.
Q: Is the PMAC2A-ETH compatible with third-party servo drives?
A: Yes, via standard pulse/direction or analog ±10V interfaces. EtherCAT compatibility depends on firmware version.
Q: Do you supply refurbished units?
A: We supply new OEM units only. Refurbished options are available upon request with full disclosure of condition.
Q: What is the lead time for PMAC2A-ETH?
A: Typically 3–7 business days for in-stock units; 2–4 weeks for special orders.
Q: Can I return a board if it is incompatible?
A: Yes, within 30 days of receipt in original, unopened condition. See our returns policy for details.
