Temperature Measurement Solution – DIASYS FXAIM04A-DW | Netmation Series

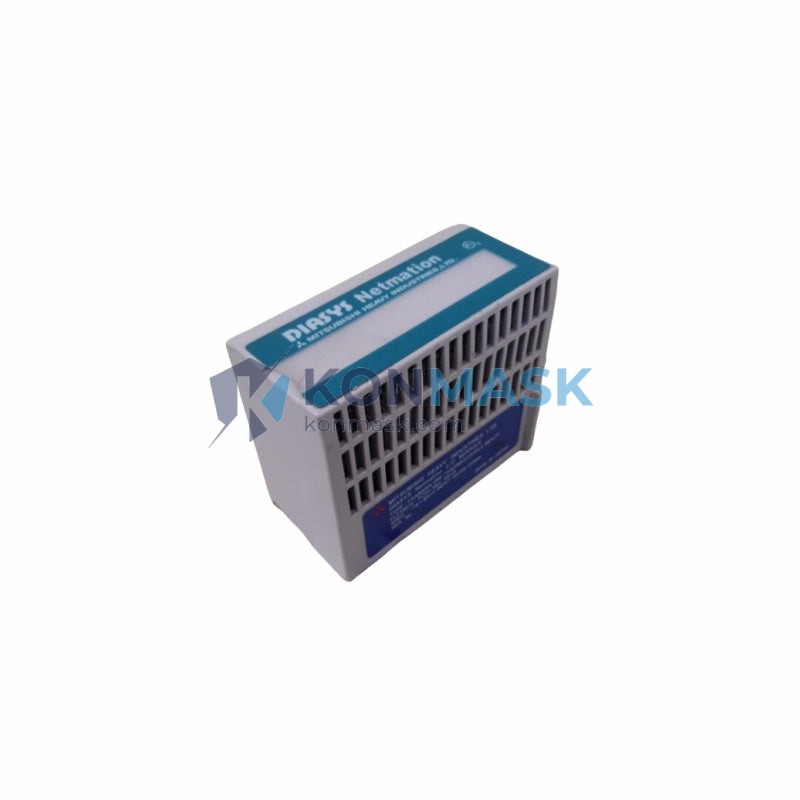

The DIASYS FXAIM04A-DW is a thermocouple analog input module designed for the Netmation distributed control system (DCS) platform by Mitsubishi Electric. It delivers high-accuracy multi-channel temperature acquisition for demanding industrial process environments where precision and reliability are non-negotiable.
Where This Product Is Used
The FXAIM04A-DW is specified by process engineers and control system integrators across the following industries and applications:
- Power Generation Plants – Boiler combustion temperature monitoring, turbine exhaust gas measurement, and steam header control loops.
- Petrochemical & Refinery Facilities – Reactor temperature profiling, distillation column control, and heat exchanger management.
- Steel & Metallurgy – Furnace temperature regulation, continuous casting process control, and rolling mill thermal management.
- Cement & Building Materials – Kiln temperature control and clinker cooling process automation.
- Pharmaceutical Manufacturing – Sterilization cycle temperature validation and clean-room HVAC monitoring.
- Pulp & Paper – Dryer section temperature control and digester process management.
Technical Specifications
| Part Number | FXAIM04A-DW |
| Manufacturer | DIASYS (Mitsubishi Electric Netmation) |
| Series | Netmation DCS |
| Module Type | Thermocouple Analog Input |
| Input Channels | 4 Channels |
| Input Signal Type | Thermocouple (TC) |
| Supported TC Types | J, K, T, E, R, S, B (model-dependent) |
| Communication Interface | Netmation backplane bus |
| Power Supply | Via DCS backplane (24 VDC) |
| Weight | 260 g |
| Form Factor | DIN-rail / rack-mount I/O card |
| Operating Temperature | 0 °C to 55 °C |
| Humidity | 5% to 95% RH (non-condensing) |
Why Engineers Specify This Model
- Native Netmation Compatibility – Plug-and-play integration with Mitsubishi Netmation DCS controllers; no signal conditioning adapters required.
- Multi-TC Type Support – A single module handles multiple thermocouple types, reducing spare-parts inventory complexity.
- High-Resolution Conversion – Delivers accurate temperature readings critical for tight process control tolerances.
- Isolated Inputs – Channel-to-channel isolation prevents ground loop interference in noisy industrial environments.
- Compact Form Factor – Optimized for high-density I/O cabinets where rack space is at a premium.
- Long Service Life – Built to Mitsubishi Electric’s industrial-grade reliability standards for continuous 24/7 operation.
Complete System Bill of Materials
The FXAIM04A-DW is typically deployed alongside the following Netmation system components:
- Netmation DCS Controller / CPU Module
- Netmation I/O Backplane / Rack
- DIASYS Power Supply Module (24 VDC)
- Netmation Communication Bus Cable
- Thermocouple field wiring (shielded, twisted-pair)
- Engineering Workstation with Netmation configuration software
Contact us for a complete BOM quotation tailored to your project scope.
Compliance & Industry Standards
- Designed and manufactured under ISO 9001 quality management systems.
- Compliant with IEC 61131 programmable controller standards.
- Suitable for installation in environments meeting IEC 60068 environmental test requirements.
- CE marking applicable for EU market deployments.
Quality Assurance & Sourcing
Every DIASYS FXAIM04A-DW unit offered by Konmask.com undergoes the following verification process before dispatch:
- ✔ Visual inspection for physical damage, corrosion, and connector integrity
- ✔ Functional power-on test confirming module initialization
- ✔ Firmware version verification against OEM documentation
- ✔ Anti-static packaging with humidity indicator card
- ✔ Traceable sourcing from authorized distributors or decommissioned OEM systems
How to Source This Part
Konmask.com specializes in hard-to-find DCS and PLC modules for industrial automation. To order the FXAIM04A-DW:
- Add to cart and complete checkout, or
- Email support@konmask.com with your project quantity and delivery timeline, or
- Call / WhatsApp: +0086 19859288691 for urgent requirements and volume pricing.
We ship globally with DHL, FedEx, and UPS Express. Lead time: 1–5 business days for in-stock units.
Application-Specific FAQ
Q: Is the FXAIM04A-DW compatible with all Netmation DCS generations?
A: It is designed for the Netmation platform. Please confirm your controller generation with our technical team to ensure backplane compatibility.
Q: Can this module replace a failed unit without reconfiguration?
A: In most Netmation architectures, hot-swap replacement is supported. Configuration is stored in the controller, not the I/O module. Verify with your system documentation.
Q: What thermocouple types are supported?
A: The FXAIM04A-DW supports standard industrial thermocouple types. Contact us for the full type list specific to your firmware revision.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty. Extended warranty options are available on request.
Q: Can you supply multiple units for a plant-wide upgrade?
A: Yes. We handle volume orders. Contact us for bulk pricing and lead-time commitments.
