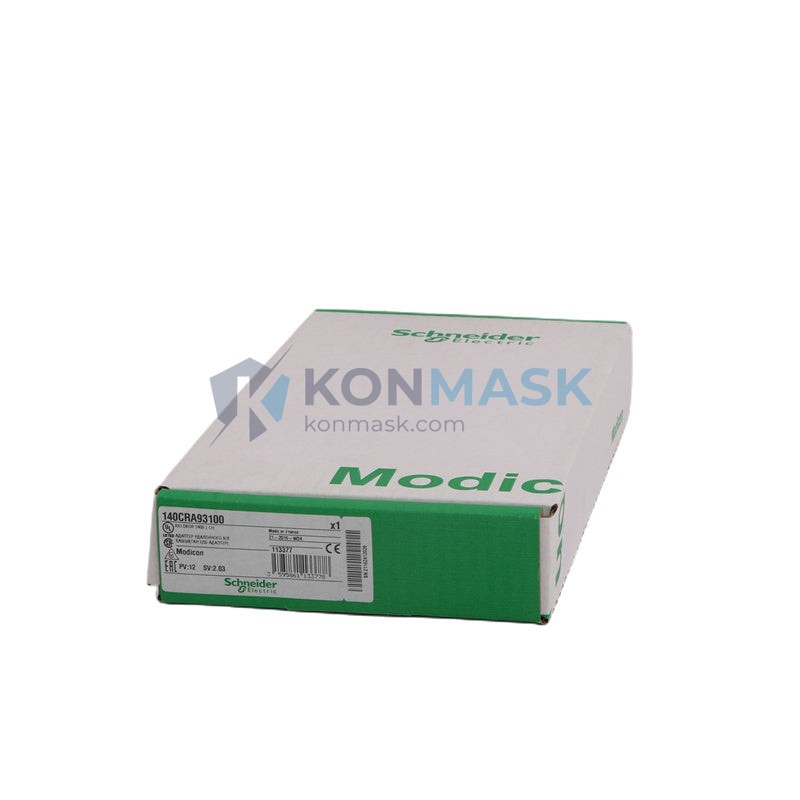

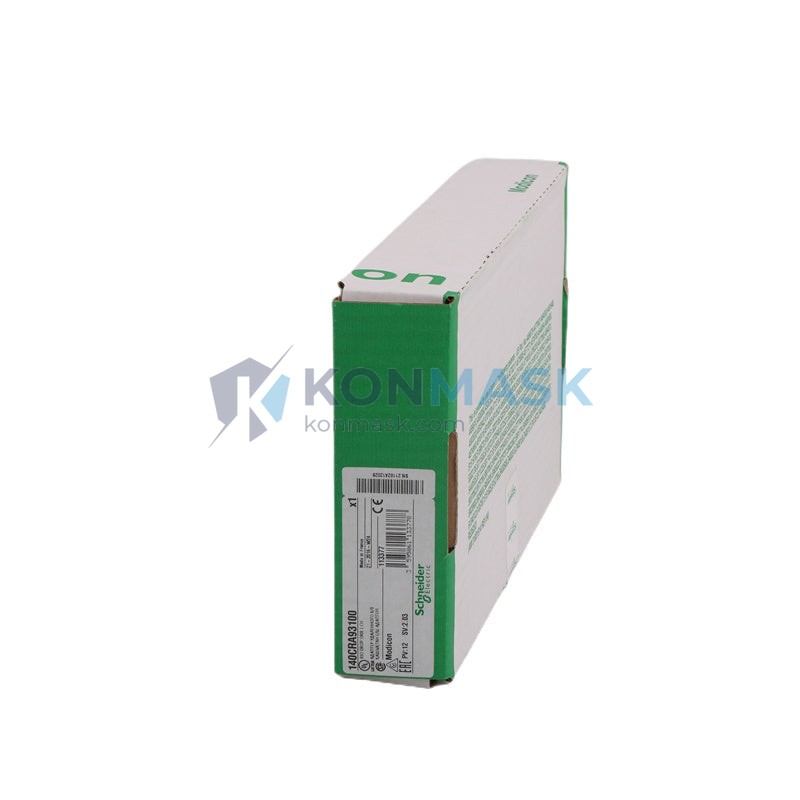

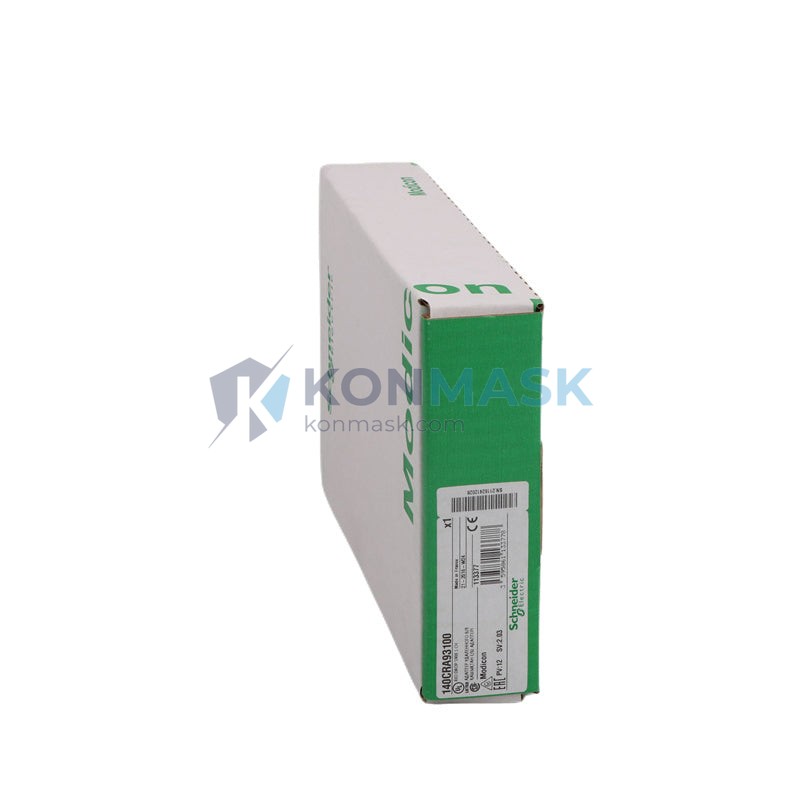

Distributed I/O Solution – SCHNEIDER 140CRA93100 | RIO DROP S908 1CH
In large-scale process plants, power generation facilities, and continuous manufacturing lines, field instruments and actuators are distributed across areas spanning hundreds of metres. Routing individual signal cables back to a centralised marshalling cabinet adds 30–60% to installation material costs, introduces signal degradation over long cable runs, and creates single-point-of-failure wiring harnesses that can take 8–24 hours to diagnose and restore during an unplanned shutdown. For a 500-point I/O system, this translates to tens of thousands of metres of copper cable and weeks of commissioning labour.
The SCHNEIDER 140CRA93100 RIO DROP S908 1CH eliminates this problem at the architecture level. As a single-channel Remote I/O (RIO) drop adapter for the Modicon Quantum PLC platform, it places a fully autonomous I/O node directly at the field device cluster — communicating back to the Quantum CPU over a single coaxial S908 RIO cable at up to 1 Mbit/s. One cable replaces hundreds of individual conductors, commissioning time drops by up to 70%, and each drop operates independently so a cable fault isolates only that segment, not the entire system.
Where This Product Is Used
Oil & Gas — Upstream & Midstream
- Wellhead control panels: monitors Christmas-tree valve positions and pressure transmitters (4–20 mA) in Class I Div 2 / Zone 2 environments; ambient –40 °C to +70 °C.
- Compressor station skids: interfaces with vibration sensors, lube-oil pressure switches, and ESD solenoids; must meet API 670 machinery protection wiring practices.
- Pipeline SCADA RTU cabinets: provides local I/O expansion for flow computers and cathodic protection monitors along right-of-way installations.
Power Generation & Transmission
- Turbine auxiliary control: collects thermocouple and RTD signals from bearing temperature arrays (up to 48 points per drop) inside turbine halls with high EMI from generator excitation.
- Substation automation: interfaces protection relays and tap-changer position feedback; IEC 61850 upstream gateway connects via Quantum CPU Ethernet module.
- Boiler drum level and combustion control: handles high-density analog I/O (drum level, steam flow, fuel flow) in environments up to 55 °C continuous ambient.
Water & Wastewater Treatment
- Pump station remote monitoring: controls submersible pump starters and monitors wet-well level floats across geographically dispersed lift stations over a single RIO trunk cable.
- Chemical dosing skids: interfaces peristaltic pump speed references and flow-meter pulse inputs; IP65 enclosure required for wash-down environments.
- SCADA-linked clarifier drives: provides local I/O for torque-overload detection and rake position feedback per AWWA C651 operational standards.
Automotive & Discrete Manufacturing
- Body-in-white welding lines: manages gun-open/close solenoids and weld-current feedback at each robot cell; cycle times <100 ms require deterministic RIO scan rates.
- Paint shop conveyor control: interfaces encoder feedback and zone-entry photocells in high-humidity, solvent-laden atmospheres (ATEX Zone 22 dust).
- Press transfer automation: collects die-protection sensor arrays (up to 32 discrete inputs per drop) with hard-wired safety relay interlocks per ISO 13849 PLd.
Pulp, Paper & Chemicals
- Digester control: monitors cooking liquor temperature and pressure at multiple vessel elevations; corrosive H₂S atmosphere requires sealed module housing.
- Chlor-alkali electrolysis cells: interfaces cell voltage monitoring and brine flow control valves in continuous 24/7 production with <0.1% annual downtime targets.
- Batch reactor sequencing: provides local I/O for agitator speed, jacket temperature, and vent valve control per NAMUR NE 107 field device diagnostics.
Mining & Minerals Processing
- Conveyor belt systems: monitors belt-slip, pull-cord E-stops, and chute-pluggage switches across 2 km+ conveyor runs; single RIO cable replaces multi-core tray cable.
- SAG/Ball mill control: interfaces bearing temperature RTDs, oil-pressure switches, and mill-speed encoders in high-vibration, dusty environments (IP54 minimum).
- Flotation cell control: manages dart-valve actuators and froth-level ultrasonic sensors across banks of 8–12 cells with individual drop adapters per cell cluster.
Technical Specifications
| Part Number | 140CRA93100 |
| Series | Modicon Quantum RIO DROP |
| Network Type | S908 Remote I/O (RIO) — single channel [determines max cable distance and scan rate] |
| Communication Speed | 57.6 kbit/s / 115.2 kbit/s / 1 Mbit/s (auto-negotiated) [1 Mbit/s enables <10 ms scan for fast process loops] |
| Max Drops per RIO Branch | 31 drops [supports large distributed architectures without additional head-end hardware] |
| Max Cable Distance | 4,572 m (15,000 ft) at 57.6 kbit/s; 1,524 m (5,000 ft) at 1 Mbit/s [covers most plant-wide layouts at medium speed] |
| I/O Modules Supported | All Quantum 140-series I/O modules (analog, discrete, specialty) |
| Slots per Drop | Up to 8 I/O module slots (with 140XBP extension backplane) |
| Power Supply | 24 VDC or 120/240 VAC (via local Quantum power supply module) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration | IEC 60068-2-6: 10–57 Hz, 0.075 mm; 57–150 Hz, 1 g |
| Shock | IEC 60068-2-27: 15 g, 11 ms half-sine |
| EMC Immunity | IEC 61000-4 series (ESD, EFT, surge, conducted RF, radiated RF) |
| Certifications | CE, UL 508, CSA C22.2 No. 142, FM Class I Div 2 |
| Mounting | Quantum backplane (140XBP series) — DIN rail or panel mount |
| Weight | Approx. 500 g |
| Dimensions (H × W × D) | Standard Quantum single-slot module form factor |
Why Engineers Specify This Model
- In long-distance conveyor and pipeline SCADA applications, the 140CRA93100 delivers up to 4,572 m cable reach on a single coaxial trunk because the S908 protocol uses balanced coaxial transmission with repeater support, meeting IEC 61158 fieldbus distance requirements without additional infrastructure cost.
- In high-density analog process loops (boiler, digester, reactor), the 140CRA93100 delivers deterministic <10 ms scan at 1 Mbit/s because the RIO protocol allocates fixed time slots per drop, meeting IEC 61511 SIL 2 response-time budgets for safety instrumented functions.
- In automotive welding and press transfer lines, the 140CRA93100 delivers hot-standby redundancy compatibility because it integrates natively with the Quantum Hot Standby (140CPU67160) architecture, meeting ISO 13849 PLd requirements for safety-related control systems.
- In mining and minerals processing environments, the 140CRA93100 delivers robust operation in high-vibration, dusty conditions because the module passes IEC 60068-2-6 vibration and IEC 60068-2-27 shock qualification, meeting the mechanical durability demands of SAG mill and conveyor applications.
- In oil & gas Class I Div 2 / Zone 2 installations, the 140CRA93100 delivers FM-certified non-incendive operation because it carries FM Class I Division 2 approval, meeting NEC Article 501 and IEC 60079-15 requirements for use in flammable gas atmospheres without purged enclosures.
- In brownfield Quantum PLC migration projects, the 140CRA93100 delivers drop-in compatibility with all existing 140-series I/O modules because it uses the original S908 backplane protocol, meeting project constraints that prohibit I/O module replacement and minimising capital expenditure on legacy system upgrades.
Complete System Bill of Materials
A fully operational RIO drop node based on the 140CRA93100 typically requires the following components:
- 140CRA93100 — RIO Drop Adapter (this item): occupies slot 0 of the local backplane; manages all S908 communication and I/O scanning for the drop.
- 140XBP00600 / 140XBP01000 — Quantum Backplane (6-slot or 10-slot): mechanical chassis that houses the drop adapter and I/O modules; provides backplane power bus.
- 140CPS11420 / 140CPS21400 — Quantum Power Supply (24 VDC or 120/240 VAC): provides regulated 5 VDC and 24 VDC backplane power; sized to total I/O module current draw.
- 140-series Discrete Input Modules (e.g. 140DDI35300, 140DDI84100): collect 24 VDC or 120 VAC field device signals; select module type to match field voltage and isolation requirements.
- 140-series Discrete Output Modules (e.g. 140DDO35300, 140DDO84300): drive solenoids, contactors, and indicator lamps; select relay or transistor output based on load type.
- 140-series Analog Input Modules (e.g. 140ACI04000, 140AII33000): accept 4–20 mA, 0–10 V, thermocouple, or RTD signals from transmitters and sensors.
- 140-series Analog Output Modules (e.g. 140ACO02000): provide 4–20 mA or 0–10 V references to control valves, VFDs, and positioners.
- S908 RIO Coaxial Cable & Connectors (Belden 9463 or equivalent): trunk cable connecting the Quantum CRP head-end to each drop; BNC T-connectors and 75 Ω terminators required at each drop and at cable ends.
- 140CRP93100 / 140CRP93200 — Quantum RIO Head-End Module: installed in the main Quantum rack; manages the RIO branch and communicates with the CPU; one head-end supports up to 31 drops.
- Enclosure & DIN Rail Hardware: IP54 or IP65 rated steel or GRP enclosure with DIN rail, cable glands, and terminal blocks for field wiring termination.
Compliance & Industry Standards
- CE Marking (EU) — Issued by Schneider Electric under self-declaration per EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Confirms the module meets EU market access requirements for industrial control equipment.
- UL 508 (Industrial Control Equipment) — Issued by Underwriters Laboratories. Confirms the module meets North American safety standards for industrial control panels; required by most US and Canadian plant electrical codes (NEC, CEC).
- CSA C22.2 No. 142 — Issued by CSA Group. Canadian equivalent of UL 508; required for installations under Canadian Electrical Code Part I.
- FM Class I Division 2 (Groups A, B, C, D) — Issued by FM Approvals. Certifies the module for use in locations where flammable gases or vapours may be present under abnormal conditions; eliminates the need for purged/pressurised enclosures in Div 2 areas.
- IEC 61131-2 (Programmable Controllers — Equipment Requirements) — International standard defining electrical, mechanical, and environmental requirements for PLC hardware; the 140CRA93100 is designed and tested to this standard.
- IEC 61000-4 Series (EMC Immunity) — Covers ESD (Part 2), EFT/Burst (Part 4), Surge (Part 5), Conducted RF (Part 6), and Radiated RF (Part 3); compliance ensures reliable operation in electrically noisy industrial environments.
- IEC 60068-2 Series (Environmental Testing) — Covers vibration (Part 6) and shock (Part 27); compliance confirms mechanical robustness for mobile plant, mining, and high-vibration process environments.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 140CRA93100 exclusively through authorised Schneider Electric distribution channels and verified industrial surplus networks with documented chain-of-custody records. We do not source from unverified grey-market brokers.
4-Step Inspection Process:
- Visual & Cosmetic Inspection — Housing integrity, label legibility, connector pin condition, and absence of rework or re-marking are verified against OEM reference samples.
- Firmware & Revision Verification — Module firmware version and hardware revision are confirmed against Schneider Electric’s published compatibility matrix for the target Quantum CPU firmware.
- Functional Power-On Test — Module is powered on a Quantum test backplane; S908 communication is established with a reference CRP head-end and all status LEDs are verified against the 140CRA93100 User Manual diagnostic table.
- Packaging & ESD Protection — Module is packed in anti-static bag with desiccant, foam-lined box, and tamper-evident seal before dispatch.
Documentation Available Upon Request: Original Schneider Electric datasheet, test report, certificate of conformity, packing list with serial number, and commercial invoice for customs clearance.
How to Source This Part
- Submit Your Enquiry — Add to cart or contact us at [email protected] with your required quantity, target delivery date, and any firmware/revision requirements. We respond within 24 hours on business days.
- Receive Quotation & Lead Time — We confirm stock availability, unit price (HKD/USD), lead time, and shipping options (DHL Express, FedEx International Priority, sea freight for bulk orders). Export documentation (commercial invoice, packing list, COO) is included.
- Order Confirmation & Global Dispatch — Upon payment confirmation, your order is picked, inspected, packed, and dispatched within 1–2 business days. We ship worldwide to over 80 countries. Tracking number is provided on same day of dispatch. Typical transit: 3–7 business days (air express).
Application-Specific FAQ
Q: Can the 140CRA93100 be used in a hot-standby redundant Quantum system for a continuous process plant where unplanned downtime costs exceed USD 50,000/hour?
A: Yes. The 140CRA93100 is fully compatible with the Quantum Hot Standby architecture (140CPU67160 primary/standby pair with 140CHS11000 cable). In a hot-standby configuration, both the primary and standby CPUs scan the RIO drops simultaneously; on CPU switchover (typically <1 scan cycle, <10 ms), the RIO drops continue operating without interruption. This makes the 140CRA93100 suitable for SIL 2 safety instrumented systems and high-availability process control applications per IEC 61511.
Q: In a mining conveyor application spanning 2 km, how many 140CRA93100 drops can be placed on a single S908 RIO branch, and what cable type is required?
A: A single S908 RIO branch supports up to 31 drops (140CRA93100 units) with a maximum trunk cable length of 4,572 m at 57.6 kbit/s. The required cable is Belden 9463 (or equivalent) 75 Ω RG-6 coaxial cable with BNC connectors. For a 2 km conveyor, you can place drops at intervals of approximately 65 m, providing I/O nodes at each drive station, transfer point, and E-stop pull-cord cluster — all on a single coaxial trunk cable back to the main control room Quantum rack.
Q: What is the maximum analog I/O density achievable at a single 140CRA93100 drop for a boiler or reactor temperature monitoring application?
A: With a 10-slot backplane (140XBP01000) and the 140CRA93100 in slot 0, you have 9 available I/O slots. Using 140AII33000 8-channel RTD/thermocouple input modules in all 9 slots gives 72 temperature inputs per drop. Alternatively, mixing 140ACI04000 16-channel analog input modules provides up to 144 analog inputs per drop. This density is sufficient for a complete boiler drum, superheater, and economiser temperature array at a single field junction box, eliminating the need for a separate marshalling cabinet at the boiler.
