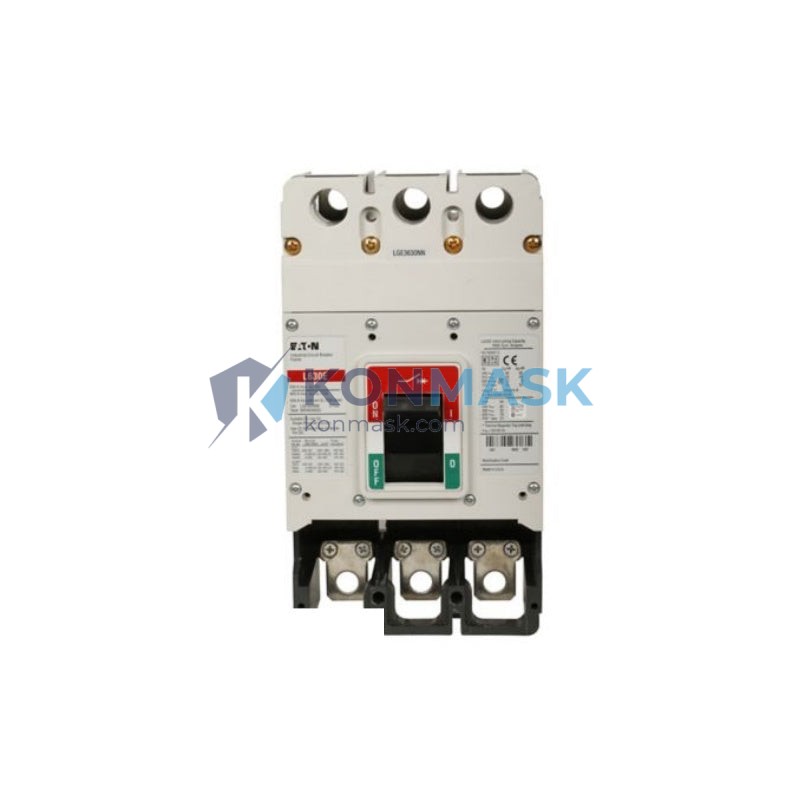

Eaton L630E / 0040-03154 / 8124063G001 – 630A 3-Pole Molded Case Circuit Breaker | Magnum DS / Series C Platform
Engineering Background
The Eaton L630E is a heavy-duty molded case circuit breaker (MCCB) engineered for industrial power distribution systems requiring reliable overcurrent and short-circuit protection up to 630 A. Cross-referenced under Eaton part numbers 0040-03154 and 8124063G001, this device is a direct-fit replacement and upgrade component within Eaton’s Magnum DS / Series C switchgear lineage, widely deployed in petrochemical, utilities, marine, and heavy manufacturing facilities.
Product Positioning
Designed for procurement engineers sourcing verified surplus or OEM-equivalent protection devices for MCC panels, motor control centers, and main distribution boards. Konmask.com supplies this unit from authenticated stock with full traceability documentation available upon request.
Complete Technical Specifications
- Manufacturer: Eaton (formerly Cutler-Hammer / Westinghouse)
- Part Number / SKU: L630E | 0040-03154 | 8124063G001
- Device Type: Molded Case Circuit Breaker (MCCB)
- Rated Current (In): 630 A
- Poles: 3-Pole
- Trip Type: Thermal-Magnetic / Electronic Trip Unit (ETU)
- Voltage Rating: Up to 690 V AC / 250 V DC
- Breaking Capacity (Icu): Per IEC 60947-2 (consult datasheet for specific kA rating)
- Mounting: Fixed / Drawout (platform-dependent)
- Enclosure: Molded thermoplastic case
- Weight: 2.6 kg
- Standards: IEC 60947-2, UL 489 (verify per nameplate)
- Country of Origin: USA / EU (Eaton manufacturing)
Proven Application Environments
- Industrial Motor Control Centers (MCC) – feeder and branch circuit protection
- Main Distribution Boards (MDB) and Sub-Distribution Panels
- Petrochemical & Refinery Power Distribution Systems
- Marine & Offshore Electrical Switchgear
- Utilities & Power Generation Facilities
- Heavy Manufacturing: Steel mills, cement plants, mining equipment
- Data Center UPS bypass and critical power infrastructure
Engineering Advantages
- High Interrupting Capacity: Handles high fault currents typical in industrial bus systems without nuisance tripping
- Adjustable Trip Settings: Long-time, short-time, and instantaneous pickup adjustable via ETU (model-dependent)
- Compact Footprint: Optimized frame size for high-density panel layouts
- Dual Cross-Reference: Single unit satisfies multiple Eaton catalog numbers (L630E / 0040-03154 / 8124063G001), simplifying BOM consolidation
- Drop-in Compatibility: Designed for direct replacement in existing Eaton Magnum DS / Series C switchgear without panel modification
- Long Service Life: Rated for high mechanical and electrical endurance cycles
System Architecture & Signal Flow
In a typical MCC or MDB installation, the L630E is positioned as a feeder breaker on the incoming bus, protecting downstream branch circuits and motor starters. Current flows from the main bus → L630E line terminals → load terminals → downstream distribution. The integrated trip unit continuously monitors current magnitude; on detection of overload (thermal element) or short-circuit (magnetic/instantaneous element), the mechanism trips the contacts open within milliseconds, isolating the fault. For ETU-equipped variants, zone-selective interlocking (ZSI) can be configured to coordinate with upstream devices, minimizing arc flash energy and system downtime.
Sourcing & Quality Verification
- Stock Status: Verified surplus / new-surplus; physical inspection completed
- Traceability: Original manufacturer labeling intact; serial number and date code available on request
- Testing: Functional continuity and insulation resistance test available upon request
- Packaging: Securely packed for international freight; ESD-safe where applicable
- Certifications: IEC 60947-2 compliant; UL listing verifiable via nameplate
- Anti-Counterfeit: All units sourced from verified industrial surplus channels; counterfeit screening performed
Procurement Process
- Confirm Requirement: Verify part number against your BOM — L630E / 0040-03154 / 8124063G001
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing and lead time
- Documentation: Request datasheet, test report, or certificate of conformance as needed
- Order & Ship: DDP / DAP / EXW terms available; global freight via DHL, FedEx, or sea freight for bulk orders
- After-Sales: 12-month warranty on verified surplus; technical support available post-delivery
Technical FAQ
Q: Is the L630E the same as 0040-03154 and 8124063G001?
A: Yes. These are cross-reference part numbers for the same Eaton MCCB unit used across different Eaton catalog systems and legacy Westinghouse/Cutler-Hammer documentation.
Q: What is the breaking capacity (kA rating)?
A: Breaking capacity varies by voltage level and frame configuration. Please contact us with your system voltage and prospective fault current for confirmation against the specific nameplate data.
Q: Can this replace a Westinghouse or Cutler-Hammer breaker?
A: Eaton acquired both brands. The L630E is the current Eaton designation; it is dimensionally and electrically compatible with equivalent legacy Westinghouse/Cutler-Hammer frames. Verify terminal configuration before installation.
Q: Do you offer testing or inspection reports?
A: Yes. Functional test reports and insulation resistance test data are available upon request for qualified buyers.
Q: What are the shipping options?
A: We ship globally via DHL Express, FedEx International, and sea freight for bulk orders. Typical express lead time: 3–7 business days to most destinations.
